Instrument functions R&S ® LCX Series 91 User Manual 1 179.2260.02 ─ 08 The configuration preset excludes measurement range, value and bias settings. ● Indication and selection of a configuration presets One of the t…
Instrument functions
R&S
®
LCX Series
90User Manual 1179.2260.02 ─ 08
a) Set "Reference Load R" = 10
k
Ω
b) Set "Reference Load X" = 0
Ω
4. Perform a load spot correction:
a) Select "Load Correction".
b)
Turn
"Enabled".
c) Connect the reference component.
d) Select "Start Load Correction (Spot)".
Saving/recalling full correction data
The instrument enables you to save correction data of a full correction for later reuse.
This function requires that you have performed a correction before.
1. To run the open and short correction, proceed as described in "Aligning the instru-
ment on all frequencies" on page 36.
2. Select "Open/Short/Load Correction".
3. Select "Correction Storage".
4. To save the correction data set, select "Save Corrections".
5. Select a slot, e.g. "1".
The R&S LCX saves the correction data set and closes the on-screen editor.
6. To retrieve a correction data set, proceed in the same way with "Restore Correc-
tions".
8.7 Configuration preset
The configuration preset function enables you to assign up to three measurement con-
figurations as favorites to the preset keys. By selecting a favorite, the R&S LCX
changes all predefined parameter settings at once, and thus provides to switch quickly
between different measurement settings and conditions.
About configuration preset
Aspects on the functionality:
●
Included parameters
The configuration preset comprises almost all parameters relevant for a measure-
ment:
– Test signal: frequency and level
– Measurement function: L/C/R/Transformer
– Measurement speed
– Cable length
– DC voltage and low current states
– Open/Short/Load correction states
Configuration preset
Instrument functions
R&S
®
LCX Series
91User Manual 1179.2260.02 ─ 08
The configuration preset excludes measurement range, value and bias settings.
●
Indication and selection of a configuration presets
One of the three presets is always active, while the other two are inactive, as
shown on the screen:
– Indication
The
(configuration preset) indicator displays the currently active configu-
ration preset.
The different colors of each preset emphasize the display.
– Selection
The
(preset configuration) softkeys on the screen enable you to activate a
preset directly.
The R&S LCX provides always the two selectable, i.e. the currently inactive
preset softkeys. When you switch to another configuration preset, it adjusts the
labels of the keys and the indicator according to the selection.
When switching to another preset or changing setting parameters, consider
that it can last up to 10 seconds to be sure that all settings are saved.
●
Persistency of configuration presets
The R&S LCX saves a configuration in the selected, i.e. active configuration pre-
set. It saves the settings on the internal file system, which is not accessible. After
power off, the instrument reboots with the recently active configuration preset.
●
Saving options
The settings of the active configuration preset are also included in the "Save/
Recall" function and saved in the *.rds file. When you recall a settings file, the
R&S LCX restores the configuration preset from the file to the same memory slot
("Preset 1, 2 or 3") it was created on. It is not possible to assign it to another slot.
8.7.1 Configuration preset settings
Access:
► Press the [home] key at the front panel.
Configuration preset
Instrument functions
R&S
®
LCX Series
92User Manual 1179.2260.02 ─ 08
2
1

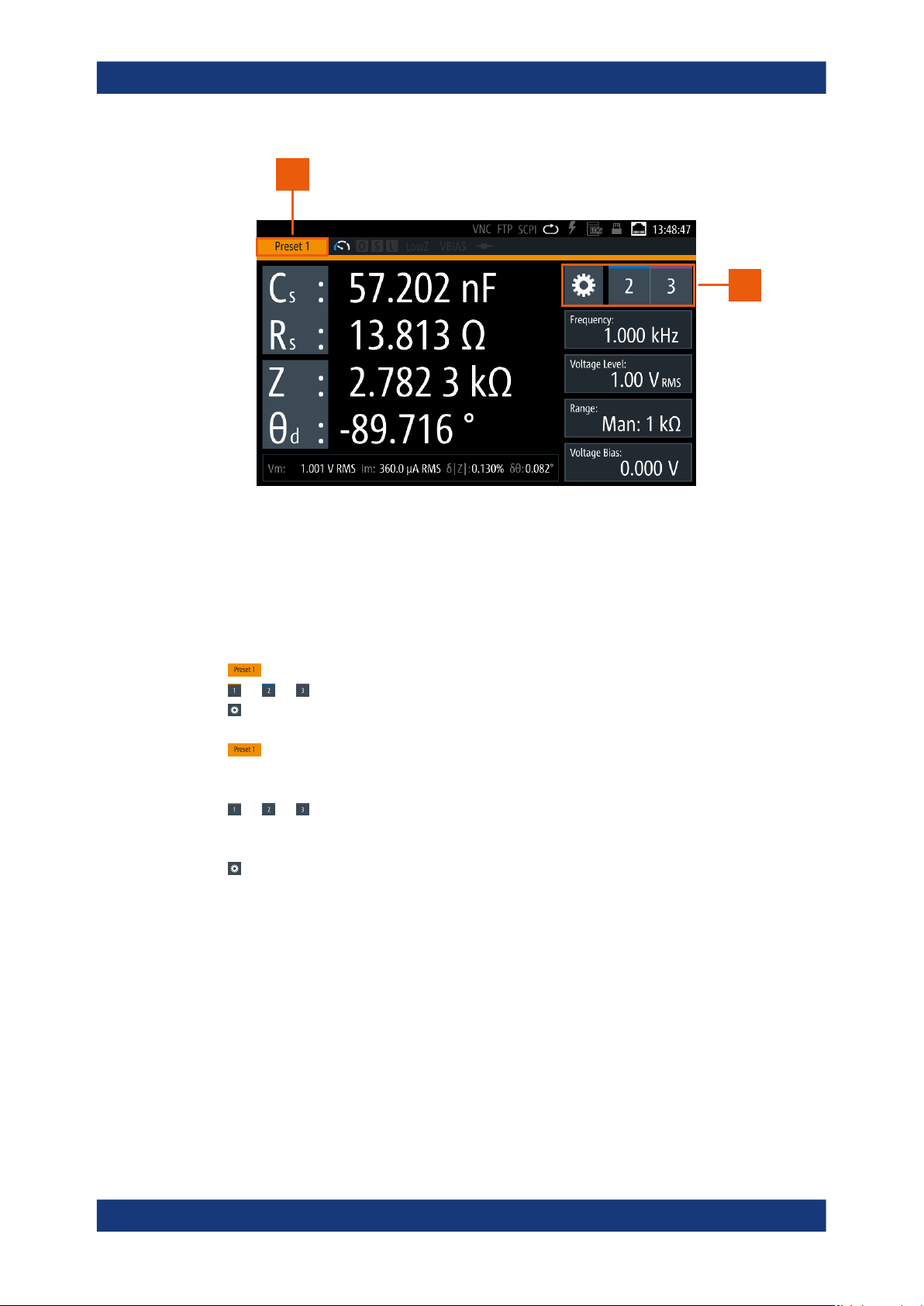

Figure 8-10: Configuration preset indication
1 = Configuration preset indicator
2 = Settings softkey and configuration preset softkeys
The configuration preset softkeys enable you to assign up to three different mea-
surement configurations for quick access.
How to: see Section 8.7.2, "Using the configuration preset function", on page 92
Preset 1, Preset 2, Preset 3..................................................................................92
1, 2, 3.................................................................................................................92
(measurement settings).............................................................................................92
Preset 1, Preset 2, Preset 3
Indicates the active configuration preset.
1, 2, 3
Selects one out of three configuration preset memory slots.
(measurement settings)
Opens a dialog for configuring the parameters that are relevant for the measurement.
See Section 8.6, "Measurement parameters", on page 76.
8.7.2 Using the configuration preset function
You can assign up to three configurations relevant for a measurement as favorites, to
skip quickly between different settings, or to repeat tests with the same settings.
