Instrument functions
R&S
®
LCX Series
82User Manual 1179.2260.02 ─ 08
Based on the set purity angle referred to as A, and the measured angle M, the auto
function assumes the following components:
Angle Component
-A ≤ M ≤ A pure resistance
90°-A ≤ M ≤ 90° pure inductance
A-90° ≤ M ≤ -90° pure capacitance
A < M < 90° resistance and inductance
-A < M < -90° resistance and capacitance
Serial/Parallel Separation Point ← Auto Function
Sets the threshold for the function to switch from serial to parallel impedance measure-
ment, according to the equivalent circuit.
Based on the set separation point S, and the measured impedance Z, the auto function
assumes the following equivalent circuits:
Impedance Equivalent circuit
0 ≤ Z ≤ S serial measurement
S < Z < range parallel measurement
8.6.2 Open/short/load correction settings
The correction dialog enables you to use the correction techniques provided by the
instrument.
Depending on the connected test fixture and the type of component sample to be mea-
sured, refer to the description on how to perform the corresponding corrections, see
Section 6.1, "About test fixtures", on page 53.
Access:
1. Press the [settings] key at the front panel.
2. Select the "Measurement" tab.
Measurement parameters
Instrument functions
R&S
®
LCX Series
83User Manual 1179.2260.02 ─ 08
3. Select "Open/Short/Load Correction".

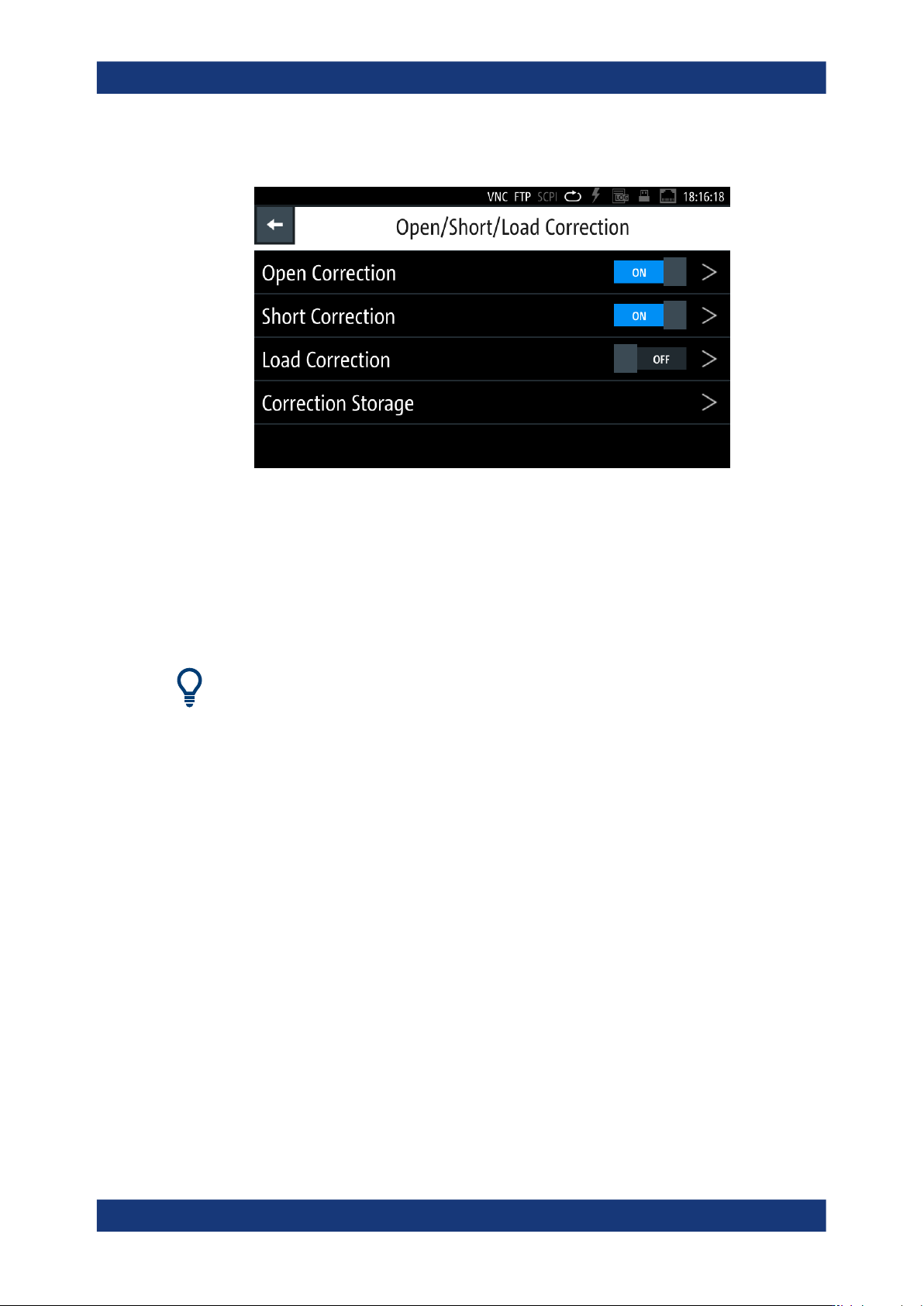

Figure 8-3: Open/Short/Load correction dialog
In this menu, you can enable the corresponding corrections directly, and access
the subdialogs to configure and start the corrections. You can save the correction
data of "Open/Short (FULL)" for later reuse.
The required remote commands are described in: Section 11.6, "CORRection sub-
system", on page 190
How to: see Section 8.6.3, "Performing open/short/load correction", on page 86.
If you need to perform the open and short correction frequently, you can assign these
functions to the [★ (User)] key and perform them with just one keystroke, see Sec-
tion 9.3, "User button", on page 127.
Settings
Open/Short/Load Correction Enabled...........................................................................83
Start Short/Open Correction (Spot)...............................................................................84
Start Short/Open Correction (Full)................................................................................ 84
Start Load Correction (Spot)......................................................................................... 85
Reference Load R.........................................................................................................85
Reference Load X......................................................................................................... 85
Correction storage.........................................................................................................85
Save Corrections...........................................................................................................85
Restore Corrections...................................................................................................... 86
Open/Short/Load Correction Enabled
Enables the corresponding correction function.
To start a correction process, select the corresponding Start Short/Open Correction
(Full) or Start Short/Open Correction (Spot) entry of the respective correction.
Measurement parameters
Instrument functions
R&S
®
LCX Series
84User Manual 1179.2260.02 ─ 08
Remote command:
CORRection:SHORt:STATe on page 195
CORRection:OPEN:STATe on page 194
CORRection:LOAD:STATe on page 193
Start Short/Open Correction (Spot)

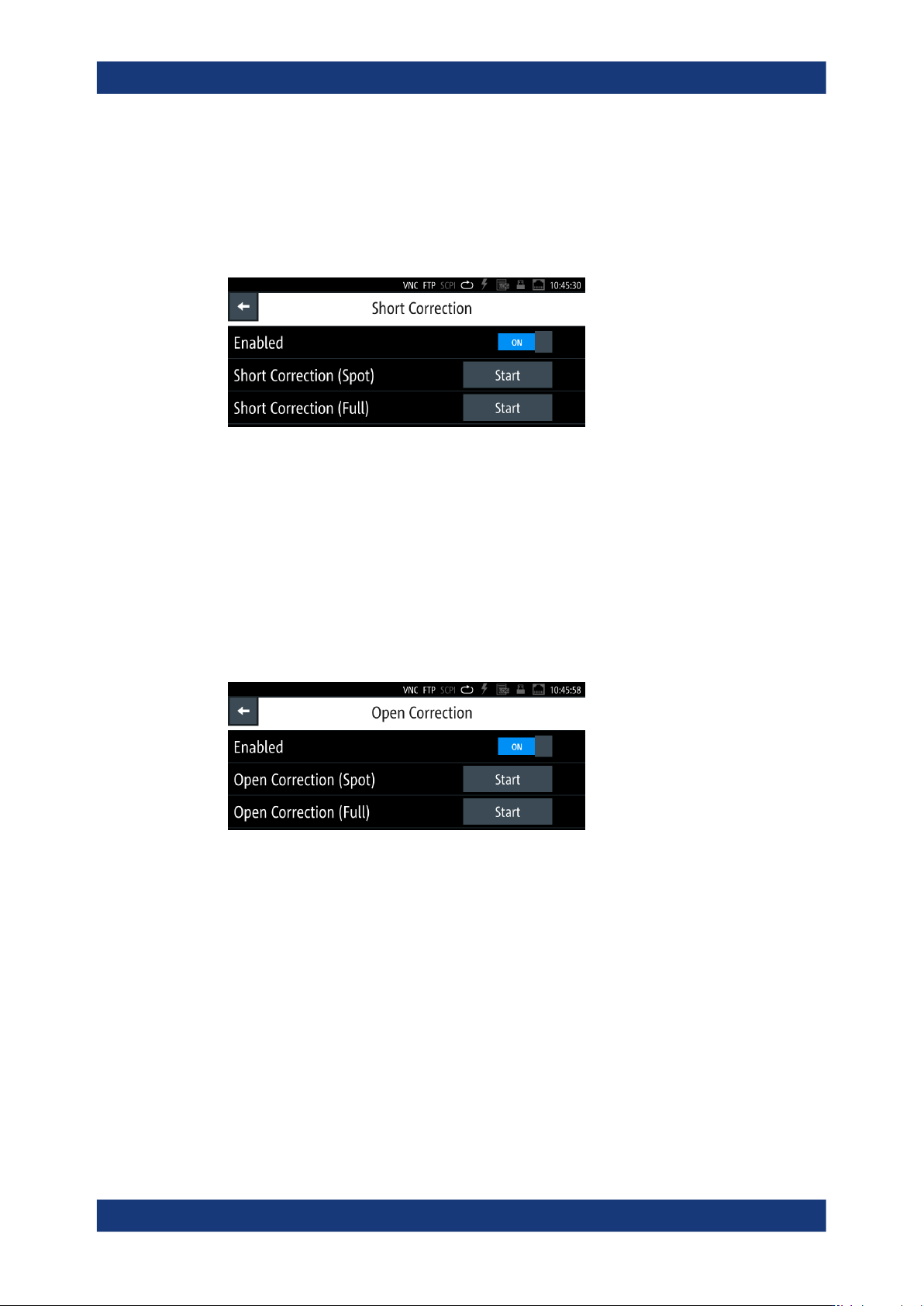

Figure 8-4: Start correction at one working point by the example of the short correction dialog
Performs the correction at a defined working point.
The function requires that you have enabled the state, see "Open/Short/Load Correc-
tion Enabled" on page 83, and set the test fixture to open, or short accordingly.
How to: see "Aligning the instrument on a dedicated working point" on page 88
Remote command:
CORRection:SPOT:OPEN[:EXECute] on page 196
CORRection:SPOT:SHORt[:EXECute] on page 196
Start Short/Open Correction (Full)
Figure 8-5: Start correction on all frequencies by the example of the open correction dialog
Performs the corresponding correction over the entire measurement range.
The function requires that you have enabled the state, see "Open/Short/Load Correc-
tion Enabled" on page 83, and set the test fixture to open, or short accordingly.
How to: see "Aligning the instrument on all frequencies" on page 87
Remote command:
CORRection:OPEN[:EXECute] on page 194
CORRection:SHORt[:EXECute] on page 195
