General instrument functions R&S ® LCX Series 127 User Manual 1 179.2260.02 ─ 08 9.3 User button The user button enables you to assign a certain function to the [ ★ (User)] key for quick access. 9.3.1 User button set…
General instrument functions
R&S
®
LCX Series
126User Manual 1179.2260.02 ─ 08
2. In the "Device" tab, select "Interfaces".
3. Select the corresponding menu item.
Figure 9-5: Interfaces menu
In the "Interfaces" menu, you can access the settings dialogs for configuring the
general network environment and specific identification parameters of the instru-
ment.
As the settings for the dedicated interfaces relate closely to the remote control environ-
ment, see the description in Section 10.3, "Remote access settings", on page 159.
Network
Opens the "Network" connection dialog to configure the Ethernet connection.
USB Class
Opens a selection dialog to set the communication protocol for the USB interface, see
Section 10.3.5, "USB settings", on page 166.
About: see Section 10.2.2, "USB interface", on page 154.
How to: see Section 10.5, "Adjusting interface addresses", on page 169
GPIB Address
Option: R&S NG-B105 GPIB (IEC 625/IEE 488) bus interface
Opens an on-screen keypad for setting the channel address of the address GPIB bus
interface, see Section 10.3.6, "GPIB settings", on page 167.
About: see Section 10.2.3, "GPIB interface (IEC/IEEE bus interface)", on page 155
How to: see Section 10.5, "Adjusting interface addresses", on page 169.
9.2.2 Configuring interfaces
As the information on how to establish and configure a remote control connection
relates closely to the remote control environment, see:
●
Section 10.4, "Connecting the R&S LCX for remote access", on page 167
●
Section 10.5, "Adjusting interface addresses", on page 169
Interfaces
General instrument functions
R&S
®
LCX Series
127User Manual 1179.2260.02 ─ 08
9.3 User button
The user button enables you to assign a certain function to the [★ (User)] key for quick
access.
9.3.1 User button settings
Access:
1. Press the [settings] key at the front panel.
2. In the "Device" tab, select "User Button".

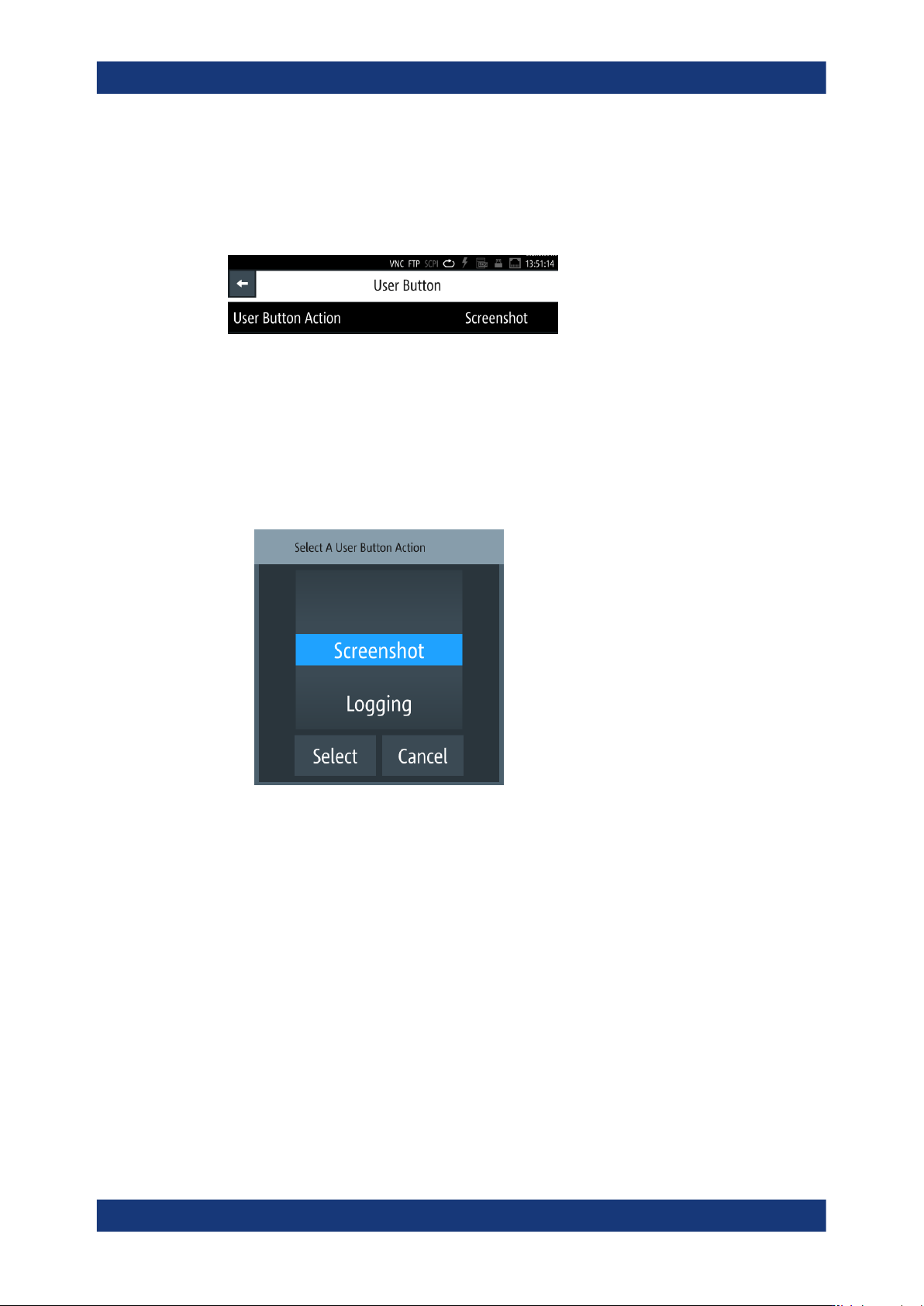

Figure 9-6: User button
The menu lists the functions you can assign to the [★ (User)] key:
● "Screenshot" captures an image of the screen, see Section 9.4, "Screenshot",
on page 128.
● "Logging", see Section 8.8.3, "Logging", on page 101.
● "Touch Lock" locks and unlocks the touchscreen operation (toggle function).
How to: see "Assigning the touch lock function to the "User Button""
on page 128
● "Open Correction" starts calibration on all frequencies for open test fixtures
contacts.
How to: see Section 6.2, "Configuring the test signal", on page 59
● "Short Correction" starts calibration on all frequencies for short-circuit test fix-
tures contacts.
How to: see Section 6.2, "Configuring the test signal", on page 59
● "Open/Short Correction" starts calibration on all frequencies for open/short-cir-
cuit test fixtures contacts.
User button
General instrument functions
R&S
®
LCX Series
128User Manual 1179.2260.02 ─ 08
How to: see Section 6.2, "Configuring the test signal", on page 59
9.3.2 Using the user button function
Depending on the assigned function, pressing the [★ (User)] key executes the action.
The following instructions show how to assign a function, given by the example of the
touchscreen lock. It is also explained how to undo the assignment.
Assigning the touch lock function to the "User Button"
To assign the function to the "User Button":
1. To access the user button settings, select [settings] > "Device" > "User Button".
2. Select "User Button Action".
3. Select "Touch Lock".
4. Confirm with "Select".
5. To activate the touchscreen lock, press the [★ (User)].
A status message informs you that the touch input is disabled.
6. To close the message, press the [Back] key.
Now you can control the instrument only with the front panel keys and navigation
controls.
Activating the locked touch input
To unlock the touchscreen:
► Press the [★ (User)].
The R&S LCX enables the touchscreen input.
9.4 Screenshot
With the screenshot function, you can capture the image of the current screen. The
R&S LCX assigns a unique, generic filename and saves the file in *.png format.
How to: see Section 9.4.2, "Using the screenshot function", on page 129.
9.4.1 Screenshot settings
With a USB flash drive connected, you can save the file on either the USB flash drive
or the internal memory, with "USB1A" as default setting. Without USB connected, the
R&S LCX saves the file internally in the file path /int/screenshot.
Screenshot
