Instrument functions
R&S
®
LCX Series
96User Manual 1179.2260.02 ─ 08
Clear
Resets the chart and restarts the graphical display of the measurement.
8.8.1.2 Displaying the readings in the live chart
Displaying the results graphically
To display the measurement progress and the readings in the live chart view:
1. Press the [settings] key at the front panel.
2. In the "Functions" tab, select "Live Chart".
3. To configure a parameter for display:
a) Select a parameter softkey on the right of the screen.
The "Configure Chart Trace <n>" dialog opens.

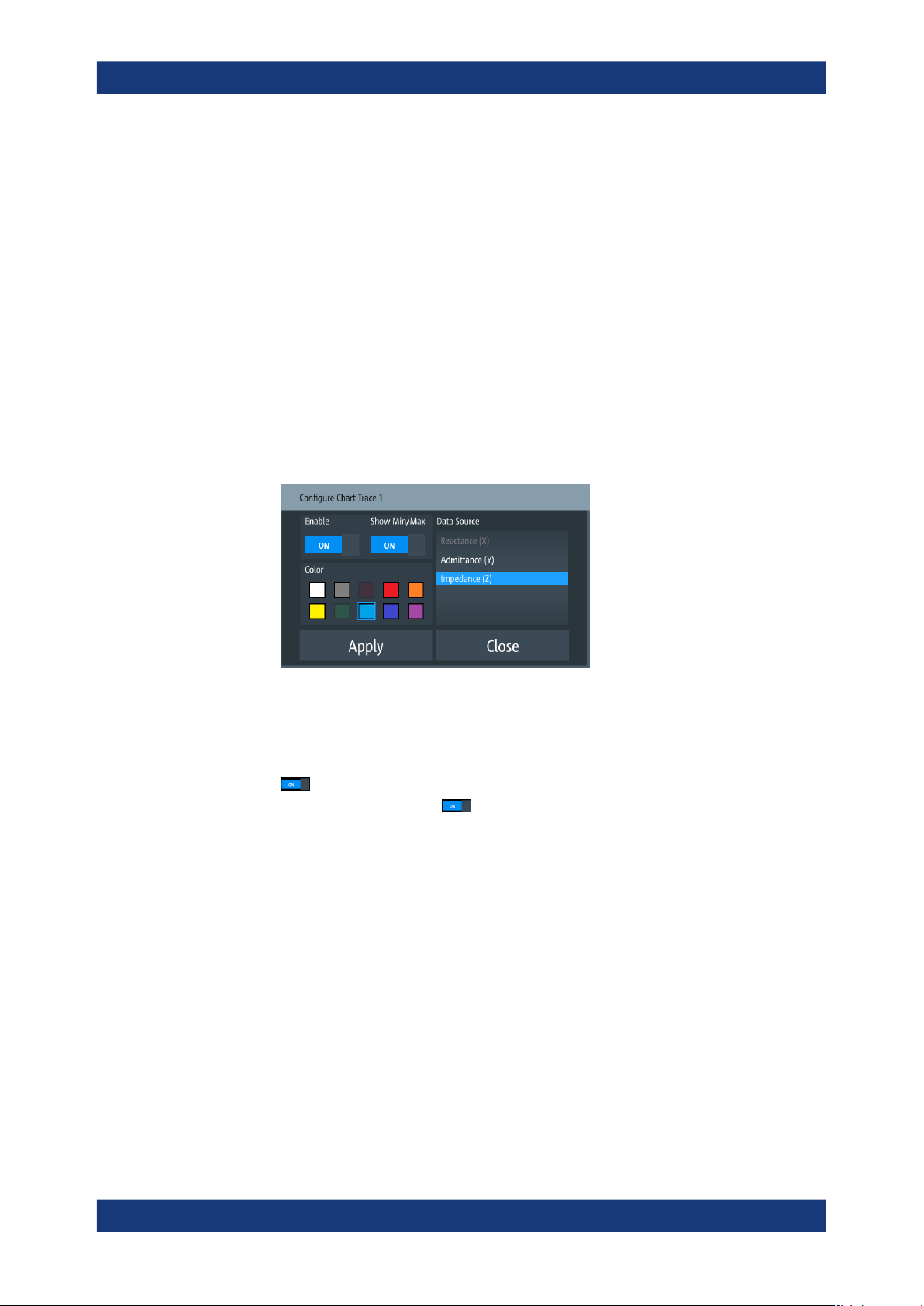

Figure 8-14: Configure chart trace dialog
b) In the "Data Source" list, select the parameter, e.g. "Impedance (Z)".
c) Select a color for the parameter trace.
d) To show the minimum and maximum readings of the selected parameter, turn
"Show Min/Max".
e)
To show the trace, turn "Enable".
f) Confirm with "Apply".
4. Repeat step 3 to assign additional traces, e.g. to display the readings of the reac-
tance and phase angle.
5. Select an appropriate time scaling using the "+/-" magnifiers in the "nn s/div" soft-
key.
6. Select "Clear" to restart the trace display.
The graph shows the traces of the measured values for the selected parameters. If
enabled, the chart assigns the measured minimum and maximum readings to the
trace of the parameter and displays the values numerically.
Specific instrument functions
Instrument functions
R&S
®
LCX Series
97User Manual 1179.2260.02 ─ 08

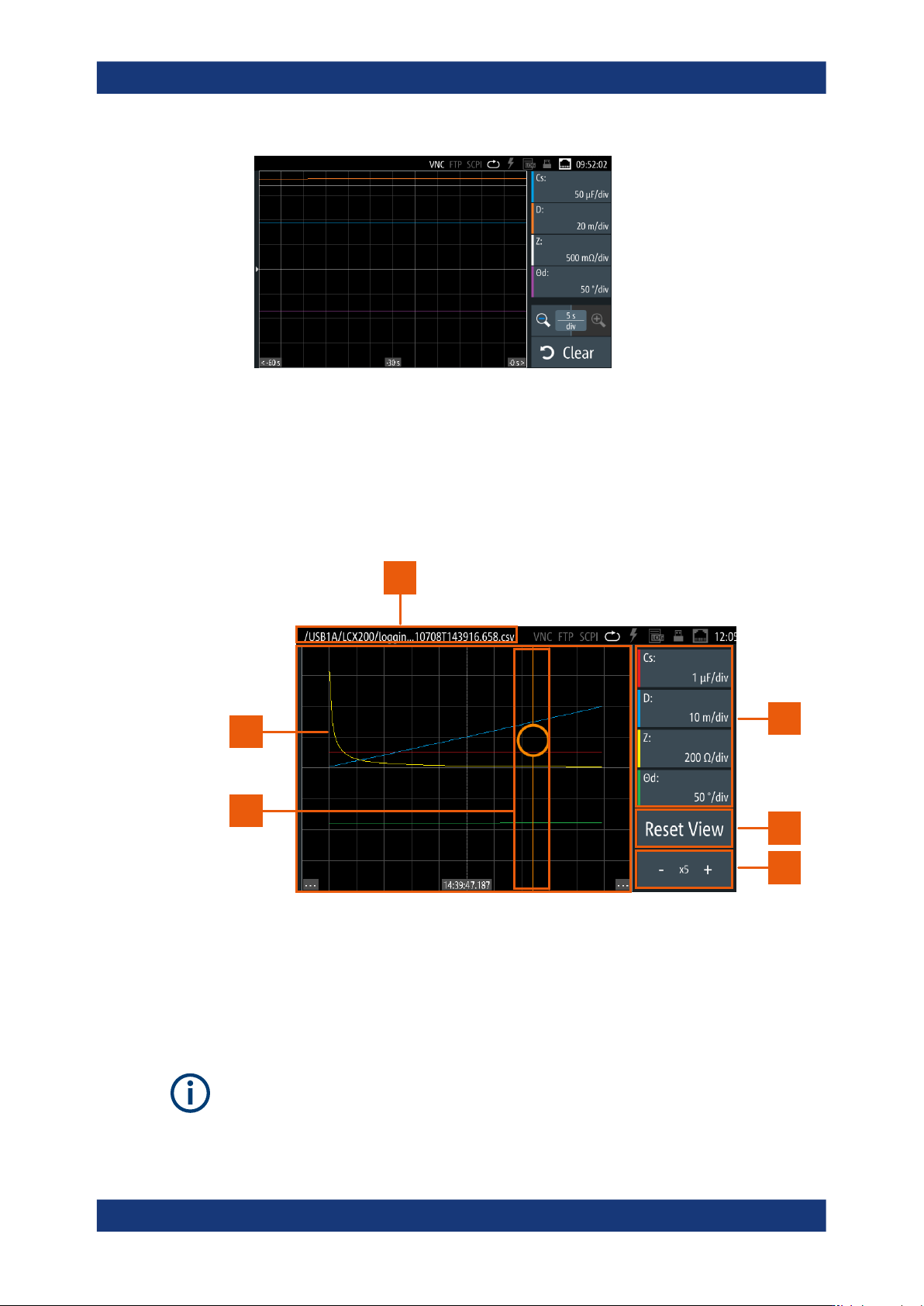

Figure 8-15: Live chart view of a resistance measurement
8.8.2 Logging chart viewer
The logging chart viewer function enables you to display recorded measurement data
graphically and to evaluate and validate the results. You can view a previously recor-
ded measurement loaded from a file.
1
2
3
4
6
5
Figure 8-16: Log chart controls
1 = File name of the logging file
2 = Parameter pair softkeys
3 = Reset softkey
4 = Resolution softkey
5 = Capture indicator when touching and dragging within the graph
6 = Traces of the measured parameters
Gaps in a trace indicate invalid measurement results.
Specific instrument functions
Instrument functions
R&S
®
LCX Series
98User Manual 1179.2260.02 ─ 08
8.8.2.1 Log chart settings
Access:
1. Press the [settings] key at the front panel.
2. In the "Functions" tab, select "Open Log Chart".
The file selection dialog opens to load a previously recorded a data logging file.
3. Select a file as described in "Displaying the logging results in the chart viewer"
on page 99.

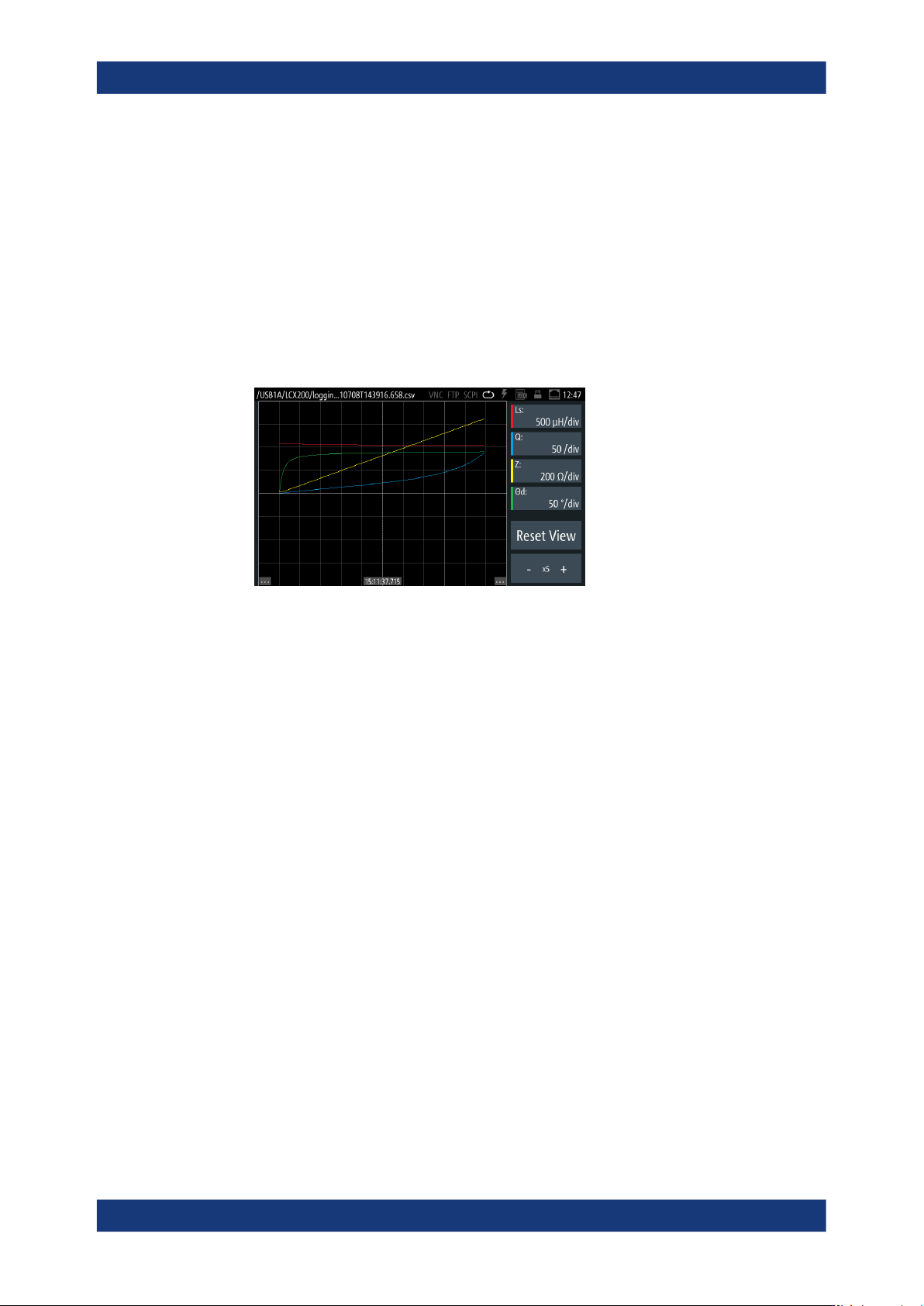

Figure 8-17: Log chart view
This view shows the measurement values of the primary and secondary parameter
pairs that have been recorded with the logging function. The softkeys enable you to
select the parameters for display according to your measurement.
How to: see Section 8.8.2.2, "Displaying recordings in the log chart", on page 99
<logging file name>.......................................................................................................98
<measurement pair>.....................................................................................................98
Reset View....................................................................................................................98
- x1 +............................................................................................................................. 99
<touch capture indicator>..............................................................................................99
<traces>........................................................................................................................ 99
<logging file name>
Indicates the filename of the loaded logging file.
Initially, the R&S LCX creates a filename composed of an identifier for a logging file
<log>, a time stamp and a generic number. File format and extension are .csv.
Remote command:
LOG:FNAMe on page 220
<measurement pair>
Indicates the measurement parameter pair taken from the log file.
Reset View
Resets the graphical display to the initial resolution.
