2-64
2
Operation

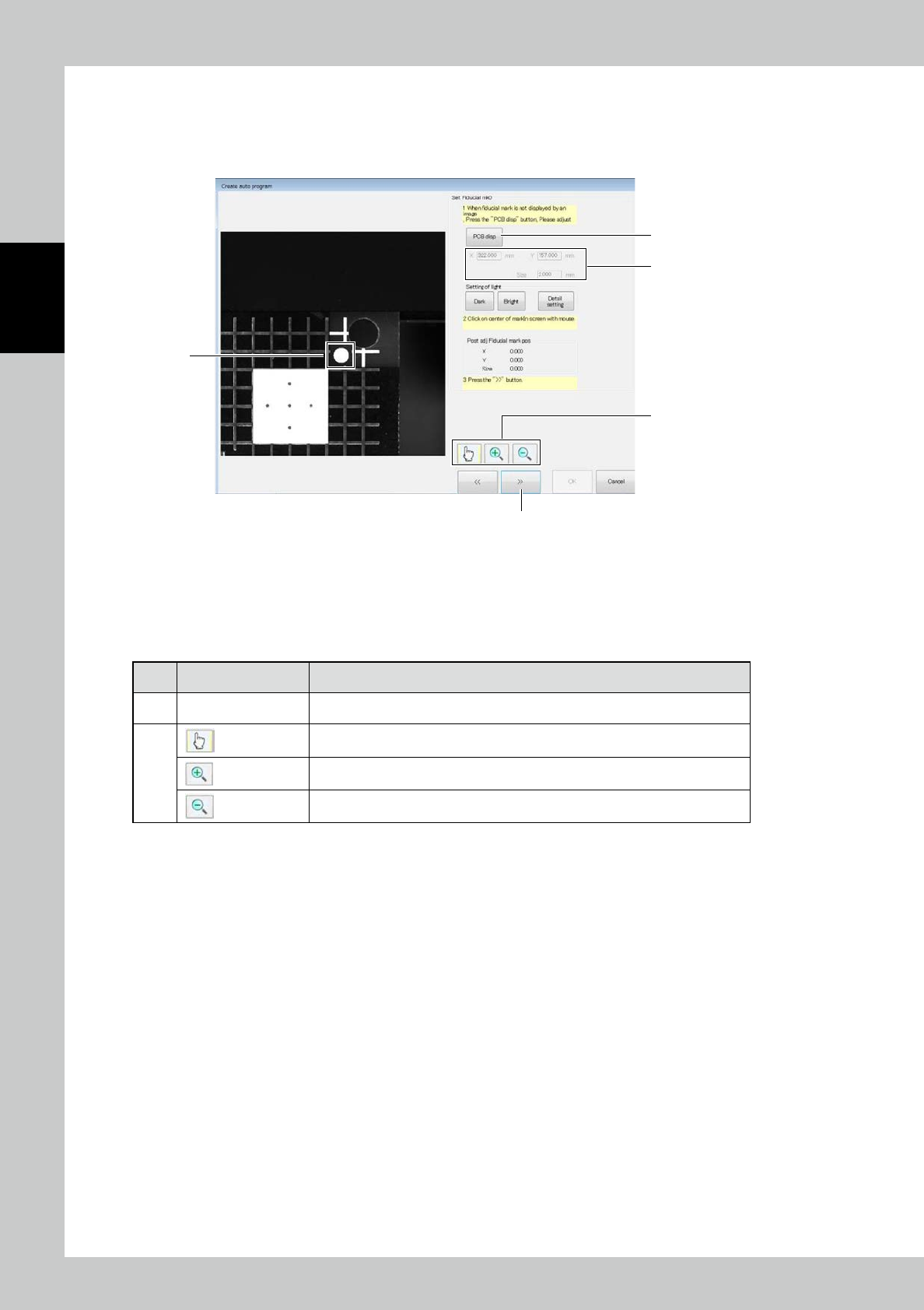

2. Correction is made to the fiducial mark data having been entered.
The image of the fiducial mark is displayed. The currently entered coordinates of the fiducial mark are shown at the
upper right of the screen.
Use the [Bright] or [Dark] button to adjust the brightness of the image.
1
4
5
2
3
24290-KMN-00
1. Click on the approximate center of the fiducial mark.
2. Coordinates of the fiducial mark are corrected and the position of the fiducial mark after correction is displayed.
3. After correction is finished, click on the [>>] button.
■
Description of buttons
No Name Description of displayed item and functions
4 [PCB Disp] button The PCB image and the field of view image are switched over.
5
Start the edit mode.
Start the zoom-in mode.
Start the zoom-out mode.
2-65
2
Operation

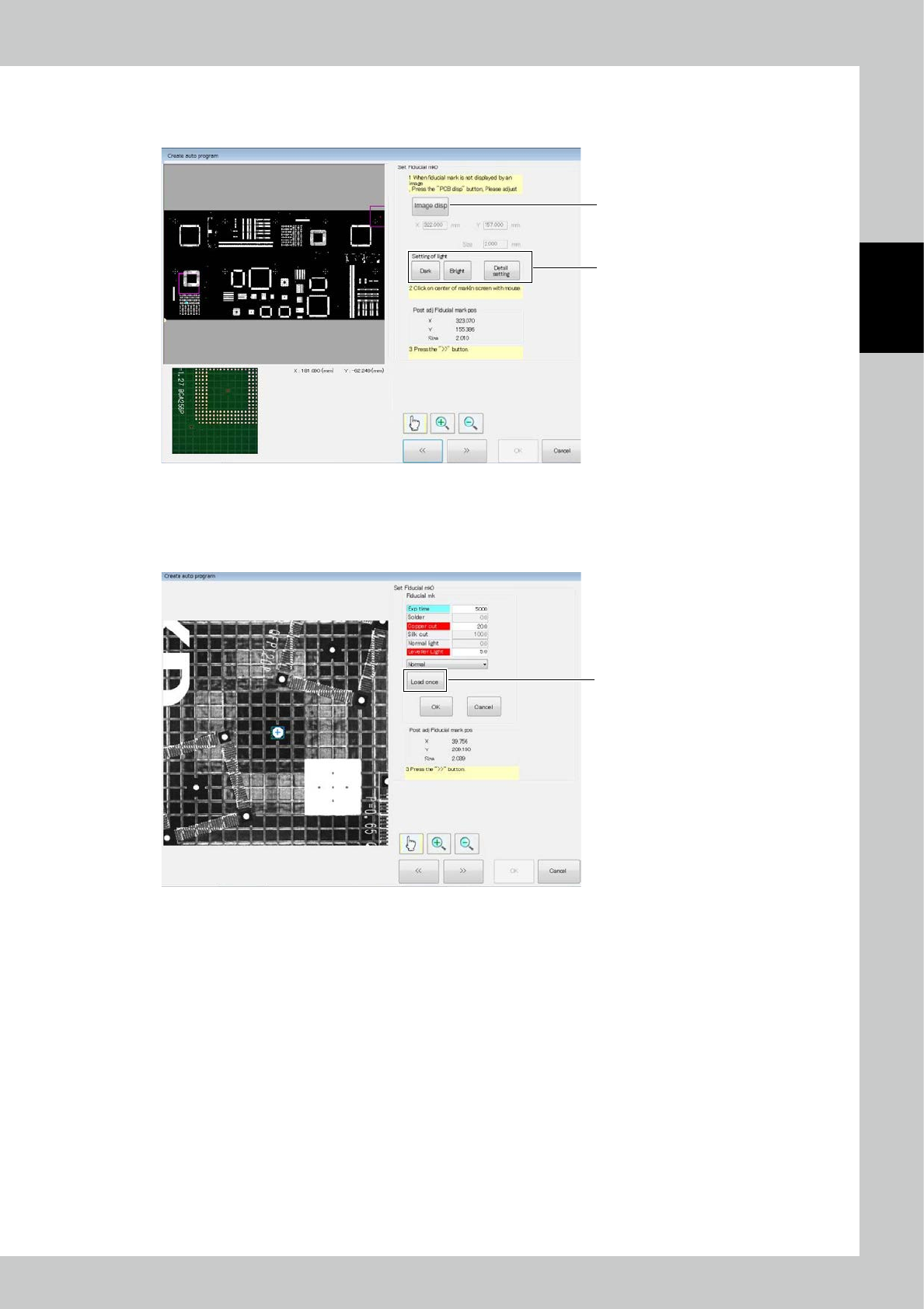

6. Press the [Image disp] button to change the position of the field of view.
Click on the PCB image. The field of view image is displayed below.
Adjust the position so that the fiducial mark is in the field of view.
6
7
24291-KMN-00
7. Press the [Detail setting] button to give detail settings for extracting the fiducial mark.
If the center is not successfully detected though the center of the mark is designated, change the extraction setting so
that the center is detected.
Press the [Load once] button to preview the image obtained with the new light intensity.
[Load once] button
24292-KMN-00
2-66
2
Operation

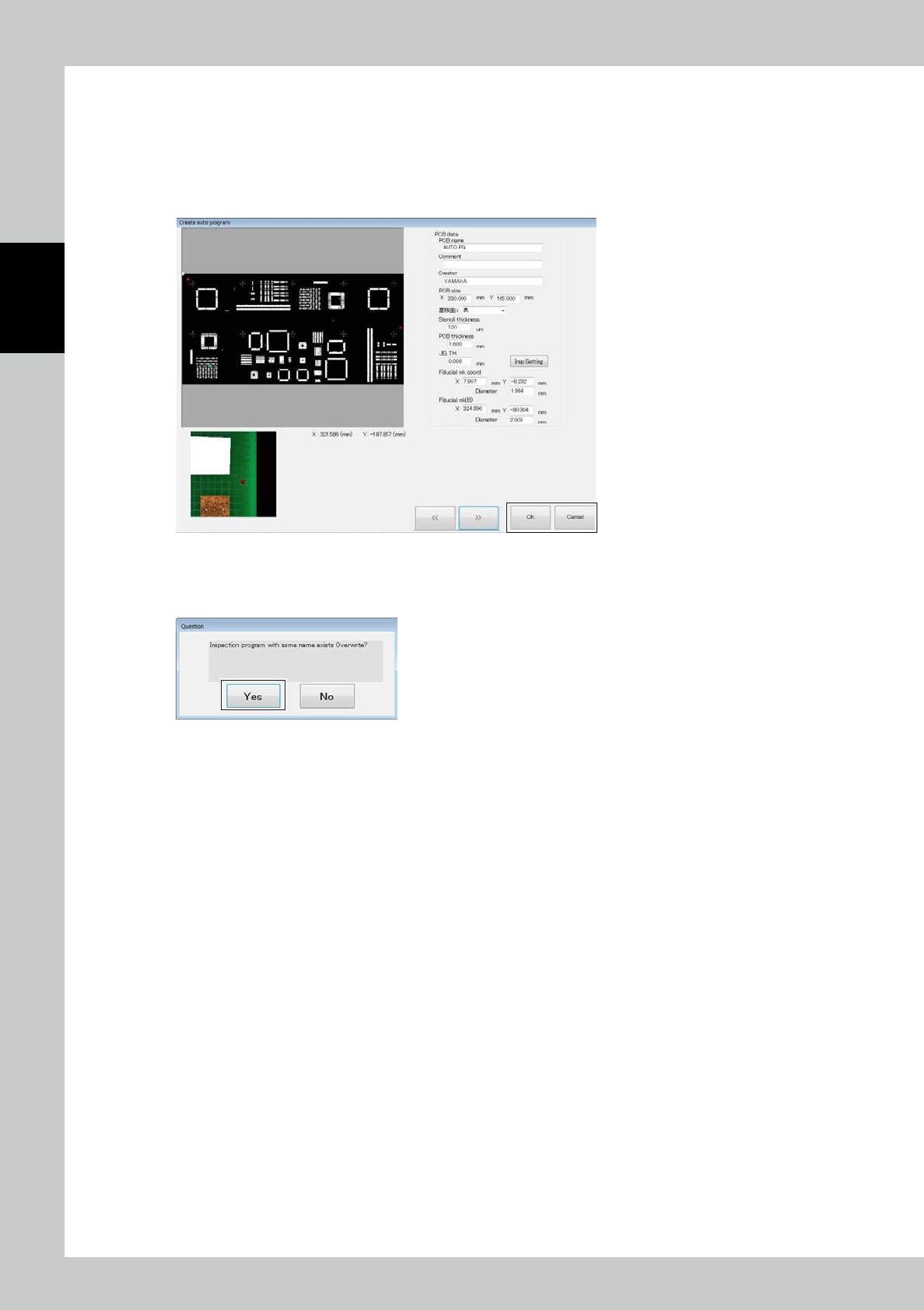

The second fiducial mark is displayed. Follow the procedure taken for the first mark.
After correction of two marks is finished, click on the [>>] button.
The entered PCB data can be checked.
After checking, click on the [OK] button to save the inspection program.
Or press the [Cancel] button to return to the menu without saving it.
24293-KMN-00
If another program of the same name is found, the following message is displayed.
Select [Yes] to save the program.
24294-KMN-00
