2-90
2
Operation

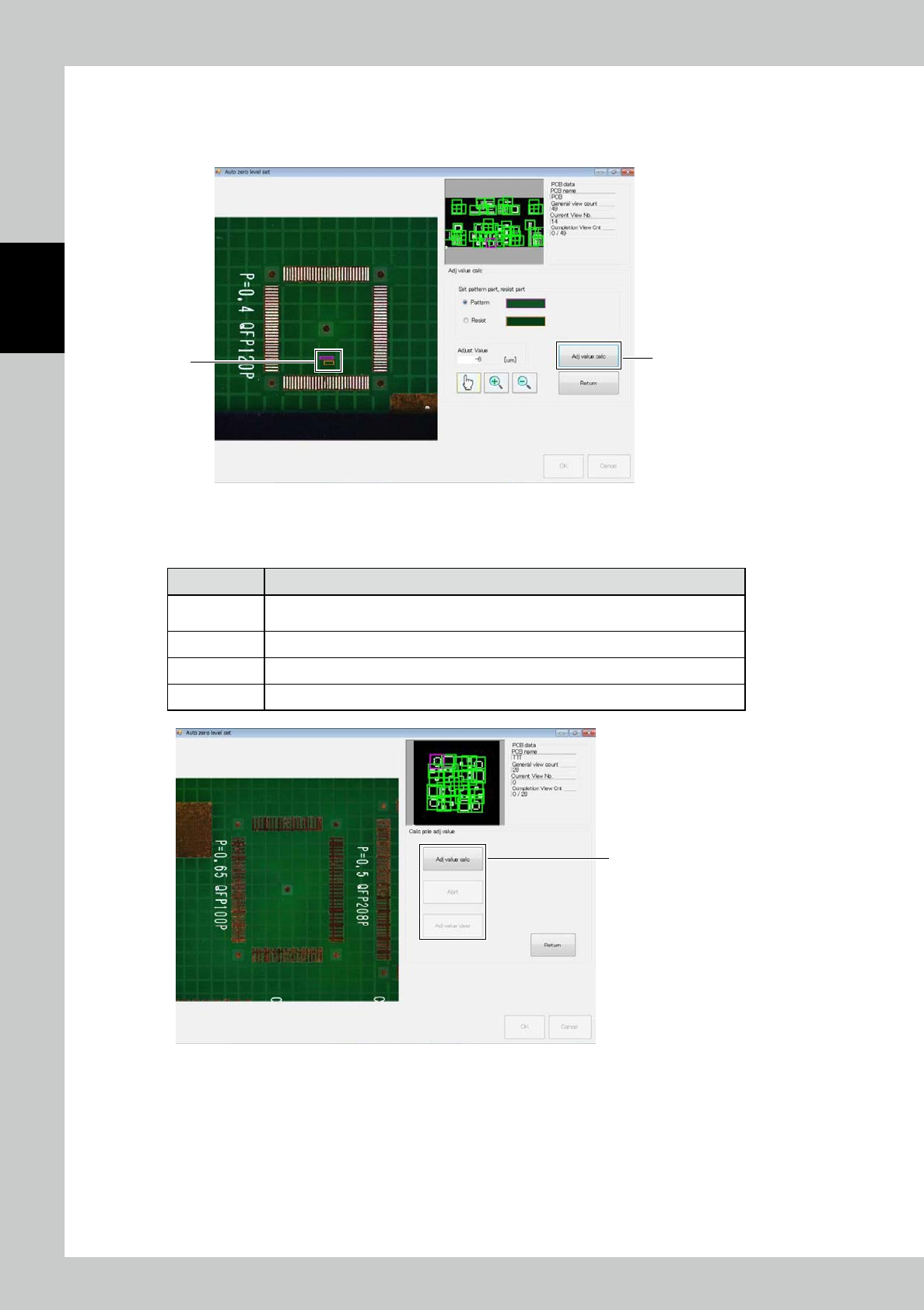

3. Offset calculation
1. Select the pattern and resist area in the image displayed on the left side of the screen as shown in the figure.
2. Click on the [Adj value calc] button to execute calculation of the offset.
1
2
242C5-KMN-00
4. Electrode Offset Calculation
1. "Calc pole adj value” includes the following menu.
Item Description
Adj value calc
Measuring the height of the electrode for unprinted PCB and saving the offset figures to
inspection programs.
Abrt Stopping the electrode offset calculation.
Adj value Clear Clearing the offset figures, which saved at inspection programs.
Return Ending the electrode offset calculation.
1
242C6-KMN-00
2-91
2
Operation
Click on the [Adj value calc] button to execute the electrode offset calculation.
After the calculation is completed and the message is displayed, end the machine with touching [Return] button.
n
NOTE
• Automatic execute can be stopped with touching [Abrt] button during auto-executing.
• The current saved offset figures can be cleared with touching [Adj value clear] button.
2-92
2
Operation

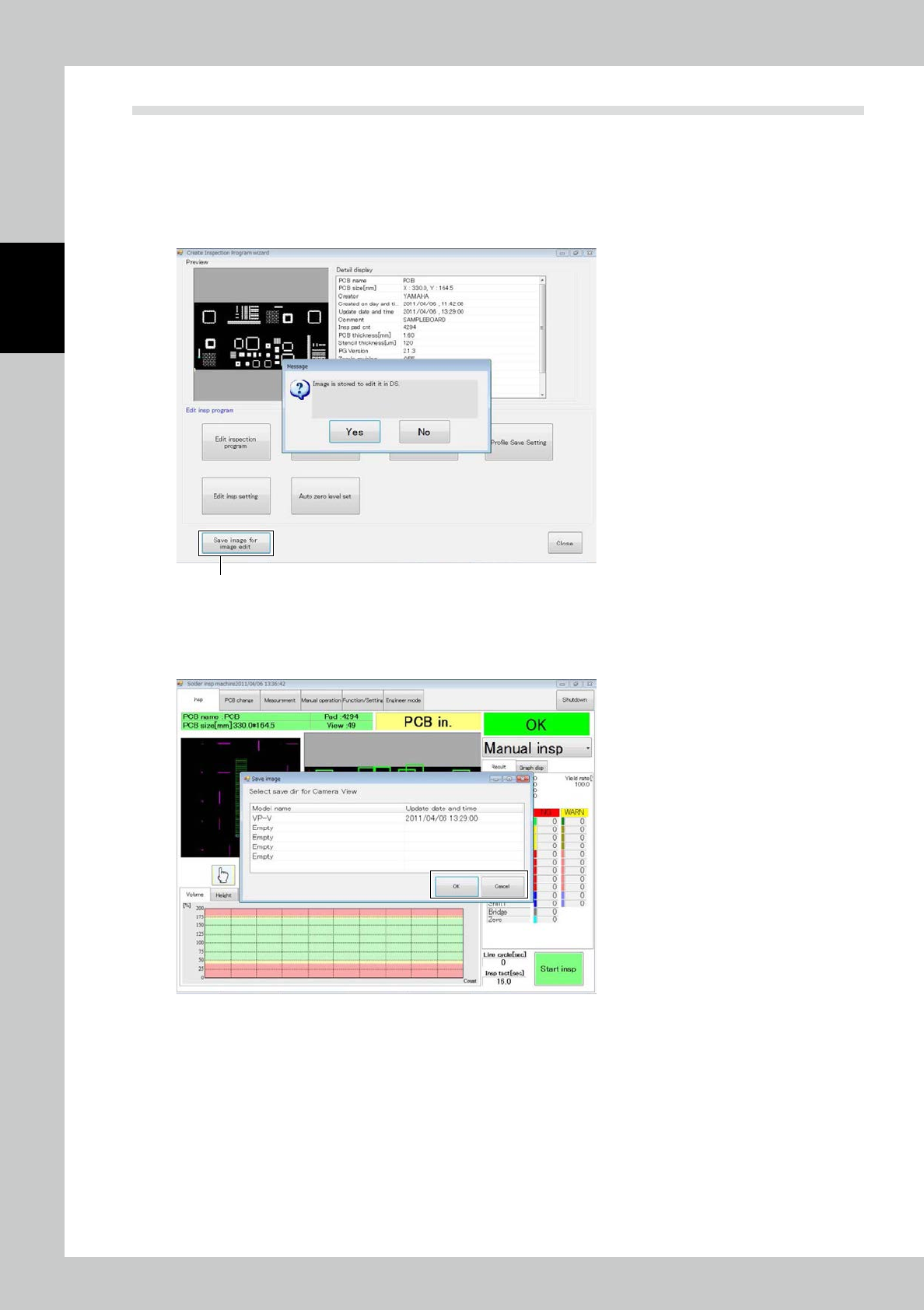

4.5 Saving the Camera Image
Images taken by the camera of the inspection machine are saved at the data station so that the fiducial mark is
edited and zero level is set at the data station.
The work conducted at the inspection machine moves to the desktop, increasing the availability of the line.
1
Click on the [Save image for image edit] button.
If the data station is not connected, the image is stored in the PC inside the inspection machine.
[Save image for image edit] button
242C7-KMN-00
2
Select the destination of saving and click on [OK].
Click on [Cancel] to cancel saving.
242C8-KMN-00
