1-5
1
Overview and maintenance of machine
4. Machine Overview
This machine automatically inspects the printed condition of cream solder (area, height) printed on boards by
the image processor.
Measure the position correction mark of the board that took in through a conveyor belt, and based on that,
image process the print state per field of view at the inspection speed of MAX 0.27 sec/visual field.
4.1 Mechanical specification
Standard type Extension conveyor unit type
Board size (L*D*H)
(Tower light is not included.)
904×1080×1478mm
One side extension type :
1484×1080×1478mm
Both sides extension type :
2
064×1080×1478mm
Path line height 900±20mm
Machine weight pprox. 520kg
One side extension type :
pprox. 555kg
Both sides extension type :
pprox. 590kg
Power consumption 1000W or less
Power supply
Single-phase AC 200V to 230V ± 10%
50/60Hz ± within 1Hz
Electric capacity 1.0kVA (Max)

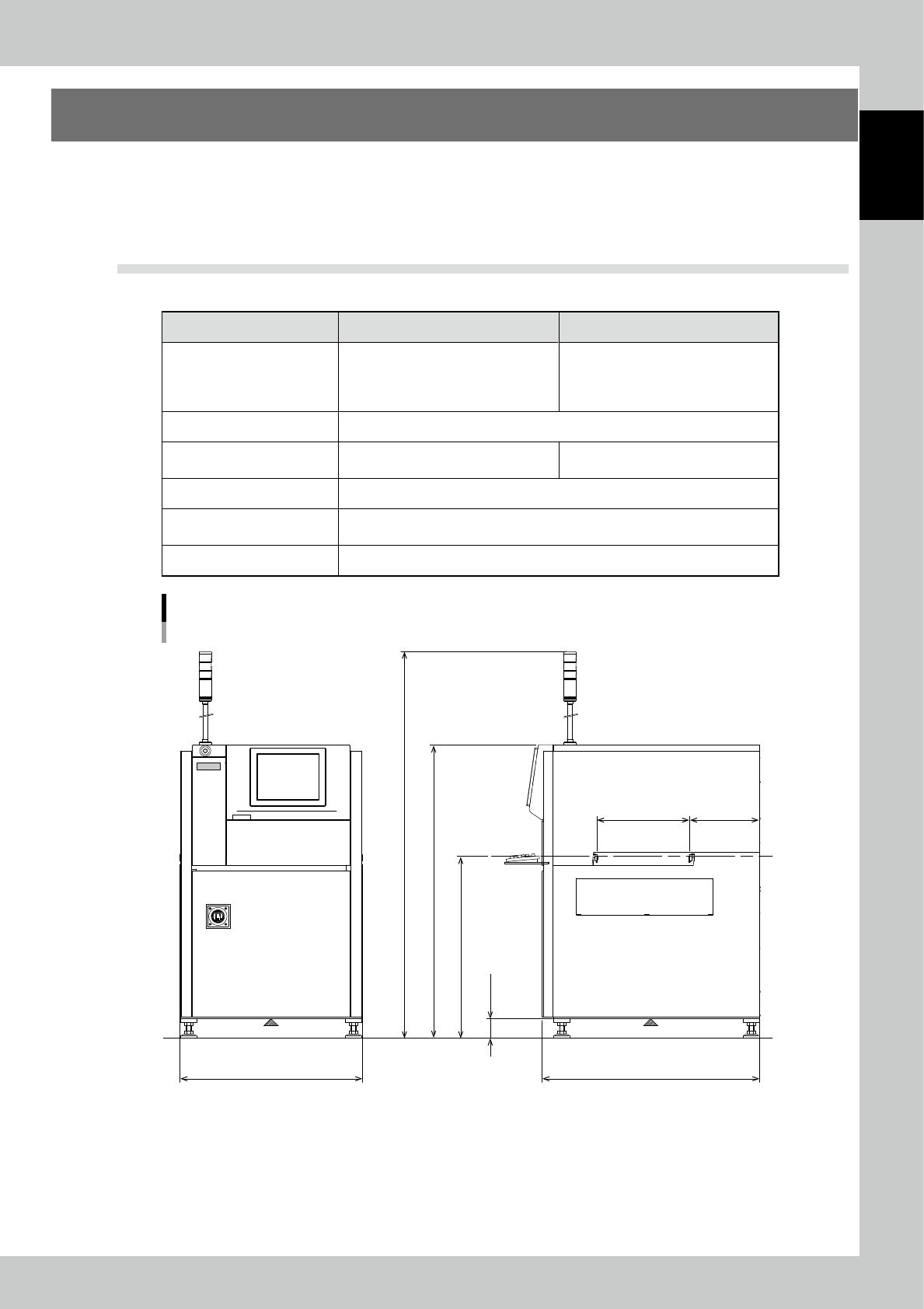

Mechanical specification
Path line
Center of Gravity
Center of Gravity
Front view Right side view
904 1080
1850
1478
900 ± 20
100
347460
23103-KMN-00
1-6
1
Overview and maintenance of machine
904 1080
1850
1478
900 ± 20
100
347
460
611
580
580
976
205
762
Mechanical specification
Both sides extension conveyor unit type
Front view Right side view
Center of Gravity Center of Gravity
Path line
23117-KMN-00
1-7
1
Overview and maintenance of machine
4.2 System configuration
System configuration
PC
Communications
(front and back)
Camera
Tower lightConveyor
Data station
Lighting system
Mouse
Keyboard
Operation panel
Safety switch, Emergency stop
XYZ table
Sequencer
control panel
23104-KMN-00
