2-2
2
Operation
1.2 System configuration

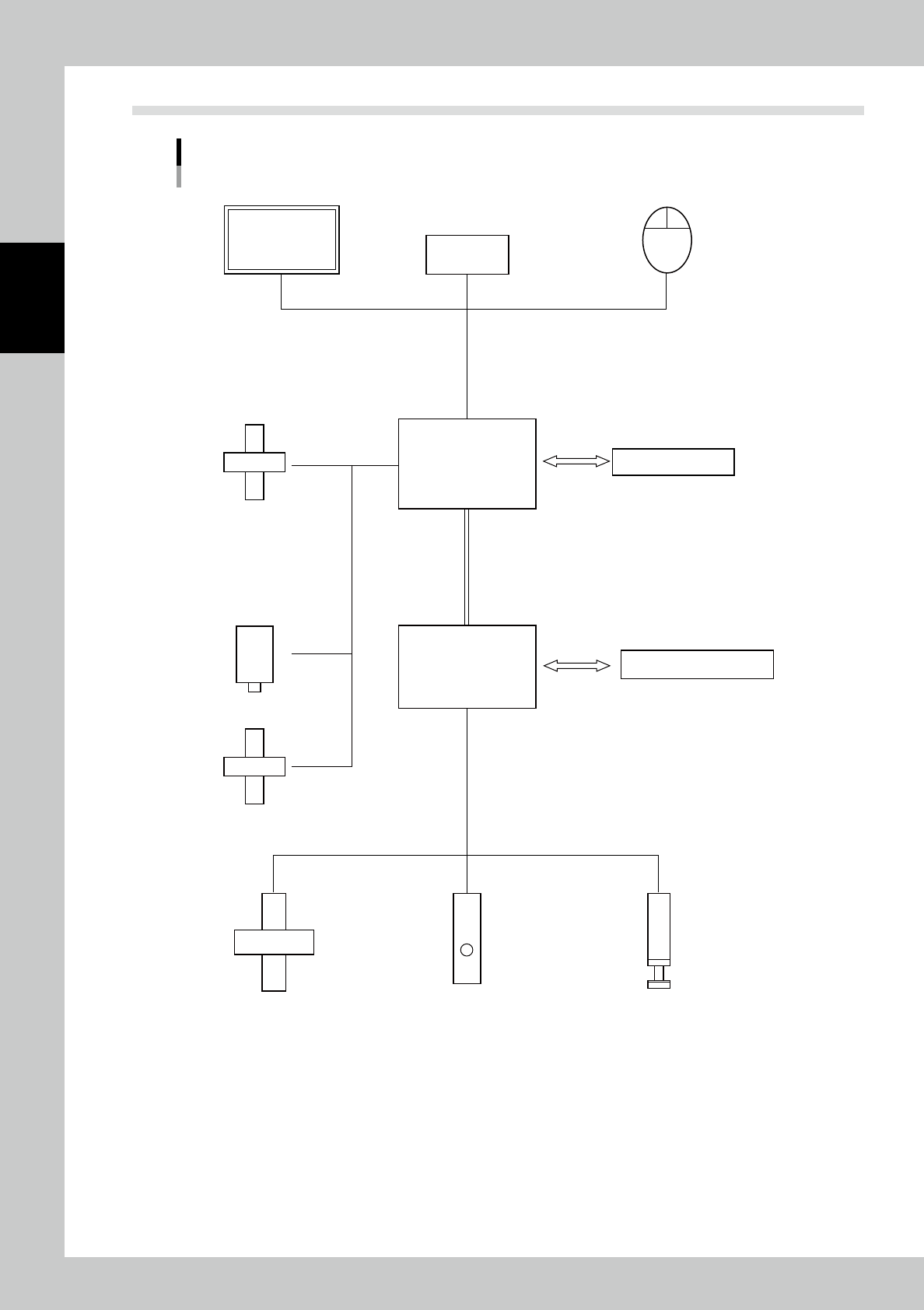

System Configuration
PC
Back-and-forth communication
Camera
Tower lightConveyor
Data station
Lighting unit
Mouse
Keyboard
Operation
panel
Safety switch, emergency stop
XYZ table
Programmable
controller control panel
23202-KMN-00
2-3
2
Operation
1.3 Tower Light Display
The tower light of the inspection machine has built-in 3-color LEDs and a buzzer.
(3-color LEDs: red at the top, yellow in the center and green at the bottom)
The lighting conditions of the tower light are shown below.

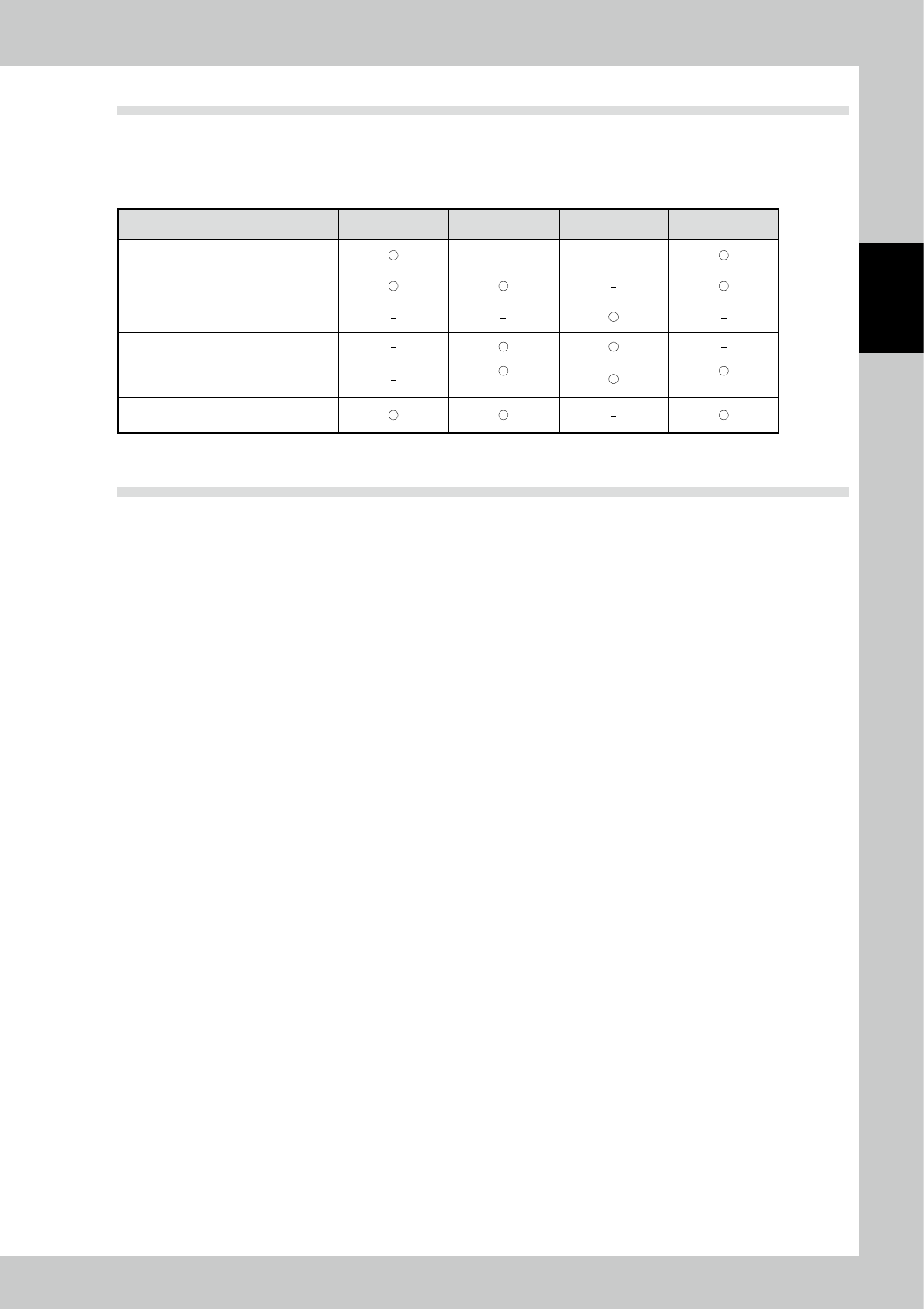

Tower light lighting condition Red Yellow Green Buzzer
At emergency stop
Upon continuous faults
During automatic operation
When a faulty PCB is ejected
Upon a warning
(5sec)
(5sec)
Upon stoppage due to continuous
warnings
1.4 Emergency Stop
Press the emergency stop button located on the right side of the front panel of the main body to stop the
equipment immediately with a buzzer sound. Use the switch to stop in an emergency.
After an emergency stop, follow the procedure below to restore.
1) Touch the [RESET] button on the screen to stop the buzzer.
2) Reset the emergency stop switch. (Turn it in the direction of arrows.)
3) Touch the [RESET] button again and check that the [RESET] button is unlit.
2-4
2
Operation
2. Operation Procedure
2.1 Flow of Inspection
The flow of inspection is shown below. (The reference number for each item indicates the section number.)
Flow of Inspection
Turn the main body on to start the equipment
Select the inspection program for the PCB to be
inspected.
The PCB is loaded into the main body of the machine
in the standalone inspection. This step is unnecessary
for automatic operation.
Inspect continuously while communicating machines
in the pre-and post-processes.
Store the transition data of inspection.
Turn the main body off.
Startup of inspection machine
PCB loading
Inspection and Confirmation
Inspection machine shutdown
(Refer to section 2.3)
(Refer to section 2.4)
(Refer to section 2.5)
(Refer to section 2.6)
(Refer to section 3.5 in “Data Station Volume”)
(Refer to section 2.7)
PCB loading
Inspection
Result display
PCB unloading
The figure indicates
automatic inspection.
(See the next page.)
PCB change
Storing transition data
23203-KMN-00
