3.7.1 Data transfer

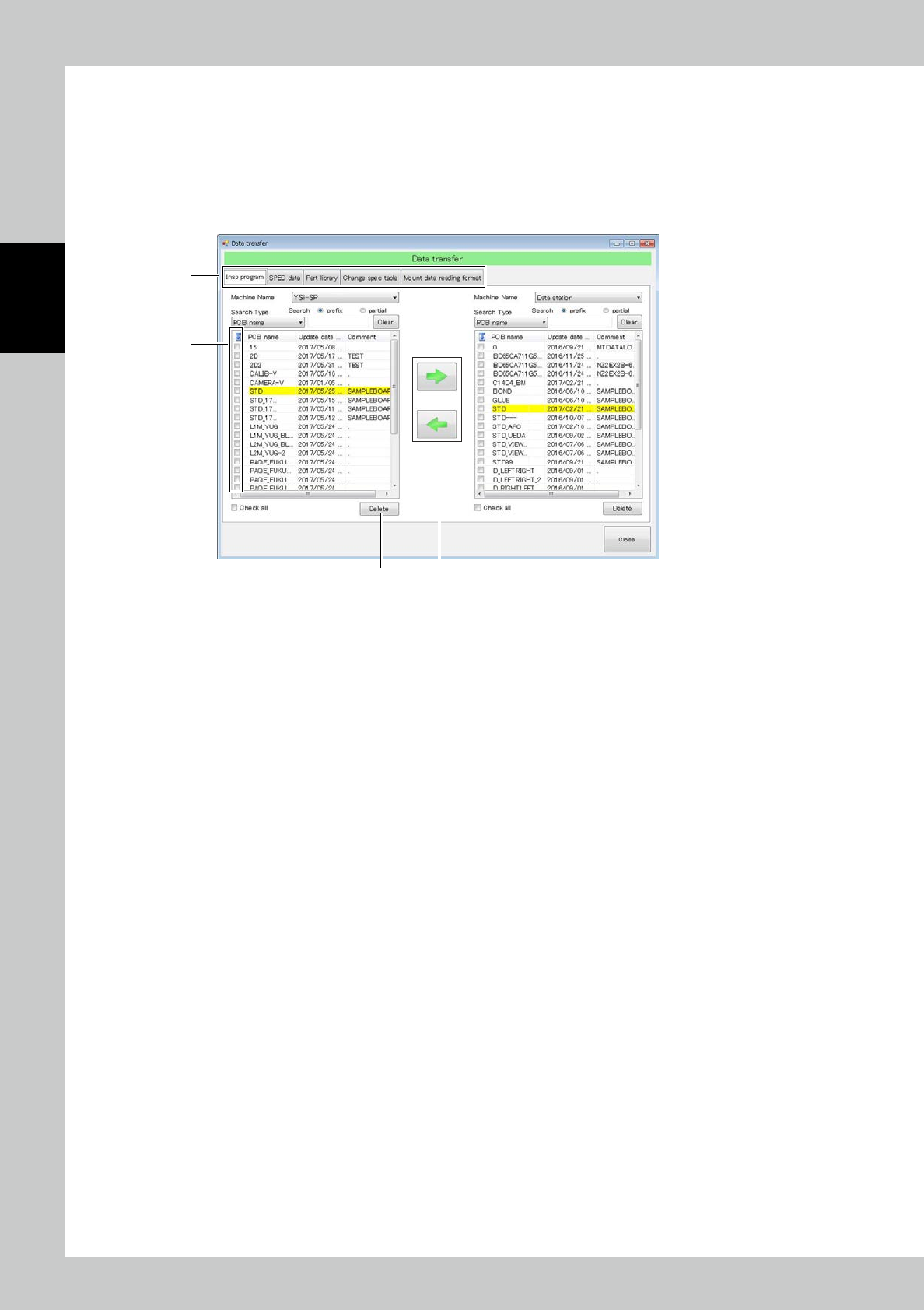

Various data such as the inspection program can be transferred through communications with the data station.
1. Select the data type to be transferred, using the tab 1.
2. Select the desired file from the list and place a check mark.
3. Press the
➡
or
➡
button to transfer.
4. Press the [Delete] button to delete.
1
2
34
24275-KMN-00
2-57
2
Operation
3.7.2 LED diag (Option)

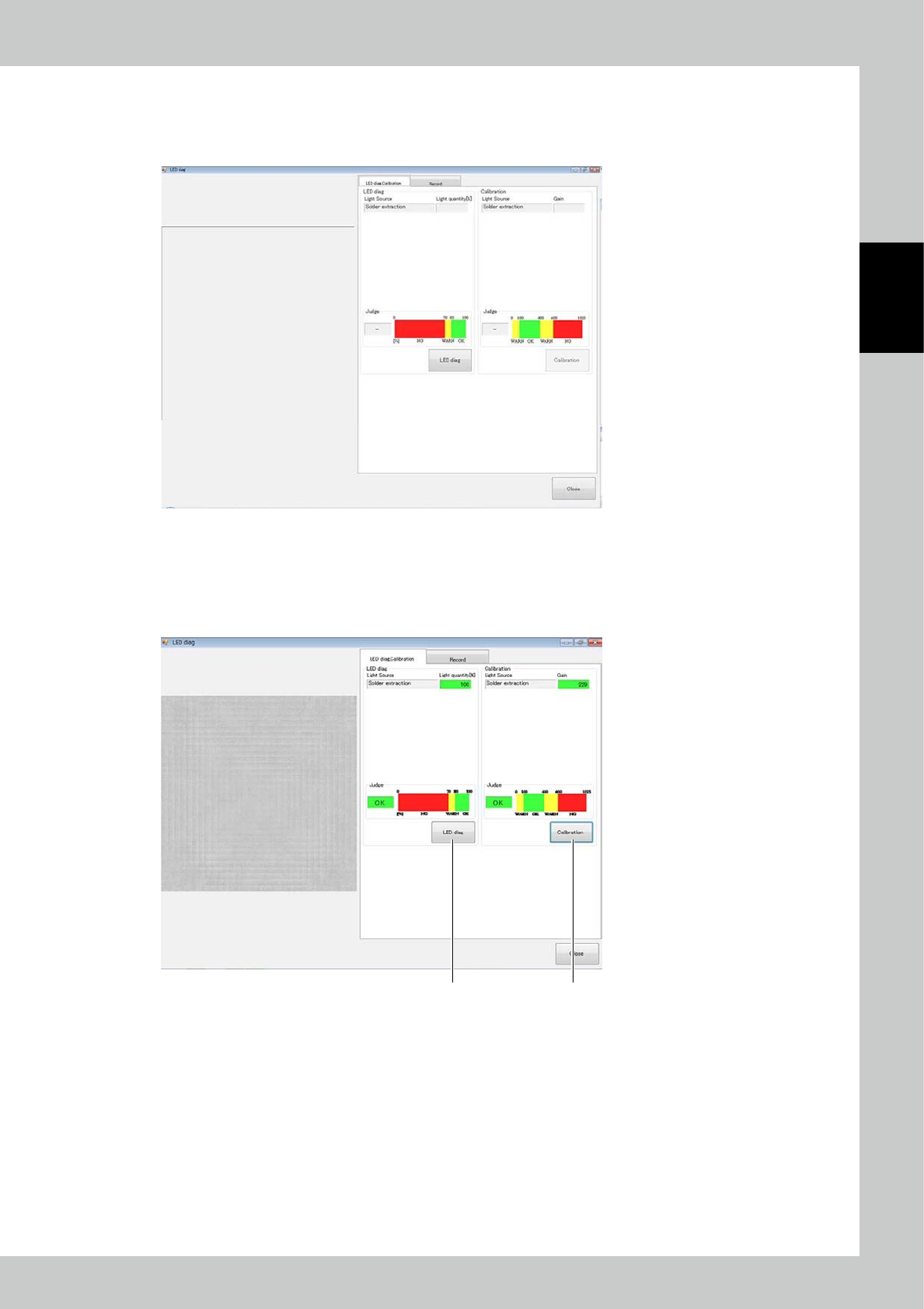

Place a jig for checking the light source and touch the LED diag button. The screen shown below is displayed.
During light source diagnosis, you can check deterioration of the LED.
24276-KMN-00
1. Press the LED diag button. Results are displayed in the Judge field. If OK is displayed, there is no problem; you can
continue to use.
2. If NG is displayed, make calibration.
If NG is displayed even after calibration is made, LED replacement is necessary.
Please contact Yamaha sales representatives.
21
24277-KMN-00
2-58
2
Operation

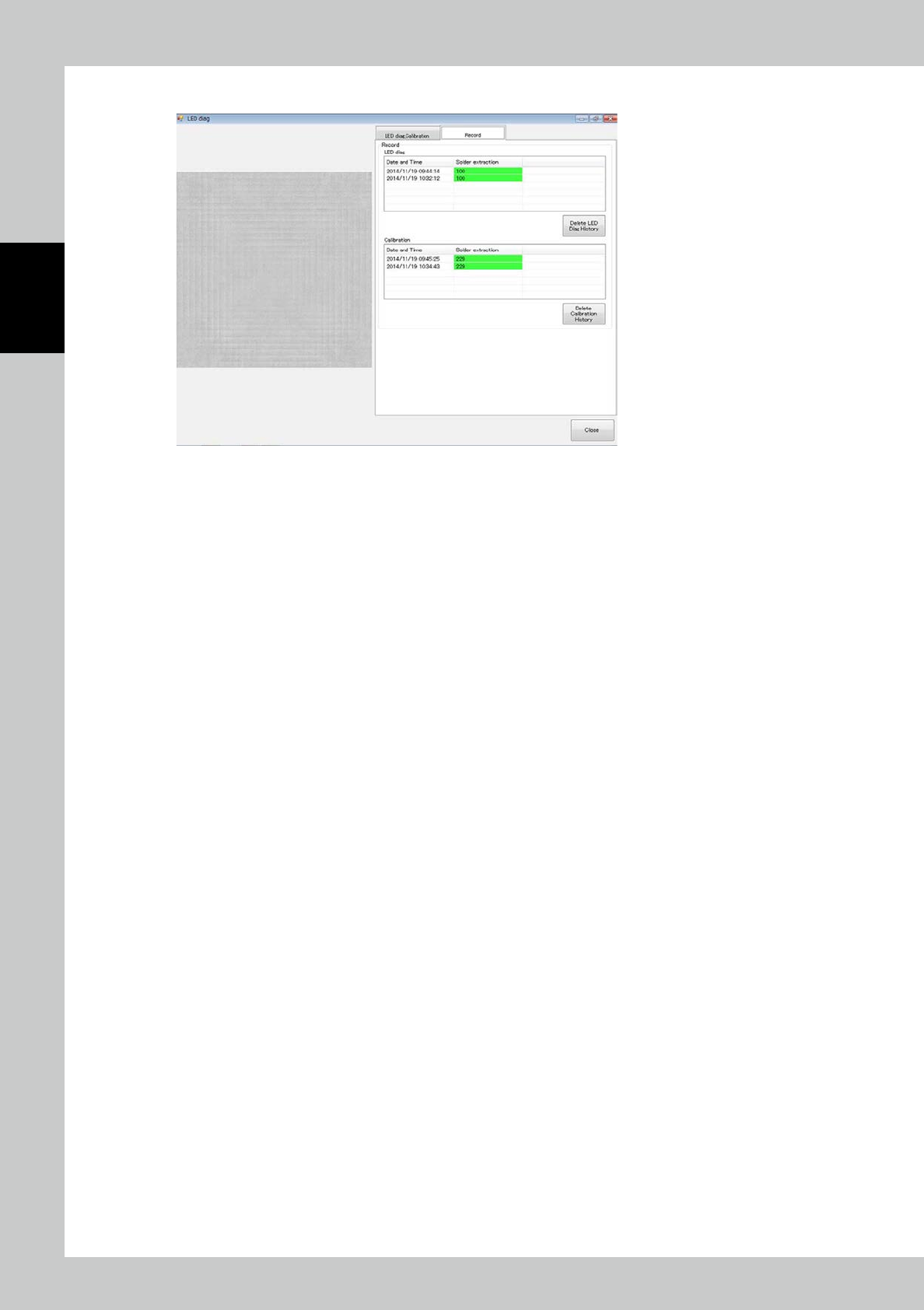

3. Click on the "Record" tab to check the record of light source diagnosis and calibration.
24278-KMN-00
