2.6.1 Standalone Inspection
1. Execution of inspection
3
2
1
24209-KMN-00
1
Touch the inspection tab to open the inspection screen.
2
Select standalone inspection from the pull-down menu.
3
Touch the [Start insp] button to start inspection.
2. Result of inspection
To view the result of inspection of the PCB, touch “Measurement” on the main menu to open the measurement screen.
The result confirmation method includes two variations: profile display and wide-area measurement.
In both methods, the inspection result is displayed in a 3D image.
To execute profile display or wide-area measurement, open the measurement screen and touch either the [profile display]
or [wide area measurement] button on the right side of the screen. To open the profile display screen, you can touch the
corresponding pad screen twice.
24210-KMN-00
2-12
2
Operation
a. Profile display

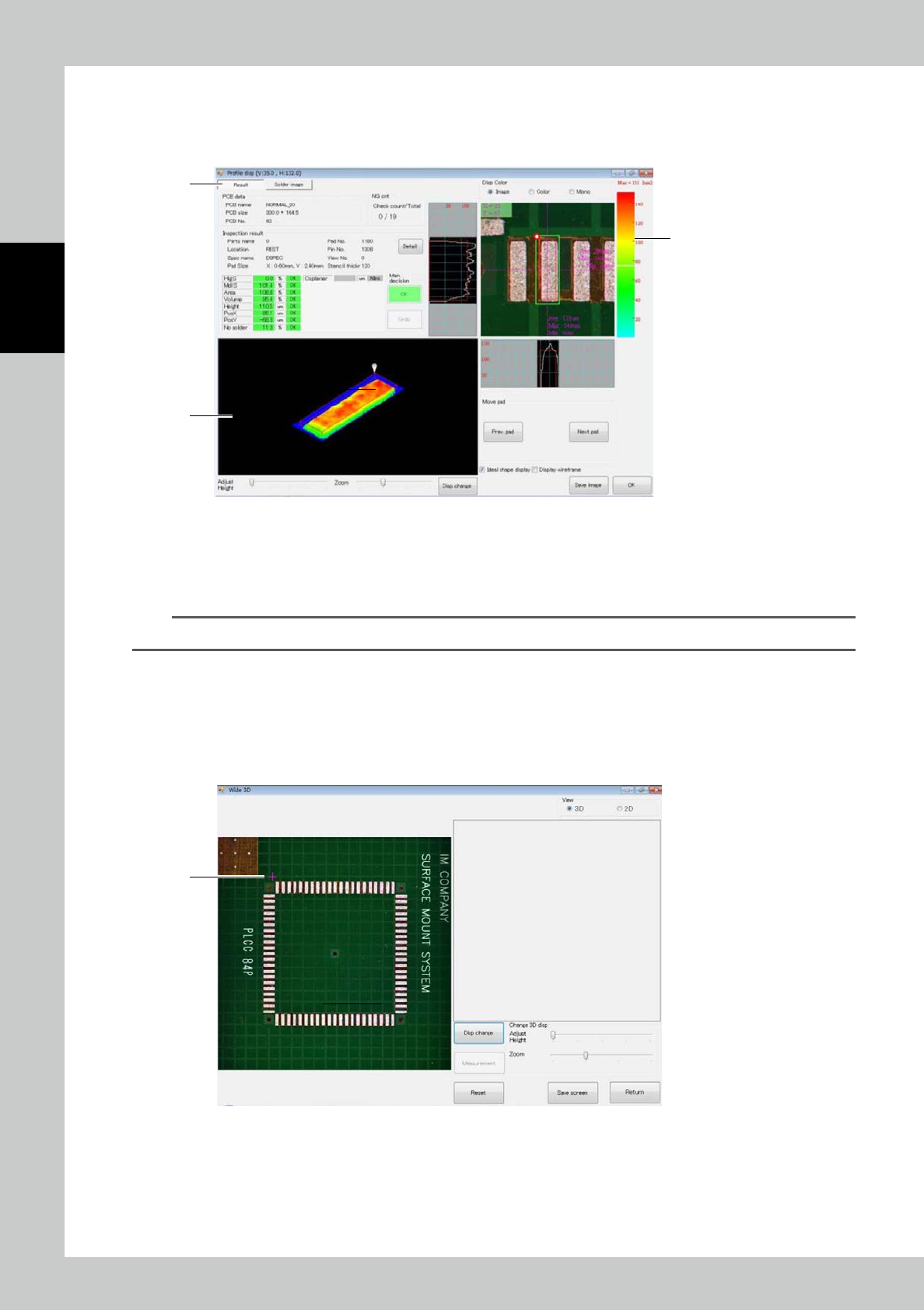

Touch the [Profile disp] button or touch the desired pad on the field of view screen or each pad screen twice. The screen
shown below is displayed.
1
3
2
24211-KMN-00
1. This is a 3D image of the solder. Slide a finger along the image to change the displaying angle vertically or horizontally
over 360
°
as you need.
2. The solder height is indicated with the color gradation. (Red [high] - blue [low])
3. This is the pad inspection result.
TIP
For details of profile display screen, refer to "3.4.1 Profile Screen".
b. Wide 3D
Touch the [Wide 3D] button to display the screen shown below. With Wide 3D, you can view the 3D image of a desired
area.
Select the measurement range with the image displayed on the left side.
1. Determine the starting point. Touch the desired starting point. A red cross is displayed.
1
24212-KMN-00
2-13
2
Operation

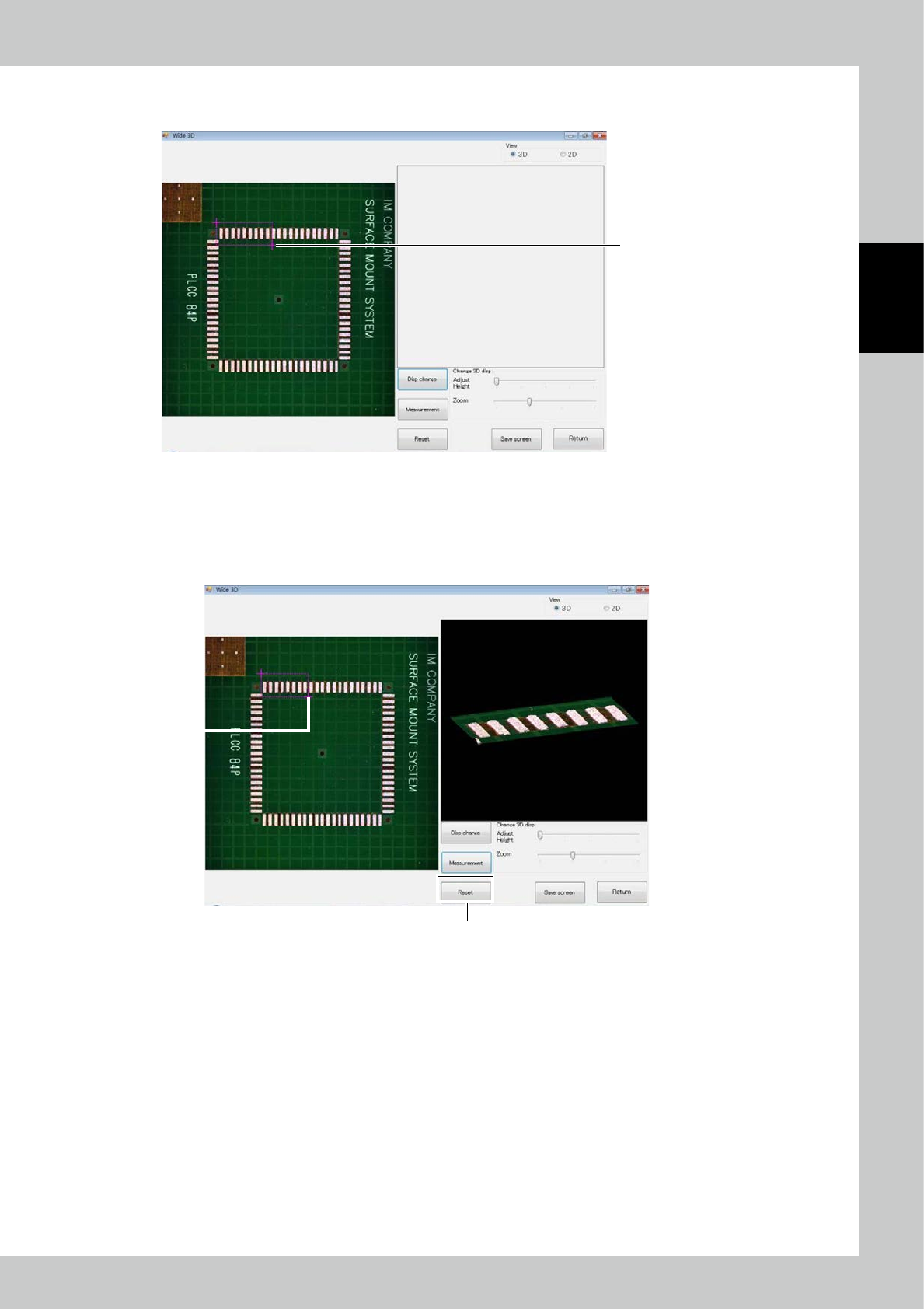

2. Next, touch the second point. Another red cross is displayed together with a red rectangle having the two points as
vertices. The rectangle indicates the measurement range.
2
24213-KMN-00
3. If you touch another point in the state of screen 2), the second point moves. You can thus adjust the range while fixing
the starting point.
4. To rework from designation of the starting point, touch the [Reset] button.
After selecting the range, touch the [Measurement] button. The 3D image of the selected range appears on the right
side screen.
3
4
24214-KMN-00
