Safety instructions

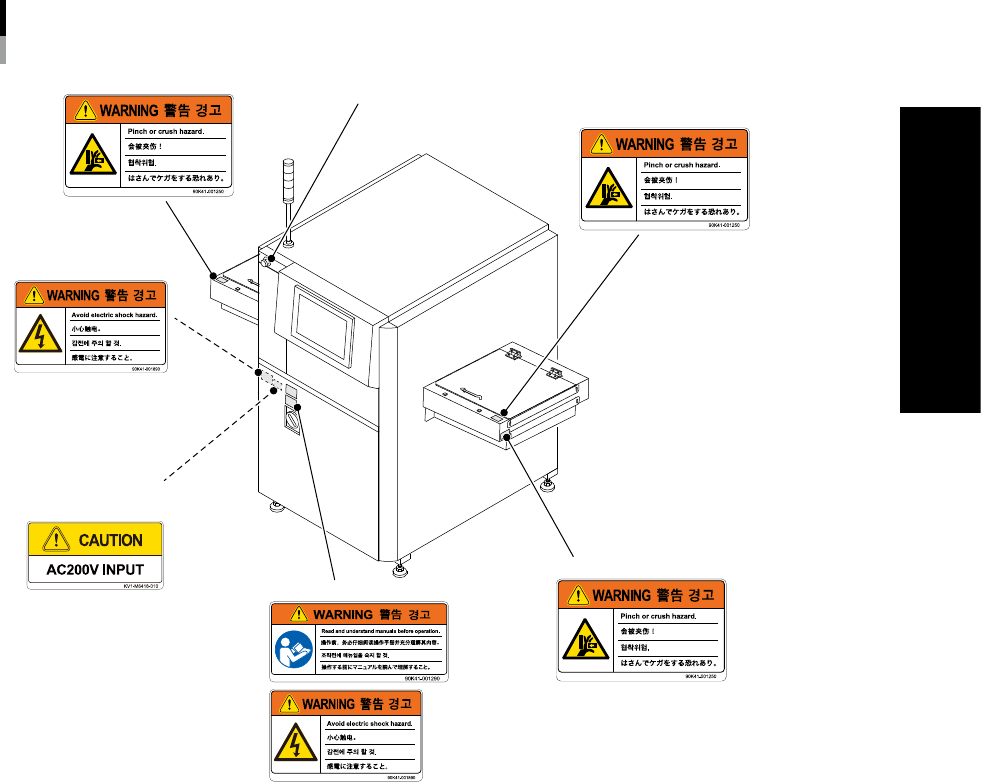

Pasting position of warning labels
YSi-SP Extension conveyor unit type (option)
Emergency stop button
■ Conveyor opening (right and left)
■ Main switch
■ Power connection terminals
(Cover inner side)
■ Cover inner side
■ Extension Conveyor unit
■ Extension Conveyor unit
23002-KMN-00
vi
Safety instructions
3.2 Detail contents of warning labels
n
NOTE
"To avoid hazard" in the figure shows the counter measure to reduce the risk of the hazard.
■
Electric shock
Potential
hazard
Electrical shock hazard
To avoid
hazard
Do not touch power supply inside cover.
Shutdown the primary power source completely following the specified work procedure. Then
start operation after leaving it for 5 or more minutes.
Pasting
position
Main switch, Safety cover inner side
Case
All case
w
WARNING
THERE ARE HIGH VOLTAGE TERMINALS INSIDE THE CONTROL PANEL, OPERATION BOX, AND MOTOR PART. ALSO, THE INPUT
SIDE CIRCUIT OF THE MAIN BREAKER IS VERY DANGEROUS, BECAUSE IT IS CONSTANTLY IN CHARGED CONDITION. IT IS
PROHIBITED TO TOUCH THE DEVICE EXCEPT FOR THOSE WHO HAVE THE APPROPRIATE QUALIFICATION ON ELECTRICAL
CONSTRUCTION. IF THIS WARNING IS NOT FOLLOWED, IT MAY CAUSE ELECTRIC SHOCK RESULTING IN LIFE THREATENING
ACCIDENT.
ALSO, CONDUCT THE VERIFICATION OF SWITCH INSIDE THE CONTROL PANEL ONLY BEFORE APPLICATION OF THE FACTORY
SIDE PRIMARY POWER SOURCE.
■
Pinching
Potential
hazard
· Hands or fingers might be caught between moving parts and covers, causing injury.
· Hands or fingers might be pinched by moving parts, causing injury.
To avoid
hazard
DO NOT insert hands inside the device during operation.
Pasting
position
Conveyor opening
Case
Setup
Maintenance
w
WARNING
MAKE SURE TO CLOSE THE FRONT DOOR DURING PRODUCTION OPERATION. WHEN TOUCHING MOVING AREA FOR
MAINTENANCE, ALWAYS SHUTDOWN THE POWER SOURCE AND CHECK THE MOVING AREA IS COMPLETELY STOPPED.
vii
Safety instructions
■
Handling
Potential
hazard
Damage to device or injury to person.
To avoid
hazard
Before handling the product (equipment) always read manuals and make sure you fully
understand the contents.
Only those who had educational training shall conduct maintenance and device installation
adjustment work.
Pasting
position
Monitor left side
Case
All case
w
WARNING
WHEN MOVING THE MACHINE, MAKE SURE THERE ARE NO PEOPLE AROUND THE MACHINE. WHEN OPERATION OF A
FORKLIFT IS NECESSARY, MAKE SURE THE OPERATOR HAS THE APPROPRIATE PUBLIC LICENSE.
■
Damage of device
Potential
hazard
Device damage or malfunction
To avoid
hazard
Connect power only at the specified voltage.
Pasting
position
Power connection terminals
(Cover inner side)
Case
Installation
w
WARNING
FOR ELECTRIC RELATED WORK SUCH AS CONNECTION OF THE PRIMARY POWER SOURCE, ONLY THOSE WHO HAVE THE
CERTAIN QUALIFICATIONS (EXAMPLE: LICENSED ELECTRICAL CHIEF ENGINEER) SPECIFIED BY LAW SHOULD PERFORM.
