2-18
2
Operation
3. Screen Configuration and Each Function
3.1 Screen Configuration
24220-KMN-00
The figure shows the main tab menu located at the upper part of the screen. Touch the desired tab to select it
and jump to the corresponding menu screen.
Menu Option Description Refer to
Insp Check the image of the PCB being inspected and inspection results. "3.2 Inspection"
PCB change Change the PCB (inspection program). "3.3 PCB Change"
Measurement Measure the inspection results with 3D or 2D images. "3.4 Measurement"
Manual operation Load/unload the PCB, adjust the conveyor width, or adjust the XY table. "3.5 Manual Operation"
Function/Setting Enter or adjust the settings about the main body of the inspection machine. "3.6 Function/Setting"
Engineer mode Create or edit inspection programs, specifications or part library. "3.7 Engineer Mode"

2-19
2
Operation
3.2 Inspection

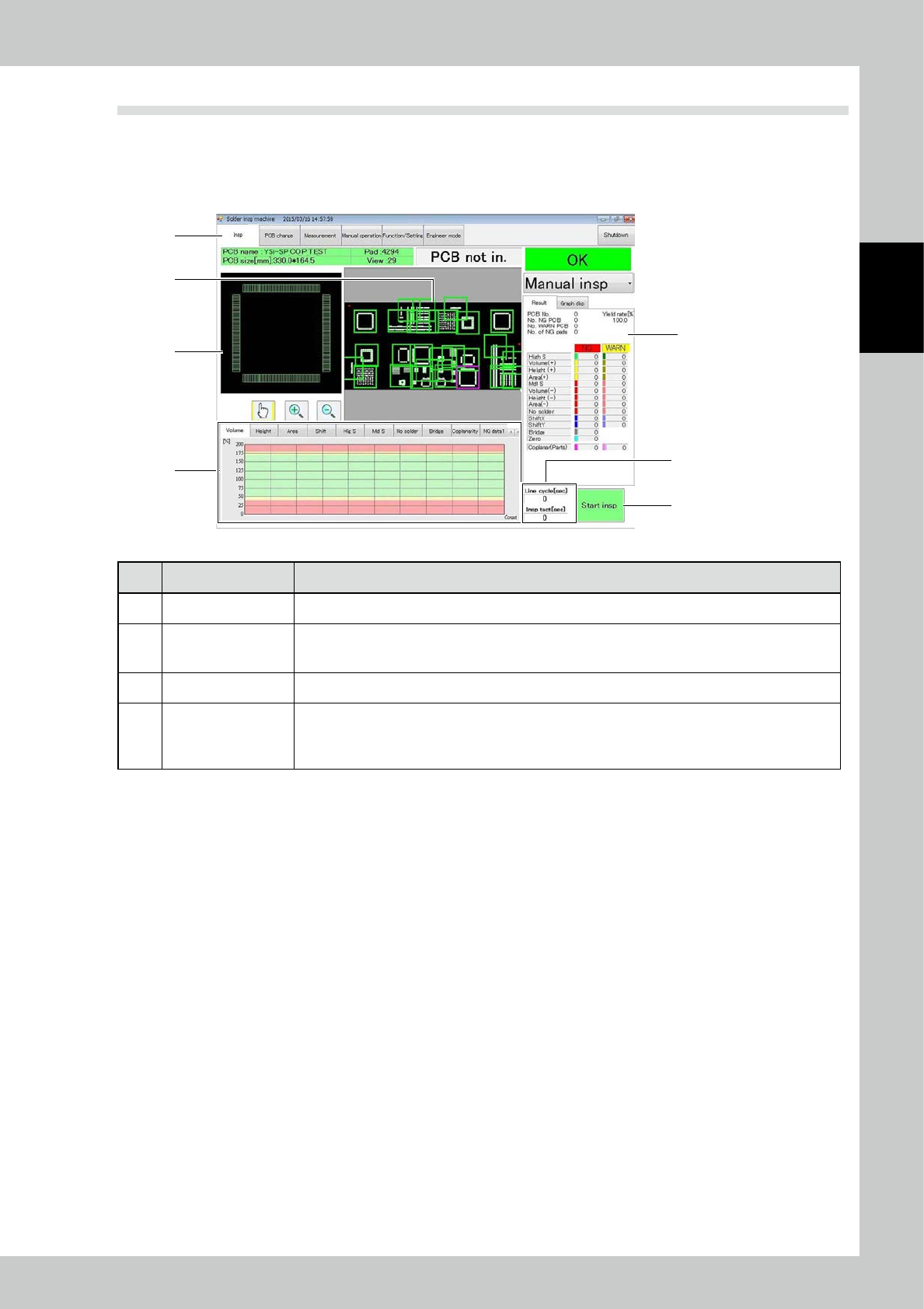

Items displayed on the inspection screen and functions are described. On the inspection screen, two images
are displayed at the upper part of the screen, while a histogram showing the inspection result is displayed at
the lower part. The histogram shows one of seven inspection items through selection with a tab. In addition,
inspection results of the PCB and so on are displayed on the right part of the screen.
7
1
5
6
2
3
4
24221-KMN-00
No Name Description of displayed item and functions
1 PCB data The PCB name, size, number of fields of view of inspection and comment are displayed.
2 PCB image
The image of the entire PCB is displayed. The pad image is displayed in white, while the field of view
is indicated with a blue frame. The active field of view is indicated with a pink frame, and it moves
according to the progress of inspection.
3 Image of field of view The image of the field of view being inspected is displayed.
4 Histogram
The inspection result is displayed in a histogram. In the automated inspection mode, the inspection
result is displayed continuously. The maximum value, minimum value or mean can be displayed.
(For the setting, refer to "3.6.5 Chart Setting".)
The displayed graph changes according to the inspection item each time the tab is touched.

2-20
2
Operation
No Name Description of displayed item and functions
5
Results of inspection
of PCB
The inspection results are indicated in colors and the inspection quantity is displayed.
PCB No. The inspected PCB number is displayed.
Number of faulty PCBs
The number of faulty PCBs in the inspected PCBs is displayed
according to the inspection result.
Number of warning PCBs
The number of warning PCBs in the inspected PCBs is displayed
according to the inspection result.
Projection (High S) The number of pads judged to be a projection fault is displayed.
Blur (Low S) The number of pads judged to be a blur fault is displayed.
Volume (+)
The number of pads having a larger volume than the spec value is
displayed.
Height (+)
The number of pads having a larger average height than the spec value
is displayed.
Area (+)
The number of pads having an area larger than the spec value is
displayed.
Fade (Mdl S) The number of pads judged to be a fade fault is displayed.
Volume (-)
The number of pads having a volume smaller than the spec value is
displayed.
Height (-)
The number of pads having a smaller average height than the spec
value is displayed.
Area (-)
The number of pads having a volume smaller than the spec value is
displayed.
Shift X The number of pads deviating in the X direction is displayed.
Shift Y The number of pads deviating in the Y direction is displayed.
Bridge The number of pads judged to be a bridge fault is displayed.
No solder The number of pads judged to be a no-solder fault is displayed.
Coplanarity The quantity of parts judged to be a coplanarity fault is displayed.
6
Line cycle The time from PCB loading to the loading of the next PCB is counted.
Inspection tact The time from the start of inspection to the end of inspection is counted.
7 [Start insp] button Touch to start to inspect.
