2-28
2
Operation

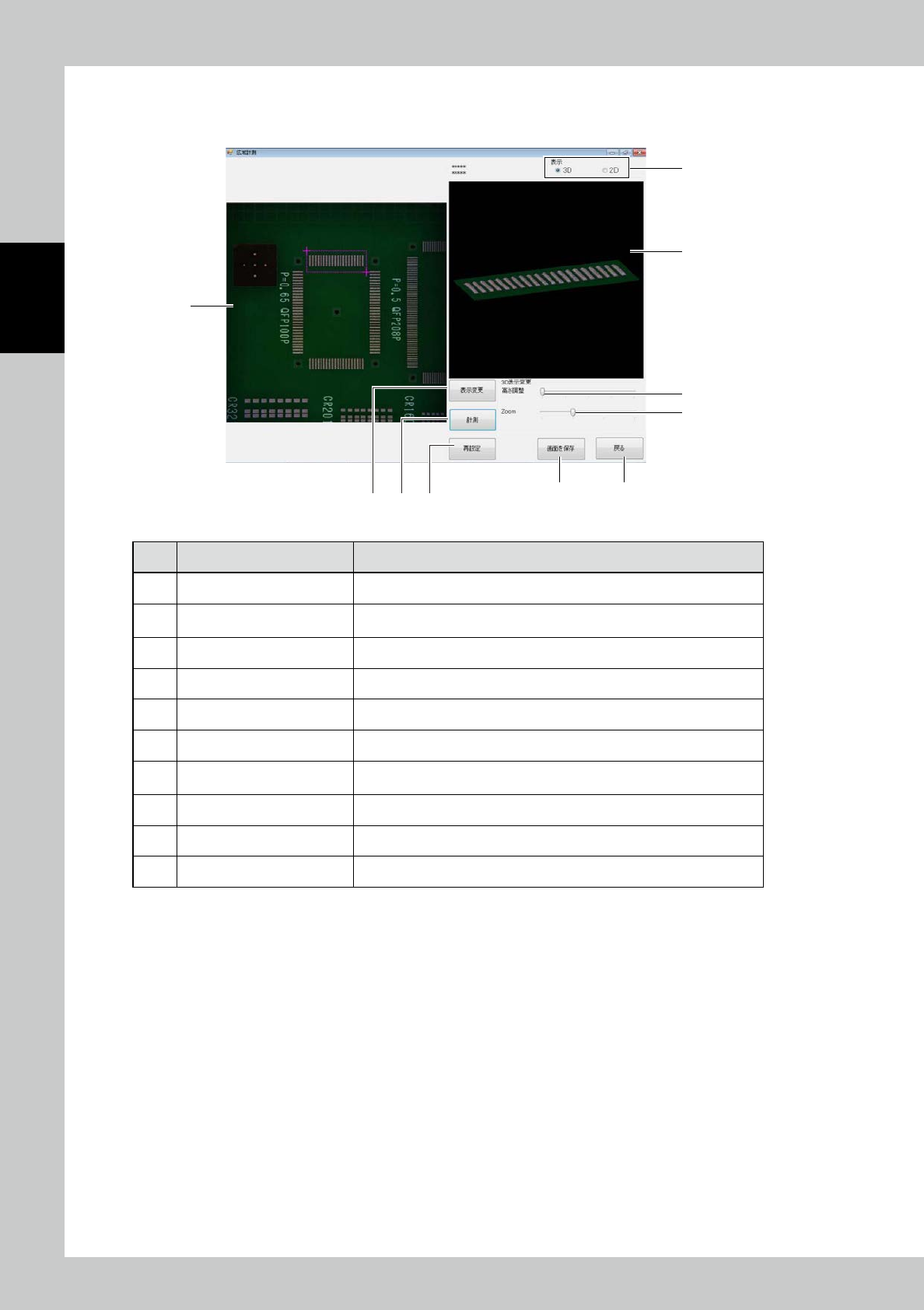

3.4.2 Wide Area Measurement Screen
Items displayed on the wide area measurement screen and functions are described.
7 5
8
9
6
4 10
3
2
1
24229-KMN-00
No Name Description of displayed item and functions
1 Image of field of view The image of the currently selected field of view is displayed.
2 3D image
The 3D image of the area designated as a measurement range on the field
of view screen is displayed.
3 Disp Disp 3D/2D
4 [Save screen] button Save the currently displayed screen.
5 [Reset] button The current selected area is canceled.
6 [Measurement] button The range selected in the view image is displayed in a 3D image.
7 [Dsp change] button
The 3D image changes to a normal image or color gradation height
discrimination image. The view alternates each time the button is touched.
8 Adjust disp height Change the scale of the displaying height.
9 Zoom in / Zoom out Change the scale of the displayed image.
10 [Return] button Return to the measurement screen.
2-29
2
Operation

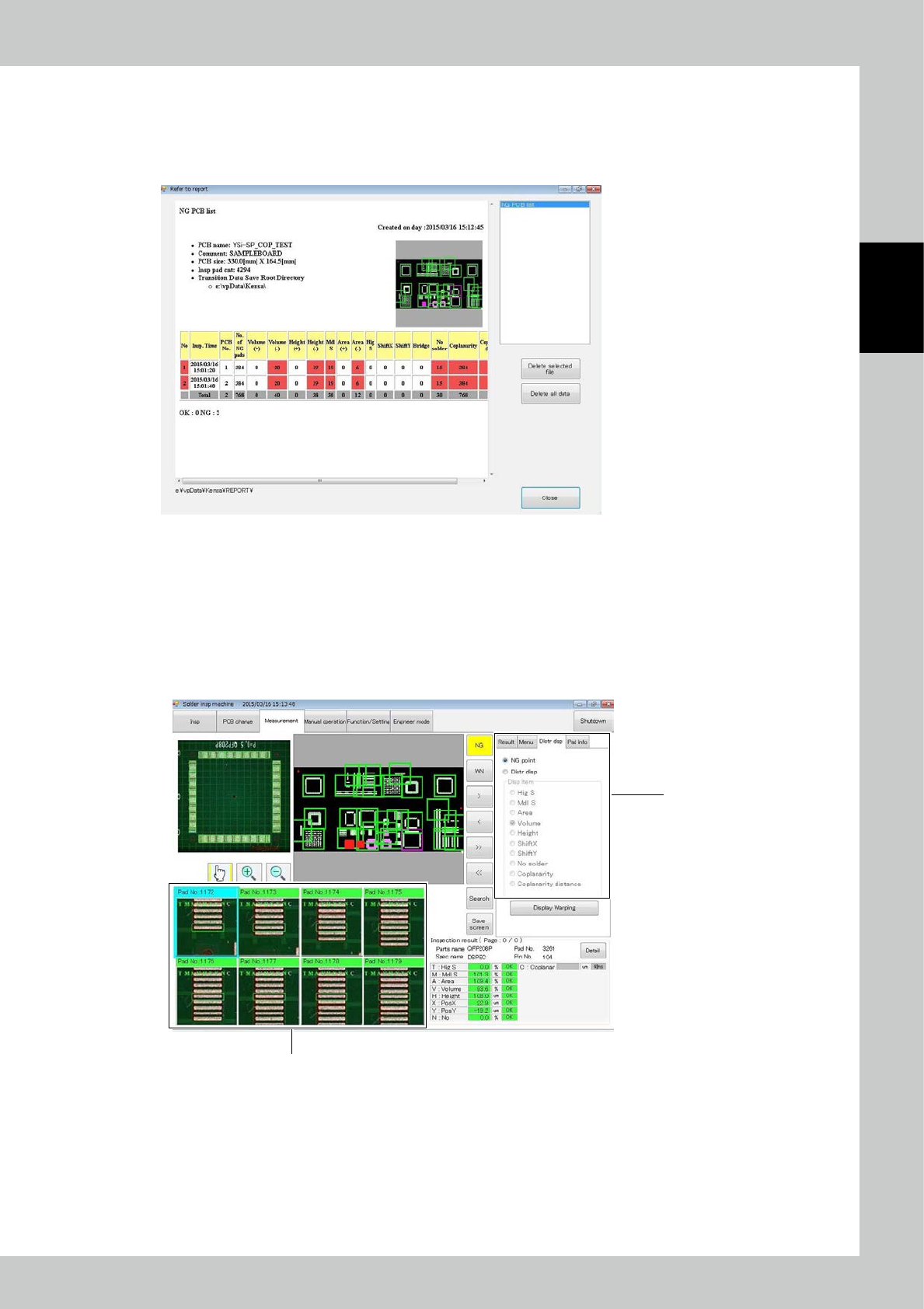

3.4.3 NG PCB list
The contents to be checked are only the PCB number of the faulty PCB and fault frequency of each inspection
item.
Details can be checked with the software at the data station.
24230-KMN-00
3.4.4 Alloc Disp
The "Alloc disp" view and each function are described.
Select the Alloc disp tab to switch between NG point view and allocation view of each inspection item.
1. The content is displayed according to the selected item.
2. Select a pad on the PCB to check the image of the selected pad.
2
1
When Alloc disp is selected
24231-KMN-00
2-30
2
Operation

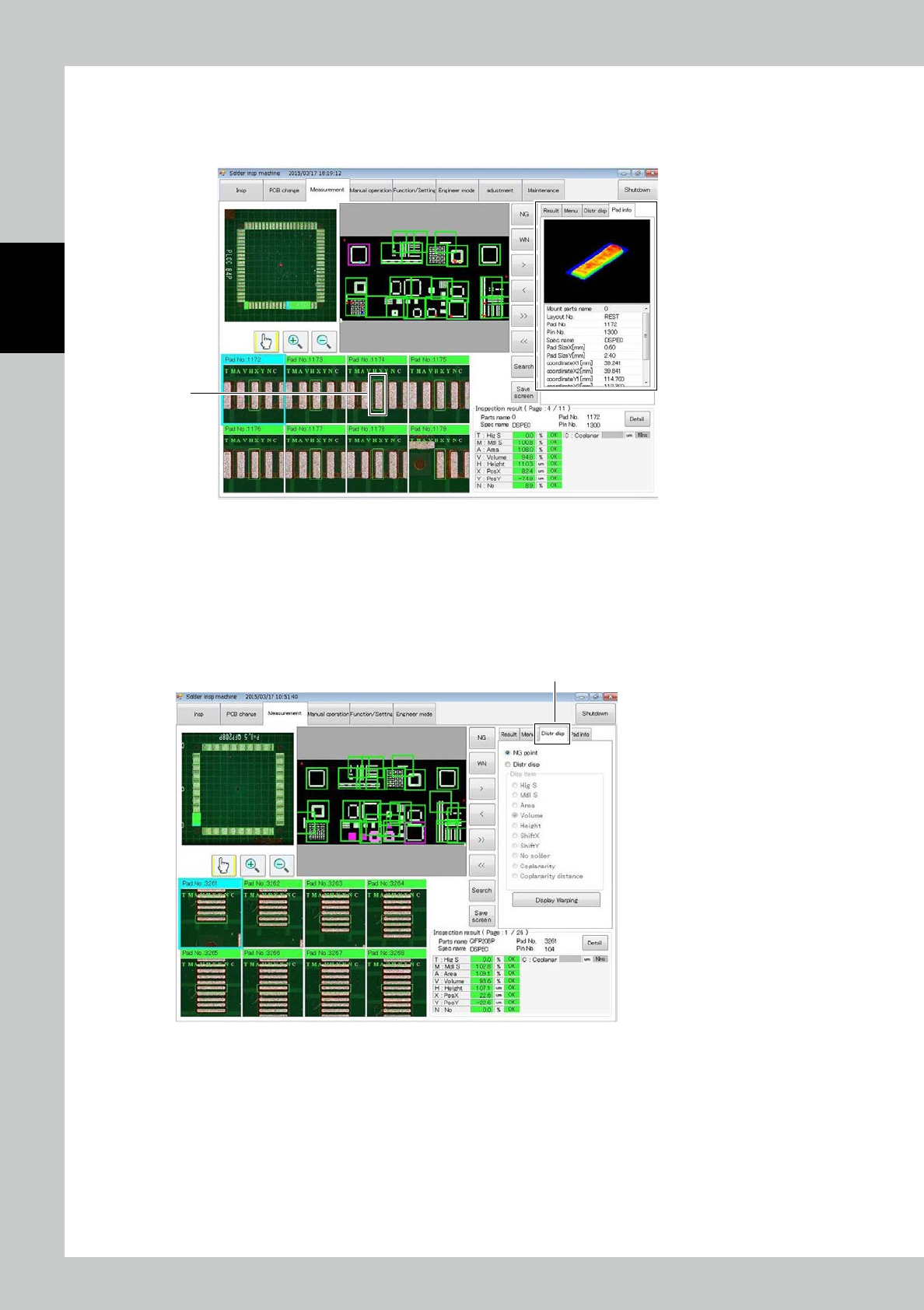

3.4.5 Pad info
The "Pad info" view and each function are described.
The shape of the pad selected at 1 and detail information about the pad can be checked.
1
24232-KMN-00
3.4.6 PCB Warping Measuring Function
The " PCB Warping Measuring Function " view and each function are described.
1. Opening the “Distribution display window” at measuring tab.
At right side of the screen after push the measuring tab, four tabs will be displayed.
Please push the “Distr disp” tab.
Distr disptab
24233-KMN-00
