1-15 1 Over view and maintenance of machine Ball screw lubrication for conveyor width determination Extension Conveyor unit (option) Ball screw for conveyor width determination Shell Albania grease S2 23115-KMN-00
1-14
1
Overview and maintenance of machine
6.2 Grease lubrication
Lubrication oil is not necessary on this machine except for the ball screw for determining the conveyor width.
Periodically (every one or two months), lightly wipe off the old grease from the ball screw for width
determination, and apply thinly with Shell Albania grease S2 or equivalent.
Though other parts like the guide part does not require lubrication oil, if greasing becomes necessary by
touching the part with bare hands or spilled solvent, apply grease following the cautions below.
c
CAUTION
1. Since special clean grease (THK AFF grease) is included in X-axis and Y-axis ball screws, never apply rust
preventive oil.
2. For applying grease to LM guide and others, use Shell Alvania Grease S2 or equivalent.
3. Application quantity is about thin film less than operating characteristics.
4. Put on gloves when applying grease with your hand.
■
Give first aid treatment as below if a adhesion of oil on the skin, etc. are occurred just in case, under oil
supply.
• Inhalation
Remove casualty to fresh air and keep at rest in a position comfortable for breathing .Cover with blanket to keep warm
and rest in a quiet surrounding. Seek immediate medical advice and attention.
• Skin Contact
Wash skin with large amount of water using soap.
• Eye Contact
Rinse cautiously with clean water for several minutes. Remove contact lenses, if present and easy to do, and continue
rinsing. After rinsing for a minimum of 15 minutes, seek medical advice and attention.
• Ingestion
Without inducing vomiting, call a doctor for treatment. If mouth has been dirtied, clean with water.

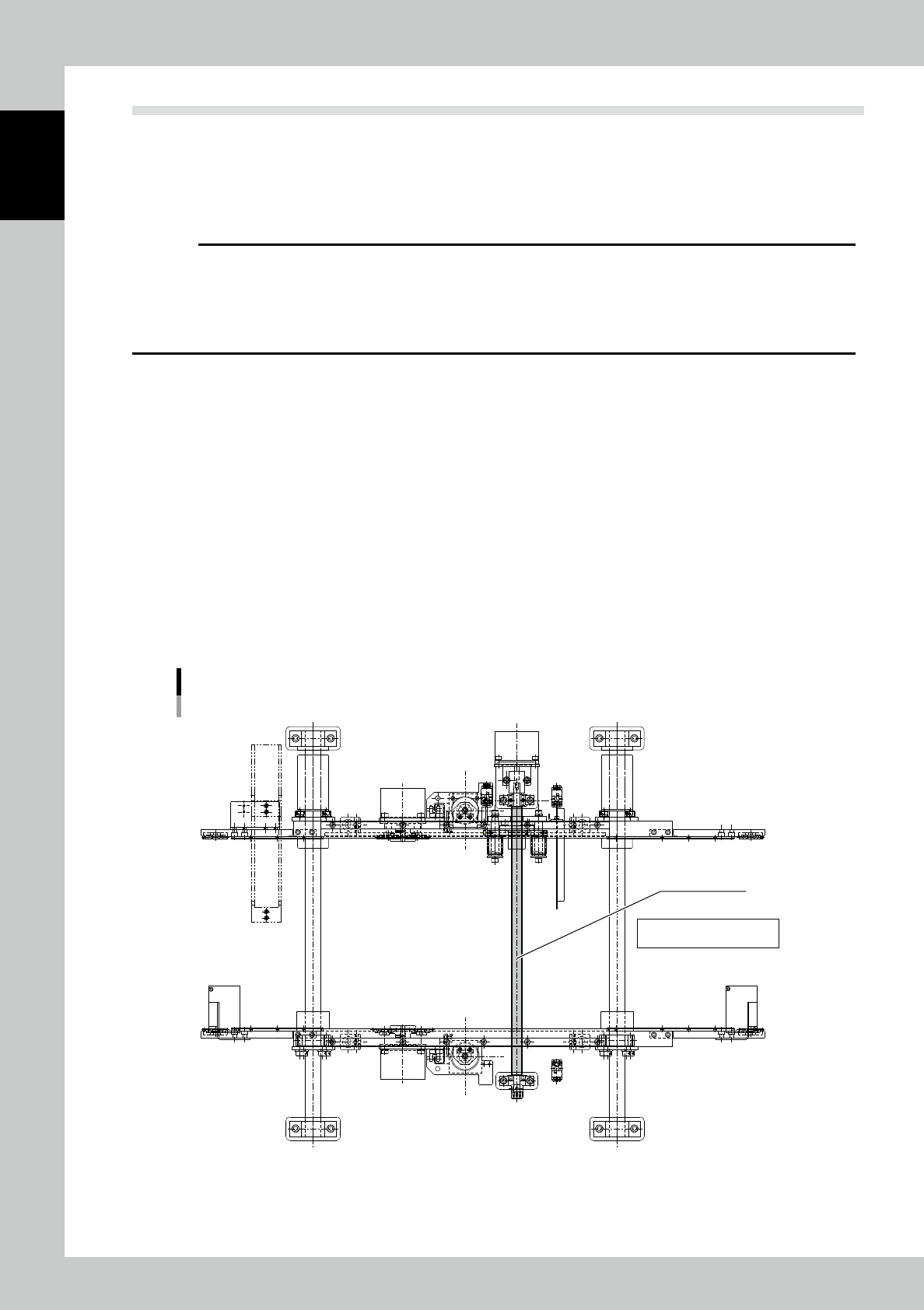

Ball screw lubrication for conveyor width determination
Ball screw for conveyor
width determination
Shell Albania grease S2
23107-KMN-00
1-15
1
Overview and maintenance of machine

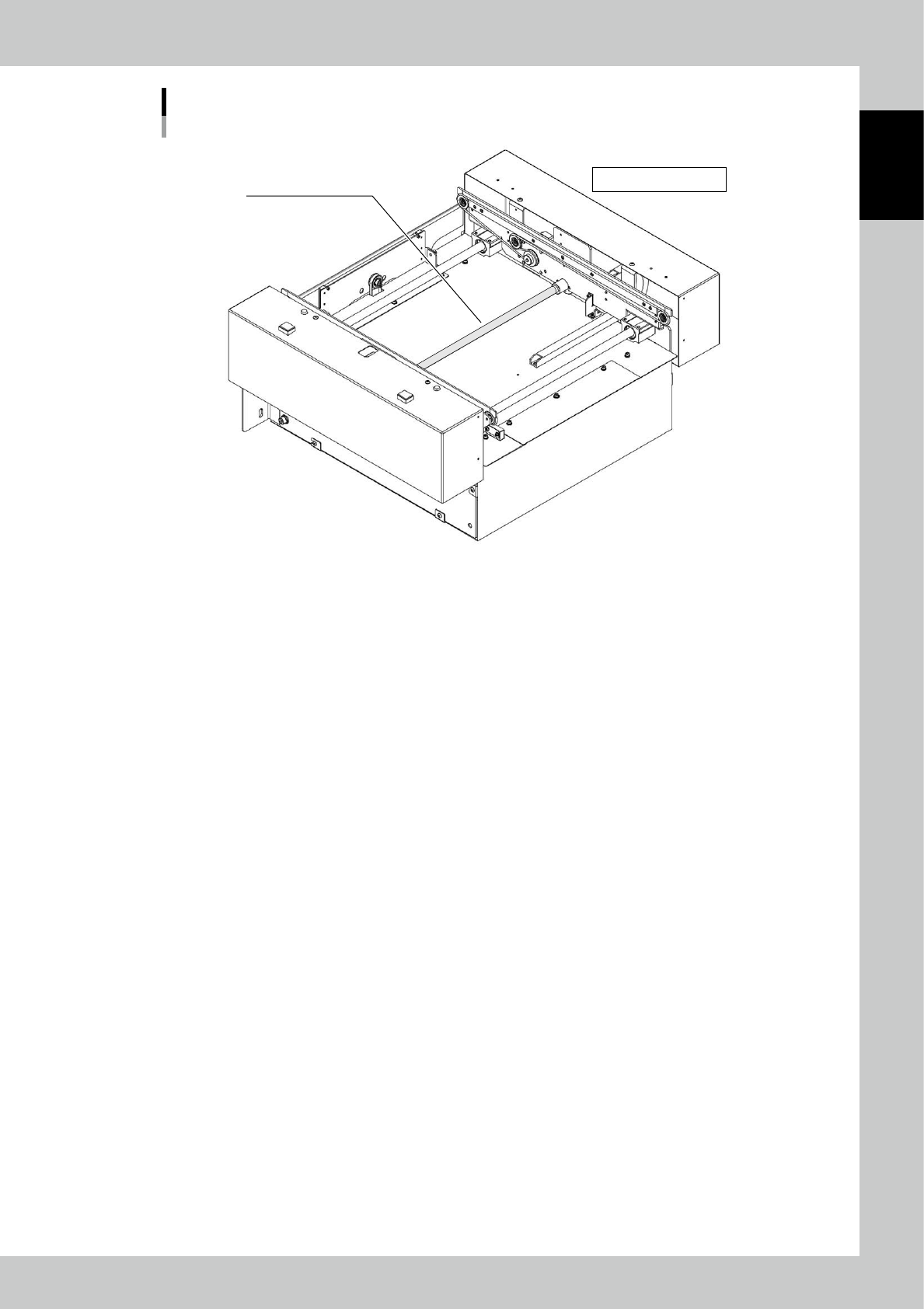

Ball screw lubrication for conveyor width determination
Extension Conveyor unit (option)
Ball screw for conveyor
width determination
Shell Albania grease S2
23115-KMN-00
1-16
1
Overview and maintenance of machine
6.3 Part replacement and adjustment
w
WARNING
IF WORKED WHILE THE DEVICE IS OPERATING, IT MAY CAUSE SIGNIFICANT ACCIDENT LIKE PINCHING.
WHEN TOUCHING THE MOVING PART FOR MAINTENANCE AND SETTING UP PURPOSE, ALWAYS SHUTDOWN THE POWER
SOURCE BY FOLLOWING THE SPECIFIED PROCEDURE, AND CONDUCT WORK AFTER VERIFYING THE MOVING PART IS
COMPLETELY STOPPED.
w
WARNING
ESPECIALLY WHEN MAINTENANCE IS DONE BY MULTIPLE WORKERS, TO PREVENT OTHER WORKERS FROM OPERATING
SWITCHES, PASTE THE “WORK IN PROGRESS” DISPLAY ON THE OPERATIONAL PANEL, ETC. TO LET KNOW OTHERS THAT WORK
IS IN PROGRESS.
6.3.1 Replacement of the conveyor pulley
1
Remove the conveyor belt.
2
Loosen the hexagon socket head bolt (M4) fixing the conveyor pulley.
3
Replace the pulley.
Attach it with aligning the belt running line (position of height)
4
Attach the conveyor belt.
For attaching and removing the conveyor belt, see "6.3.2 Replacement of the conveyor belt".

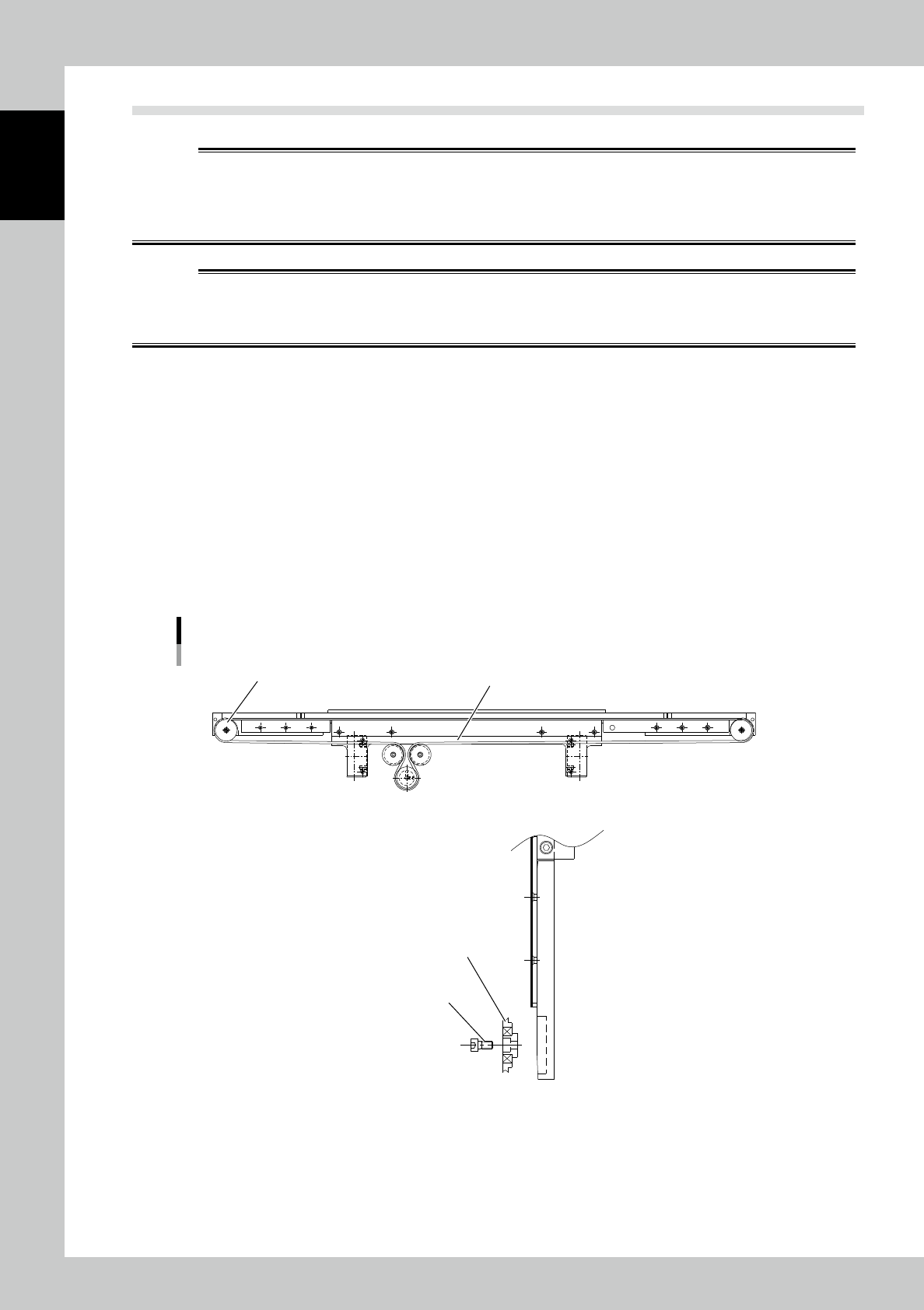

Replacement of the conveyor pulley
Conveyor pulley
Conveyor pulley
Hexagon socket
head screw
M4*8
Conveyor belt.
23108-KMN-00
