2OM-1733 2-3-6 Z-Direction Select one of the following options to determine the Z angular orientation of the placement coordinate reference point. Same : Select this when the angular orientation is the same as that of th…

100%1 / 358
2OM-1733
2-3-5
Z (Angle) [deg]
Set the offset value for component placement angle.
The set value is added to the "Offset Z (deg)" of all components in the
placement data (P data).
To correct the angle of component placement counterclockwise, a parameter
must be entered with a plus (+) sign. A minus (-) sign must be afxed for
clockwise correction.

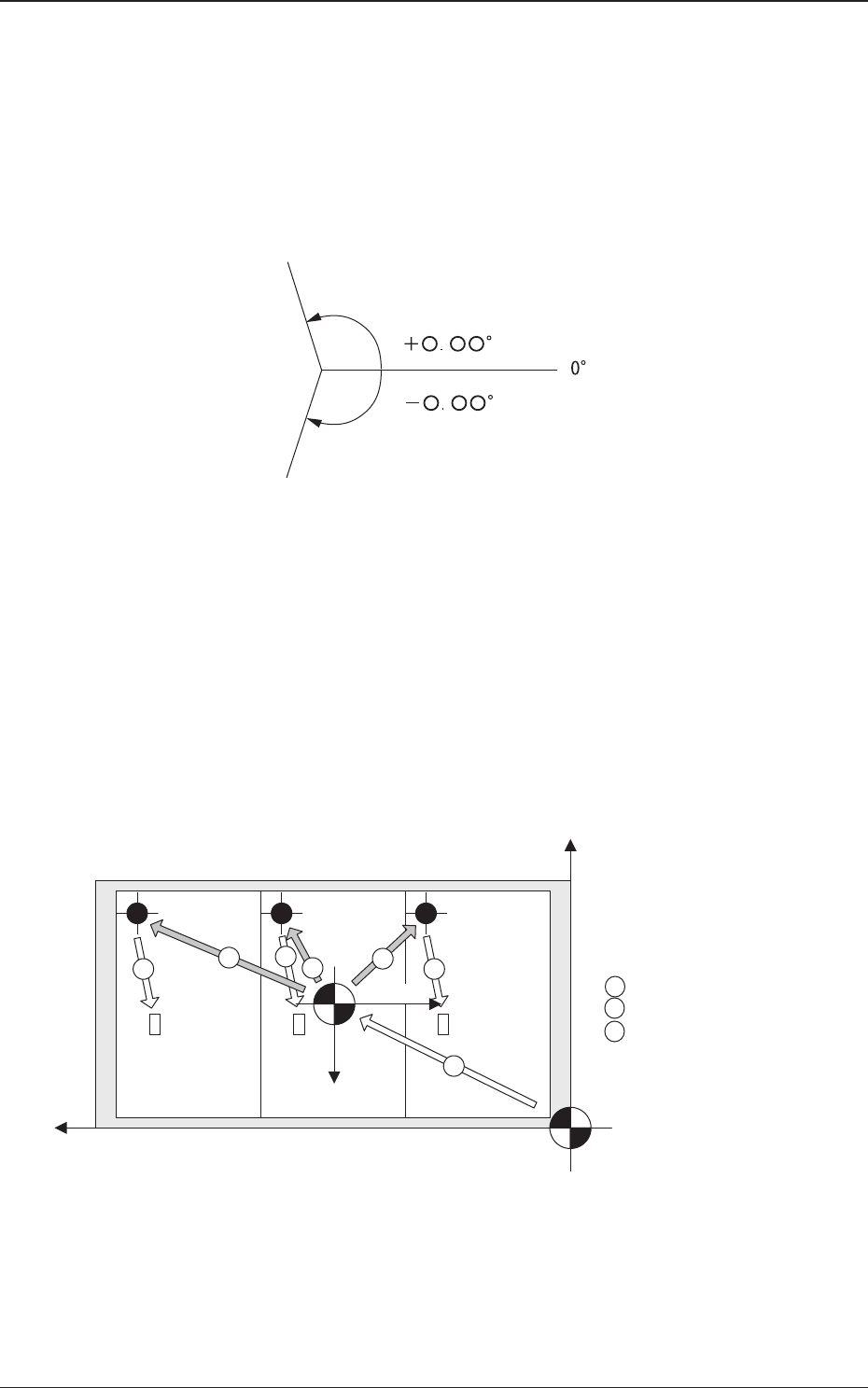

Fig. 2B3-5
X-Direction and Y-Direction
"Same" or "Opposite" can be selected as the X and Y directions in the
placement reference coordinate system.
Same
: Select this when the direction of the coordinates is the same
as that of the machine coordinates.
Opposite
: Select this when the direction of the coordinates is opposite,
compared with the direction of the machine coordinates.
Y+
X+
X+
Y+
1
2
3
2
2
3
3
1 : PCB Origin Offset
2 : Unit PCB Origin
3 : Placement Coordinates
Machine Origin
PCB Origin
Machine Coordinate System
Placement
Coordinate
Reference
Machine Coordinate System
Fig. 2B3-6
1212-002
3.2 PCB
2OM-1733
2-3-6
Z-Direction
Select one of the following options to determine the Z angular orientation of
the placement coordinate reference point.
Same
: Select this when the angular orientation is the same as that
of the machine coordinates.
Opposite
: Select this when the angular orientation is opposite,
compared with the direction of the machine coordinates.
(B01_03)
PCB height offset [mm]
Set an offset value as a nozzle descending distance based on the upper
surface of the PCB in the component placement section. This offset value
applies to all components in the pattern program.
Normal Cases
Set "+0.000" (zero) in the text box.
The gure below shows that the upper surface of a PCB is maintained by
the PCB support pins at the PCB upper surface reference.
PCB
PCB Upper Surface
Reference
Chute
Backup Pin
Backup Table

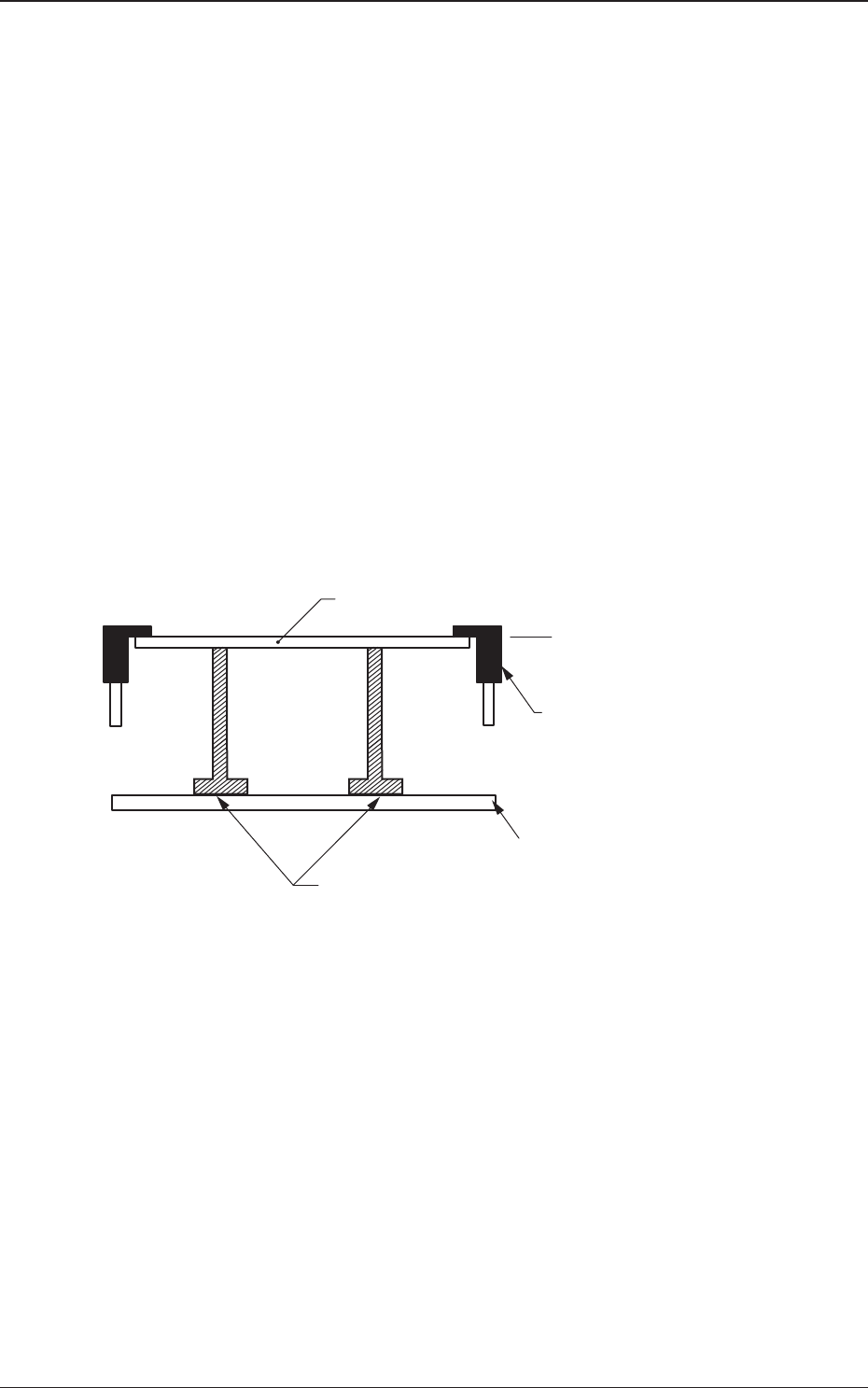

Fig. 2B3-7
1212-002
3.2 PCB
2OM-1733
2-3-71212-003
3.2 PCB
Example of Jig PCB Usage
The gure below shows that the upper surface of a PCB is lower than the
PCB upper surface reference.
If "PCB Upper Surface Reference + a" is set as an offset value at this time,
components can be placed correctly on the PCB.
a
T (Thickness)
Jig PCB
PCB
PCB Upper Surface
Reference
Chute
Fig. 2B3-8
