3. Alt Comp ID List

The alternative component list is referred to in the PP check in the pattern program

change to check that such alternative component data can be setup in place of the

current component data.

[1]

[2]

[3] [4]

[5]

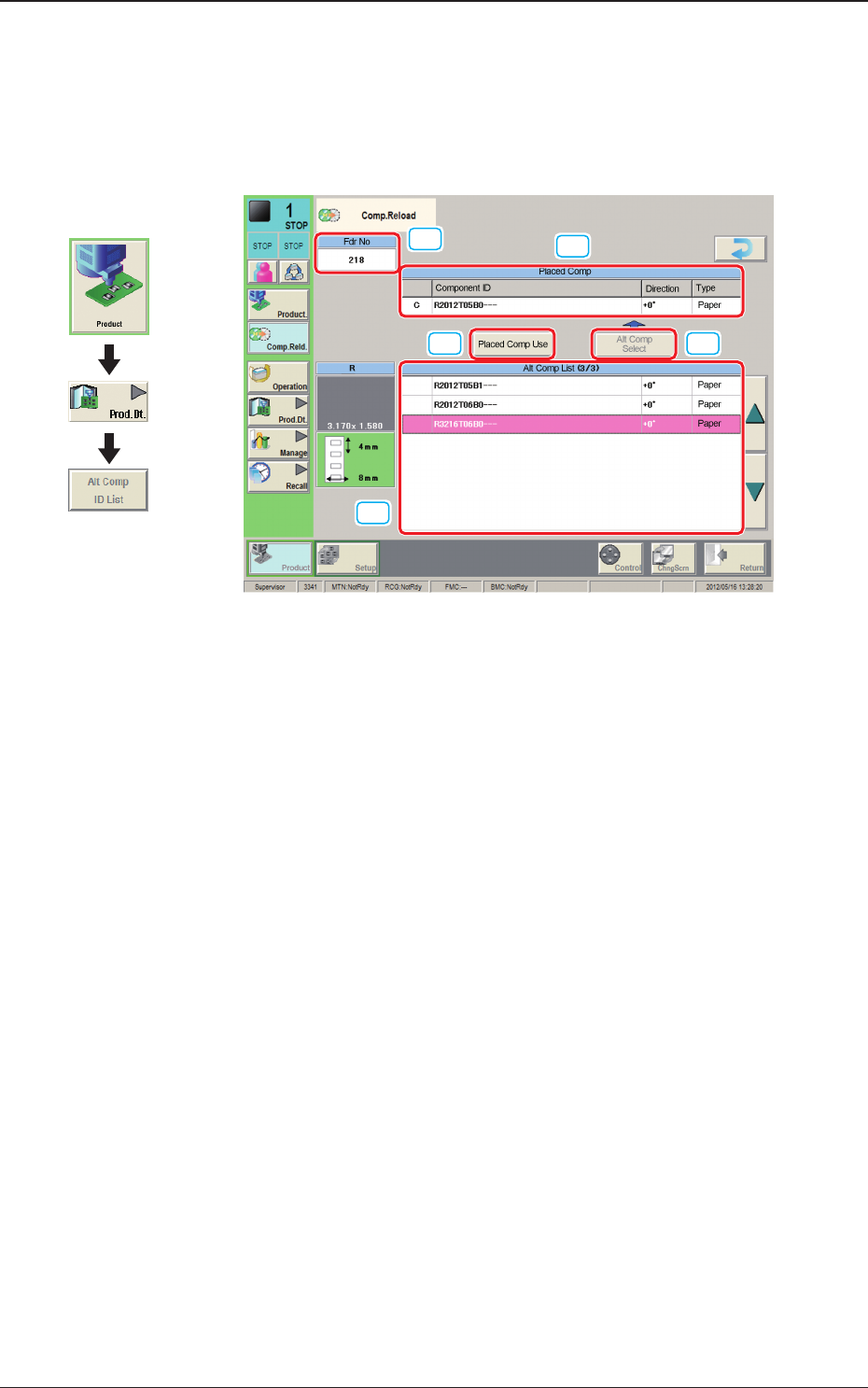

Fig. 2C3-1

[1] Feeder No.

The Feeder No. is displayed in this data box.

[2] "Placement Comp" Group Box

The data of the components under placement operation is displayed in this

data box.

[3] [Placeed Comp Use] Button

When this button is pressed, the components under placement operation are

used.

[4] [All Comp Select] Button

When this button is pressed, the components selected in the alternative

component list are placed in place of the current components.

[5] "All Comp Select" Display section

The alternative components are displayed in this section.

Unavailable (NG) components are displayed in red and they cannot be setup

in place of the current components.

Graphic

Development

2OM-1733

3-3-21205-001

2OM-1733

1205-001 4-A

Chapter 4

Management Data

This chapter describes the display contents and operation procedures for

the Management Data, Current Pattern Program Management, Feeder/

Nozzle Message Rate and Component Handling Rate Data, etc.

1. Outline of Management Data

2. "MNG.DT." Window

3. "CRNT.PP.MNG.DT" Window

4. "MESSAGE.RATE.DT" Window
