2OM-1733 2-3-55 (G04_02) X [mm] and Y [mm] Set the coordinates of each pattern origin (O01 through On) based on the placement coordinate reference (N0). A pattern origin refers to the reference coordinates of a repetitiv…
2OM-1733
2-3-54
(G04) O-Data

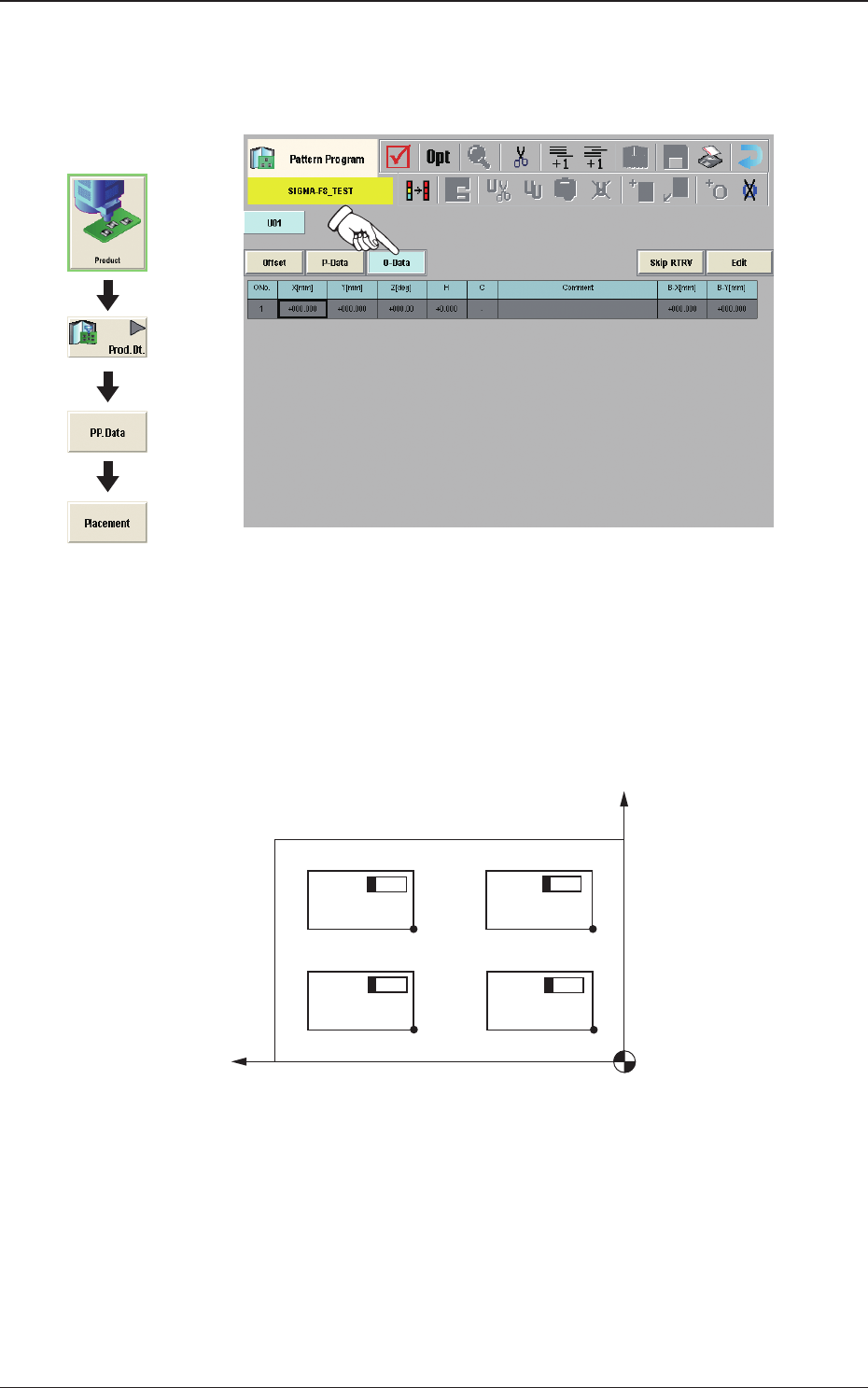

When the [O-Data] button is pressed in the "Placement" window, the
following tab sheet appears.
Fig. 2B3-46
(G04_01)
ONo.
Shown are the step Nos. of the placement data (O).
These step Nos. are regarded as repetitive pattern Nos. Parameters must be
entered in each line (pattern).
O-No.1
O-No.2
O-No.3
O-No.4
Pattern 4
Pattern 2 Pattern 1
Pattern 3
Fig. 2B3-47 Example of Repetitive Pattern Program
Graphic
Development
1212-002
3.7 Placement
2OM-1733
2-3-55
(G04_02)
X [mm] and Y [mm]
Set the coordinates of each pattern origin (O01 through On) based on the
placement coordinate reference (N0). A pattern origin refers to the reference
coordinates of a repetitive pattern.
The position reference should be located at the corner position on the same
side of the placement position reference (N0), assuming the Z-data described
in the next (F04_03) as "0 degree".
N
0
:
The center of is the placement coordinate reference.
O
01
:
Pattern Origin of Pattern 1
O
02
:
Pattern Origin of Pattern 2
O
03
:
Pattern Origin of Pattern 3
O
04
:
Pattern Origin of Pattern 4
O04
O03
O02
O01
X
Y
Placement Coordinate
Reference (No)
Component
Pattern 4 Pattern 3
Pattern 2 Pattern 1
Fig. F2B3-48
1212-001
3.7 Placement
2OM-1733
2-3-56
(G04_03)
Z=theta [deg]
Set an angle of each pattern. Keep the angle of the reference pattern as "0
deg".
In the gure below, "Pattern 1" is regarded as a reference one.
N
0
:
The center of
is the placement coordinate reference.
O
01
:
Pattern Origin of Pattern 1
O
02
:
Pattern Origin of Pattern 2
O
03
:
Pattern Origin of Pattern 3
O
04
:
Pattern Origin of Pattern 4
Pattern 1 :
0 deg
Pattern 2 :
90 deg
Pattern 3 :
180 deg
Pattern 4 :
270 deg
X
O
03
O02
O01
O04
Y
Placement Coordinate
Reference (No)
Component
Pattern 4
Pattern 3
Pattern 2
Pattern 1
Fig. 2B3-49 Example of Repetitive Patterns
Note
A numerical value must be entered in increments of 90 deg. Otherwise, an
error will occur.
