2OM-1733 2-3-1 1 3.3 Operation (C01) Function Fig. 2B3-13 Note The number of pages varies depending on the number of zones to be used. Graphic Development 1212-002 3.3 Operation

100%1 / 358
2OM-1733
2-3-10
(B01_05)
Comp library placement offset
In this box, whether or not the component library placement offset function
is used, is setup.
When "Enable" is set, the system is operated based on the value set in the
NT-100 system software.
(B01_06)
PCB Warpage [mm]
Specify the maximum value of the PCB upward warpage.
Notice
Whenever the data is changed, be sure to optimize the data.
•
Data Input Range
0.000 to 3.000
(B01_07)
Lot Name
The lot name of the pattern program is set in this text box.
Max. 39 characters are used for the setting.
The available characters are half-width alphabetical and numerical characters
and symbols.
Note
Even when this comment is not set, it does not inuence on the machine
performance.
(B01_08)
Comment 1 and Comment 2
Comments on the pattern program can be specied in these text boxes.
Up to 32 characters (alphanumerics and marks) can be used.
Note
The performance of the machine is not affected by these comments. In
other words, it has nothing to do with or without these comments.
1212-002
3.2 PCB
2OM-1733
2-3-11
3.3 Operation

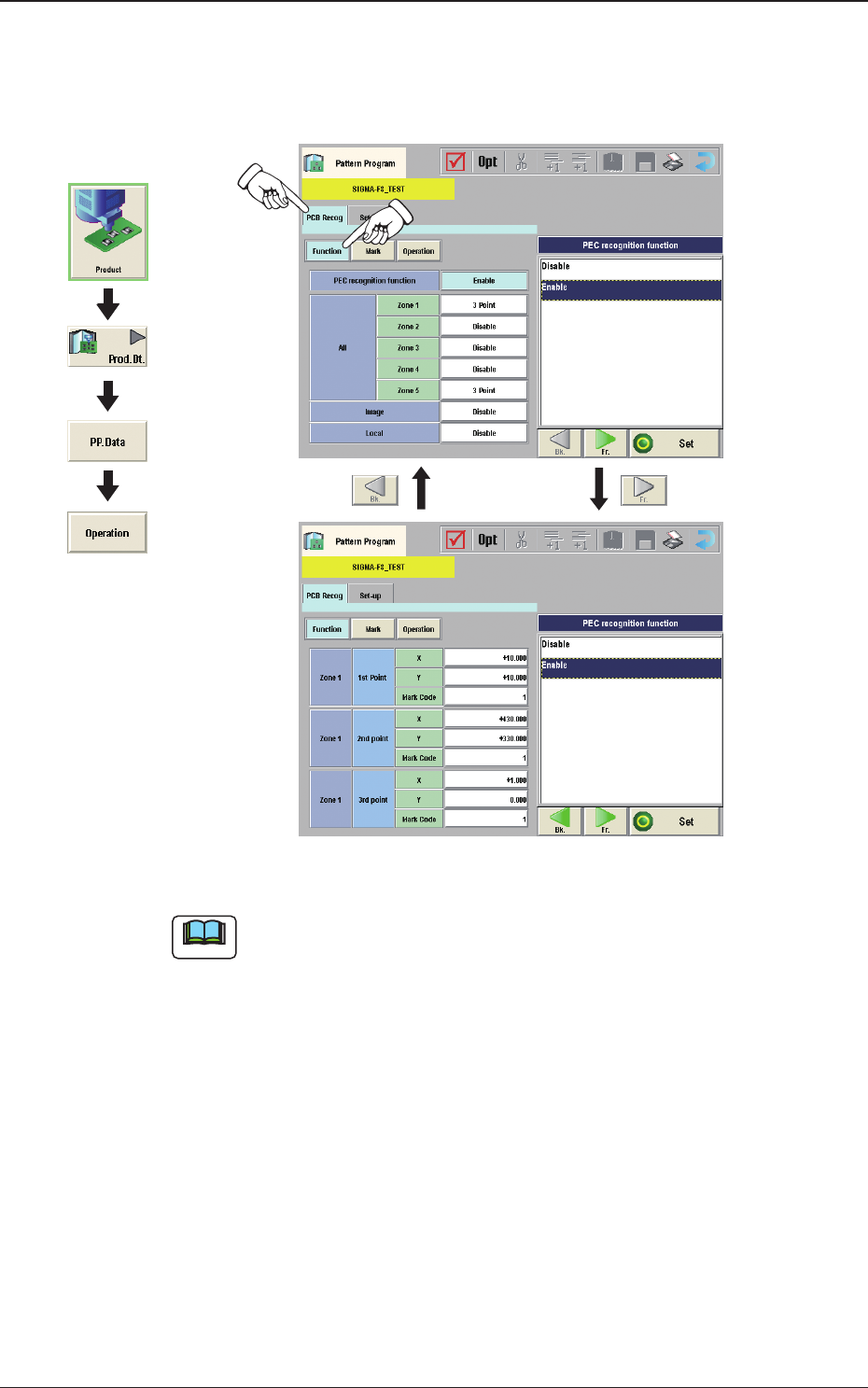

(C01) Function
Fig. 2B3-13
Note
The number of pages varies depending on the number of zones to be used.
Graphic
Development
1212-002
3.3 Operation
2OM-1733
2-3-12
(C01_01)
PEC recognition function
Select one of the following options to determine whether or not this function
should be used.
Disable
: The PEC recognition function is not used.
Enable
: The PEC recognition function is used.
Notice
When the PEC recognition function is not used in a pattern program,
the program cannot be used.
(C01_02)
All
Zones 1 through 5
When the "PEC recognition function" is to be used, the setting for the global
recognition is selected from the following items for each zone.
Disable
: The global recognition function is not activated.
1 Point
: The global recognition function is implemented, using one ducial
mark.
2 Point
: The global recognition function is implemented, using two ducial
marks.
3 Point
: The global recognition function is implemented, using three
ducial marks.
Note
(a) It is recommended that "2 Point" or more should be selected for the
global recognition.
(b) By dividing the area for the PEC recognition into several zones, it
became possible to correct a local expansion of a large PCB, etc.
1212-002
3.3 Operation
