2OM-1733 2-3-46 (G01_01) Un Select one of the following tabs (placement data groups) in one pattern program. U01 : First Placement Data Group U02 : Second Placement Data Group ↓ Un : Up to 99 placement data groups can be…
2OM-1733
2-3-45

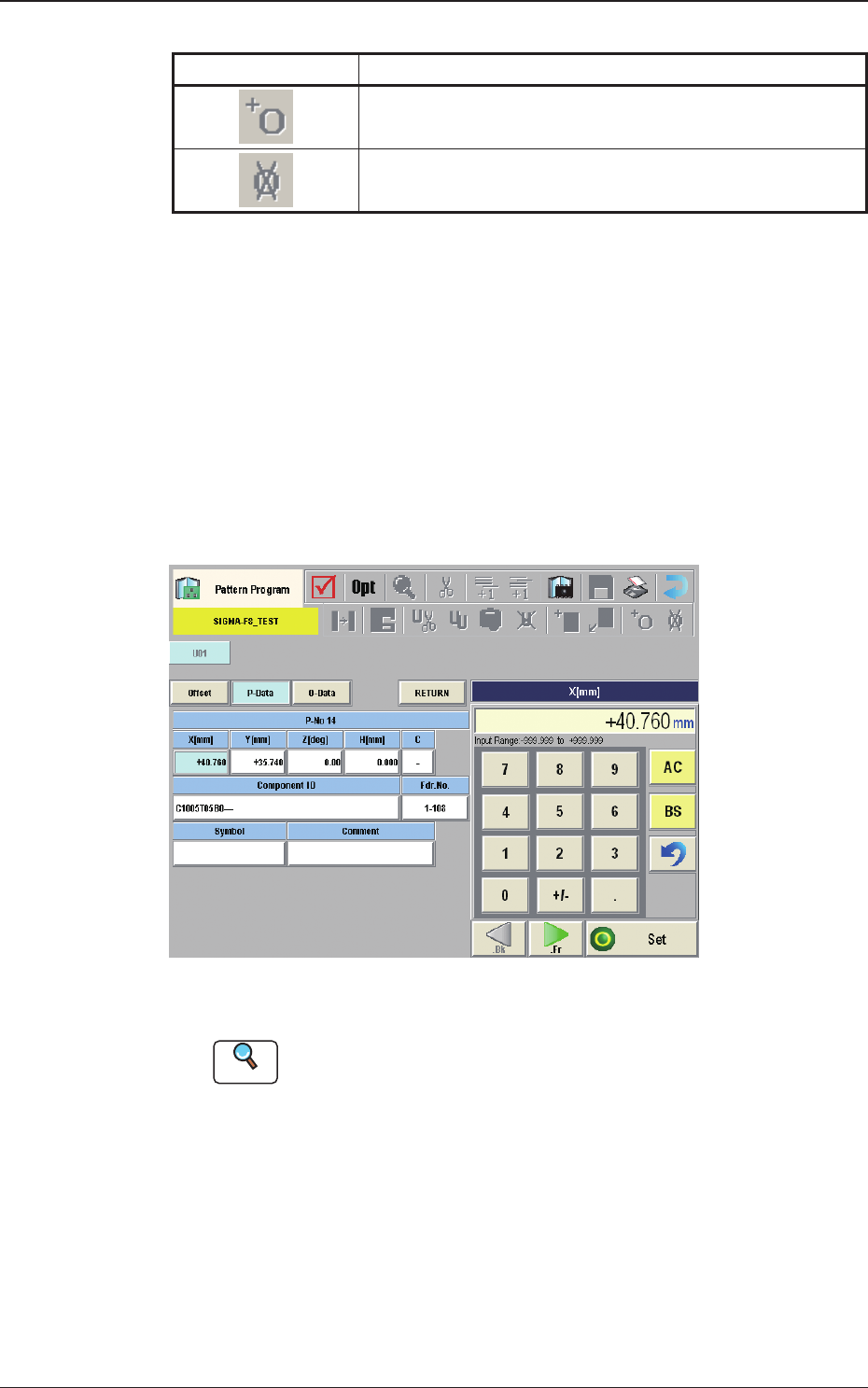

Table 2B3-4
Icons Description
The O-data is added to the selected unit.
The O-data is added to the currently selected U-data.
The O-data in the selected unit is deleted.
The O-data in the currently selected U-data is deleted.
[2] [Skip RTRV] Button
When pressed, the search of the unit where the unit control has been set to
"Skip", is started up.
When the [Skip RTRV] button is pressed, the offset window for the unit
where the unit control has been set to "Skip", is displayed.
[Edit] Button
When this button is pressed, the P-Data or O-Data is edited.
When the data to be edited is selected and the [Edit] button is pressed, the
"Data Setting" window appears.
Fig. 2B3-37
Reference
Refer to (G03) or (G04) for each item to be set.
[3] Placement Data Group Select Button
Using this button, the placement data group is selected.
[4] Placement Data Select Button
Using this button, the placement data is selected.
1212-002
3.7 Placement
2OM-1733
2-3-46
(G01_01)
Un
Select one of the following tabs (placement data groups) in one pattern
program.
U01
: First Placement Data Group
U02
: Second Placement Data Group
↓
Un
: Up to 99 placement data groups can be specied.
U02
U01
Placement Coordinate
Reference
Fiducial Marks
Fig. 2B3-38
Note
(a) Use "U01" in normal cases.
(b) The operation and feeder location data are used commonly.
1212-002
3.7 Placement
2OM-1733
2-3-47
(G02) Offset
When the [Offset] button is pressed in the "Placement" window, the
following tab sheet appears.
Fig. 2B3-39
(G02_01)
Unit Control
Select one of the following options to determine whether the selected
placement data should be used.
In normal cases, select "Placement".
Placement
: The placement data of the selected unit (group) becomes valid.
Bypass
: The placement data of the selected unit (group) becomes
invalid.
Graphic
Development
