2. "Temp Chng Comp Lib" Window
In these tab sheets, the component library parameters are changed temporarily.

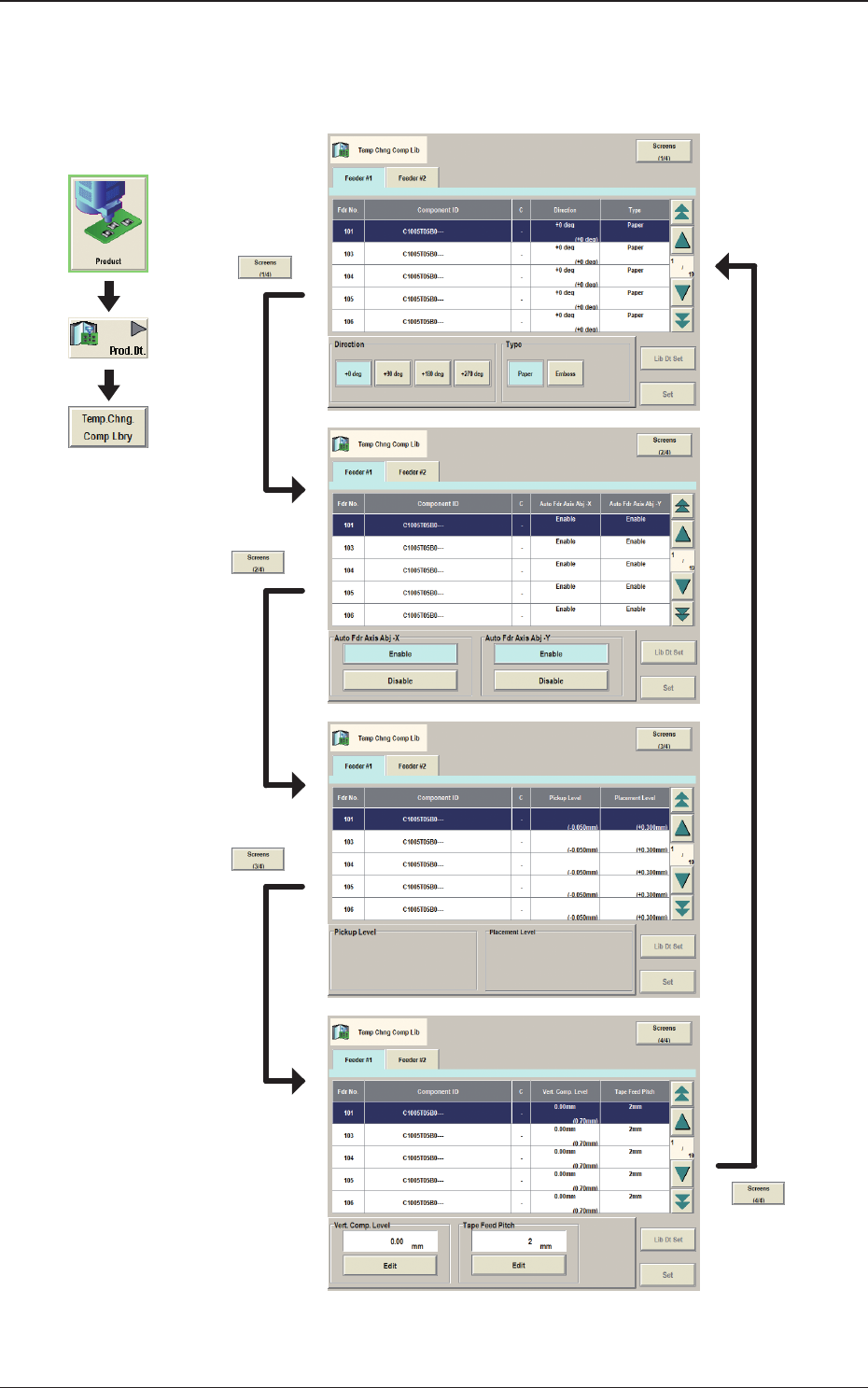

Fig. 2C2-1
Graphic
Development
1212-002
2. "Temp Chng Comp Lib" Window
2OM-1733
3-2-21212-002
2.1 Temporary Change Procedure
2.1 Temporary Change Procedure
Procedure
(1) Select the component ID to be changed, in the Component ID List.
Fig. 2C2-2
(2) Select the item to be changed.
(The color of the corresponding item data box is changed to pale blue).
Fig. 2C2-3
(3) Press the [Set] button.
Note
When the [Lib Dt Set] button is pressed, the component ID unchanged
condition as registered on the component library data, is returned.
2OM-1733
3-3-11212-002
3. Alt Comp ID List
3. Alt Comp ID List
The alternative component list is referred to in the PP check in the pattern program
change to check that such alternative component data can be setup in place of the
current component data.
[1]
[2]
[3] [4]
[5]
Fig. 2C3-1
[1] Feeder No.
The Feeder No. is displayed in this data box.
[2] "Placement Comp" Group Box
The data of the components under placement operation is displayed in this
data box.
[3] [Placeed Comp Use] Button
When this button is pressed, the components under placement operation are
used.
[4] [All Comp Select] Button
When this button is pressed, the components selected in the alternative
component list are placed in place of the current components.
[5] "All Comp Select" Display section
The alternative components are displayed in this section.
Unavailable (NG) components are displayed in red and they cannot be setup
in place of the current components.
