2OM-1733 6-5-4 [Head and Noz Place] T ab When the [Head and Noz Place] tab is pressed, the tab sheet is changed to the "Head and Noz Place" setup tab sheet. When the button for the stocker, for which the head a…
2OM-1733
6-5-3
[7] [PLACE. HEAD/NOZ.] Button
Using this button, the head/nozzle placement data set in the pattern program
can be read and reected on the setup.
[Noz Stkr Place] Tab
When the button of the nozzle stocker of which arrangement data is
rewritten, is pressed and then, the [SET] button is pressed, the parameters are
rewritten.

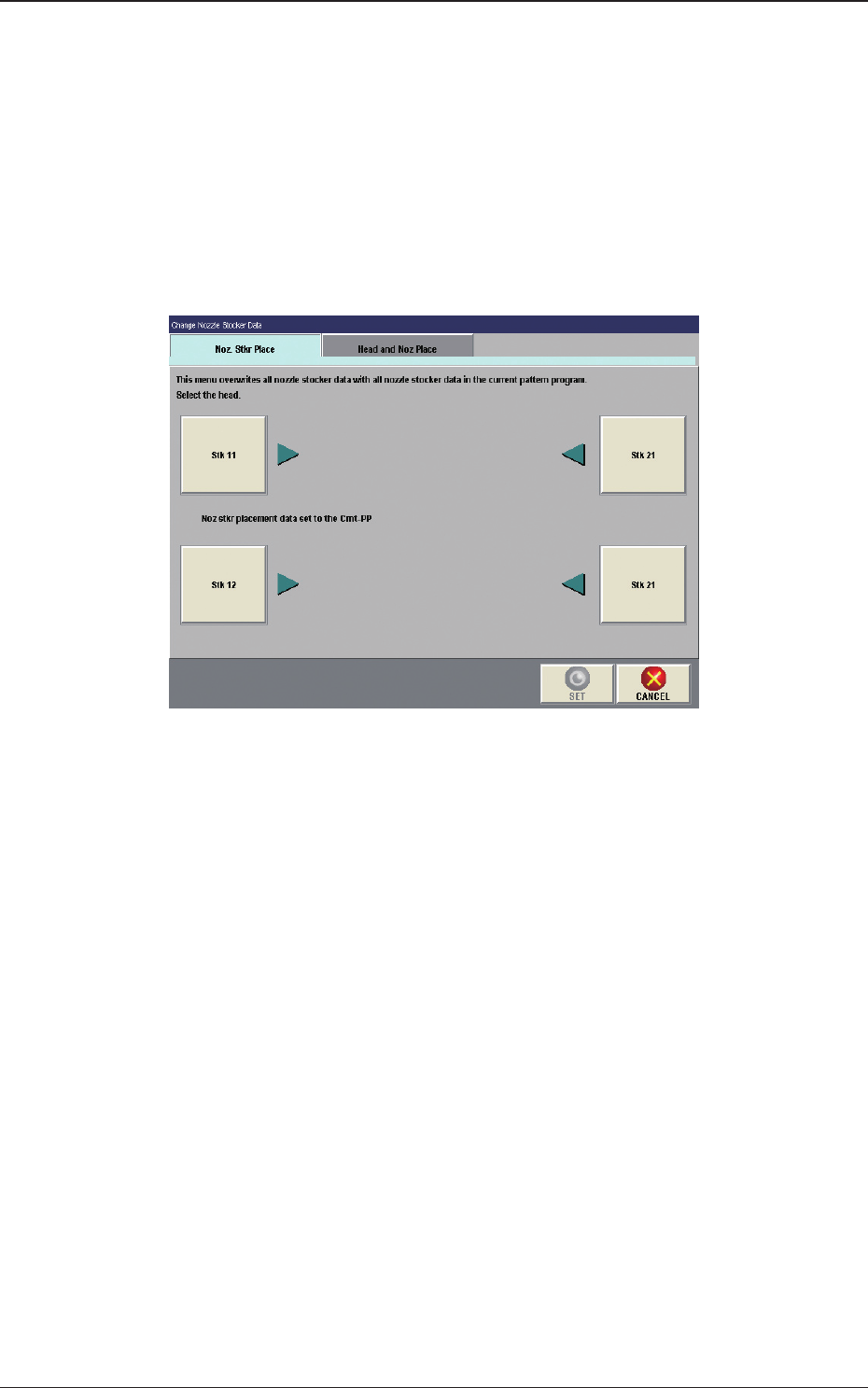

When the [Noz Stkr Place] tab is pressed, the following tab sheet appears.
Fig. 2F5-2
1212-002
5. "NOZ.CHG." Window
2OM-1733
6-5-4
[Head and Noz Place] Tab

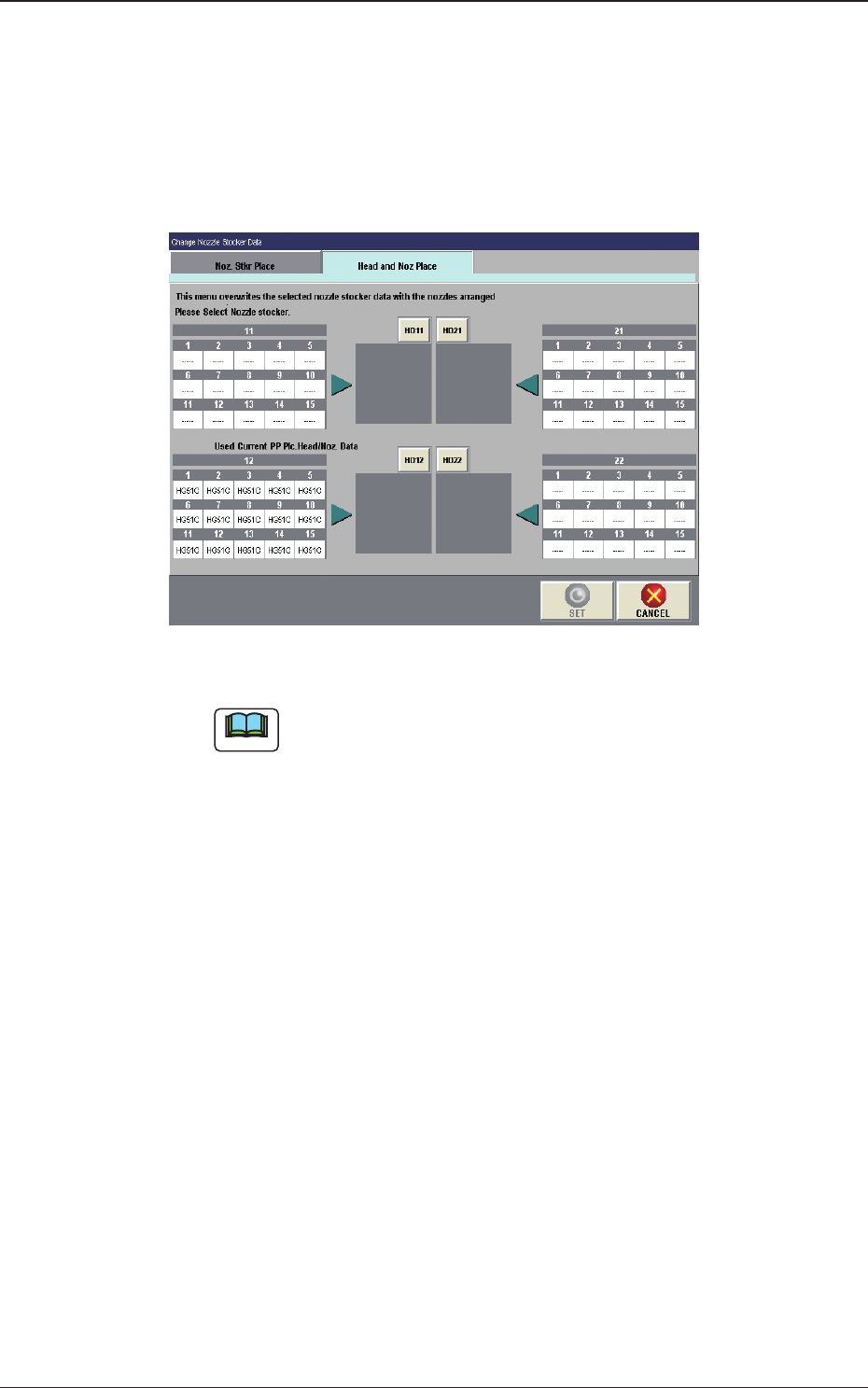

When the [Head and Noz Place] tab is pressed, the tab sheet is changed to
the "Head and Noz Place" setup tab sheet.
When the button for the stocker, for which the head and nozzle placement
data is to be re-written, is pressed and the [SET] button is pressed the data
rewriting is performed.
Fig. 2F5-3
Note
(a)
Only the nozzles corresponding to each nozzle stocker (housing) can
be allocated. That is, only the high-speed nozzles can be allocated
to the high-speed nozzle stockers (housings) and only the middle-
size odd shaped nozzle to the middle-size odd shaped nozzle stockers
(housings).
(b) In the case that there is any nozzle stocker where the nozzle allocation
setting is available, on the opposite side, the nozzles can be allocated
on the opposite side.
1212-002
5. "NOZ.CHG." Window
2OM-1733
6-5-5
[8] [Place. Noz Edit] Button

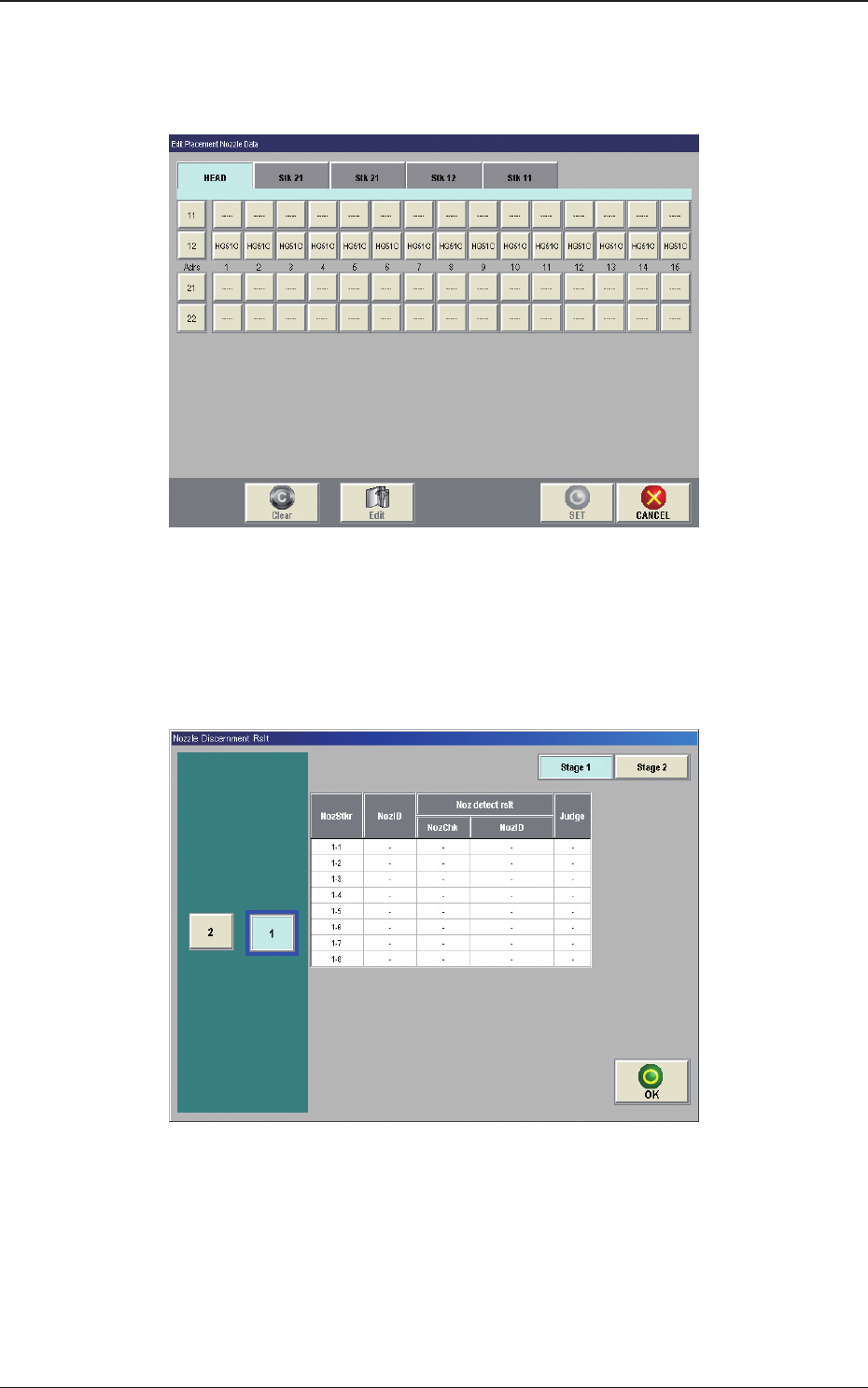

When the [Place.Noz Edit] button is pressed, the "Edit Placement Nozzle
Data" window appears.
Fig. 2F5-4
[9] [Nozzle Disce Rslt] Button
When the [Noz.Disce Rslt] button is pressed, the "Nozzle Discernment Rslt"
window appears.
Fig. 2F5-5
1212-002
5. "NOZ.CHG." Window
