2OM-1733

6-2-21212-002

2. Setup

[1] "Setup" Main Menu Bar

The following buttons are arranged on the "Setup" main menu bar.

[PP.Chg.] Button :

Opens the "PP CHANGE" w indo w .

In normal cases, this window opens as an initial one.

[Sprt-Pins] Button :

Opens the "SPRT-PINS" windo w .

[Noz.Chg.] Button :

Opens the "NOZ.CHG." windo w .

[PCB.Xfer.] Button :

Opens the "PCB XFER" windo w .

[Test&Tch] Button :

Opens the "Test&Tch" menu.

Reference

Refer to "3. "PP CHANGE" Window" for details.

Refer to "4. "SPRT-PINS" Window" for details.

Refer to "5. "NOZ.CHG." Window" for details.

Refer to "6. "PCB XFER" Window" for details.

Refer to "7. "Test&Tch" Submenu" for details.

[PCB.CNT.] Button :

Opens the "PCB.CNT." window.

Reference

Refer to "8. "PCB.CNT." Window" for details.

Fig. 2F2-2

2OM-1733

6-3-1

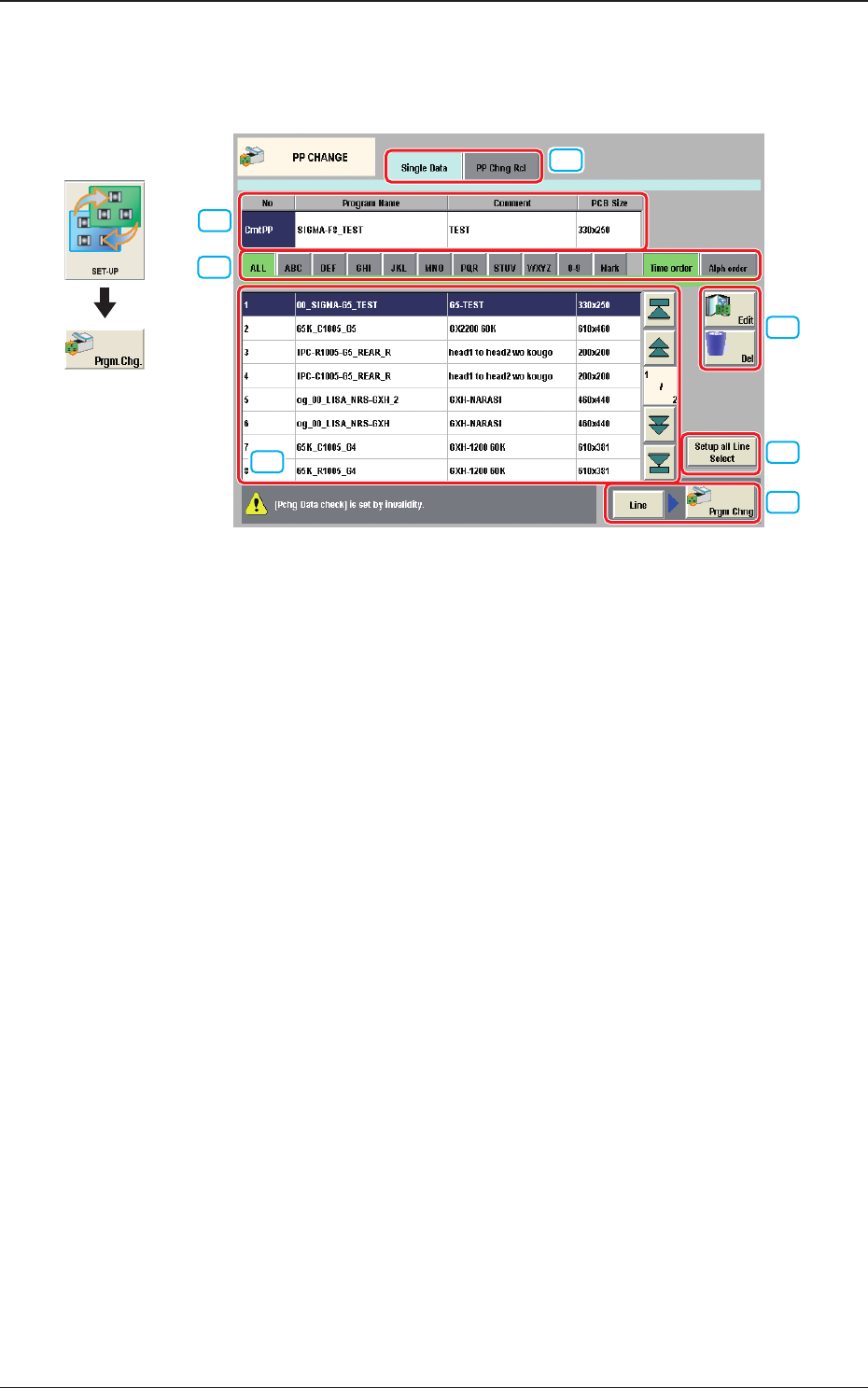

3. "PP CHANGE" Window

The "PP CHANGE" window appears.

[1]

[7]

[4]

[5]

[6]

[2]

[3]

Fig. 2F3-1

[1] Cmt PP

The pattern program currently selected is displayed in this section.

[2] Pattern Program Select tabs

The data items displayed in "[3] Pattern Program List" are divided into the

tab sheet items and displayed.

[3] Pattern Program List

The registered pattern programs are displayed as a list.

[4] [Edit] Button, [Del] Button

[Edit] Button

: When pressed, the pattern program selected in the "[3]

Pattern Program List" is edited.

[Del] Button

: When pressed, the pattern program selected in the "[3]

Pattern Program List" is deleted.

Graphic

Development

1212-002

3. "PP CHANGE" Window

2OM-1733

6-3-2

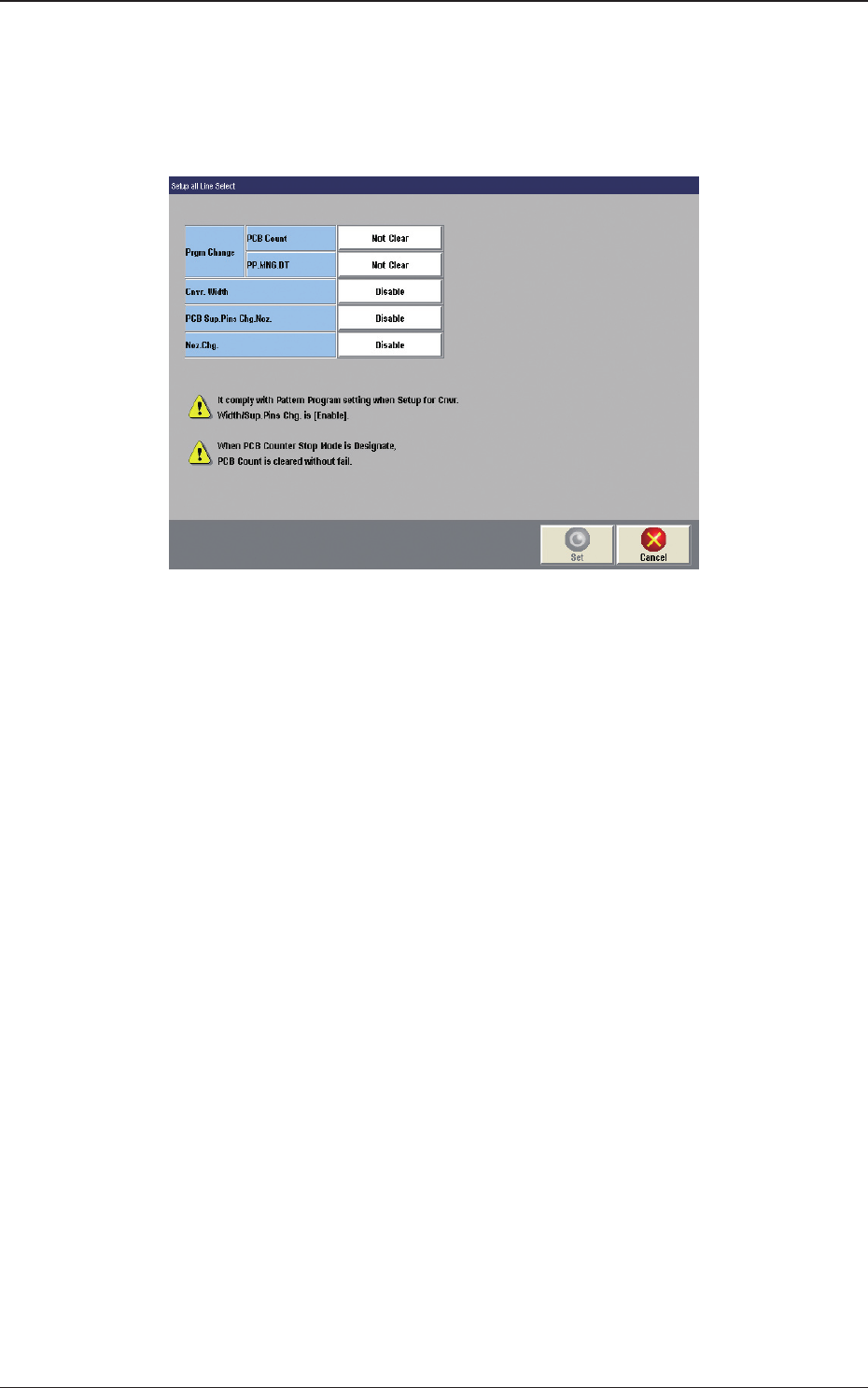

[5] [Setup all Line Select] Button

Using this button, the setup setting in the pattern program change is

performed. Whether or not the conveyor width, support pin or nozzle is

changed, is set.

Fig. 2F3-2

PCB Count

: Whether or not the No. of PCBs to be produced

is cleared, is set in this selection box.

PP.MNG.DT

: Whether of not the pattern program management

data is cleared, is set in this selection box.

Cnvr.Width

: Whether or not the conveyor width is setup, is

set in this selection box.

PCB Sup.Pins Chg.Noz.

: Whether or not the support pins are changed

automatically, is set in this selection box.

Noz.Chg.

: Whether or not the nozzle change operation is

performed, is set in this selection box.

1212-002

3. "PP CHANGE" Window
