2OM-1733 4-1-2 1205-001

2OM-1733

4-1-11212-002

1. Outline of Management Data

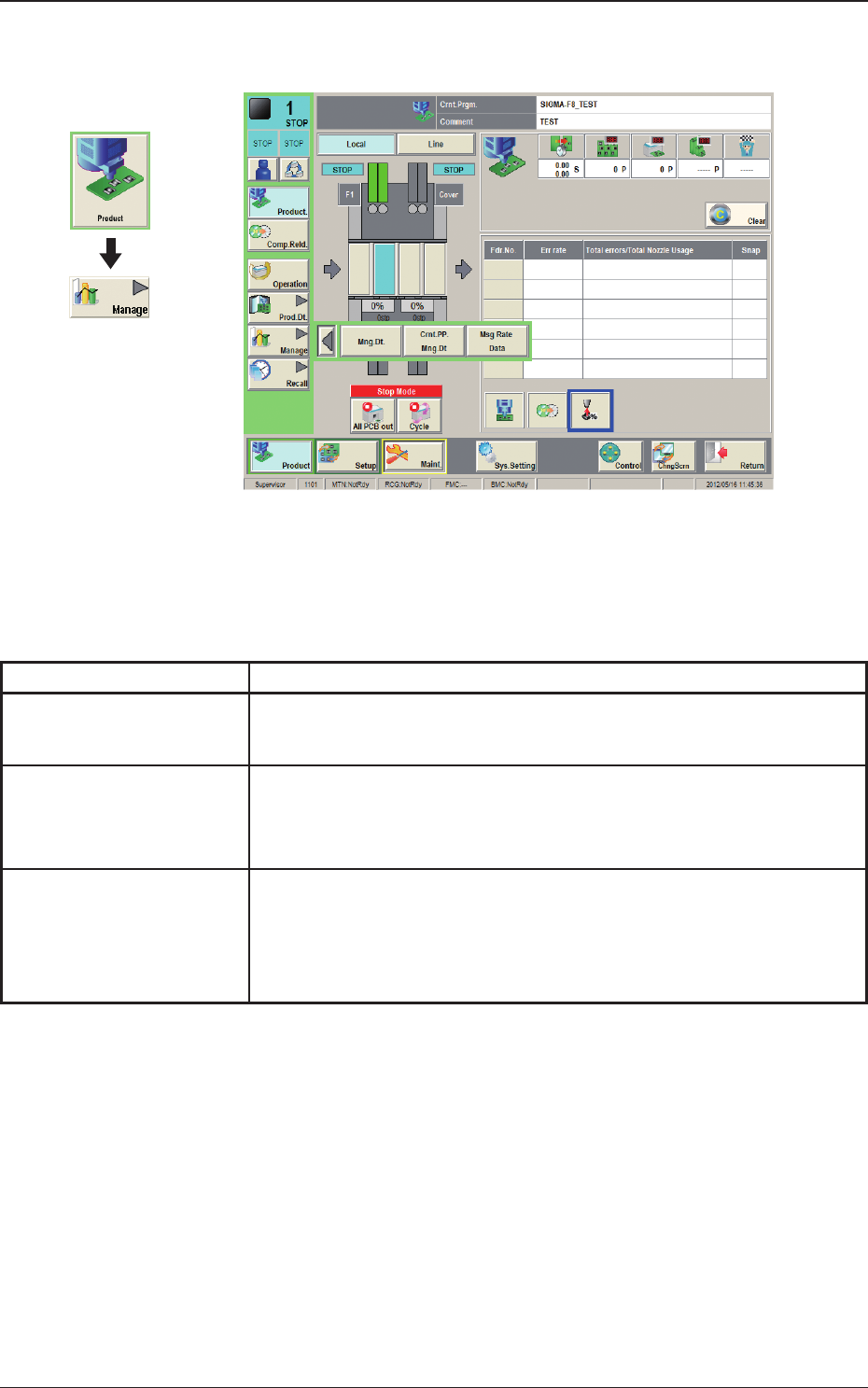

Fig. 2D1-1

The "Manage" menu is provided with the following three buttons.

When a button is pressed, the corresponding window opens.

Table 2D1-1

Buttons Description

Mng.Dt.

When pressed, the "MNG.DT." window is displayed and operated for

totaling the management data for the whole system.

Cmt.PP.Mng.Dt

When pressed, the "CRNT.PP.MNG.DT" window is displayed and

operated for totaling the current pattern program management data for

each pattern program.

Msg Rate Data

When pressed, the "MESSAGE.RATE.DT." window is displayed and

operation for displaying the component handling error rate managed

for each feeder or nozzle based on each component handling error rate

specied in the operation parameter setting.

Graphic

Development

2OM-1733

4-1-21205-001

2OM-1733

4-2-1

2. "MNG.DT." Window

The corresponding window enables the operator to conrm the production

performance data covering the whole machine performance.

Note

The contents of "Type #1" are almost the same as "Type #2". To use the required

items, the management spans must be distinguished.

[2]

[3]

[4]

[1]

Fig. 2D2-1

[1] Tabs and Tab Sheets

The "MNG.DT." window is provided with the following four tabs. When

each tab is pressed, the corresponding tab sheet appears inside the window.

Table 2D2-1

Buttons Description

Mach.Prfrm,

The corresponding tab sheet enables the operator to view various counts

(results of accumulated data) as machine performance data.

FdrMng.

The corresponding tab sheet enables the operator to view the pickup

data of each individual feeders.

NozMng.

The corresponding tab sheet enables the operator to view various counts

(results of accumulated performance data) of each individual nozzles.

Handling/Plac.

The corresponding tab sheet enables the operator to view the component

pickup and placement data.

[2] [Clear] Button

When this button is pressed, all the data items in "Type #1" or "Type #2" in

the "MNG.DT." are cleared and the revision date and time are changed.

Graphic

Development

1212-002

2. "MNG.DT." Window
