2OM-1733 1-2-7 Component Handling Rate Data The data of the feeder where the pick-up rate has been dropped, is displayed. Fig. 2A2-7 " Component Handling Rate Data " Window PCB completion cycle Max. 500 items o…
2OM-1733
1-2-61212-003
2.1 Local Window
[4] Data Display Section
The production data, component reload data and component handling rate
data parameters are displayed in this section. Each data display is changed
using the button on the lower right of the display section.

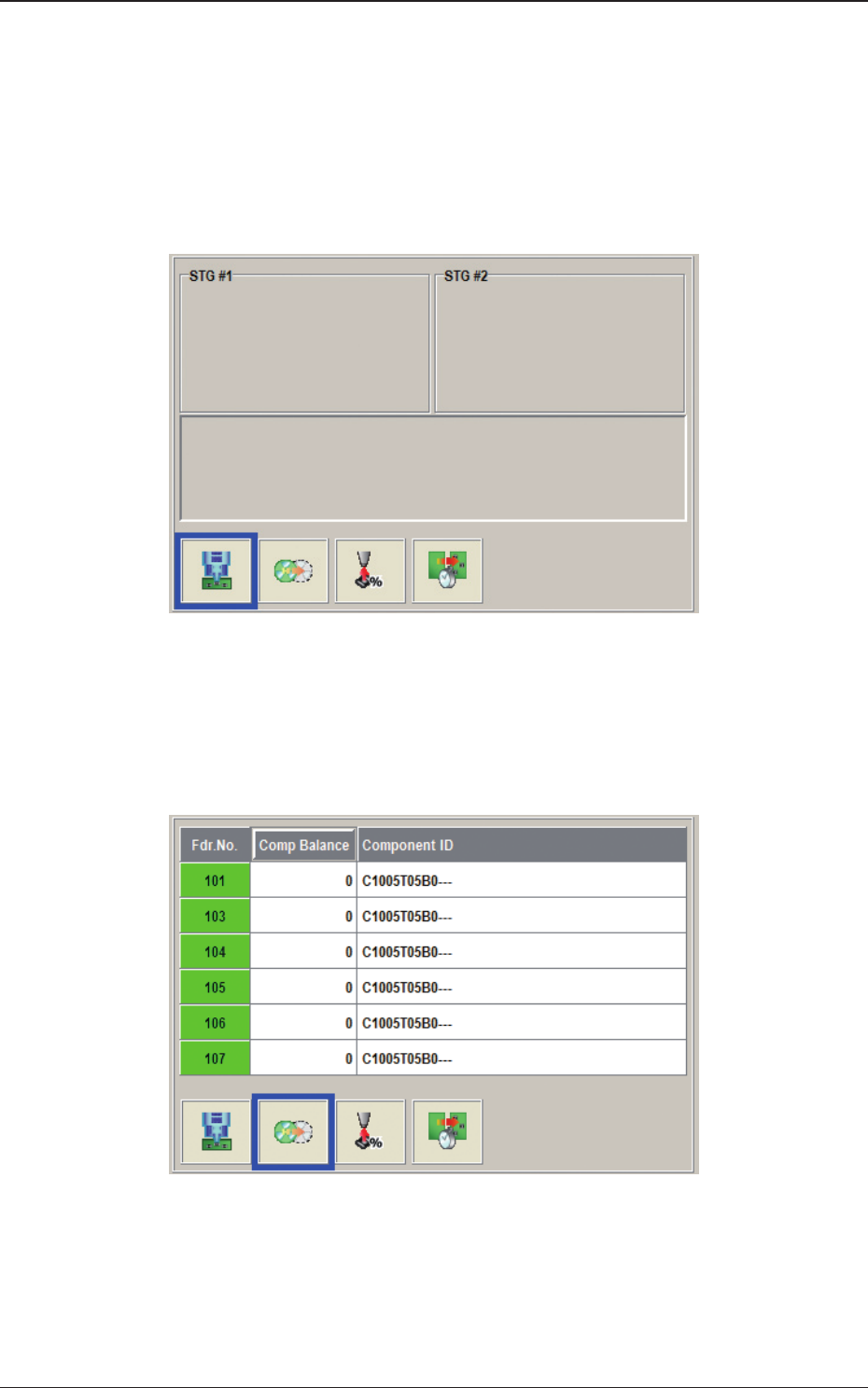

Production Data
When the display change button (left) is pressed, this window appears.
Fig. 2A2-5 "Production Data" Window
Feeder Reload Data
The data of the feeder where the component replenishment is required, is
displayed.
Fig. 2A2-6
"
Feeder Reload Data
"
Window
2OM-1733
1-2-7

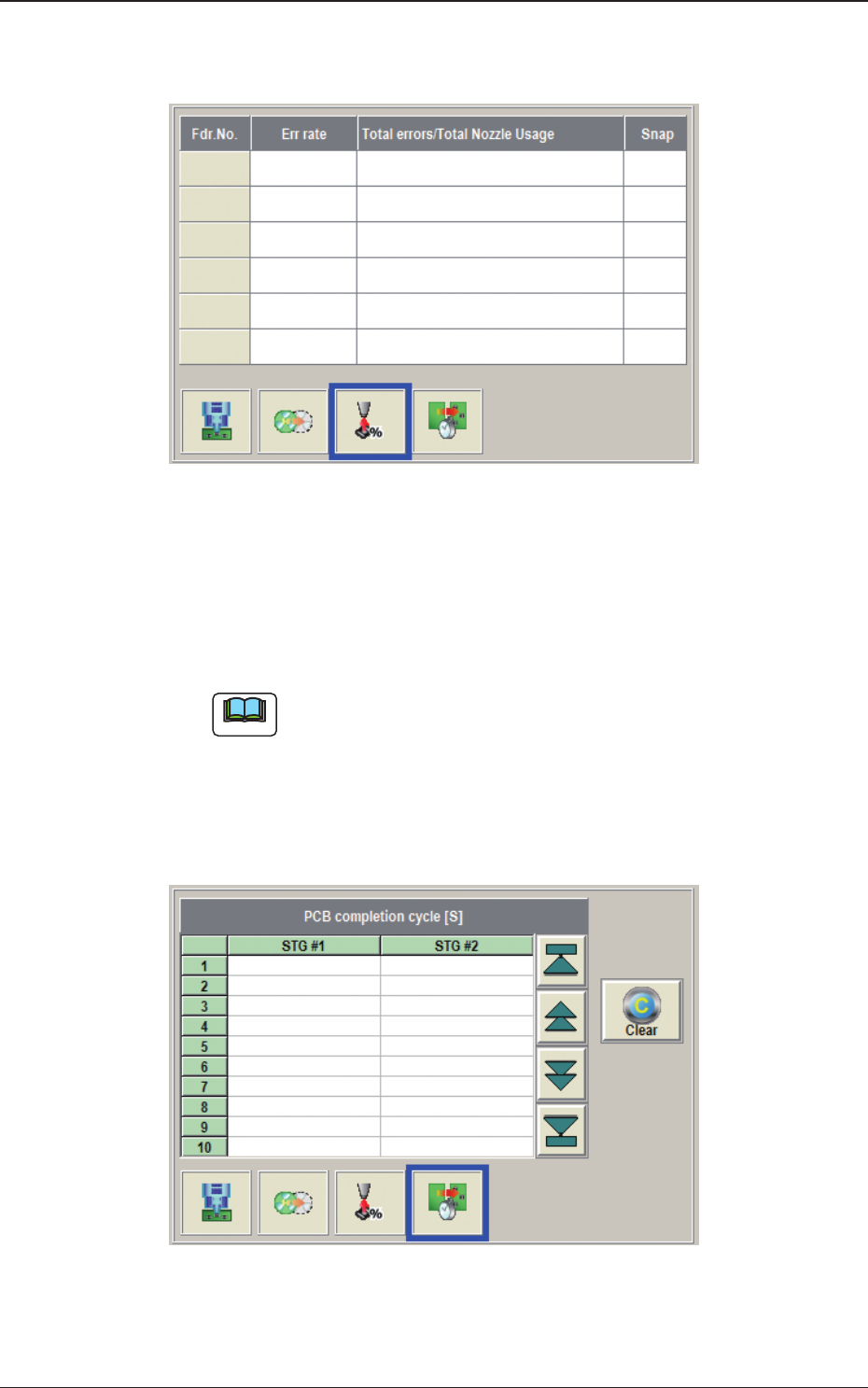

Component Handling Rate Data
The data of the feeder where the pick-up rate has been dropped, is displayed.
Fig. 2A2-7
"
Component Handling Rate Data
"
Window
PCB completion cycle
Max. 500 items of the measured nishing interval (interval between the
previous PCB and the current PCB at the nal step completion) are displayed
from the newest.
Note
(a) Because the interval cannot be measured before the second PCB is
completed, "---" is displayed at the rst PCB nished time.
(b) In the case that the placement status becomes "Stopping" or "Pause",
the measurement of the PCB is stopped and "---" is displayed.
(c) The history is automatically saved in "D:\mdata\MachDt\PcbInt.csy"
when the whole status becomes "Stopping".
Fig. 2A2-8 "PCB completion cycle" Window
1212-003
2.1 Local Window
2OM-1733
1-2-8
[5] Stop Mode
[All PCB out] Button
After the PCB in the course of the production, has been produced, the PCB is
discharged and the automatic production operation is stopped.
[Cycle] Button
When the component placement operations on the PCBs in the course of
the production in each of the stage 1 and stage 2, have been completed, the
automatic production operation is stopped.
1212-001
2.1 Local Window
