3. "PP CHANGE" Window
The "PP CHANGE" window appears.
[1]
[7]
[4]
[5]
[6]
[2]
[3]
Fig. 2F3-1
[1] Cmt PP
The pattern program currently selected is displayed in this section.
[2] Pattern Program Select tabs
The data items displayed in "[3] Pattern Program List" are divided into the
tab sheet items and displayed.
[3] Pattern Program List
The registered pattern programs are displayed as a list.
[4] [Edit] Button, [Del] Button
[Edit] Button
: When pressed, the pattern program selected in the "[3]
Pattern Program List" is edited.
[Del] Button
: When pressed, the pattern program selected in the "[3]
Pattern Program List" is deleted.
Graphic
Development
1212-002
3. "PP CHANGE" Window
2OM-1733
6-3-2
[5] [Setup all Line Select] Button
Using this button, the setup setting in the pattern program change is
performed. Whether or not the conveyor width, support pin or nozzle is
changed, is set.
Fig. 2F3-2
PCB Count
: Whether or not the No. of PCBs to be produced
is cleared, is set in this selection box.
PP.MNG.DT
: Whether of not the pattern program management
data is cleared, is set in this selection box.
Cnvr.Width
: Whether or not the conveyor width is setup, is
set in this selection box.
PCB Sup.Pins Chg.Noz.
: Whether or not the support pins are changed
automatically, is set in this selection box.
Noz.Chg.
: Whether or not the nozzle change operation is
performed, is set in this selection box.
1212-002
3. "PP CHANGE" Window
2OM-1733
6-3-3
[6] [Prgm Chng] Button
When pressed, the pattern program is change to the one selected in the "[3]
Pattern Program List".
[Line] Button
This button is pressed when the pattern program in all the machines in the
line is to be changed.
Light Blue
: This shows that the pattern program in all the machines in the
line is to be changed.
Gray
: This shows that the pattern program in the single specied
machine is to be changed.
Note
When the line consists of a single machine, this button is not displayed.
[7] "PP Chng Rcl" Tab Sheet
The pattern program change history is displayed in this section.

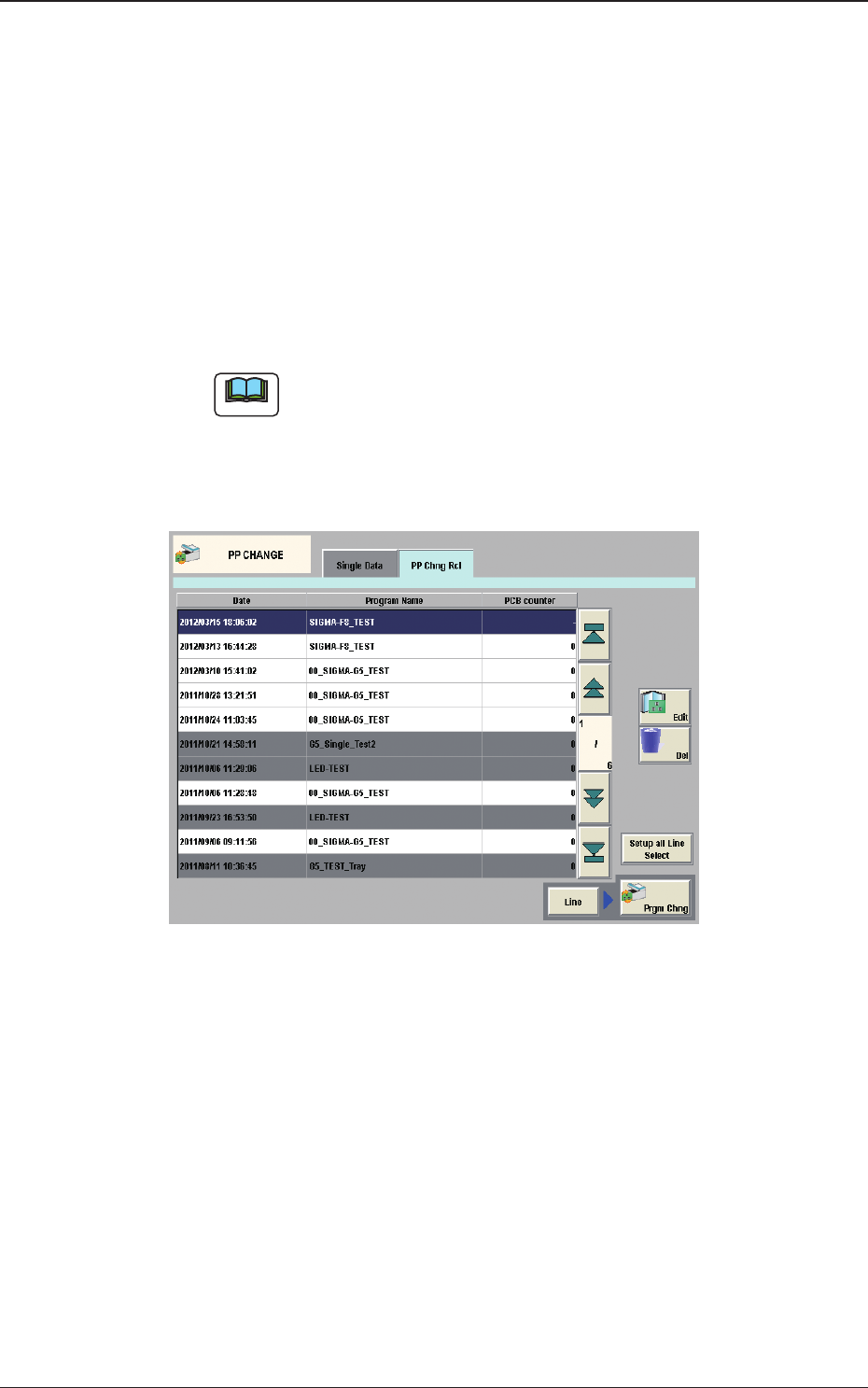

Fig. 2F3-3
