2OM-1733 3-1-14 1204-001 1.3 Editing of Component Library Data Edit the component library data in each tab sheet. Reference Refer to "Component Library (V ol.6)" for the description of the component library dat…

2OM-1733

3-1-13

1.3 Editing of Component Library Data

1.3.1 "Component Library" Edit Window

Select the desired component ID in the "Selection of component ID" window and

press the [Open] button.

The "Component Library Edit" window opens.

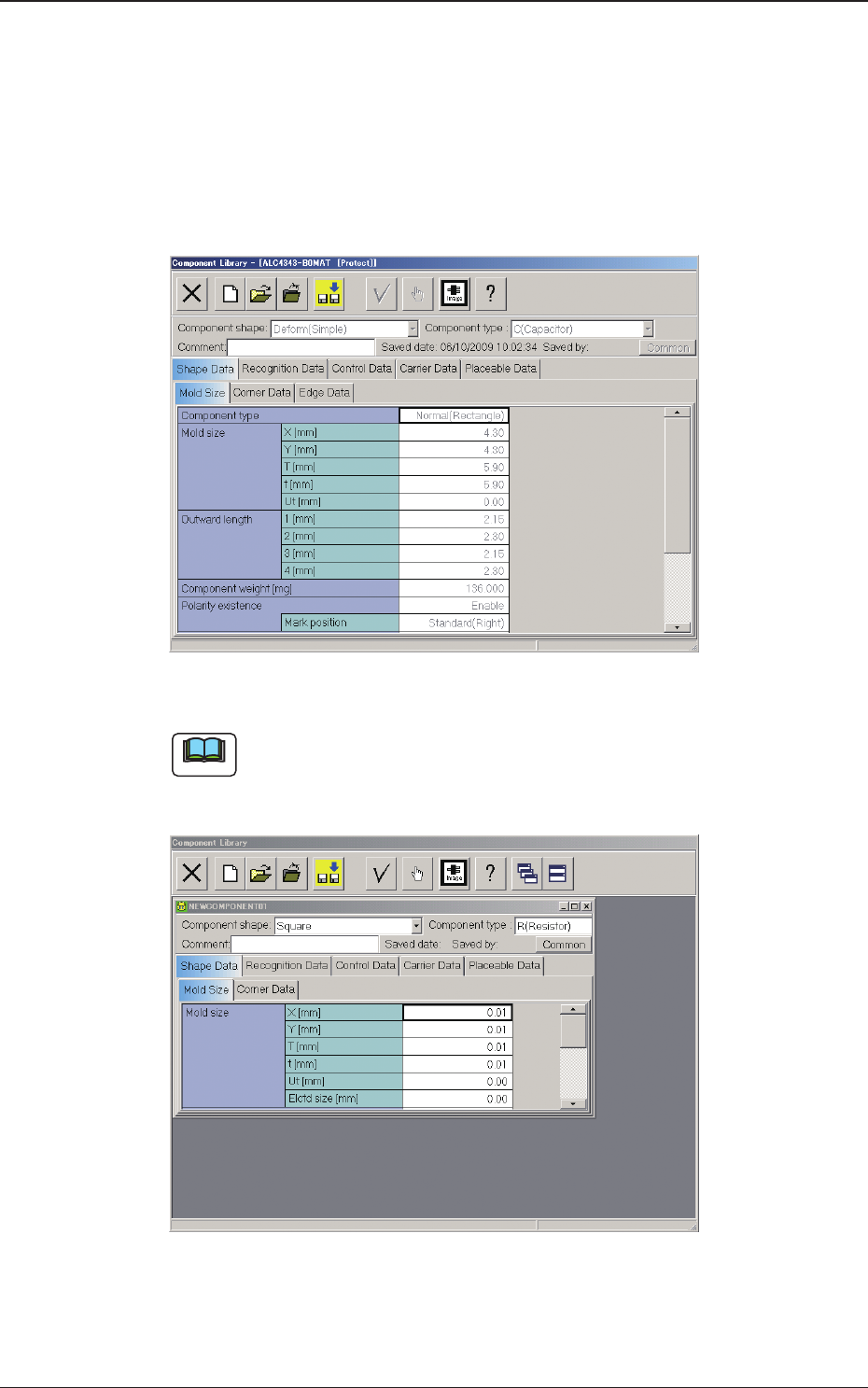

Fig. 2C1-13 "Component Library" Edit Window

Note

(a) When the "New" icon is pressed, a new window opens. Default parameters

are set in the new window.

(b) The displayed contents change according to the selected component shape.

Fig. 2C1-14 "Component Library" Edit Window (New Data Creation)

1212-002

1.3 Editing of Component Library Data

2OM-1733

3-1-141204-001

1.3 Editing of Component Library Data

Edit the component library data in each tab sheet.

Reference

Refer to "Component Library (Vol.6)" for the description of the component

library data items.

Note

The standard component library data prepared by us cannot be edited. Before

editing the data in a le, give another name to the le and save it, using the

(

) icon.

2OM-1733

3-1-15

1.3.2 Saving of Component IDs

The following describes how to save a newly created le (component ID) or the

edited parameters of the component ID.

Procedure

(1) Press the [Save] or the [Save As] icon on the toolbar.

 : Savingactivele

When pressed, this saves the edited component ID (le), replacing the

original component ID (le) with the current one.

: Save As

When pressed, this saves a newly created le (data of a new

component ID) or the edited le with another name (component ID).

(2) Press the [Saving active le] icon.

(The active component library data is saved with the current component ID

name, replacing the original program with the active one).

(3) Press the [Save As] icon.

(The following "Save Component Data" window will be displayed).

Fig. 2C1-15 "Save Component Data" Window

1212-002

1.3 Editing of Component Library Data
