2OM-1733 6-2-1 1212-002 2. Setup 2. Setup [1] Fig. 2F2-1 Graphic Development

2OM-1733

6-1-21205-001

2OM-1733

6-2-11212-002

2. Setup

[1]

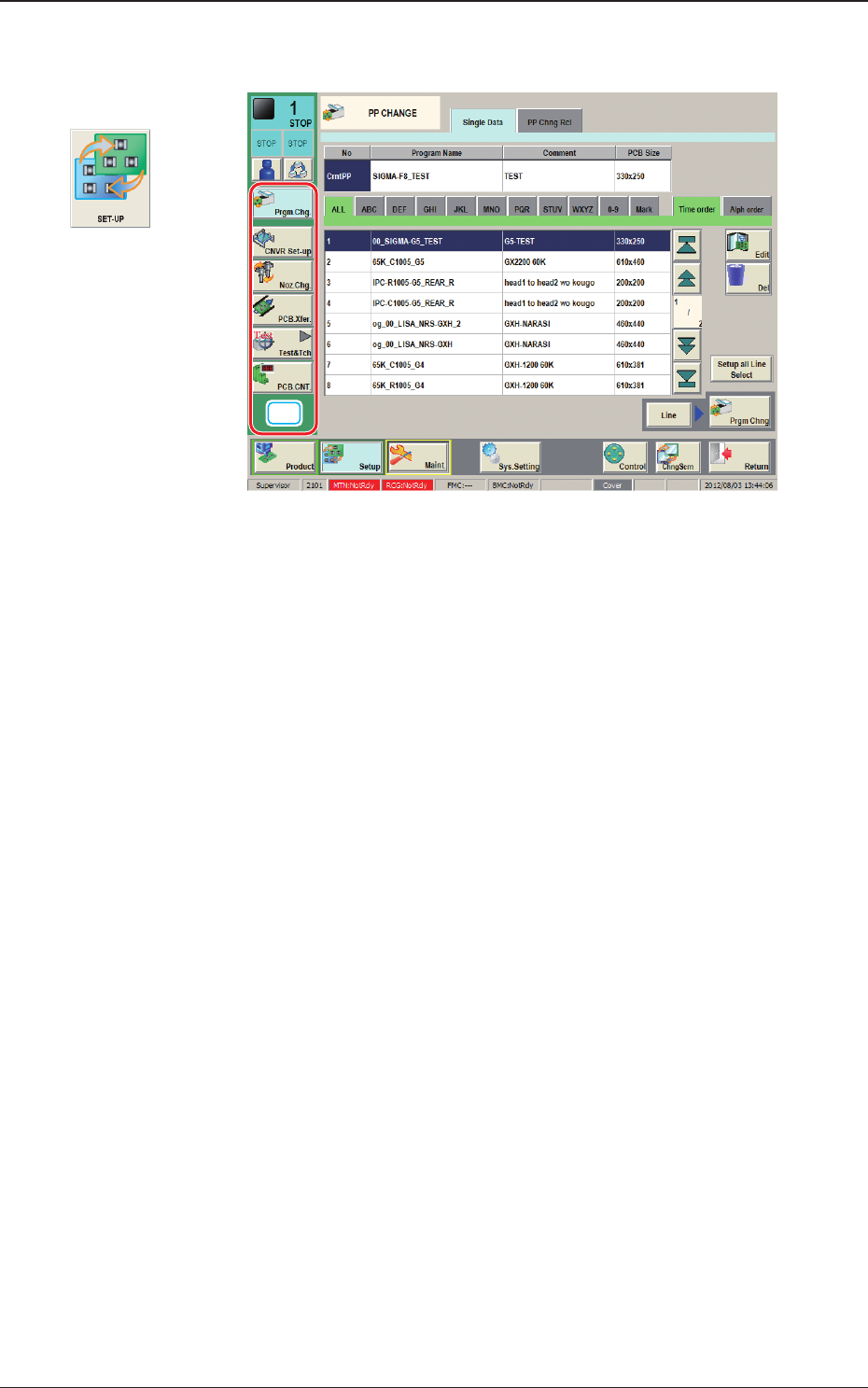

Fig. 2F2-1

Graphic

Development

2OM-1733

6-2-21212-002

2. Setup

[1] "Setup" Main Menu Bar

The following buttons are arranged on the "Setup" main menu bar.

[PP.Chg.] Button :

Opens the "PP CHANGE" w indo w .

In normal cases, this window opens as an initial one.

[Sprt-Pins] Button :

Opens the "SPRT-PINS" windo w .

[Noz.Chg.] Button :

Opens the "NOZ.CHG." windo w .

[PCB.Xfer.] Button :

Opens the "PCB XFER" windo w .

[Test&Tch] Button :

Opens the "Test&Tch" menu.

Reference

Refer to "3. "PP CHANGE" Window" for details.

Refer to "4. "SPRT-PINS" Window" for details.

Refer to "5. "NOZ.CHG." Window" for details.

Refer to "6. "PCB XFER" Window" for details.

Refer to "7. "Test&Tch" Submenu" for details.

[PCB.CNT.] Button :

Opens the "PCB.CNT." window.

Reference

Refer to "8. "PCB.CNT." Window" for details.

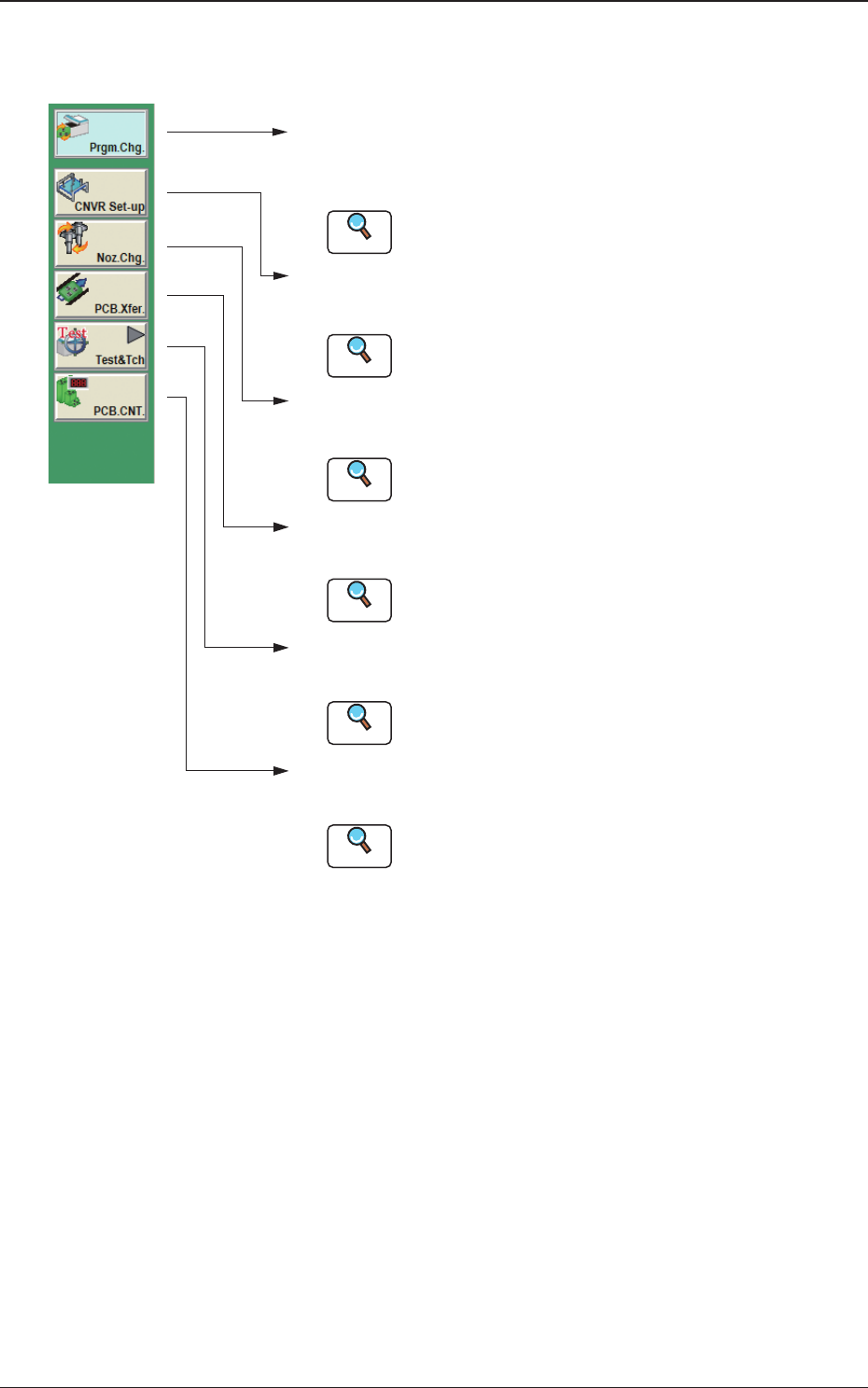

Fig. 2F2-2
