5. Preparation and Confirmation before Operation Tg0252-PM-SO 5.2.2.5 Partition Plate Installation Procedure in Even Steps (1) Pull the grip of the magazine door fixture down in the direction of Arrow A to unlatch the ma…

5. Preparation and Confirmation before Operation

Tg0252-PM-SO

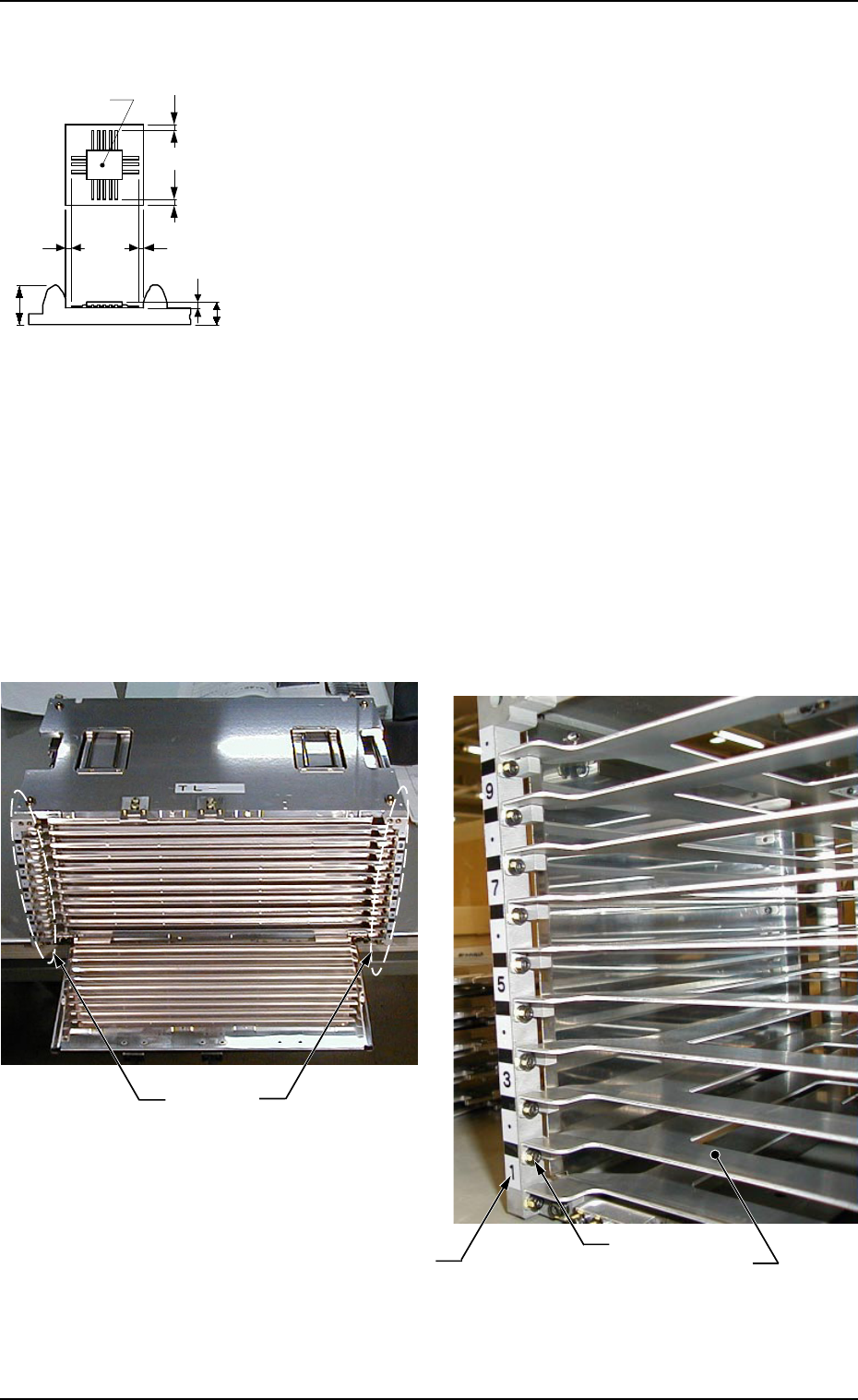

5.2.2.4 Partition Plate Removal Procedure in Even Steps

• When a component of 11.5 mm or more in height is placed on the

tray t1or t2, the partition plate (even steps) should be detached to

avoid interference of the partition plate with the component.

(1) Pull the grip of the magazine door fixture down in the di-

rection of Arrow A to unlatch the magazine door. (Figs.

1.19-1 and 1.19-2 Arrow A)

(2) Open the magazine door. (Fig. 1.19-3 Arrow B)

(3) Remove the bolts fixing the partition plate and remove the

plate.

Notes : (a) When the partition plate is removed, confirm

the step No. and remove the partition plate

only at the even steps. If the partition plate

at the odd stage is removed and the pallet is

set there, the pallet can’t be drawn out from

the magazine during operation.

(b) The partition plate and bolts, which have

been removed will be used when the parti-

tion plate is installed again. Set aside with

care. Also, handle the partition plate care-

fully because it is easily deformed.

Enlarged Figure (Same condition on the right side)

Fig. 1.22

Fig. 1.23

Right

Side

Left

Side

Bolt

Step No.

Partition Plate

Component

0112-004 Chapter 1 2-19

5. Preparation and Confirmation before Operation

Tg0252-PM-SO

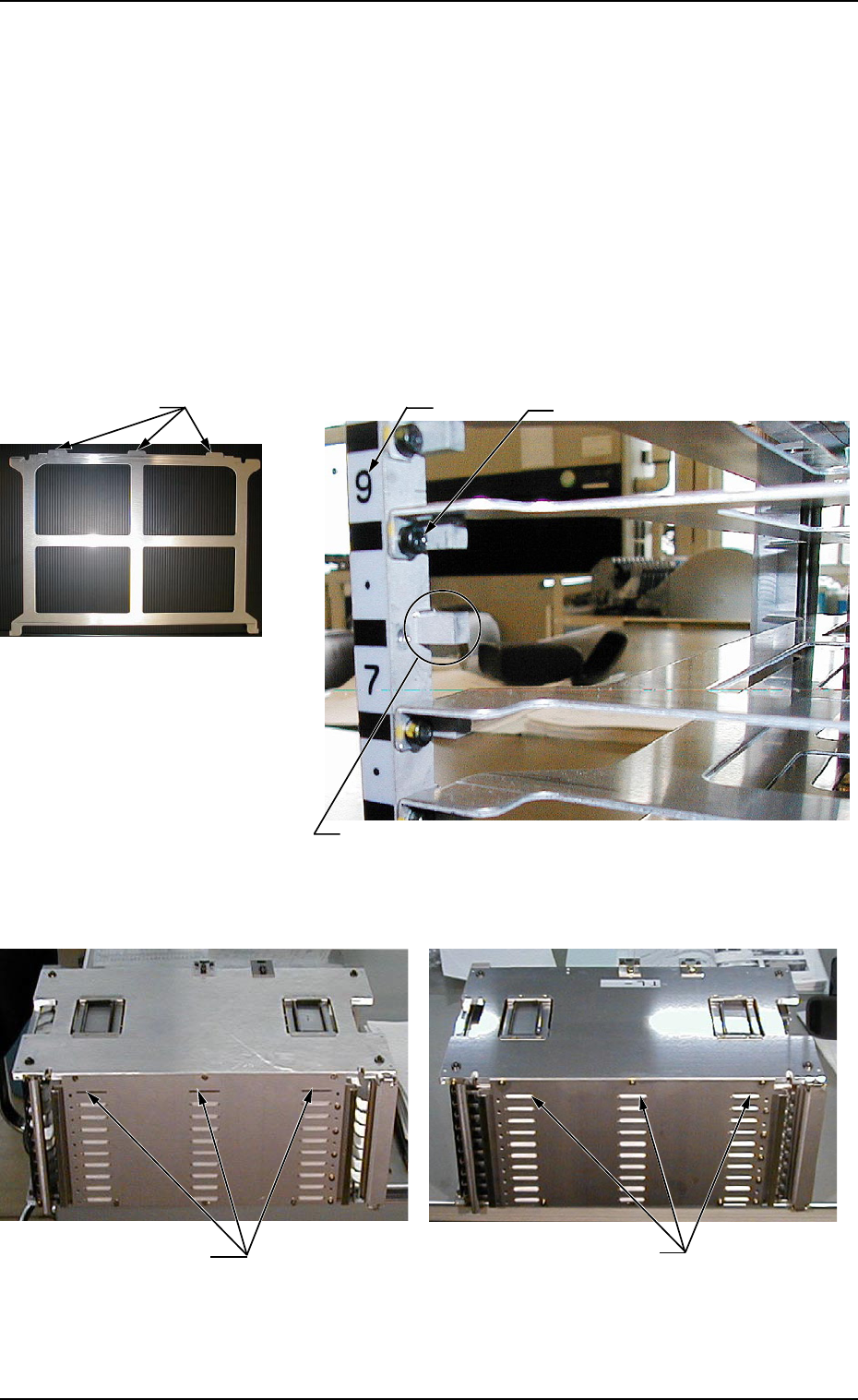

5.2.2.5 Partition Plate Installation Procedure in Even Steps

(1) Pull the grip of the magazine door fixture down in the direction of Arrow

A to unlatch the magazine door. (Figs. 1.19-1 and 1.19-2 Arrow A)

(2) Open the magazine door. (Fig. 1.19-3 Arrow B)

(3) Place the partition plate on the fixing block (refer to Fig. 1.25) and insert

it in the magazine so that the projections of the partition plate come out

from the openings at the rear wall of the magazine. (Refer to Figs. 1.26-

1 and 1.26-2).

Note : When the partition plate is being set in the magazine, note the direction

of the partition plate. Handle the magazine door and partition plate care-

fully because they are easily deformed. If the magazine door or parti-

tion plate is deformed, an error or machine breakdown might be caused.

Fig. 1.26-1

Fig. 1.26-2

Fig. 1.25 Fixing Block (On the Left) Positions

(Same for on the Right)

Fig. 1.24 Partition Plate

Bolt

Step No.

Fixed block with the partition plate removed

Opening where the partition

plate protrusions are inserted

Condition showing protrusions

coming out from the openings

Protrusions

0112-004 Chapter 1 2-20

5. Preparation and Confirmation before Operation

Tg0252-PM-SO

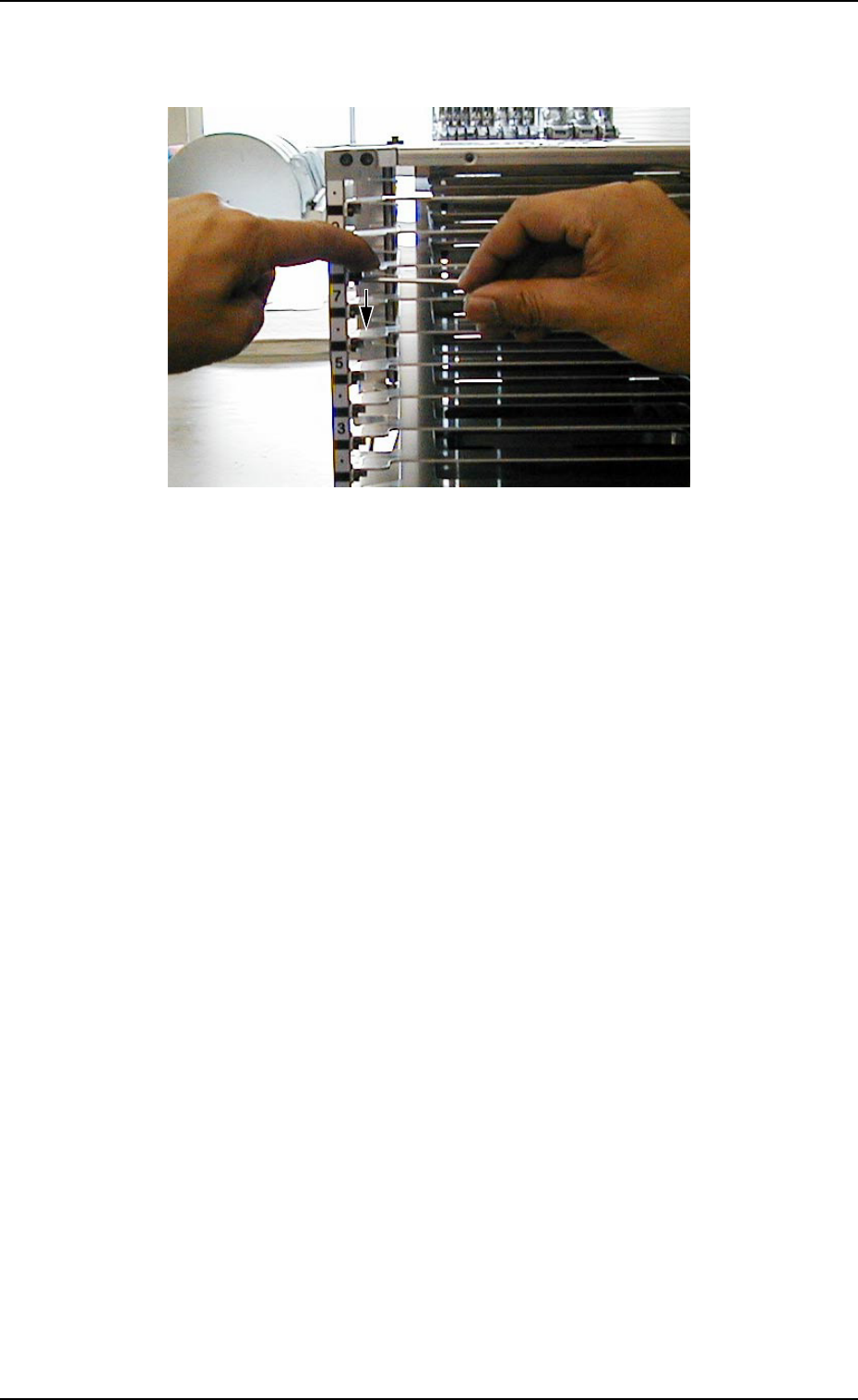

Fig. 1.27 Fix the partition plate. (Same for right and left.)

(5) Check visually that the partition plate is correctly placed on the block and

that the partition plate shows no warpage or deformation.

Note: If there is any nonconformity, repeat the attachment procedure

from the beginning because it might cause machine breakdown.

(4) Press the partition plate with the fingers so that it does not rise, as shown

in Fig. 1.27, and fix it with bolts (left and right, two locations)

9911-001 Chapter 1 2-21
