10. Shut-Down Operation (End of Production) Press the [POWER OFF] button on the operation panel. T urn of f the power breaker ( { ) located on the front side of the machine to shut of f the power completely . 10. Shut-Do…
9. Interruption of Automatic Operation
• How to Interrupt the Automatic Operation of the Main Machine
(1) Immediately after it is found that a wrong pattern program (due to wrong
selection of pattern program data or wrong program change operation) is
used as a current one after the machine starts automatic operation, press
the [PAUSE] button of the main machine to stop the automatic operation
temporarily.
(2) After the machine has stopped, press the [SYS CLR] button to interrupt
the operation in progress and reset the machine to the normal condition.
The automatic operation is interrupted.
• Refer to “6.6.2 Function of [SYS CLR] Button of Section 2 in Volume 1” in
the main machine instruction manual for the detailed information on the
function of the [SYS CLR] button.
9. Interruption of Automatic Operation
0010-002 Chapter 1 2-35 Tg0252-PM-SO
10. Shut-Down Operation (End of Production)
Press the [POWER OFF] button on the operation panel.
Turn off the power breaker (
{) located on the front side of the machine to
shut off the power completely.
10. Shut-Down Operation (End of Production)
0010-002 Chapter 1 2-36 Tg0252-PM-SO
11. Others
11.1 Operation of Multi-Layer Tray Feeder from Main Machine
Side
• The multi-layer tray feeder must be selected for use in advance for the cur-
rent program before operating the feeder from the main machine side.
11.1.1 Changing from “NEUTRAL” to “LINE” Mode
Operation Procedure
(1) Press the [AUTO OPN SUB-MENU] key at the “AUTO OPN MODE
<PLACEMENT>” display on the main machine side.

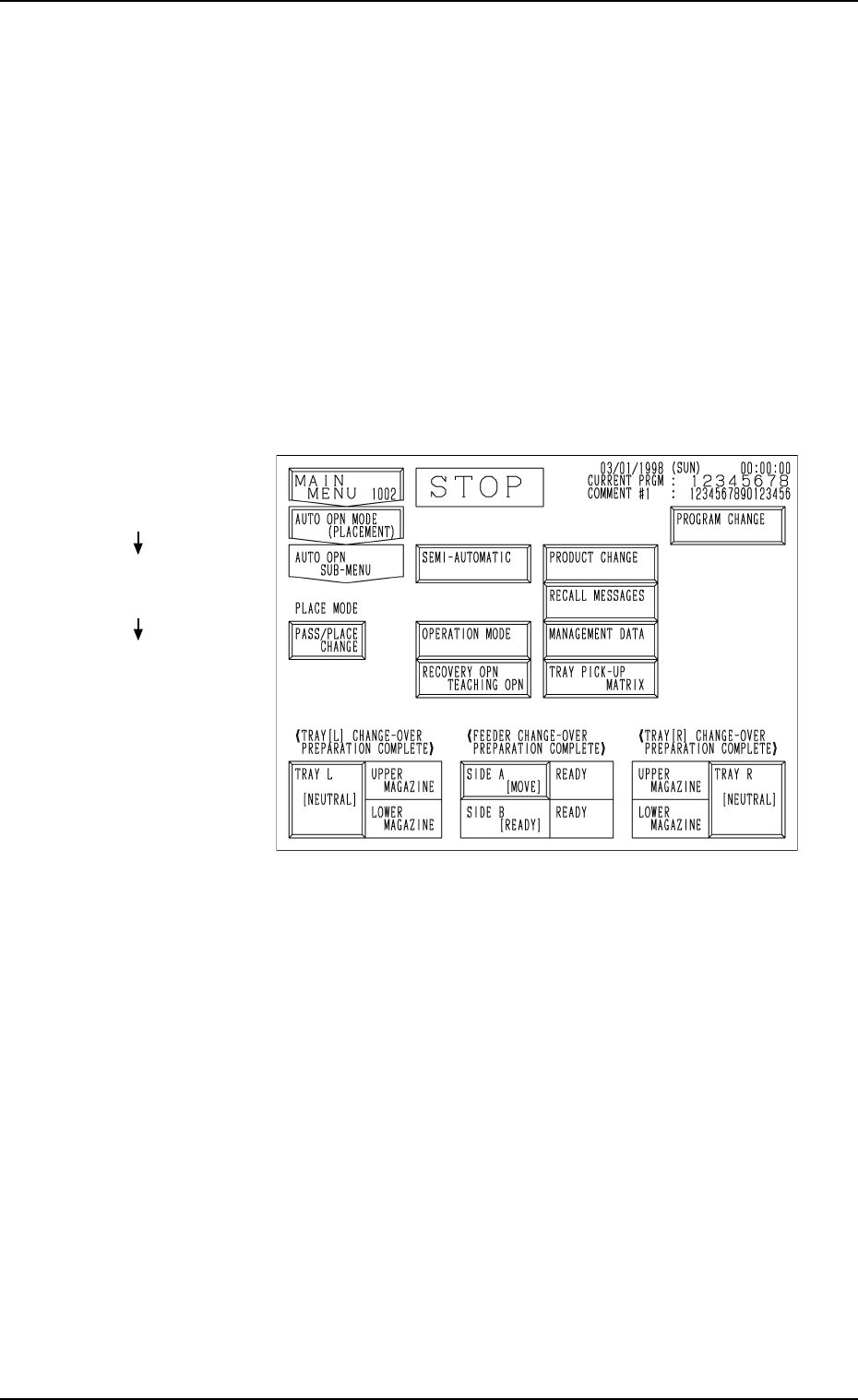

The display (Fig. 1.44) appears on the screen.
Fig. 1.44
(2) Press the [TRAY L [NEUTRAL]] or the [TRAY R [NEUTRAL]] key.
The multi-layer tray feeder is set in the “LINE” mode.
11. Others
Hierarchical Sequence
(Display)
“MAIN MENU”
“AUTO OPN. MODE
<PLACEMENT>”
“AUTO OPN. SUB-MENU”
0010-002 Chapter 1 2-37 Tg0252-PM-SO
