5. Preparation and Confirmation before Operation

Tg0252-PM-SO

(6) Hold the magazine handle (Refer to Fig. 1.31) and set the magazine care-

fully on the magazine mounting section: then press the magazine against

the rear stopper.

Confirm that the magazine is set in place along the side and rear stoppers

and is not tilted.

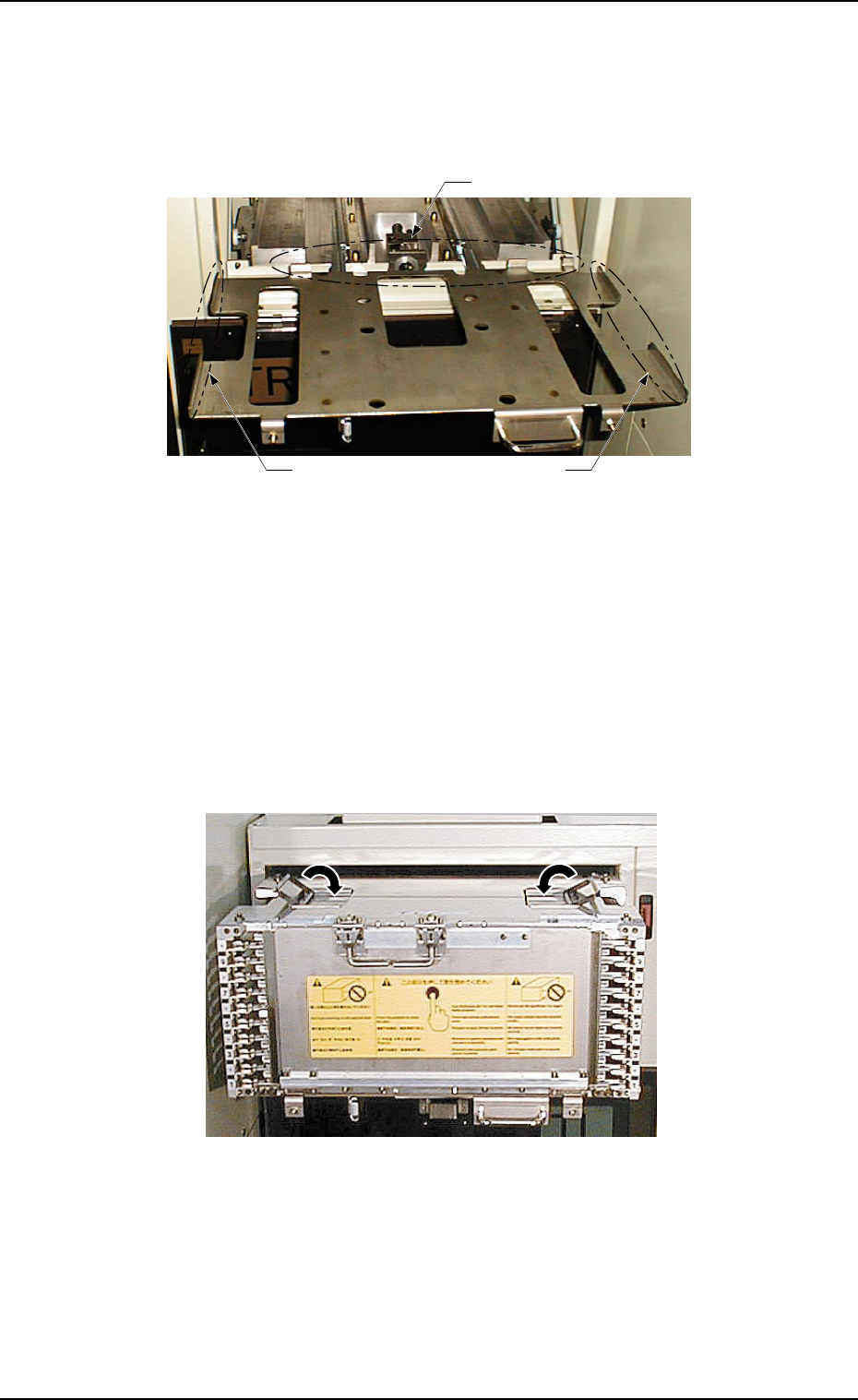

Fig. 1.33 The status before folding the grip of the magazine.

“MG-5050L” (Same to “MG-5050R”)

Fig. 1.32 Magazine Base (Slid Out)

Note: There are two types of magazines - “MG-5050L” for “FP-

5021L” and “MG-5050R” for “FP-5021R”. Do not make a mis-

take of wrong selection. Otherwise, an error will occur.

(7) Fold down (close) the grips of the magazine.

Note: When the magazine is pushed inward with the grips kept open,

the grips will be caught by the multi-layer tray feeder, blocking

the way to the rear end.

0112-003 Chapter 1 2-24

Side Stopper Side Stopper

Rear Stopper

5. Preparation and Confirmation before Operation

Tg0252-PM-SO

(8) Hold the handle of the magazine base and slowly push

the base until it touches the rear end.

(9) Follow the reverse procedure of Step (4) to push the

magazine stopper back to the specified position.

(See Arrows *1 and *2 in Fig. 1.34.)

When the magazine is set correctly at the specified po-

sition, it is locked by the magazine stoppers.

(10) Close the door (the upper or the lower door) of the

magazine-loaded side.

Note: The doors are provided with unlocked maga-

zine prevention metal fixtures to check whether

the magazines are securely locked.

The doors may be closed when they are de-

formed and the magazine stoppers are not lo-

cated at their specified positions, depending upon

the environmental condition (high ambient tem-

perature, etc.).

When the main machine is operated with the

magazine unlocked, the magazine starts mov-

ing in the elevator and may damage the feeder.

(11) Press the [U READY] or the [L READY] button on

the magazine-loaded side.

The LED of the pressed button illuminates.

Note: The machine stores the matrix position of the

last component ID (component used last) in

memory after the current program is changed

to another one.

When the tray in the middle of process is re-

plenished with components for program change

operations, some previous components may re-

main in the tray. Therefore, it is required to

change the matrix.

Refer to “2. Component Replenishment of Sec-

tion 3 in Chapter 1 ”, “4. Matrix Change Op-

erations of Section 3 in Chapter 1”, and “11.1.3

Tray Chuck Matrix Change Operations of Sec-

tion 2 in Chapter 1” for details.

Fig. 1.35

Fig. 1.34

Locking Pin

Block

0112-003 Chapter 1 2-25

Unlocked Magazine

Prevention Metal Fixture

5. Preparation and Confirmation before Operation

Tg0252-PM-SO

5.2.3.2 Detachment of Magazine

(1) Open the “ELEVATOR UNIT” display.

(2) Press the [UPPER MAGAZINE CONNECT/DISCON]

or the [LOWER MAGAZINE CONNECT/DISCON] key

and the [MOVE] button to take out the magazine on the

desired side.

The elevator unit and the magazine base on the selected

side start moving up or down.

The magazine base is separated from the elevator unit at

the magazine exchange position and the elevator unit is

zeroed and stops moving.

(3) Press the [U READY] or the [L READY] button on the

upper or the lower magazine side selected in Step (2).

The LED of the pressed button extinguishes.

(4) Hold the grip of the door selected in Step (3) and pull it

forward to open the door.

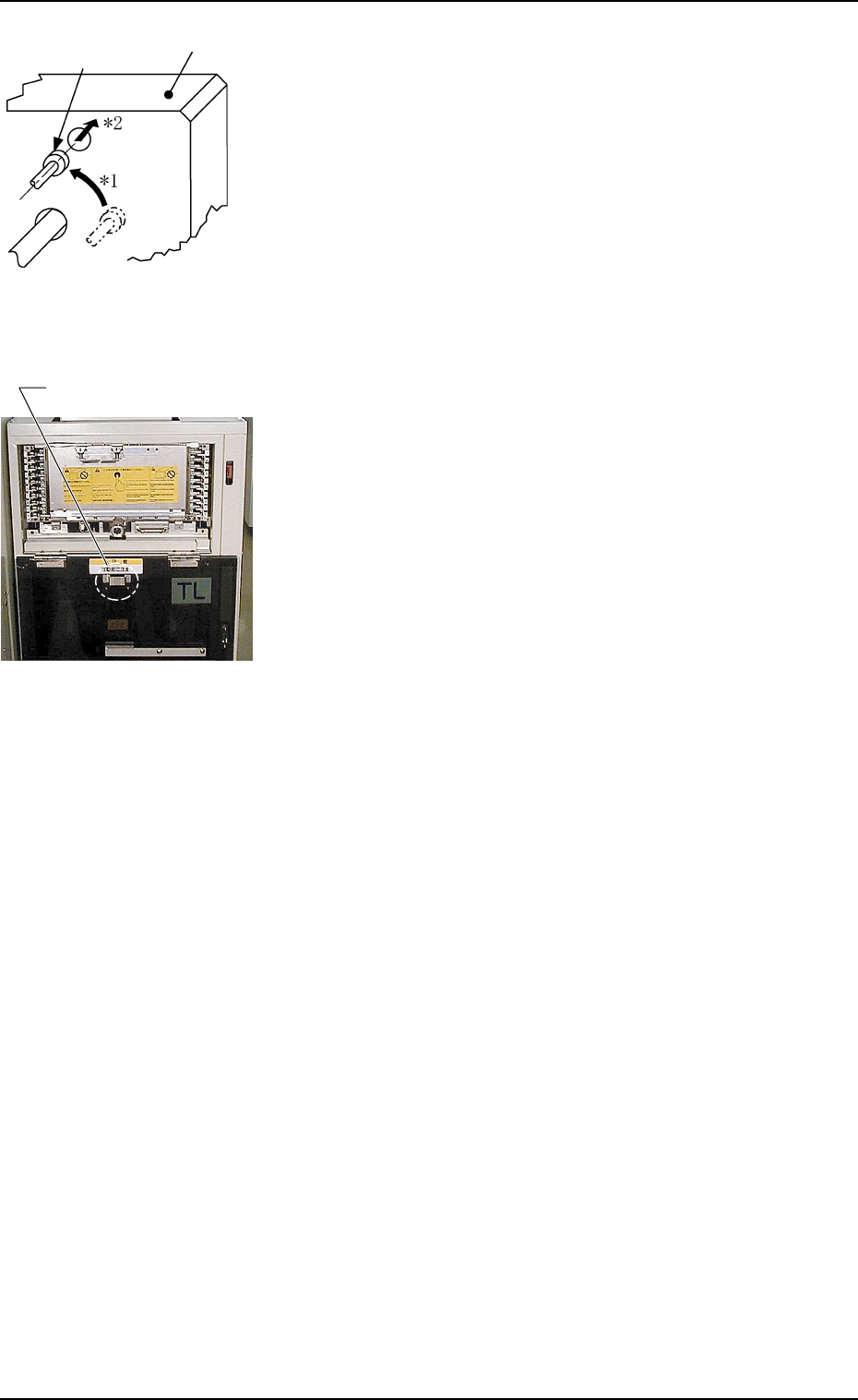

(5) Put the knob of the magazine stopper between fingers as

shown in Fig. 1.30 and turn it clockwise by approx. 90°

while pulling it forward.

(See Arrows *1 and *2 in Fig. 1.29.)

Ref.: Pulling Force of Magazine Stopper

39.2 N to 49.0 N (4 to 5 kgf)

(6) Hold the handle of the magazine base and pull it forward

until it stops.

Note: If the magazine base is pulled out too quickly, the

magazine may fall down to the front side by its in-

ertial force.

(7) Shift the desired magazine slightly toward you, hold the

handholds of the magazine, and take out the magazine.

Ref.: Try to shift the magazine slightly toward you. Oth-

erwise, the rear side of the magazine will be caught

by the multi-layer tray feeder.

Hierarchical Sequence

(Display)

“Neutral Mode”

“LOCAL MODE”

“MANUAL MODE”

“ELEVATOR UNIT”

0005-002 Chapter 1 2-26
