(2) Press the block No. key related to the location in matrix to be changed at
the display (Fig. 1.65).
The “MATRIX CHANGE” display related to the selected block appears
on the screen as shown in Fig. 1.66.
Fig. 1.67
(4) Select the [YES] or the [NO] key to make the set parameters valid or
invalid.
[YES]: The changed matrix values become valid.
[NO]: The original matrix values are not changed.

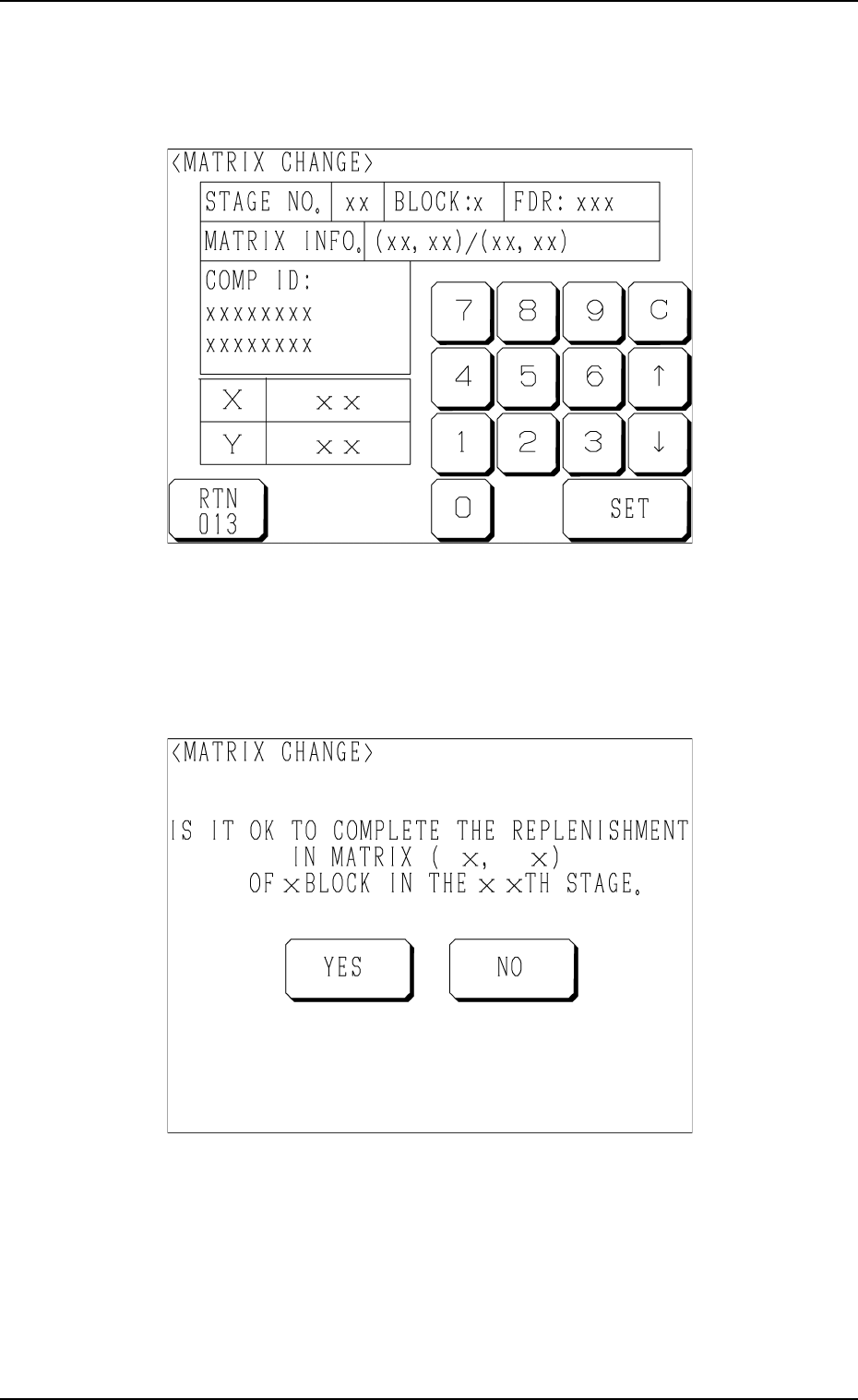

Fig. 1.66
(3) Enter matrix values (X and Y), using the ten-key pad and press the [SET]
key.
Another “MATRIX CHANGE” display (Fig. 1.67) appears on the screen
for the confirmation of the set parameters.
4. Matrix Change Operations
9911-001 Chapter 1 4-1
LOCAL Mode Menu
Section 4
Tg0252-PM-SO
Tg0252-PM-SO
9911-001 Chapter 1 4-2
1. LOCAL MODE Display
When the [LOCAL MODE] key is pressed at the neutral mode display (Fig.
1.54), the following display appears on the screen.
Fig. 1.68
[ZEROING OPERATION] Key
The multi-layer tray feeder can be zeroed.
[MANUAL OPERATION] Key
The multi-layer tray feeder can be operated manually.
1. LOCAL MODE Display
