• When the [LINE MODE] key is pressed, the feeder is set in the “LINE” mode and the display (Fig. 1.8-1 or 1.8-2) appears on the screen. Ref.: The “LINE” mode can also be set from the main ma- chine side. Refer to “1 1.1…

2. INITIALIZATION Display

When the main machine is powered up, power is also supplied to the multi-

layer tray feeders.

Then, the display (Fig. 1.6) appears on the touch screen of the multi-layer tray

feeder.

Fig. 1.6 “INITIALIZATION” Display

When the initialization is completed, the display (Fig. 1.7) appears on the

screen.

Shown in Fig. 1.7 is the condition called “Neutral Mode”.

When “LINE MODE” or “LOCAL MODE” is selected at this display, the

corresponding display appears on the screen.

[LINE MODE] Key : When this key is selected, the main machine issues a

command to set the feeder in the “LINE” mode.

Note: Automatic operation cannot be performed

unless the feeder is set in the “LINE” mode.

[LOCAL MODE] Key: Only the multi-layer tray feeder can be operated.

This mode is provided for performance check, etc.,

of the multi-layer tray feeder.

2. INITIALIZATION Display

9911-001 Chapter 1 2-3 Tg0252-PM-SO

• When the [LINE MODE] key is pressed, the feeder is set in the

“LINE” mode and the display (Fig. 1.8-1 or 1.8-2) appears on

the screen.

Ref.: The “LINE” mode can also be set from the main ma-

chine side.

Refer to “11.1.1 Changing from “NEUTRAL” to “LINE”

Mode of Section 2 in Chapter 1” for details.

Fig. 1.8-2 FP-5021R

Fig. 1.8-1 FP-5021L

2. INITIALIZATION Display

Hierarchical Sequence

(Display)

“MAIN MENU”

“DATA EDIT”

“AUTO OPN MODE

(PLACEMENT)”

“AUTO OPN

SUB-MENU”

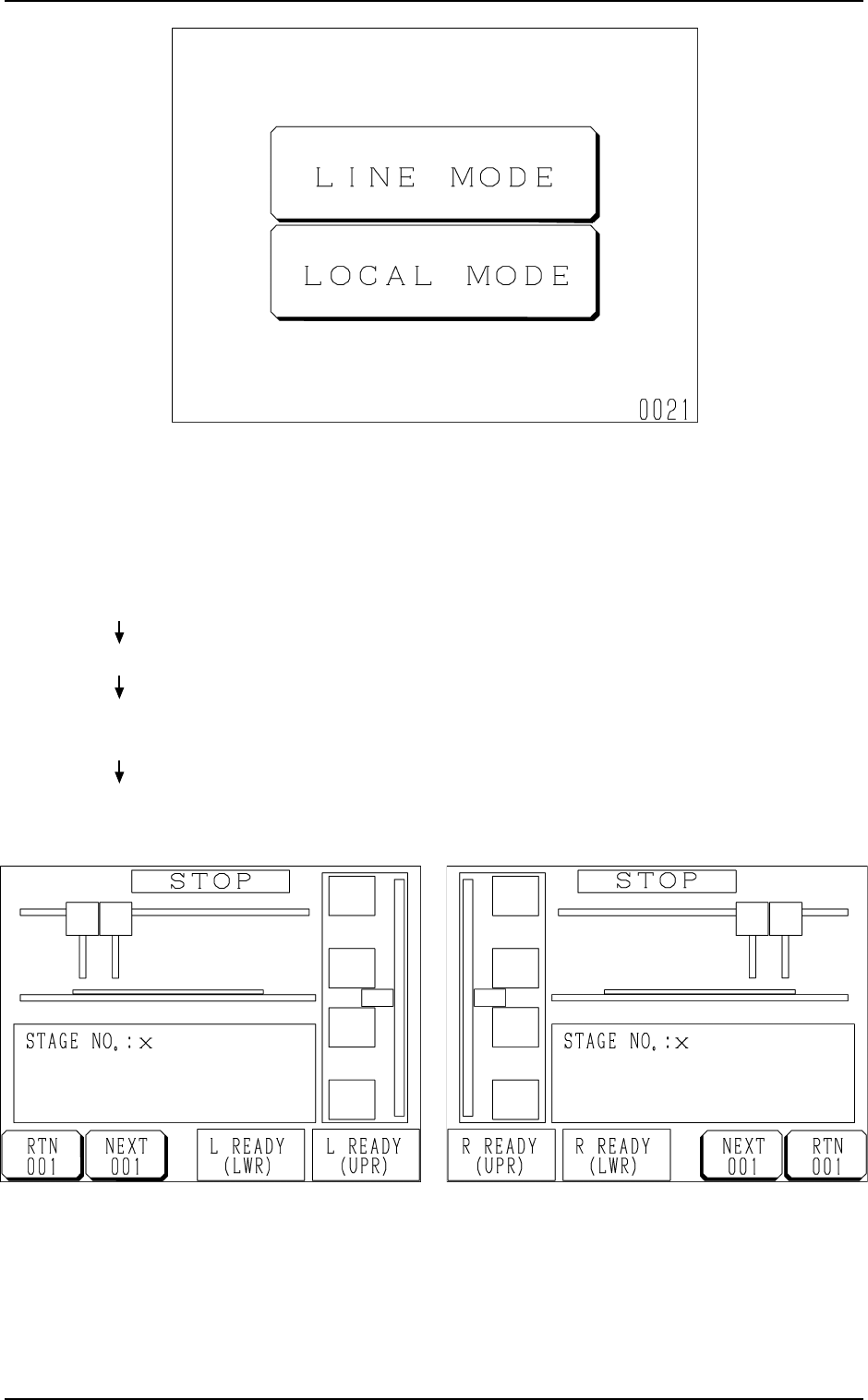

Fig. 1.7 Neutral Mode (Display for Mode Selection)

9911-001 Chapter 1 2-4 Tg0252-PM-SO

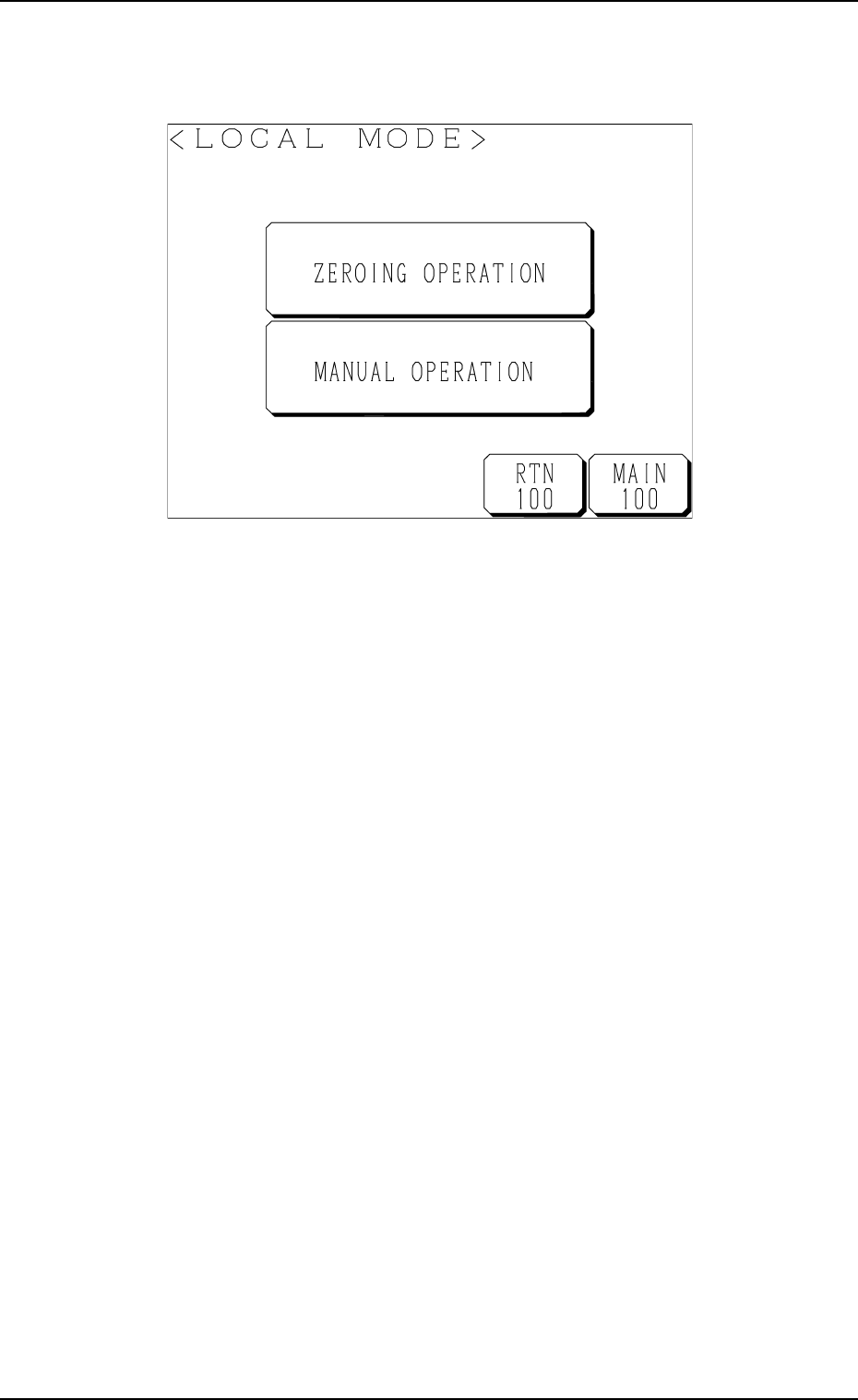

Fig. 1.9

• When the [LOCAL MODE] key is pressed, the following “LOCAL MODE”

display appears on the screen, enabling the zeroing and manual operations

of the multi-layer tray feeder.

2. INITIALIZATION Display

9911-001 Chapter 1 2-5 Tg0252-PM-SO
