1. TRAY FEEDER OFFSET Display
Operation Procedure
Refer to “14. TRAY FEEDER OFFSET Display of Section 5 in Volume 2” in
the main machine instruction manual for details.
Set the offset data on the main machine side.
(1) When the [TRAY FEEDER OFFSET] key is pressed at the “OFFSET
DATA” display, the following display appears on the screen.
(2) Enter various offset parameters.
Hierarchical Sequence
(Display)
“MAIN MENU”
“DATA EDIT”
“OFFSET DATA”
“TRAY FEEDER OFFSET”
1. TRAY FEEDER OFFSET Display

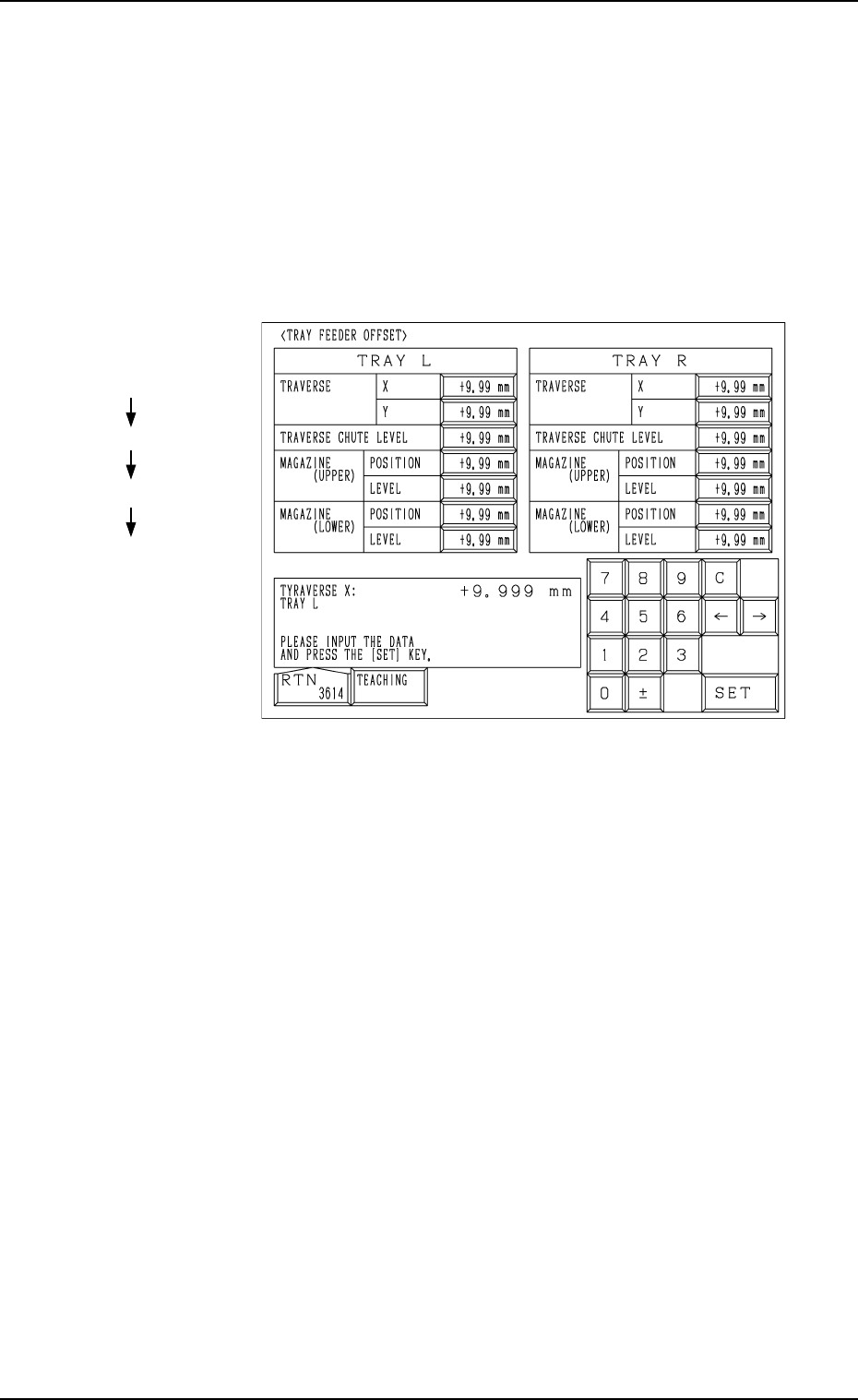

Fig. 2.1
