2.2 Confirmation of “Component Replenishment Completed”
Mode before Machine Operation
(1) Open the display (Fig. 1.58).
(2) Check whether or not all stage No. keys are green or black.
When a No. key turns red or flickers in red, it indicates that the stage is
short of components. Replenish the stage with components.
2. Component Replenishment
Tg0252-PM-SO
9911-001 Chapter 1 3-9
3. Component Information
• This display enables the checking of component information on each stage
or block.
When the [COMPONENT INFORMATION] key is pressed at the “LINE
MODE” display (Fig. 1.57), the following display appears on the screen.

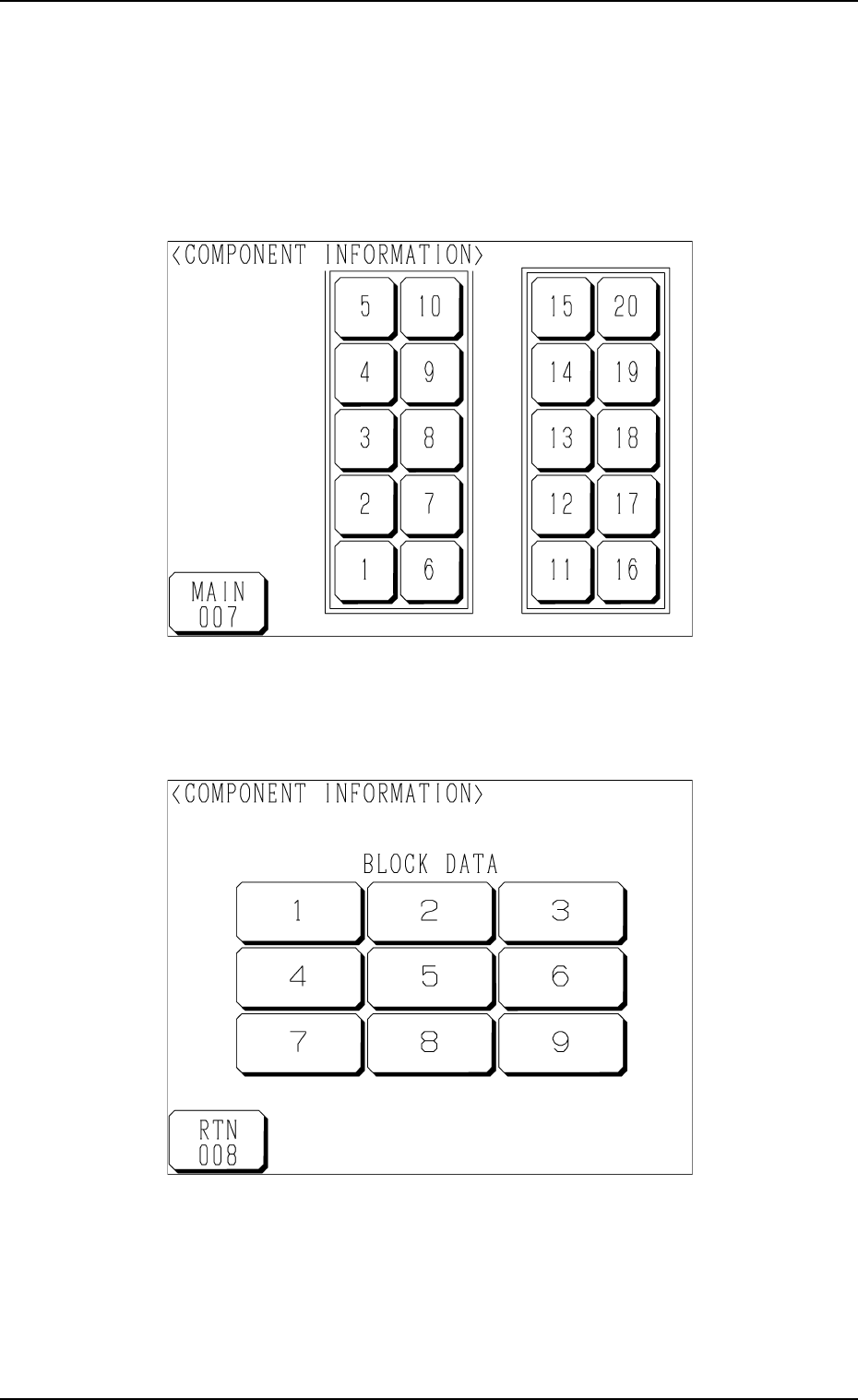

Fig. 1.62
Fig. 1.61
(1) Press the stage No. key desired to check the component information.
The following display appears on the screen.
3. Component Information
Tg0252-PM-SO
9911-001 Chapter 1 3-10
(2) Press the block No. key desired to check the component information.
The component information related to the selected No. is displayed as
shown below.

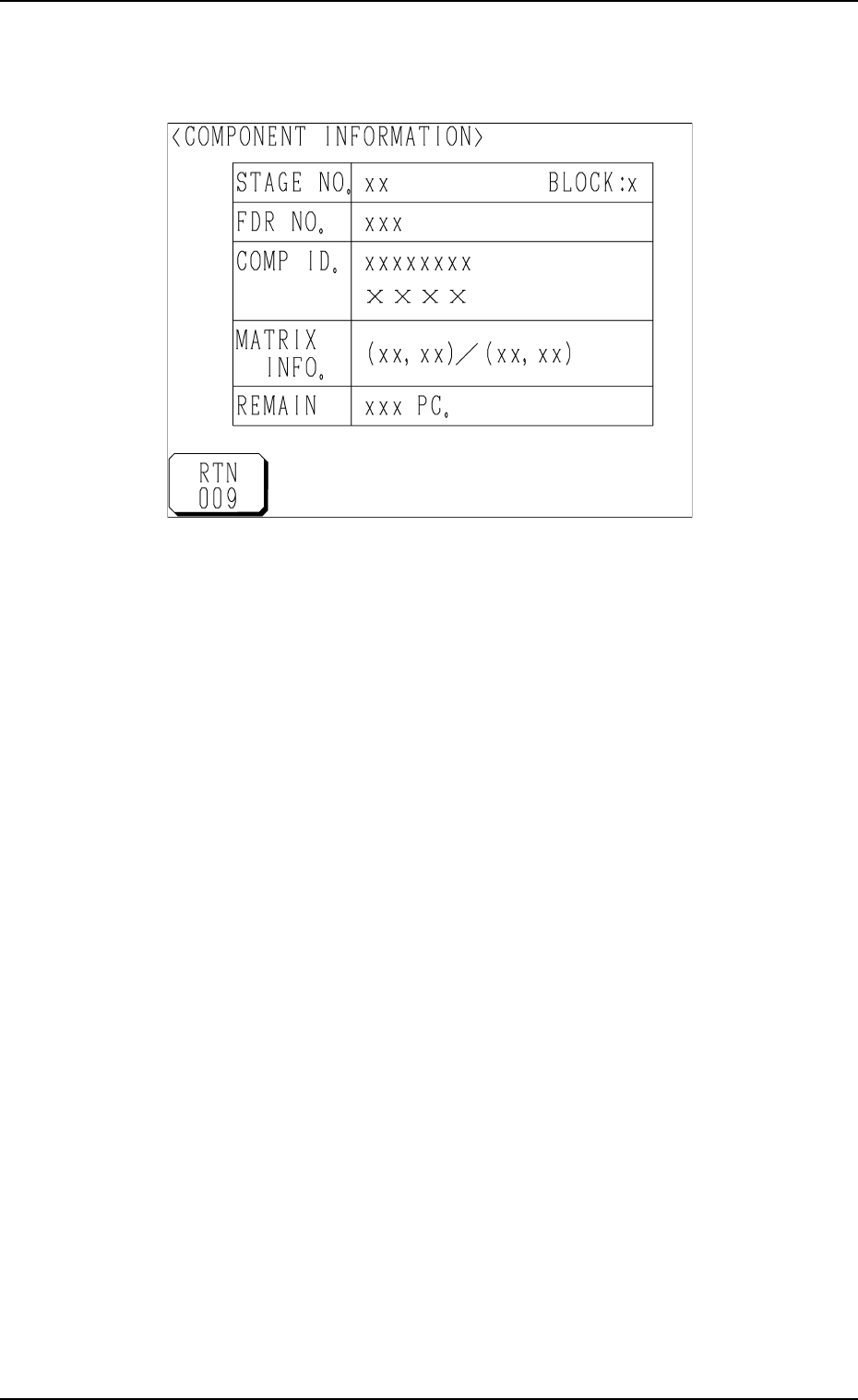

Fig. 1.63
STAGE NO. : This shows the selected stage No.
BLOCK : This shows the selected block No.
FDR NO. : This shows a feeder No. (type of components).
COMP ID. : This shows a component ID.
MATRIX INFO. : This shows “Location (Coordinates) of Subsequently
Picked Component/Matrix Size”.
REMAIN : This shows the quantity of remaining components
related to the currently indicated stage and block Nos.
3. Component Information
