0010-001 C h ap t er 3 4 - 1 Tg0252-PM-SO Management Information Section 4
0010-001 Chapter 3 4-1
Tg0252-PM-SO
Management Information
Section 4
1. Machine Information
1.1 INFO. Display
This display shows various information during automatic operation.
After each information, automatic operation still continues.
When the machine information is issued, the following display appears on the
screen.

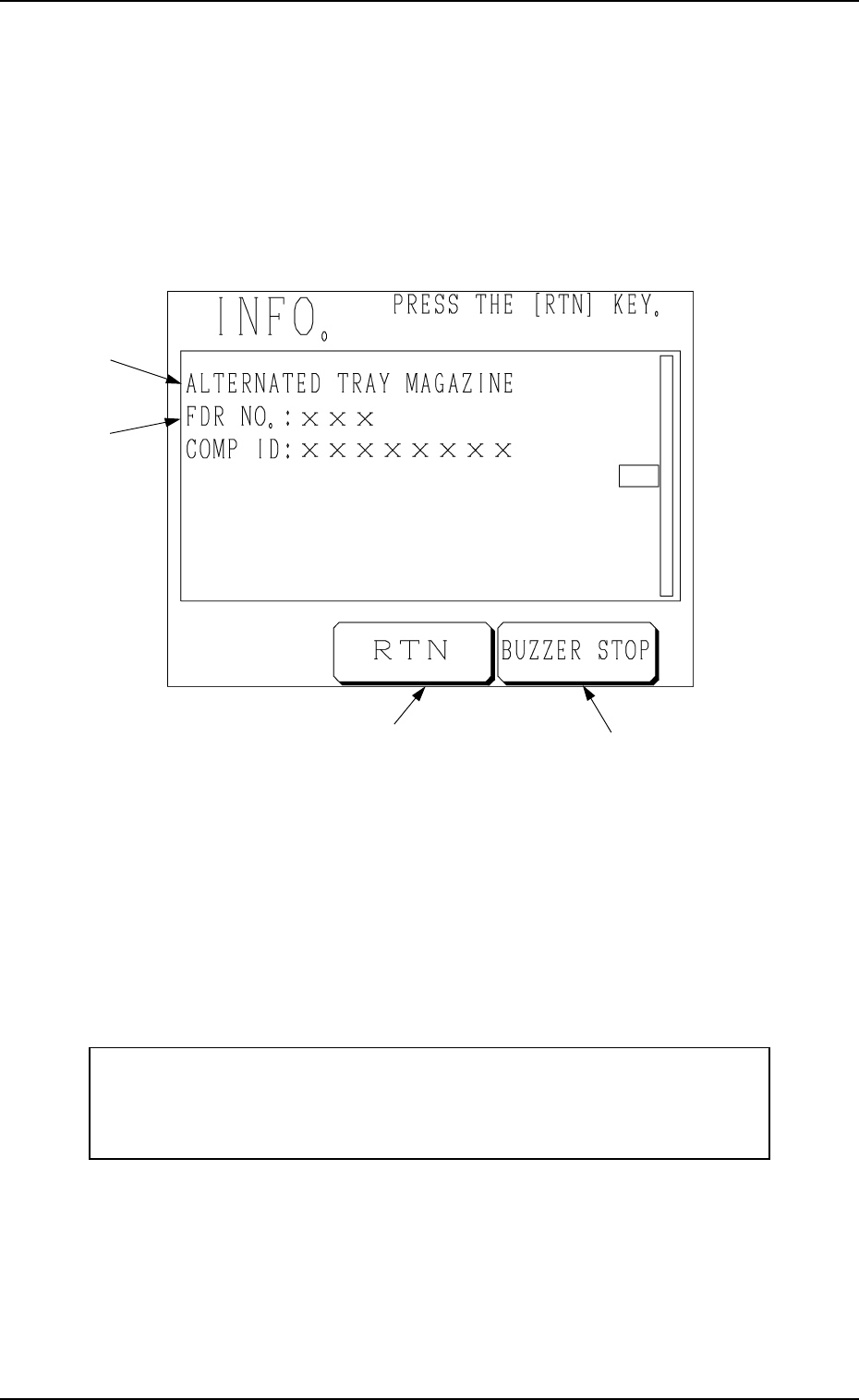

Fig. 1.43
*A: Information Message
*B : Contents of Information Message
*C : This key is used to stop buzzer sound.
*D: This key is used to stop buzzer sound and resume the display opened
before the “INFO.” display.
The sample display in Fig. 1.43 shows that the magazine alternate function is
activated.
The “INFO.” displays are provided to inform the operator of warning mes-
sages (machine information).
Perform the operation based on the machine information and then the
reset operation.
• When the information display is not big enough to show all information items,
it is scrolled up.
To review the cleared items after scrolling, open the “RECALL MESSAGES”
display.
When several information items are issued, the tower lights and buzzer are
activated to issue the latest information.
*B
*A
*D
*C
1. Machine Information
