Tg0252-PM-SO
9911-001 Chapter 2 1-3
2. FEEDER (B) OFFSET Display
Operation Procedure
Refer to “3. “FEEDER (A) OFFSET” and “FEEDER (B) OFFSET” Displays
of Section 5 in Volume 2” in the main machine instruction manual for details.
Set the offset data on the main machine side.

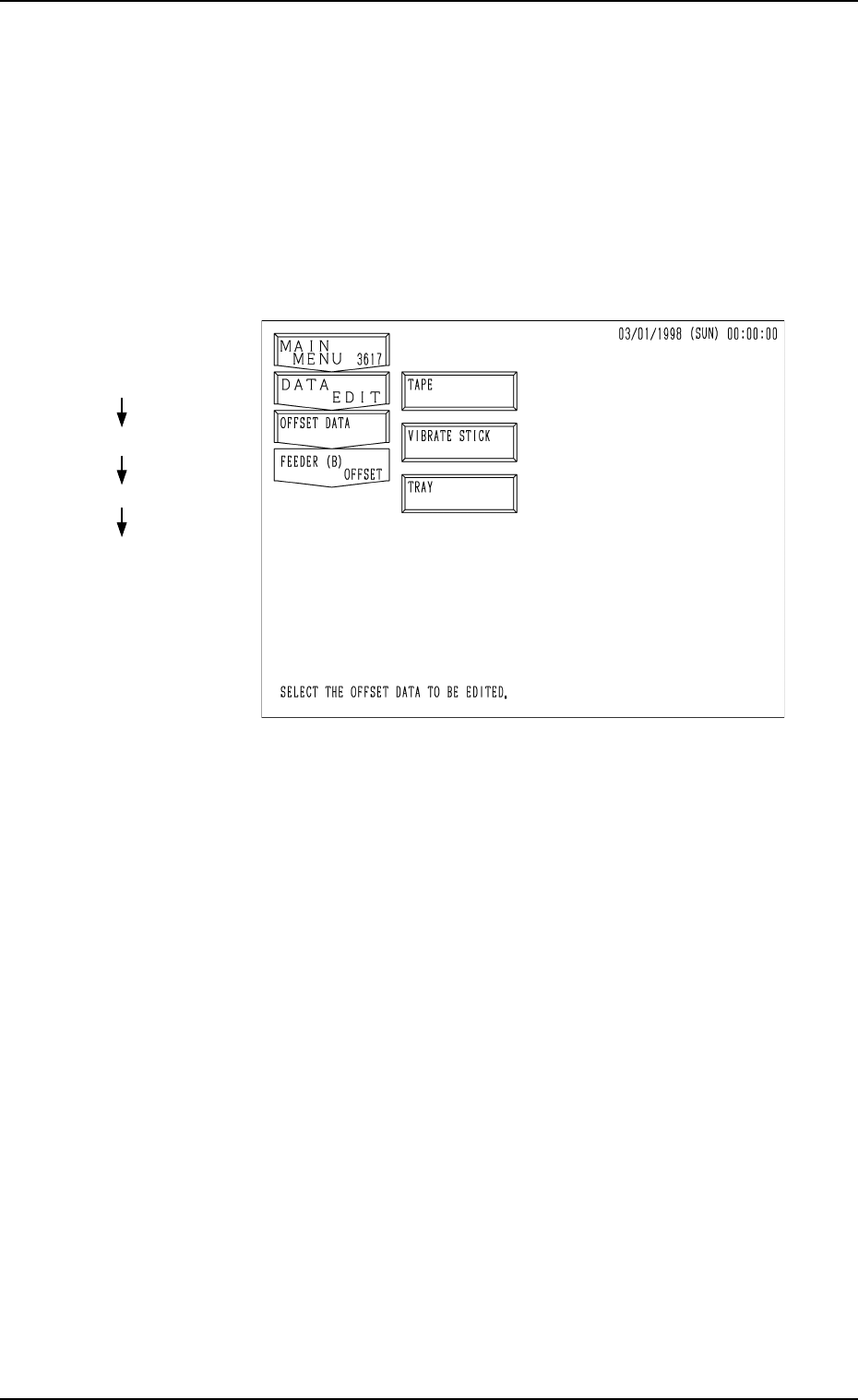

(1) When the [FEEDER (B) OFFSET] key is pressed at the “OFFSET DATA”
display, the following display appears on the screen.
Fig. 2.2
Hierarchical Sequence
(Display)
“MAIN MENU”
“DATA EDIT”
“OFFSET DATA”
“FEEDER (B) OFFSET”
2. FEEDER (B) OFFSET Display
Tg0252-PM-SO
9911-001 Chapter 2 1-4

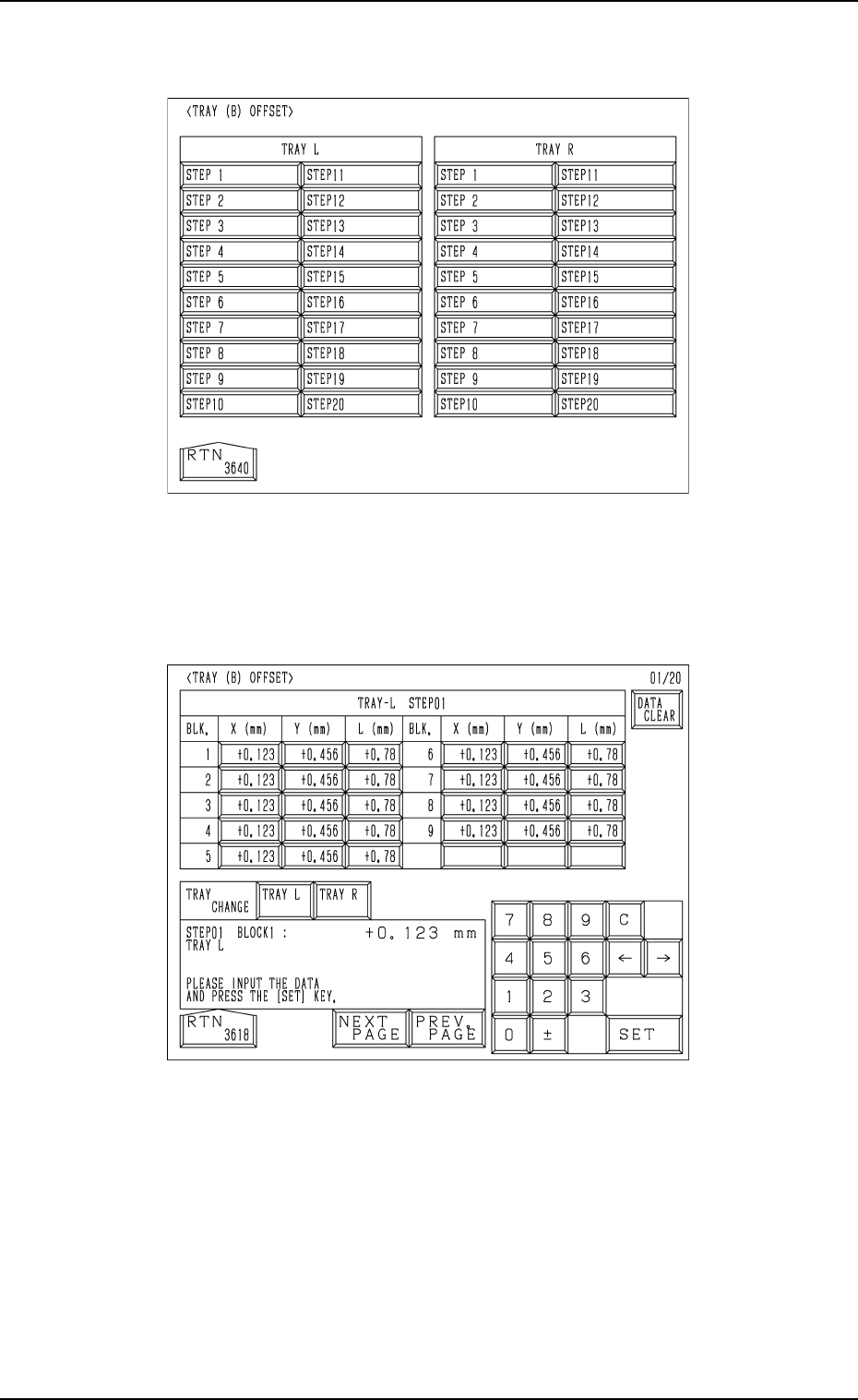

(2) Press the [TRAY] key at the “FEEDER (B) OFFSET” display (Fig. 2.2).
The following display appears on the screen.
Fig. 2.4
Fig. 2.3
(3) Press the [STEP X] key. ([STEP 1] to [STEP 20])
The display (Fig. 2.4) appears on the screen.
(4) Enter various offset parameters.
2. FEEDER (B) OFFSET Display
Chapter 3
This chapter describes the causes of various troubles and
recovery methods.
9911-001 Chapter 3 1 Tg0252-PM-SO
Troubleshooting
