01 12-001 C h ap t er 3 2-24 Tg0252-PM-SO 4. Troubleshooting after Error Message 12 0 5 TV2-AXIS INTERLOCK Reserved 12 05 02 TV2-AXIS INTERLOCK TRA VERSE 1 P A TH LINE [BPH276] DETECTED. Error Code Display A Display B (C…
0112-001 Chapter 3 2-23 Tg0252-PM-SO
4. Troubleshooting after Error Message
12 02 01 TV2-AXIS TIMING PREVIOUS TASK WAS NOT COMPLETED. UNABLE TO
CONTINUE.
12 03 01 TV2-AXIS DATA TARGET LOCATION VALUE IS OUT OF RANGE.
Error Code Display A Display B
(Cause 1) This is the device’s self-diagnostic message.
(Reset Procedure in the case of Cause 1)
Reset Procedure
(1) Press the [CLEAR ALARM] key to stop the buzzer sound.
(2) Press the [RESET] button to cancel the error mode.
(3) Press the [ZERO] button to return all axes to their original positions. Continue the production
according to the “WARM Start Operation Procedure”.
(4) If the device can’t be reset after the above procedure, contact our service personnel.
(Cause 1) This is the device’s self-diagnostic message.
(Reset Procedure in the case of Cause 1)
Reset Procedure
(1) Press the [CLEAR ALARM] key to stop the buzzer sound.
(2) Press the [RESET] button to cancel the error mode.
(3) Press the [ZERO] button to return all axes to their original positions. Continue the production
according to the “WARM Start Operation Procedure”.
(4) If the device can’t be reset after the above procedure, contact our service personnel.
12 04 01 TV2-AXIS LIMIT LIMIT ERROR (+) IS DETECTED.;BPH256
12 04 02 TV2-AXIS LIMIT LIMIT ERROR (-) IS DETECTED.;BPH257
(Cause 1) It may run away due to noise or overcurrent.
(Cause 2) The sensor may be defective.
(Reset Procedure in the case of Causes 1 and 2)
Reset Procedure
(1) Press the [CLEAR ALARM] key and the buzzer stops sounding.
(2) Press the [ZERO] button to return all the axes to their original positions.
(3) Re-start.
(4) If the device can’t be re-started, contact our service personnel.
0112-001 Chapter 3 2-24 Tg0252-PM-SO
4. Troubleshooting after Error Message
12 05 TV2-AXIS INTERLOCK Reserved
12 05 02 TV2-AXIS INTERLOCK TRAVERSE 1 PATH LINE [BPH276] DETECTED.
Error Code Display A Display B
(Cause 1) This is the device’s self-diagnostic message.
(Reset Procedure in the case of Cause 1)
Reset Procedure
(1) Press the [CLEAR ALARM] key to stop the buzzer sound.
(2) Press the [RESET] button to cancel the error mode.
(3) Press the [ZERO] button to return all axes to their original positions. Continue the production
according to the “WARM Start Operation Procedure”.
(4) If the device can’t be reset after the above procedure, contact our service personnel.
PCB
Beam A Side
Beam B Side
C

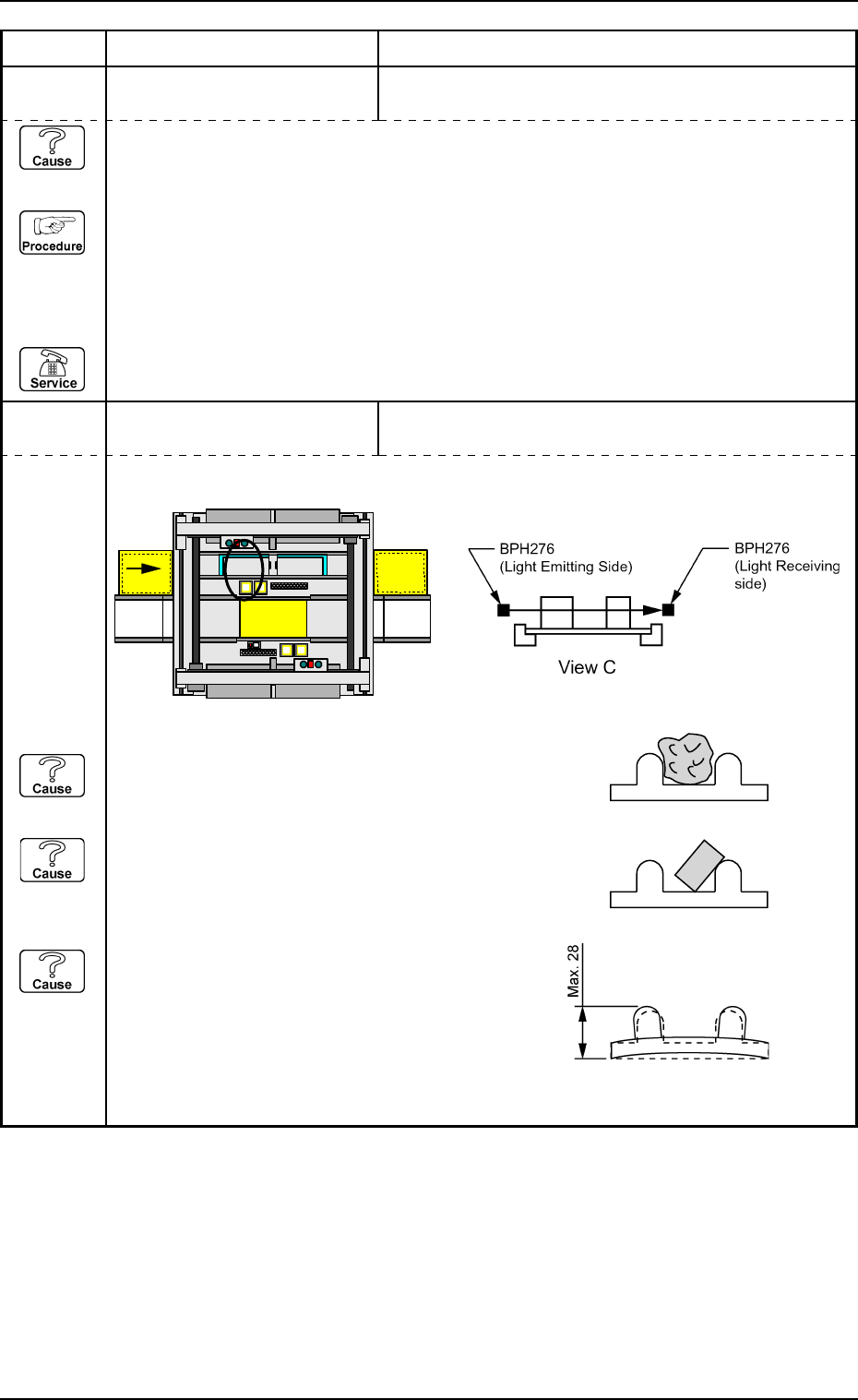

(Cause 1) Is there any foreign substance on the tray?
Check the tall component on the pallet.
(Cause 2) Is the component not properly in the tray?
A component which was not picked up might be
sticking out from the tray.
(Cause 3) Is the height of the tray close to the specified
maximum limit?
(NEXT PAGE)
0112-001 Chapter 3 2-25 Tg0252-PM-SO
4. Troubleshooting after Error Message
Error Code Display A Display B
(Reset Procedure in the case of Causes 1 and 2)
Reset Procedure

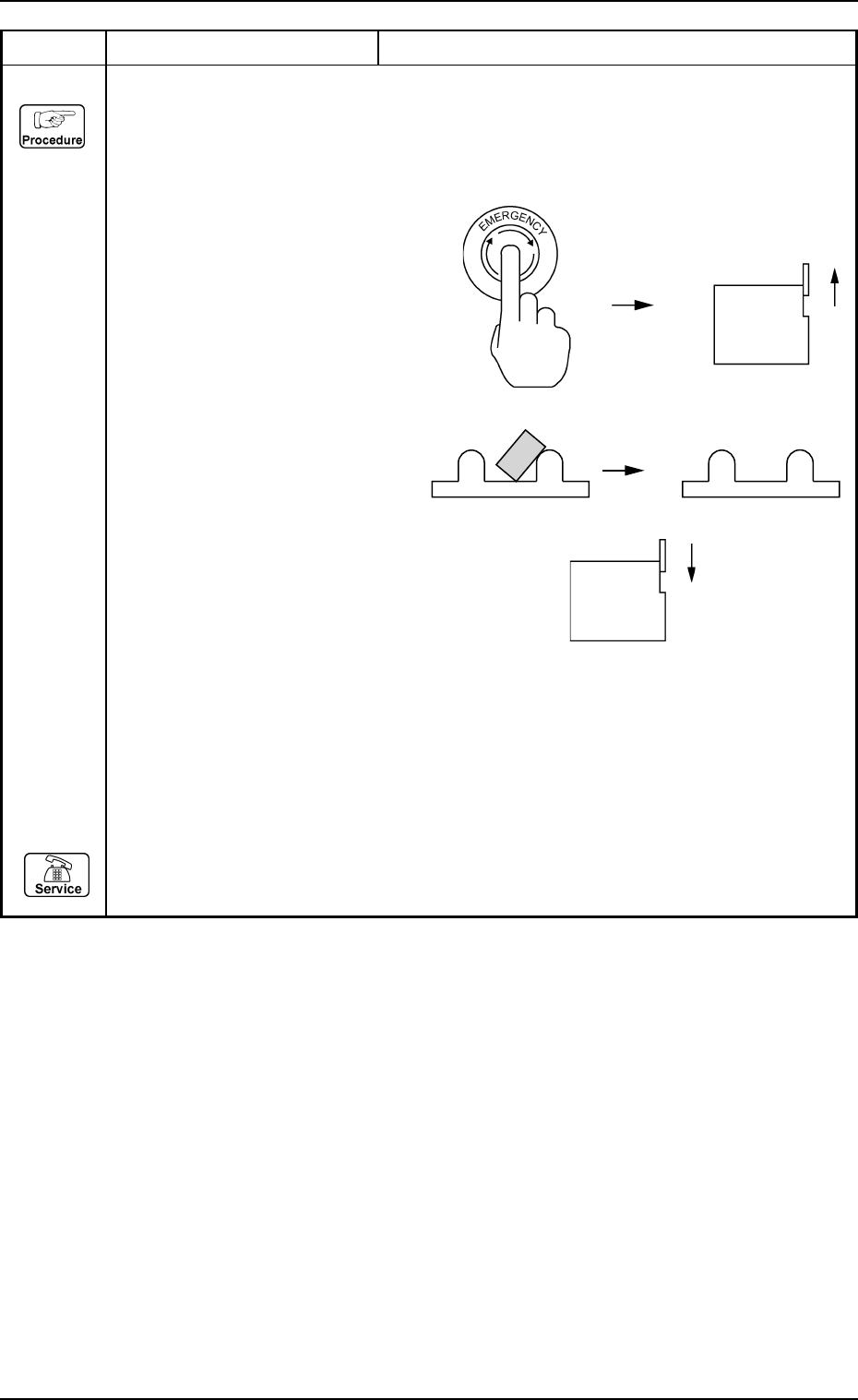

(1) Press the [RESET] button to cancel the error indication.
(2) Press the [READY] key on the operation panel on the side of the beam A to turn off the LED
for the [READY] key.
(3) Press the [EMERGENCY STOP] button
to turn off the load power, then open
the supply cover on the side of the
beam A.
Take the greatest care for safety.
(4) Remove any foreign substance,
such as a projecting component,
which caused the error.
(5) Close the supply cover and press the [POWER]
button to turn on the load power.
(6) Press the [READY] button on the side of the beam A to turn on the LED for the [READY]
button.
(7) Press the [ZERO] button to return all axes to their original positions. Continue the production
according to the “WARM Start Operation Procedure”.
(Reset Procedure in the case of Cause 3)
Reset Procedure
(1) Contact our service personnel.
