Chapter 5 1-17 Tg0252-PM-SO Note: Proximity Sensors -BPX501 and -BPX502 are mounted on the elevator and move up and down together with the elevator . Side Plane of Machine Operation Side of Machine (Light Projecting Side…
Chapter 5 1-16 Tg0252-PM-SO
Connector Case
Connector Case
Operation Monitor

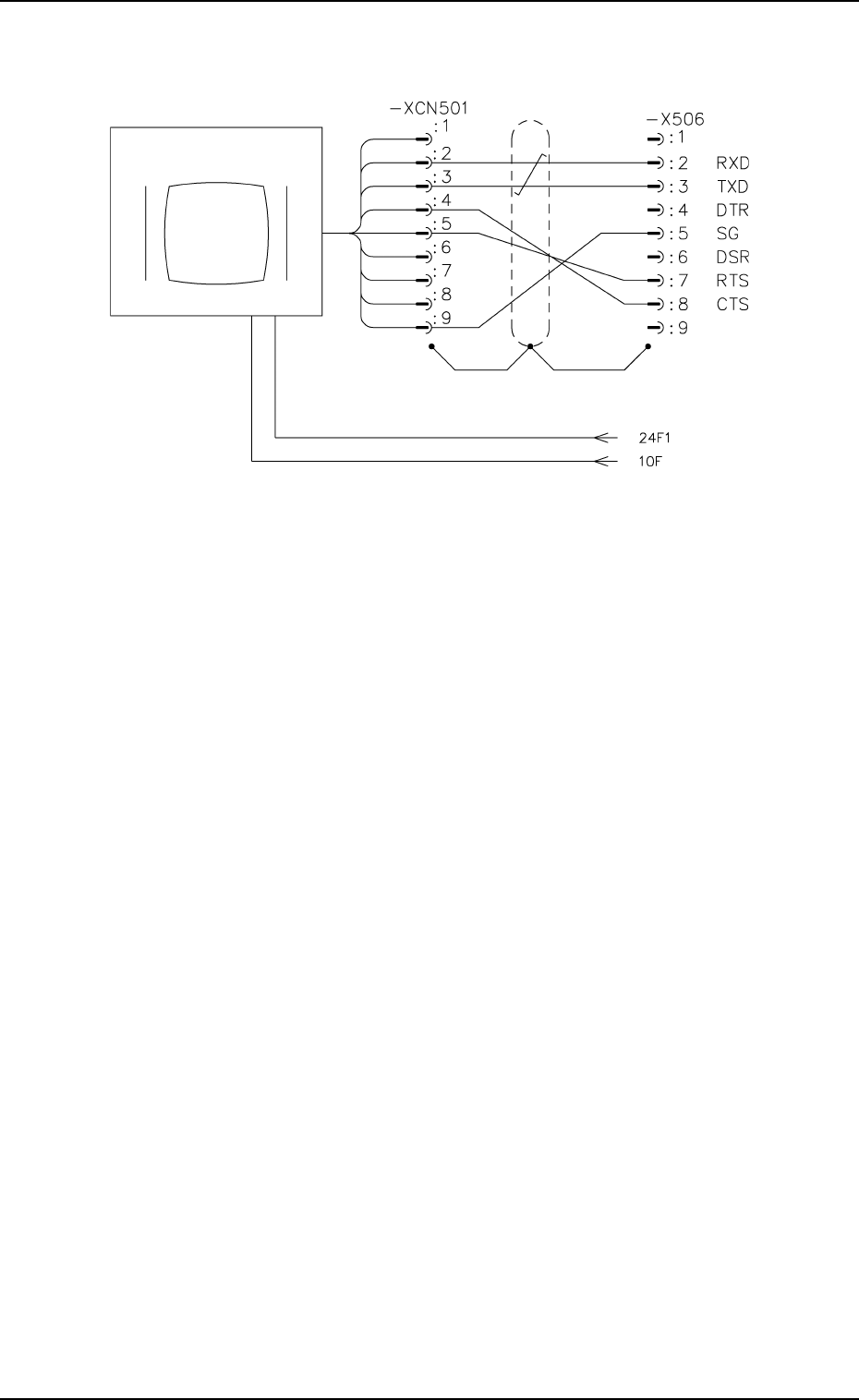

2.8 Operation Monitor Circuit Diagram
2. Electrical Circuit Diagrams
0010-002-(M742WTL--2107)
Chapter 5 1-17 Tg0252-PM-SO
Note: Proximity Sensors -BPX501 and -BPX502 are mounted on the elevator and
move up and down together with the elevator.
Side Plane of MachineOperation Side of Machine
(Light
Projecting
Side)
(Light Projecting
Fiber)
(Light Projecting Fiber)
(Light Receiving Fiber)
Driving Unit
(Origin Position)
Note
Note
(Light Projecting Fiber)
(Light Receiving Fiber)
(Light Receiving
Fiber)
(Light Project-
ing Fiber)
(Am-lifier)
(Amp-lifier)
(Light Projecting Side)
(Light Project-
ing Side)
(Light Project-
ing Side)
Note
3. Location of Sensors, Switches, and Loads
3. Location of Sensors, Switches, and Loads
(Light Projecting Fiber)
Symbols Name
-BPH581 Elevator Shaft Origin
-BPH582 Elevator Shaft Limit (+)
-BPH583 Elevator Shaft Limit (-)
-BPH584 Elevator Shaft Middle Limit (+)
-BPH585 Elevator Shaft Middle Limit (-)
-BPH586 Ejected Pallet Detection (1)
-BPH589 Upper Magazine Detection Check
-BPH590 Upper Magazine Stationary Position Check
-BPH591 Lower Magazine Detection Check
-BPH592 Lower Magazine Stationary Position Check
-BPH593 Pallet Detection Check (Upper)
-BPH594 Pallet Detection Check (Lower)
-BPH595 Pallet Direction Detection
-BPH597 Pallet Stopper OFF Cylinder Forward Limit
-BPH598 Pallet Stopper OFF Cylinder Backward Limit
-BPS581 Upper Magazine Clutch Connection (1)
Forward Limit
-BPS582 Upper Magazine Clutch Connection (1)
Backward Limit
-BPS583 Upper Magazine Clutch Connection (2)
Forward Limit
-BPS584 Upper Magazine Clutch Connection (2)
Backward Limit
-BPS585 Lower Magazine Clutch Connection (1)
Forward Limit
-BPS586 Lower Magazine Clutch Connection (1)
Backward Limit
-BPS587 Lower Magazine Clutch Connection (2)
Forward Limit
-BPS588 Lower Magazine Clutch Connection (2)
Backward Limit
-BPX501 Upper Magazine Base Connection Check
-BPX502 Lower Magazine Base Connection Check
-SQ501 Upper Door Electromagnetic Lock Switch
-YSOL501 Upper Door Electromagnetic Lock
-SQ502 Lower Door Electromagnetic Lock Switch
-SOL502 Lower Door Electromagnetic Lock
-YSV581 Upper Magazine Clutch Connection (1)
-YSV582 Upper Magazine Clutch Connection (2)
-YSV583 Lower Magazine Clutch Connection (1)
-YSV584 Lower Magazine Clutch Connection (2)
-YSV585 Pallet Stopper OFF
-MSVM501 Elevator Shaft Servo Motor
9911-001 E(M676YTL--1102)
Chapter 5 1-18 Tg0252-PM-SO
Detail A
Detail B
Operation Side of Machine Side Plane of Machine
Layout of Operation
Panel
Mechanical
Parts
(Electromagnetic
Lock-Type
Door Switch)
4. Parts Location (FP-5021L)
4.1 Whole View Layout
4. Parts Location (FP-5021L)
Power Source Section
Relay PCB
A
B
