Fig. 1.3-3 T ray Fixing Metal (MF-5050R) 4. Structure and Names Fig. 1.3-1 Multi-Layer T ray Feeder (FP-5021R) Operation Monitor (T ouch Screen) [UPPER DOOR ELECTROMAGNETIC LOCK] Switch Center Cover Lower Cover Fig. 1.3-…

Note: Pallet (MP-5050) can be used for two types of magazines (MG-5050L and

MG-5050R) by changing the right and left direction.

4.2 Rough View

4. Structure and Names

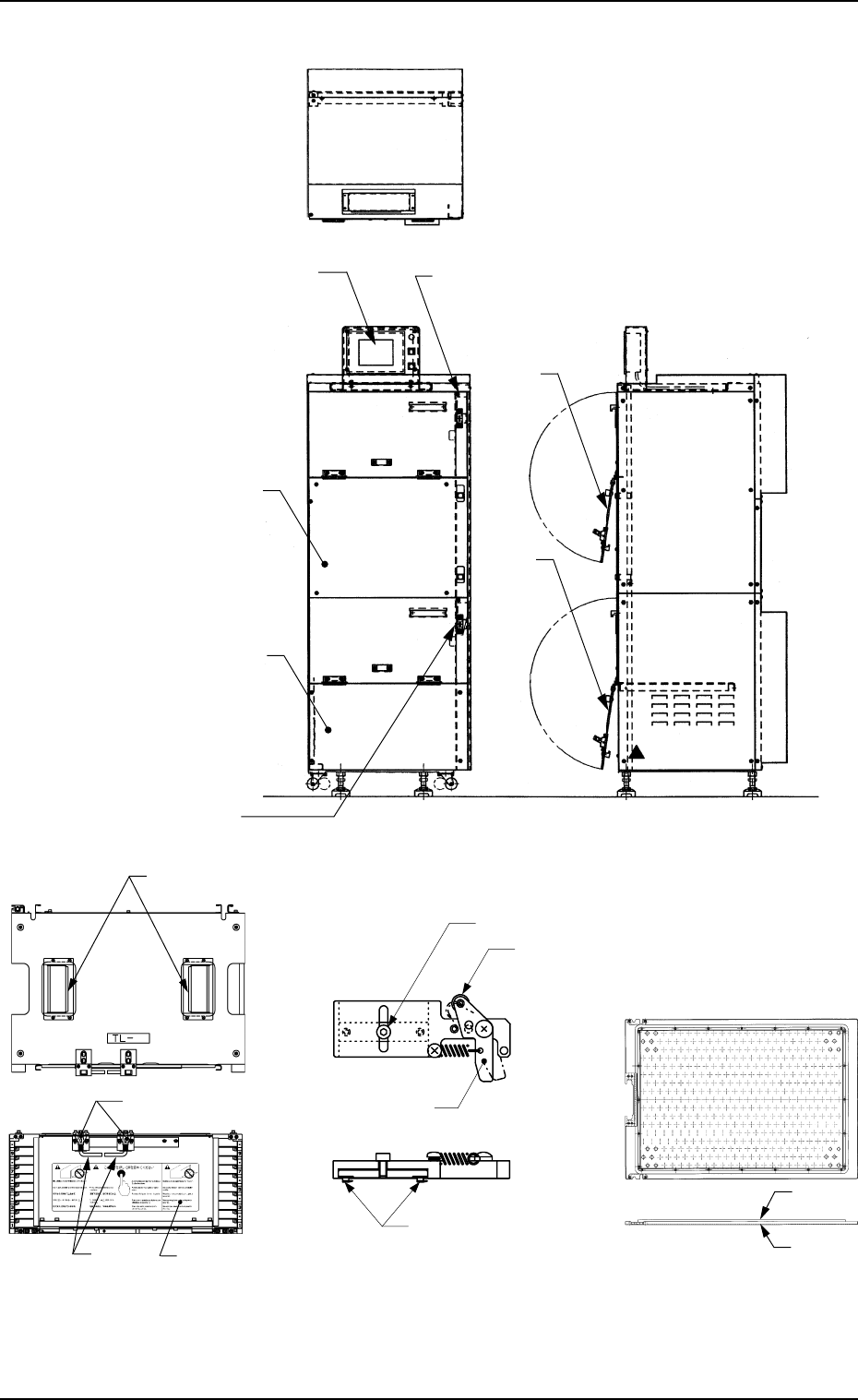

Fig. 1.2-1 Multi-Layer Tray Feeder (FP-5021L)

Fig. 1.2-2 Magazine

(MG-5050L)

Fig. 1.2-3 Tray Fixing Metal

(MF-5050L)

Fig. 1.2-4 Pallet

(MP-5050)

Operation Monitor

(Touch Screen)

[UPPER DOOR ELECTROMAGNETIC

LOCK] Switch

Upper

Door

Lower

Door

Center Cover

Lower Cover

[LOWER DOOR ELECTRO-

MAGNETIC LOCK] Switch

Front

Back

Grips of Magazine

Magazine Door Fixture

Grip

Roller

Anchor Bolt

Lever

Clamping Claw

0112-004 Chapter 1 1-8

Tg0252-PM-SO

Magazine Door

Fig. 1.3-3 Tray Fixing Metal (MF-5050R)

4. Structure and Names

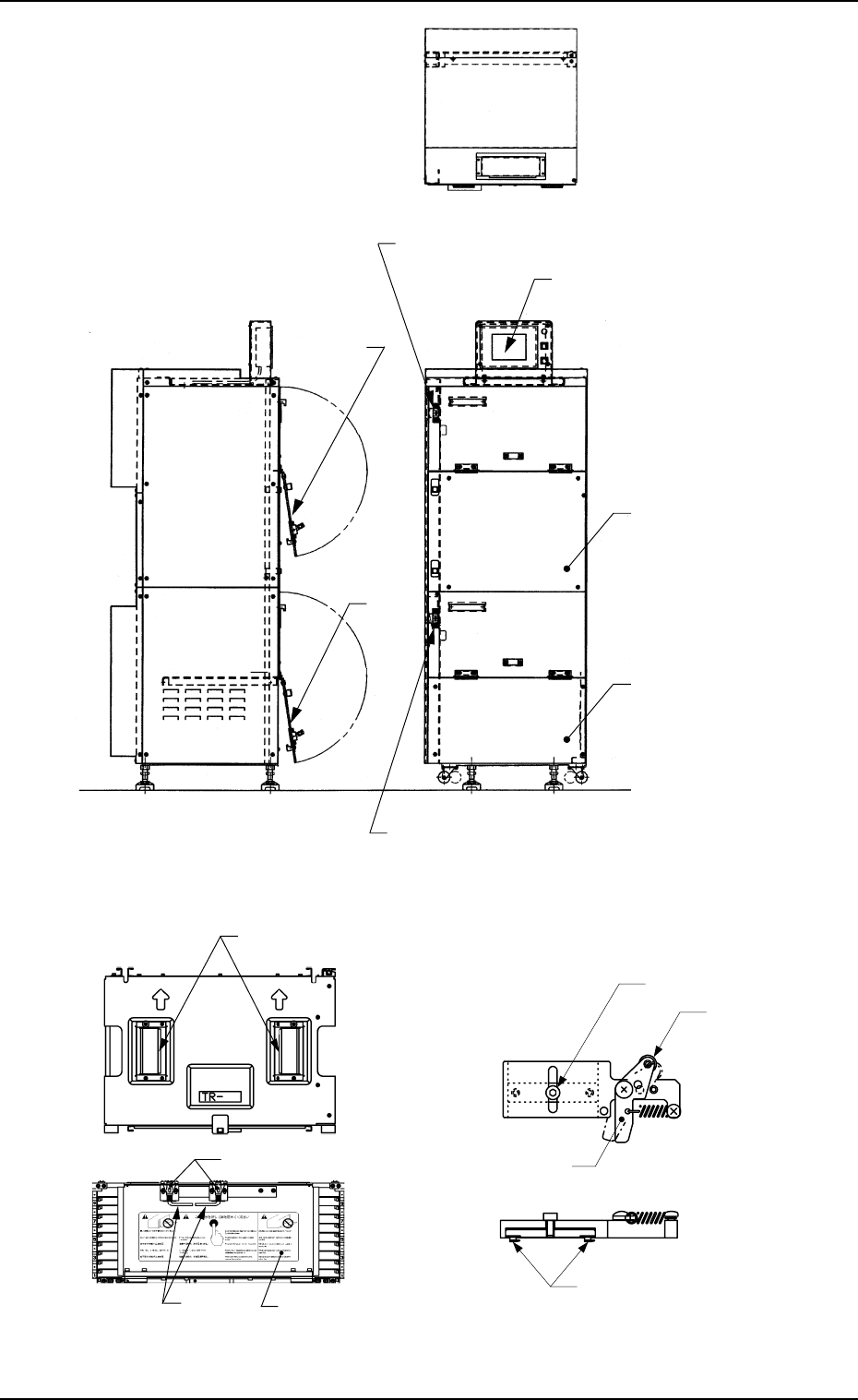

Fig. 1.3-1 Multi-Layer Tray Feeder (FP-5021R)

Operation Monitor

(Touch Screen)

[UPPER DOOR ELECTROMAGNETIC LOCK]

Switch

Center Cover

Lower Cover

Fig. 1.3-2 Magazine (MG-5050R)

Upper

Door

Lower

Door

[LOWER DOOR ELECTROMAGNETIC

LOCK] Switch

Grips of Magazine

Magazine Door Fixture

Grip

0112-004 Chapter 1 1-9

Tg0252-PM-SO

Roller

Anchor

Bolt

Lever

Clamping Claw

Magazine Door

Power Supply for

Elevator

-HD502

[MOVE] Button

-SPB501 (-HD501)

[STOP] Button

-SPB502

POWER (LED)

RUN (LED)

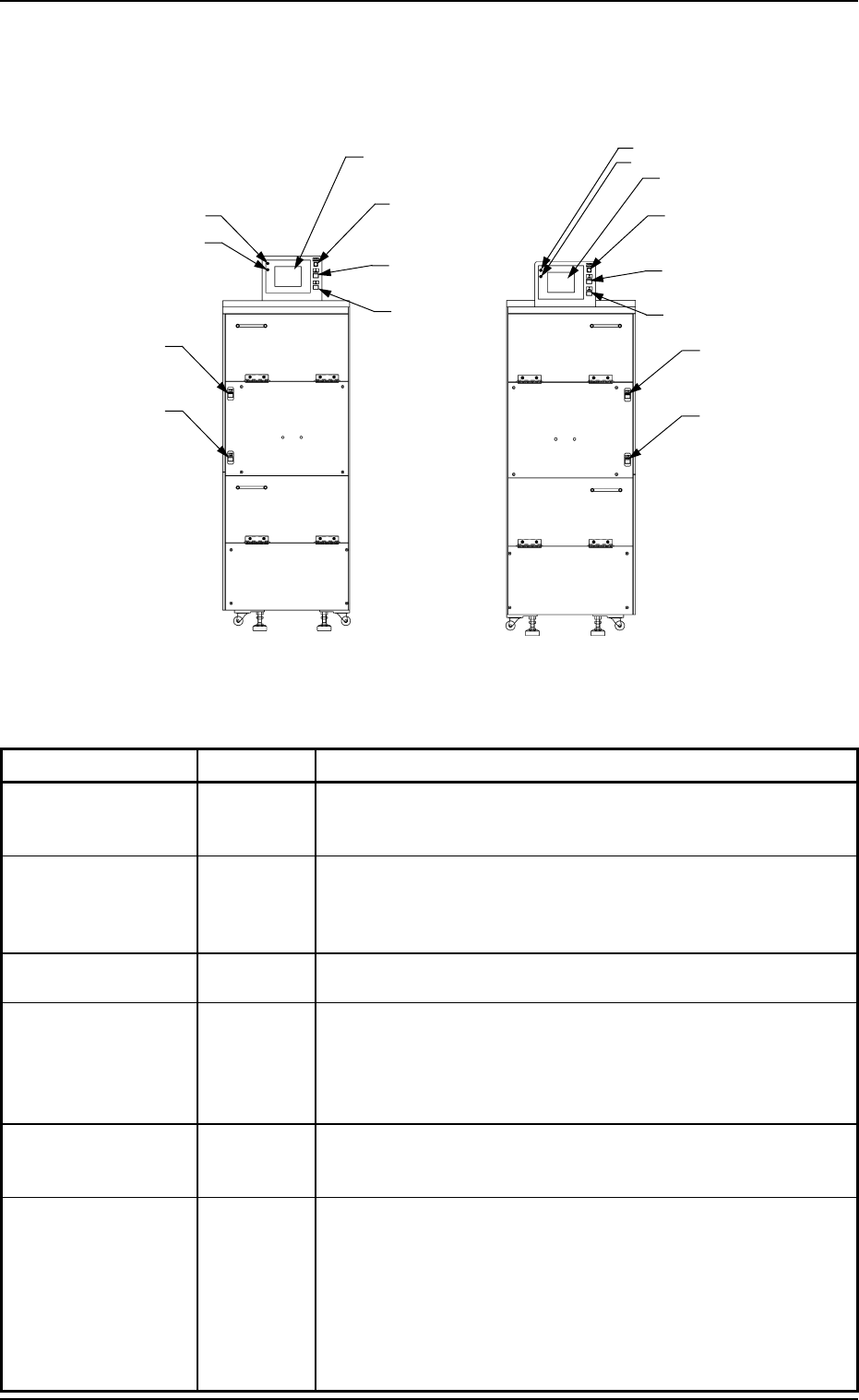

5. Operation Panel (Names and Functions)

Table 1.1

Fig. 1.4

5. Operation Panel (Names and Functions)

[U READY] Button

-SPB503 (-HD503)

[L READY] Button

-SPB504 (-HD504)

POWER (LED)

RUN (LED)

Operation Monitor

(Touch Screen)

Power Supply for Elevator

-HD502

[MOVE] Button

-SPB501 (-HD501)

[U READY] Button

-SPB503 (-HD503)

[L READY] Button

-SPB504 (-HD504)

Name Symbols Function

Operation Monitor

(Touch Screen)

•

This touch screen displays various information about the

multi-layer tray feeders and the commands related to the

multi-layer tray feeder operation.

POWER

(LED)

•

This indicates whether or not power is supplied to the touch

screen.

•

When the LED is "ON", it indicates that power is supplied to

the touch screen.

RUN (LED)

•

When the LED is "ON", it indicates that the touch screen is

operational.

MOVE -SPB501

(-HD501)

•

This button switch is used to execute the manual control

functions labeled on the touch screen of the multi-layer tray

feeder.

•

When the LED is "ON", it indicates that the selected function

is being executed.

STOP -SPB502

•

This button switch is used to interrupt the execution of the

selected manual control function labeled on the touch screen

of the multi-layer tray feeder.

U READY -SPB503

(-HD503)

•

This button switch is used to tell the main machine that the

upper magazine is set ready for replacement.

•

When the LED is "ON", it indicates that the upper magazine

is already set ready for replacement.

•

When the LED flickers, it indicates that the upper magazine is

being shifted to the replacement mode.

•

When the LED is "OFF", it indicates that the upper magazine

is set ready for replacement.

FP-5021LFP-5021R

[STOP] Button

-SPB502

Operation Monitor

(Touch Screen)

9911-001 Chapter 1 1-10 Tg0252-PM-SO
