5. Preparation and Confirmation before Operation Tg0252-PM-SO 0010-001 Ch ap te r 1 2-16-1 5.2.2 Preparation of Magazine 5.2.2.1 Precautions in Magazine Handling • Do not pile up magazines removed from the unit. Do not p…
5. Preparation and Confirmation before Operation
Tg0252-PM-SO
(5) Pull out the pins, etc., which were inserted in Step (3).
The tray is suppressed in the Y direction.
5.2.1.3 Tray Detachment from Pallet
(1) Push the lever of the tray fixing metal and hold it at the position where the
roller of the metal has separated from the tray.
(2) Detach the tray from the pallet.
View A View B
Fig. 1.18 Location of Fixing Metals for TL (Same for TR)
0010-002 Chapter 1 2-16
A
2.5
X
Y
Anchor Bolt
Tray Fixture Attachment Position
when the tray can’t be
fixed into the Y direction.
Anchor Hole ( 6)
End Plane of Base
End Plane
of Tray
15
30
B
Clamping Claw
Tray
Clamping claw being
engaged with the hole
Anchor Hole
Lever
Tray
Roller
Max.
2.0
Max. 2.0
Max.
1
3
5. Preparation and Confirmation before Operation
Tg0252-PM-SO0010-001 Chapter 1 2-16-1
5.2.2 Preparation of Magazine
5.2.2.1 Precautions in Magazine Handling
• Do not pile up magazines removed from the unit. Do not put anything
on the upper surface of the magazine. If the magazine is deformed it
can cause such abnormality as machine breakdown when the magazine
is set on the tray feeder.
• When the magazine is put on the desk or floor, ensure there is no dust or
foreign substance on the magazine’s base. If the magazine is placed as
shown in Fig. 1.18-1 and set in the unit with dust or other foreign sub-
stance on the magazine base it can cause breakdown, because the ma-
chine is operated with the magazine inclined.
Fig. 1.18-1
Fig. 1.18-2
5. Preparation and Confirmation before Operation
Tg0252-PM-SO

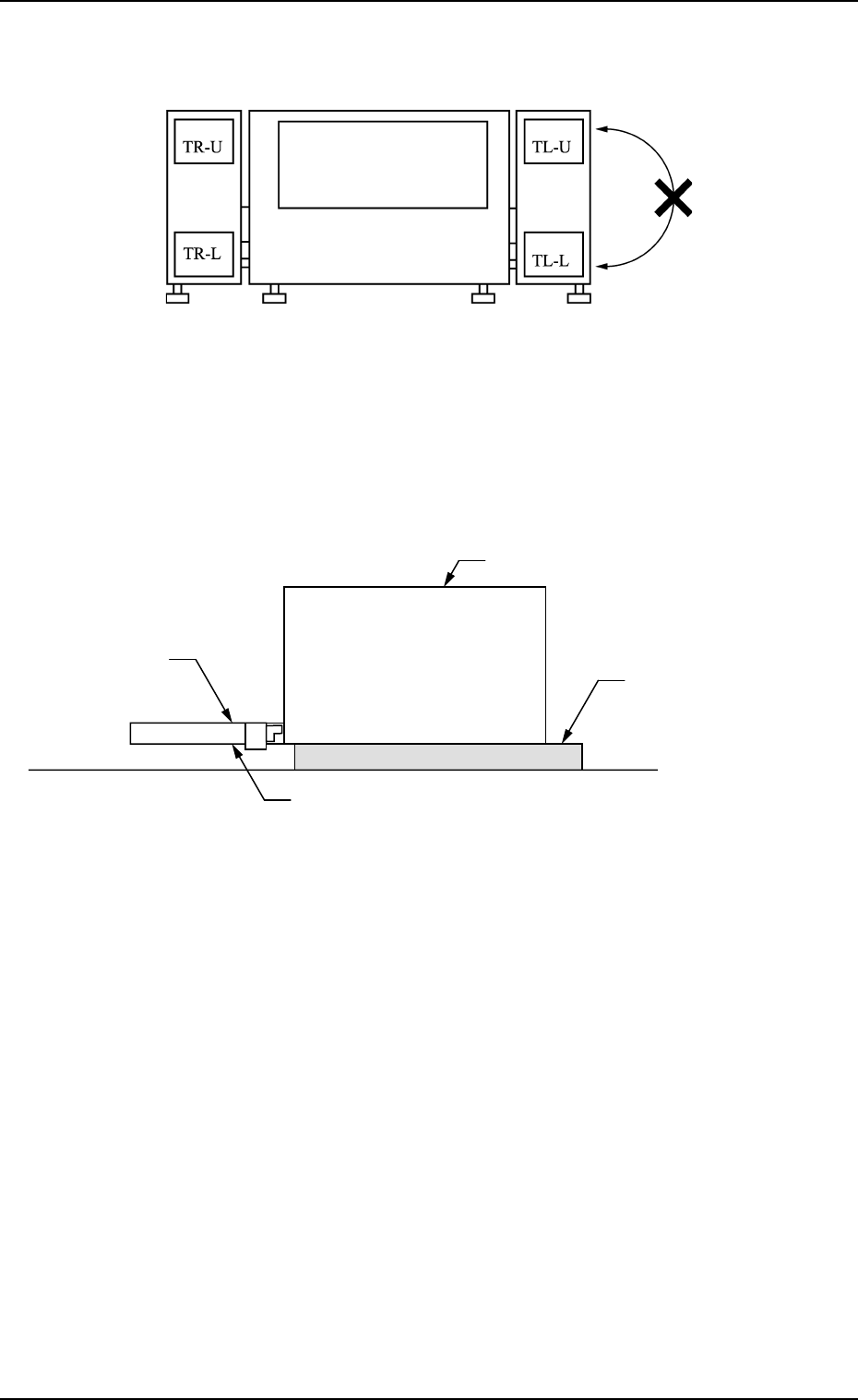

• Do not exchange the upper magazine with the lower magazine or be-
tween the units. It can cause breakdown.
Fig. 1.18-3
0112-002 Chapter 1 2-16-2
• When the magazine door is opened on the tool bench place a board
about 10 mm thick under the magazine so that the magazine door opens
horizontally, then open the magazine door. If the magazine door is opened
without placing such a board, the door can't be opened horizontally.
Fig. 1.18-4
Magazine Door
Magazine
Magazine door is opened horizontally.
Board of about 10 mm thick
