Chapter 5 2-11 Tg0252-PM-SO 4. Parts Location (FP-5021R) 4.1 Whole V iew Layout 4. Parts Location (FP-5021R) Detail A Detail B Side Plane of Machine Layout of Operation Panel Mechanical Parts (Electromagnetic Lock-T ype …
Chapter 5 2-10 Tg0252-PM-SO

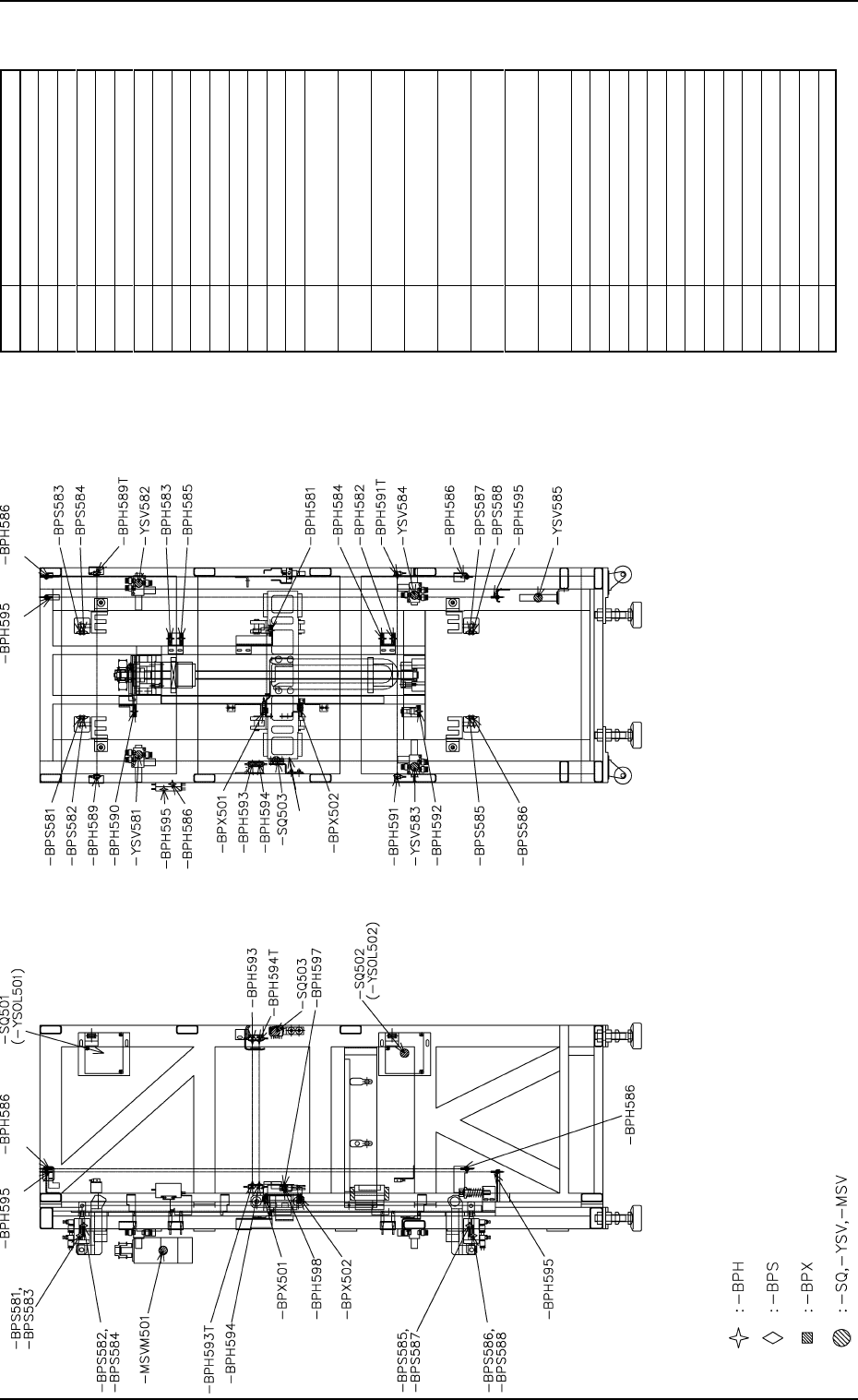

3. Location of Sensors, Switches, and Loads
Note: Proximity Sensors -BPX501 and -BPX502 are mounted on the elevator and move
up and down together with the elevator.
Operation Side of Machine
(Light Projecting Fiber)
(Light Projecting
Side)
(Light Projecting
Side)
(Light Receiving
Fiber)
(Light Projecting Fiber)
(Light Receiving Fiber)
Note
(Amplifier)
(Amplifier)
(Light Projecting
Side)
Driving
Unit (Origin Position)
Note
(Light Projecting
Fiber)
(Light Receiving Fiber)
(Light Projecting
Side)
Note
(Light Projecting
Fiber)
(Light Receiving
Fiber)
3. Location of Sensors, Switches, and Loads
Symbols Name
-BPH581 Elevator Shaft Origin
-BPH582 Elevator Shaft Limit (+)
-BPH583 Elevator Shaft Limit (-)
-BPH584 Elevator Shaft Middle Limit (+)
-BPH585 Elevator Shaft Middle Limit (-)
-BPH586 Ejected Pallet Detection (1)
-BPH589 Upper Magazine Detection Check
-BPH590 Upper Magazine Stationary Position Check
-BPH591 Lower Magazine Detection Check
-BPH592 Lower Magazine Stationary Position Check
-BPH593 Pallet Detection Check (Upper)
-BPH594 Pallet Detection Check (Lower)
-BPH595 Pallet Direction Detection
-BPH597 Pallet Stopper OFF Cylinder Forward Limit
-BPH598 Pallet Stopper OFF Cylinder Backward Limit
-BPS581 Upper Magazine Clutch Connection (1)
Forward Limit
-BPS582 Upper Magazine Clutch Connection (1)
Backward Limit
-BPS583 Upper Magazine Clutch Connection (2)
Forward Limit
-BPS584 Upper Magazine Clutch Connection (2)
Backward Limit
-BPS585 Lower Magazine Clutch Connection (1)
Forward Limit
-BPS586 Lower Magazine Clutch Connection (1)
Backward Limit
-BPS587 Lower Magazine Clutch Connection (2)
Forward Limit
-BPS588 Lower Magazine Clutch Connection (2)
Backward Limit
-BPX501 Upper Magazine Base Connection Check
-BPX502 Lower Magazine Base Connection Check
-SQ501 Upper Door Electromagnetic Lock Switch
-YSOL501 Upper Door Electromagnetic Lock
-SQ502 Lower Door Electromagnetic Lock Switch
-SOL502 Lower Door Electromagnetic Lock
-YSV581 Upper Magazine Clutch Connection (1)
-YSV582 Upper Magazine Clutch Connection (2)
-YSV583 Lower Magazine Clutch Connection (1)
-YSV584 Lower Magazine Clutch Connection (2)
-YSV585 Pallet Stopper OFF
-MSVM501 Elevator Shaft Servo Motor
Side Plane of Machine
0008-002 E(M676YTR--1102)
Chapter 5 2-11 Tg0252-PM-SO
4. Parts Location (FP-5021R)

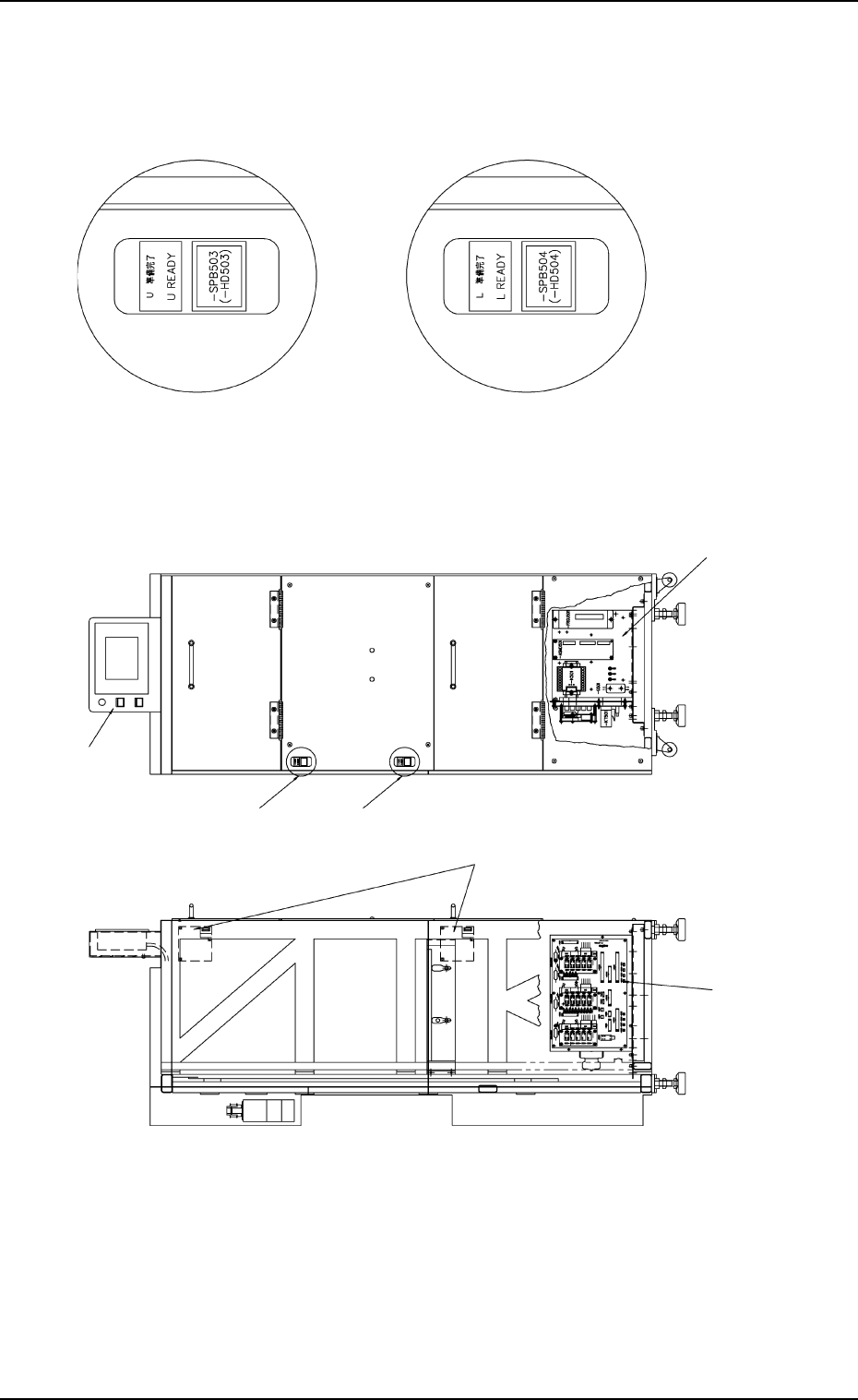

4.1 Whole View Layout
4. Parts Location (FP-5021R)
Detail A
Detail B
Side Plane of Machine
Layout of Operation
Panel
Mechanical
Parts
(Electromagnetic
Lock-Type
Door Switch)
Power Source Section
Relay PCB
Operation Side of Machine
A
B
0010-002-(M742YTR--2101)
Chapter 5 2-12 Tg0252-PM-SO

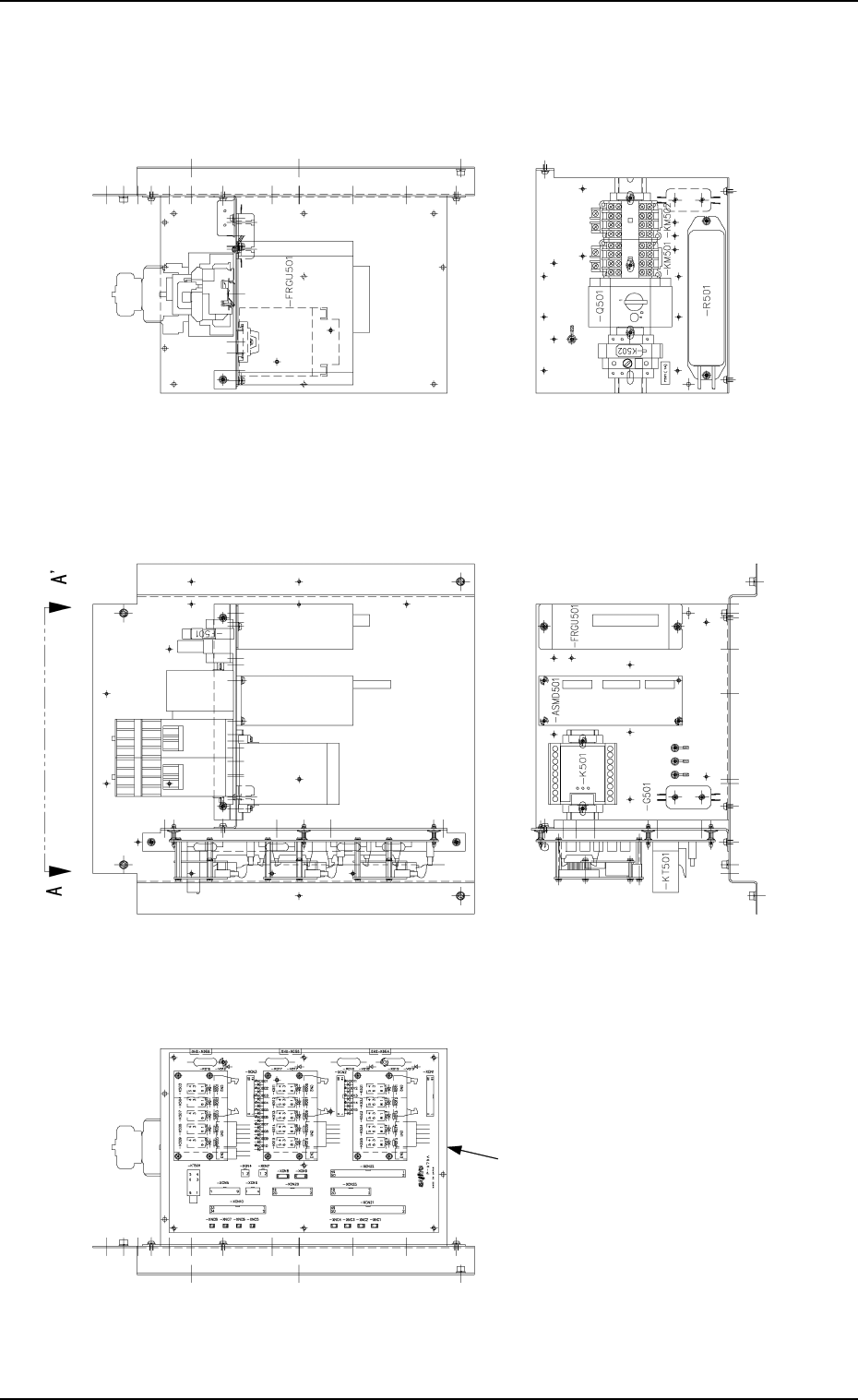

4.2 Power Supply Section Layout
4. Parts Location
Sectional View A-A’
SDS Layout
0112-003 A(M742YTR--2103)
