3. Case: Power is not supplied to the elevator shaft

3. Case: Power is not supplied to the elevator shaft.

0112-003

Power is not supplied to the elevator shaft.

Are the upper and

lower doors closed?

Are they locked?

Are the upper and lower

magazines disconnected?

Close the upper and lower doors and

press [U READY] and [L READY]

buttons.

The doors are locked.

Consult our service or marketing

department for details.

Consult our service or marketing

department for details.

YES YES

0010-002 Chapter 3 2-1

Tg0252-PM-SO

Troubleshooting based on Error Indication

Section 2

0005-002 Chapter 3 2-2 Tg0252-PM-SO

1. ERROR Display

When a device in operation is interrupted or stopped in an error condition

(error condition detected as impossible to continue the operation), an “ER-

ROR” display (Fig. 3.2) appears on the screen.

The same display also appears on the operation monitor of the main machine.

Refer to “Error Messages of Section 2 in Volume 3” in the main machine

instruction manual for details.

• When an error occurs during automatic operation, the tower light of the

main machine illuminates (standard setting) and an “ERROR” display ap-

pears on the screen. The “ERROR” display also appears when an error oc-

curs while a device is running (while the LEDs of the [START], [MOVE],

[ZERO], and [READY] buttons are ON).

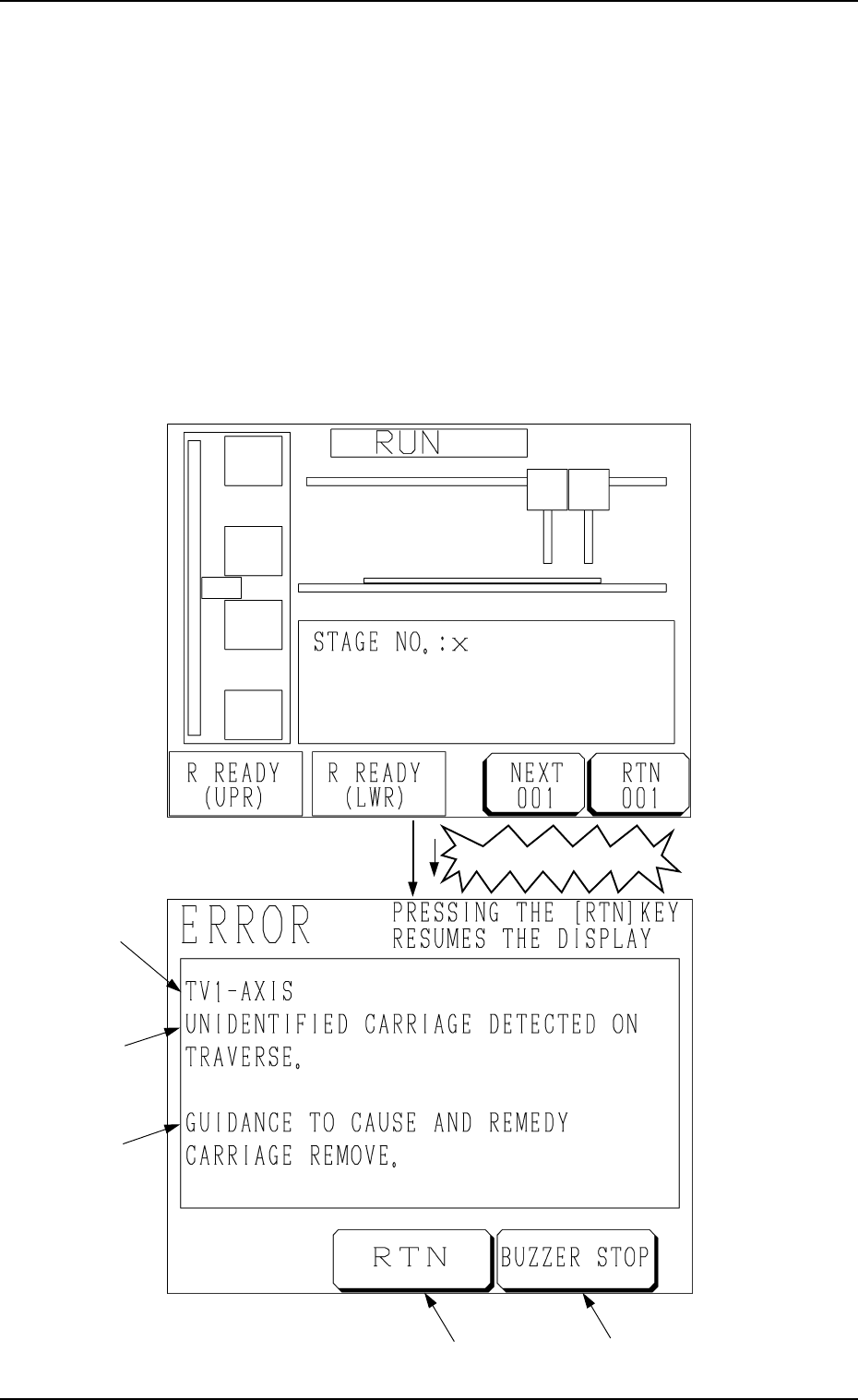

Fig. 3.1

Fig. 3.2

“Occurrence of Error”

1. ERROR Display
