Tg0252-PM-SO 7. Precautions in Affixing Positions for W arning Labels 7.3 Affixing Positions for W arning Labels on Magazine The figure shows Magazine L (MG-5050L). Magazine R (MG-5050L) has the same structure. 01 12-001…
7. Precautions in Affixing Positions for Warning Labels
Tg0252-PM-SO5801 12-001
Description: Do Not Touch Any Internal Sections
of the Machine.
Results: Electric Shock, Fire, Smoke
Prevention Measure: Turn off the power.
Description: Do Not Wear Loose Clothing;
it may get Caught In Moving Mechanisms.
Results: Injury or Collision of Components
Prevention Measure: Keep your hands, and anything else,
away from the moving range of the
operating machine.
Description: Keep Hands Clear
While Machine is Cycling
Results: Injury or Collision of Components
Prevention Measure:
Keep your hands, and anything else,
away from the moving range of the
operating machine.
Tg0252-PM-SO
7. Precautions in Affixing Positions for Warning Labels
7.3 Affixing Positions for Warning Labels on Magazine
The figure shows Magazine L (MG-5050L).
Magazine R (MG-5050L) has the same structure.
0112-001 59
Description: Press the black circle to close the door.
Result: Distortion of Door
Prevention Measure: Do not press other than with the black circle.
8. Safety Switches
Tg0252-PM-SO0112-001 60
8. Safety Switches
When an error is detected in the machine, the safety features are
designed to stop the dangerous moving mechanisms of the
machine. Everything is processed on the machine side (hardware)
without using any software application on the computer side.
8.1 [EMERGENCY STOP] Buttons
The multi-layer tray feeders are not provided with any emergency
stop button.
The emergency stop buttons of the main machine (TIM-5100) are
commonly used for these feeders. Press any one of the [EMER-
GENCY STOP] buttons of the main machine to stop the machine
immediately in an emergency.
The power is turned off and the machine stops immediately.

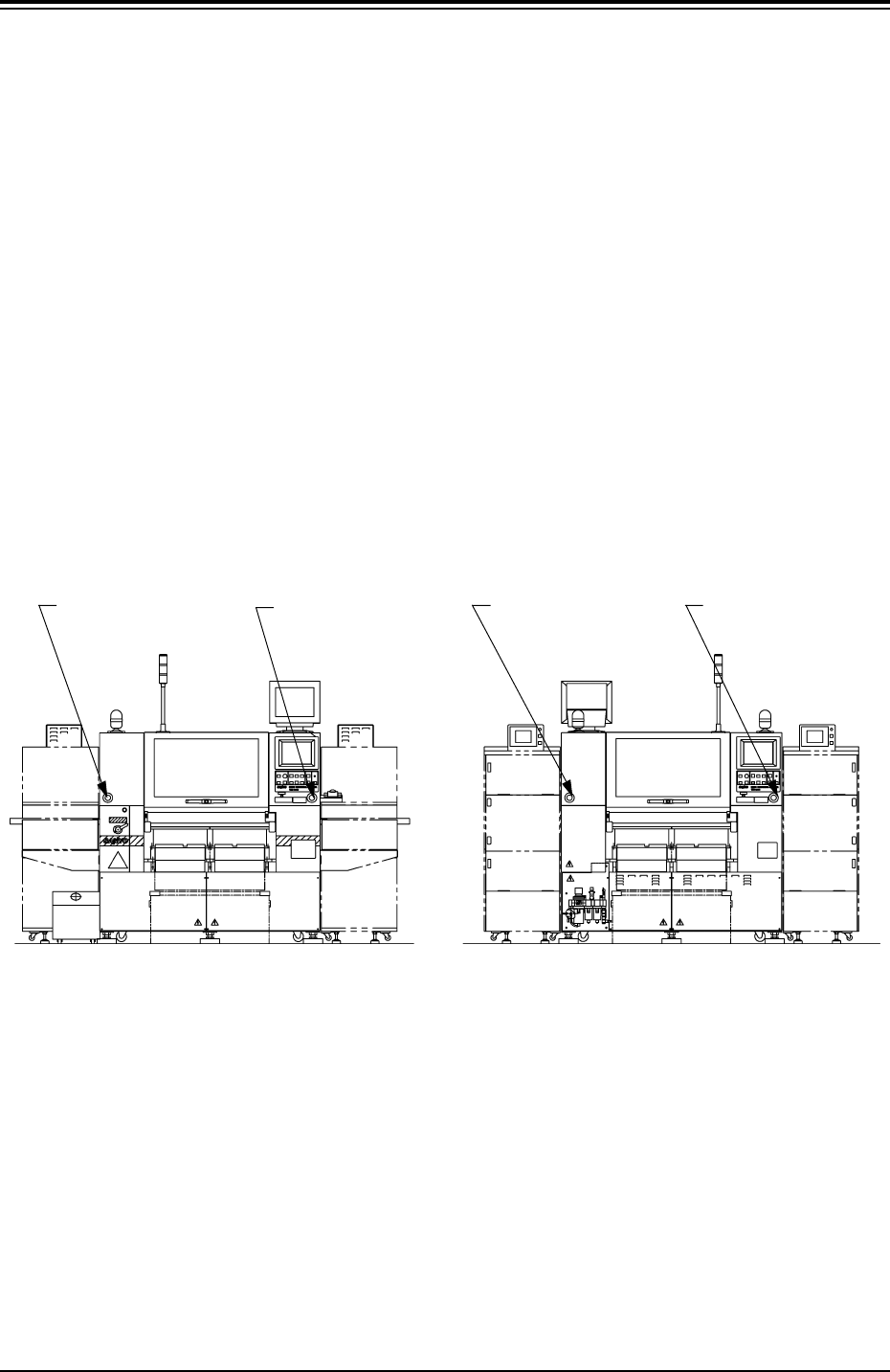

(Front View) (Side B) (Rear View) (Side A)
[EMERGENCY STOP]
Button (2) SPB52
[EMERGENCY STOP]
Button (4) SPB54
[EMERGENCY STOP]
Button (1) SPB51
[EMERGENCY STOP]
Button (3) SPB53
