Tg0252-PM-SO 01 12-002 C h a pt e r 1 3 - 7 Fig. 1.60 (1 1) Confirm that components are supplied completely and press the [YES] key to declare the completion of component replenishment. Pressing the [NO] key resumes the …
Tg0252-PM-SO
0112-002 Chapter 1 3-6
2.1 To replenish components whenever necessary
(1) Press the [STOP] button of the main machine to stop the machine.
(2) Open the “ELEVATOR UNIT” display.
Select the [UPPER MAGAZINE CONNECT/DISCON] or the [LOWER
MAGAZINE CONNECT/DISCON] key and press the [MOVE] button
to separate the pertinent magazine from the elevator shaft.
(3) Open the “COMPONENT REPLENISHMENT” display (Fig. 1.58).
(4) Check the stage (pallet) and the block which caused a component short-
age error.

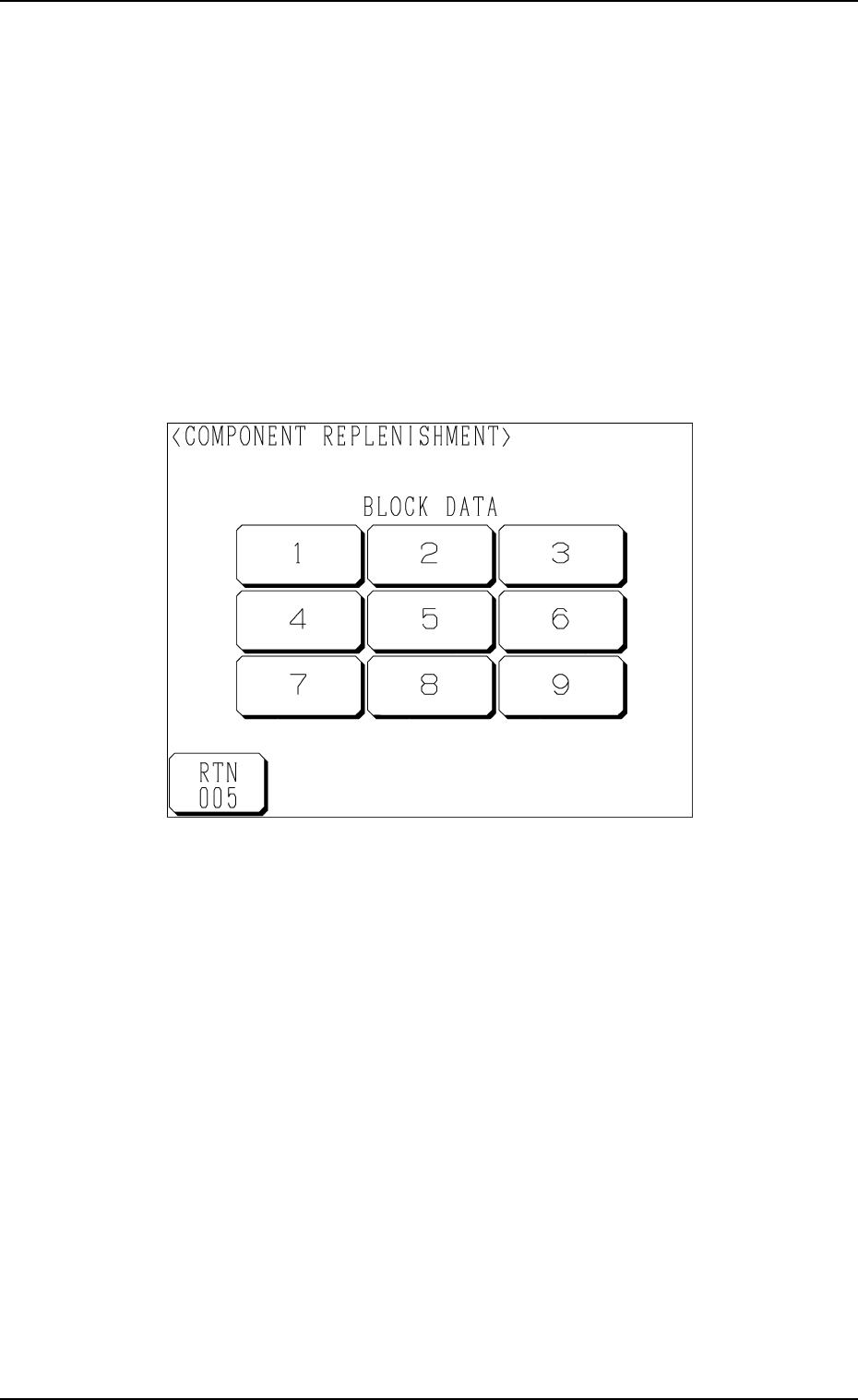

When a block is specified, press the No. key of the stage where a compo-
nent shortage error has occurred. The display (Fig. 1.59) appears on the
screen, enabling you to check the block data.
Fig. 1.59
(5) Press the [U Ready] or [L Ready] key according to the side to which
magazine is to be supplied.
The LED corresponding to the pressed key is turned off and the lock of
the door (upper or lower) is released.
(6) Open the upper or the lower door and then the magazine door.
(7) Pull out the pallet on the stage where components should be supplied and
load it with components.
(8) Press the No. key of the stage in red (ON or flickering) at the display
(Fig. 1.58) and the No. key of the block in red (ON or flickering) at the
display (Fig. 1.59). The keys turn violet.
(9) Confirm that all components are supplied completely and close all doors
(magazine, upper and lower doors).
2. Component Replenishment
Tg0252-PM-SO
0112-002 Chapter 1 3-7

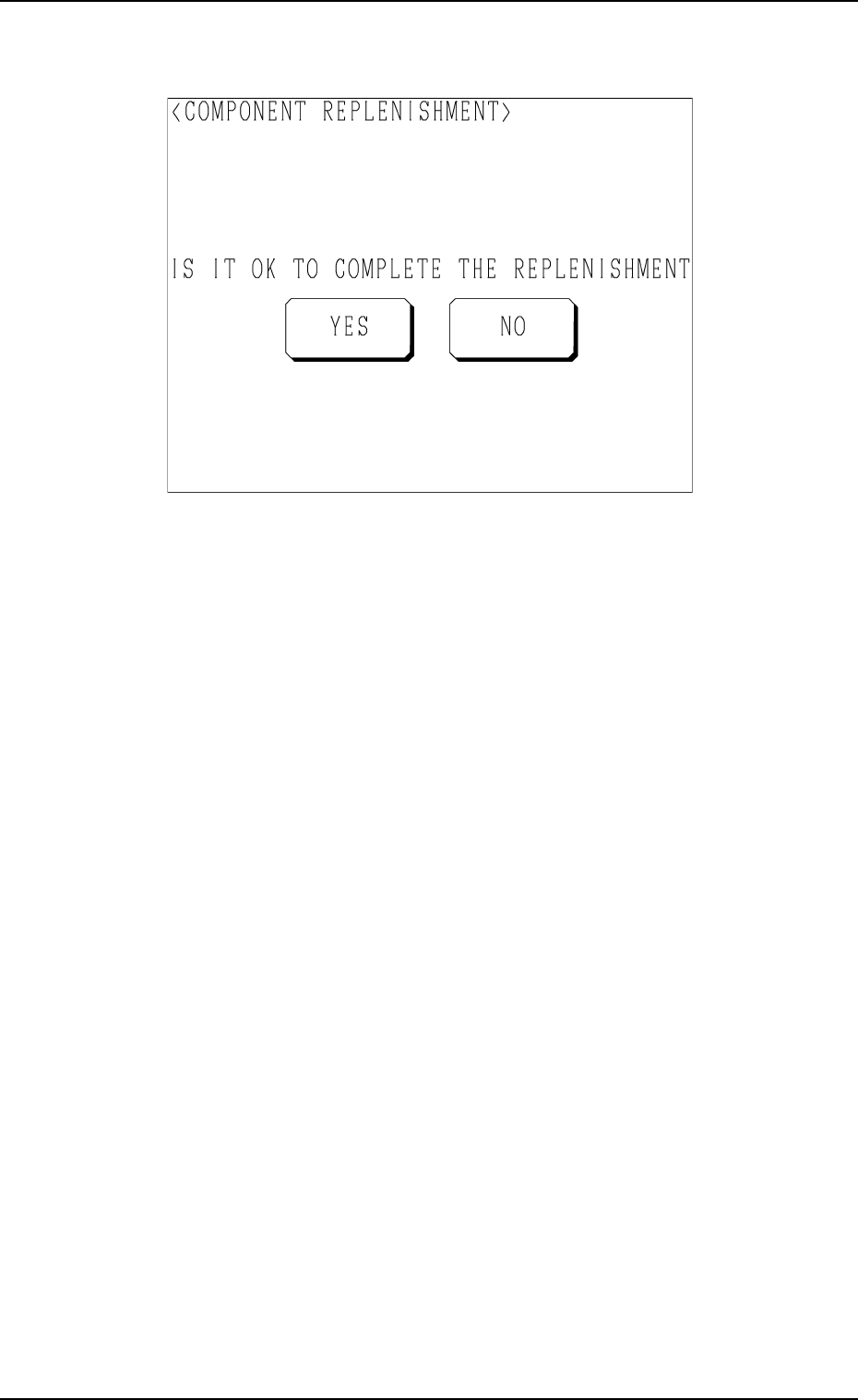

Fig. 1.60
(11) Confirm that components are supplied completely and press the [YES]
key to declare the completion of component replenishment.
Pressing the [NO] key resumes the display (Fig. 1.58).
(12) Press the [U Ready] or [L Ready] key.
The LED corresponding to the pressed key is turned on and the door
(upper or lower) is electromagnetically locked.
Ref.: (a) When several pallets are short of components, follow Step (8)
every time components are supplied or another step (collective
operation) after all components are supplied.
(b) It is also possible to replenish the tray in the middle of process-
ing with components or replace it with another one. In this case,
it is required to update the tray matrix.
Refer to “4. Matrix Change Operations of Section 3 in Chapter
1” in this booklet and “7. Tray Pick-Up Matrix (Option) of
Section 3 in Volume 1” in the main machine instruction
manual for details.
(10) Press the [SUPPLY] key at the display (Fig. 1.58).
The display (Fig. 1.60) appears on the screen.
2. Component Replenishment
Tg0252-PM-SO
9911-001 Chapter 1 3-8
2.2 Confirmation of “Component Replenishment Completed”
Mode before Machine Operation
(1) Open the display (Fig. 1.58).
(2) Check whether or not all stage No. keys are green or black.
When a No. key turns red or flickers in red, it indicates that the stage is
short of components. Replenish the stage with components.
2. Component Replenishment
