1 1.1.3 T ray Chuck Matrix Change Operations Refer to “7. T ray Pick-Up Matrix (Option) of Section 3 in V olume 1” in the main machine instruction manual for details. Operation Procedure (1) When the [TRA Y CHUCK MA TRIX…
(1) Press the [TRAY FEEDER (L)] or the [TRAY FEEDER (R)] key.
Ref.: Both keys cannot be selected at a time.
(2) Press the [MOVE] button of the main machine.
The selected devices are zeroed.
(The LED of the [MOVE] button illuminates while the devices are being
zeroed.)
(3) When the zeroing operation is completed, “” appears in the “STA-
TUS” text box.
(While the current position is being managed or indefinite, “-” appears in
the text box.)
• To zero all devices, select the [ALL] key and press the [MOVE] but-
ton.
All devices possible to be returned to their origins are zeroed.
Note: When the [OPERATION/SET UP] switch is set to the “SET UP”
side, the zeroing operation cannot be performed.
Refer to “5. Zeroing Operation of Section 4 in Volume 1” in the main machine
instruction manual for details.
11. Others
0010-002 Chapter 1 2-40 Tg0252-PM-SO
11.1.3 Tray Chuck Matrix Change Operations
Refer to “7. Tray Pick-Up Matrix (Option) of Section 3 in Volume 1” in the
main machine instruction manual for details.
Operation Procedure

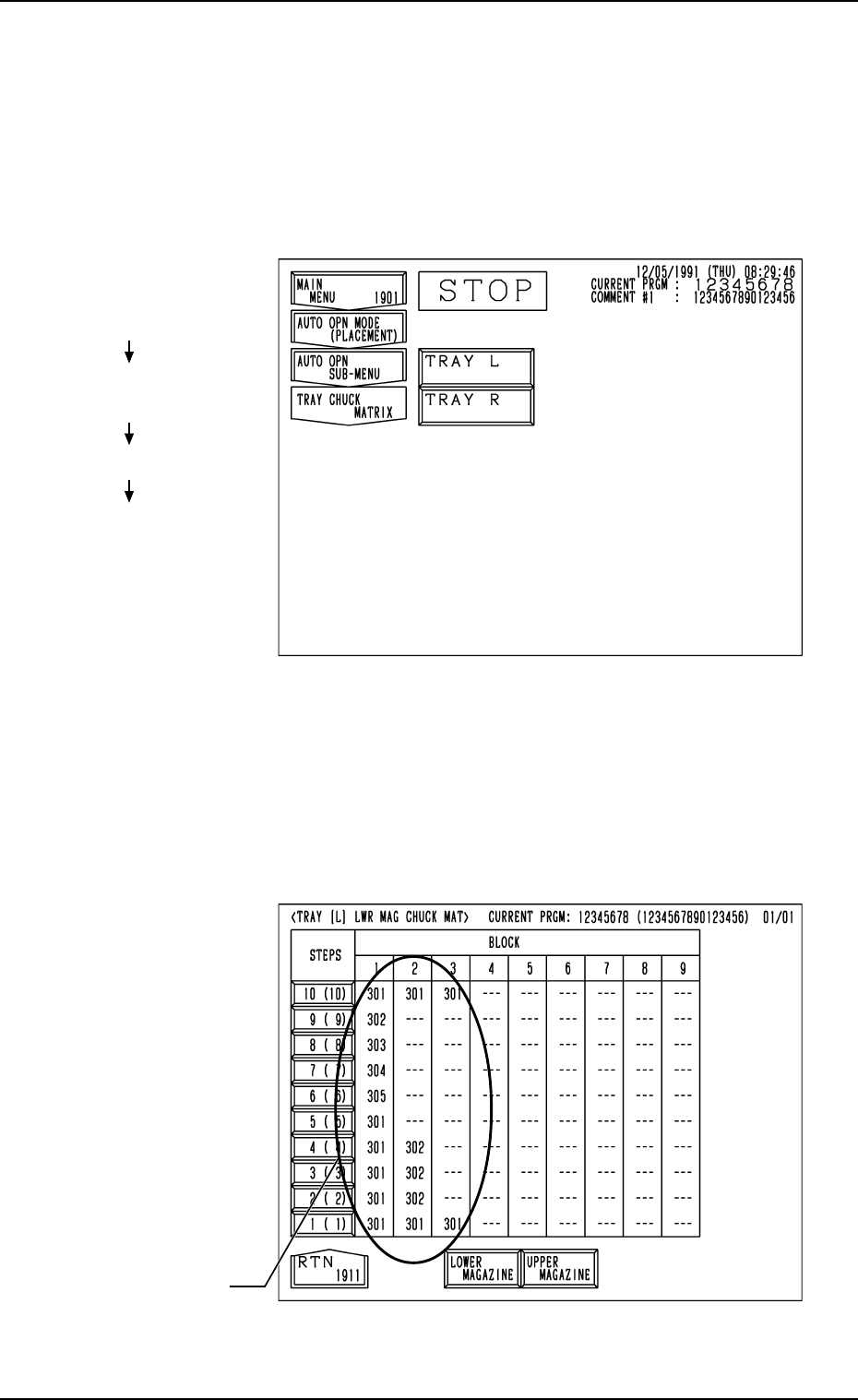

(1) When the [TRAY CHUCK MATRIX] key is pressed at the “AUTO OPN
SUB-MENU” display, the following display appears on the screen.
Fig. 1.48
Fig. 1.47
(2) Press the [TRAY L] or the [TRAY R] key to select the multi-layer tray
feeder L or R.
When the [TRAY L] or the [TRAY R] key is pressed, the following dis-
play appears on the screen.
(In this example, the “TRAY [L] LWR MAG CHUCK MAT” display is
shown. The display for “Tray R” looks like this.)
Hierarchical Sequence
(Display)
“MAIN MENU”
“AUTO OPN MODE
<PLACEMENT>”
“AUTO OPN SUB-MENU”
“TRAY CHUCK MATRIX”
11. Others
FDR. No.
0010-003 Chapter 1 2-41 Tg0252-PM-SO
Background Color of Block Feeder Nos. (FDR. NO.)
Shown are the feeder Nos. (FDR. NO.), the chuck matrix positions, the re-
maining number of components, and the component IDs which belong to each
individual blocks.
Foreground Color of Feeder Nos. (FDR. NO.)

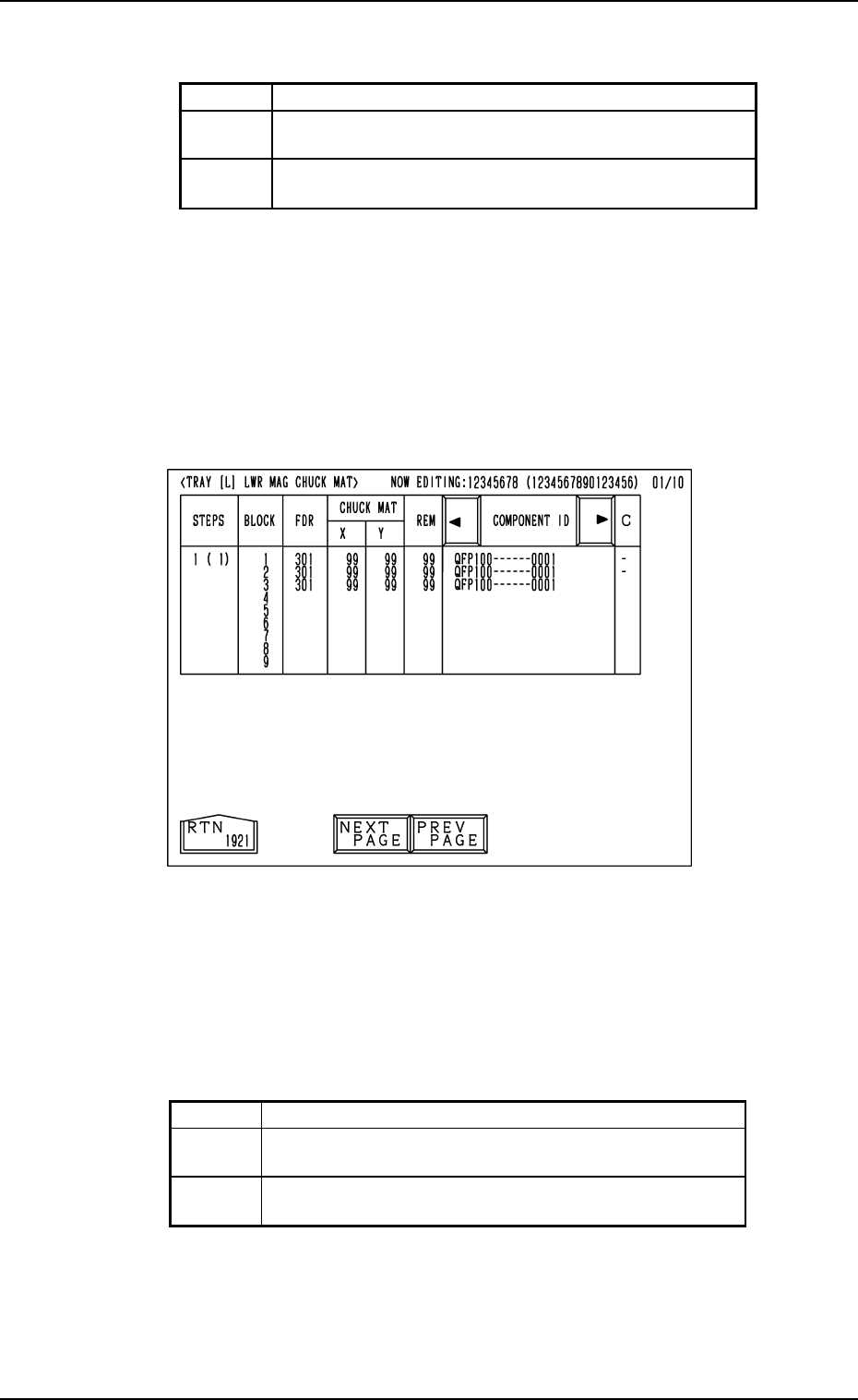

(3) When an arbitrary “STEPS” key is pressed, the “TRAY [L] LWR MAG
CHUCK MAT” display (the display for matrix indication/change) ap-
pears on the screen.
• Case: The machine is in the “RUN” mode (including the “WAIT” mode)
Shown are the matrix positions of the tray components to be picked up sub-
sequently. (Fig. 1.49)
The matrix cannot be changed while the machine is running.
11. Others
Fig. 1.49
Red This indicates that the block is short of components.
Green
This indicates that the block is used in the current
pattern program.
Black
This indicates that the block is not used in the current
pattern program.
Red This indicates that the block is short of components.
Green
This indicates that the block is used in the current
pattern program.
White
This indicates that the block is not used in the current
pattern program.
Table 1.8
Table 1.7
