5. Preparation and Confirmation before Operation Tg0252-PM-SO Fig. 1.27 Fix the partition plate. (Same for right and left.) (5) Check visually that the partition plate is correctly placed on the block and that the partit…

5. Preparation and Confirmation before Operation

Tg0252-PM-SO

5.2.2.5 Partition Plate Installation Procedure in Even Steps

(1) Pull the grip of the magazine door fixture down in the direction of Arrow

A to unlatch the magazine door. (Figs. 1.19-1 and 1.19-2 Arrow A)

(2) Open the magazine door. (Fig. 1.19-3 Arrow B)

(3) Place the partition plate on the fixing block (refer to Fig. 1.25) and insert

it in the magazine so that the projections of the partition plate come out

from the openings at the rear wall of the magazine. (Refer to Figs. 1.26-

1 and 1.26-2).

Note : When the partition plate is being set in the magazine, note the direction

of the partition plate. Handle the magazine door and partition plate care-

fully because they are easily deformed. If the magazine door or parti-

tion plate is deformed, an error or machine breakdown might be caused.

Fig. 1.26-1

Fig. 1.26-2

Fig. 1.25 Fixing Block (On the Left) Positions

(Same for on the Right)

Fig. 1.24 Partition Plate

Bolt

Step No.

Fixed block with the partition plate removed

Opening where the partition

plate protrusions are inserted

Condition showing protrusions

coming out from the openings

Protrusions

0112-004 Chapter 1 2-20

5. Preparation and Confirmation before Operation

Tg0252-PM-SO

Fig. 1.27 Fix the partition plate. (Same for right and left.)

(5) Check visually that the partition plate is correctly placed on the block and

that the partition plate shows no warpage or deformation.

Note: If there is any nonconformity, repeat the attachment procedure

from the beginning because it might cause machine breakdown.

(4) Press the partition plate with the fingers so that it does not rise, as shown

in Fig. 1.27, and fix it with bolts (left and right, two locations)

9911-001 Chapter 1 2-21

5. Preparation and Confirmation before Operation

Tg0252-PM-SO

5.2.3 Attachment and Detachment of Magazine

5.2.3.1 Attachment of Magazine

Described below is how to attach the magazine to the internal sections of the

elevator for the first time after a multi-layer tray feeder is installed.

(1) Perform the zeroing operation.

Refer to “2. Zeroing Operation of Section 4 in Chapter 1” and “11.1.2

Zeroing Operation Maneuvered on Main Machine Side of Section 2 in

Chapter 1” for details.

(2) Press the [U READY] or the [L READY] button on the magazine loaded

side.

The LED of the pressed button extinguishes.

Ref.: While the LED of the [U READY] or the [L READY] button is

“ON”, the door (the upper or the lower door) cannot be opened.

(3) Hold the grip of the door whose button is pressed in Step (2) and pull it

forward to open the door.

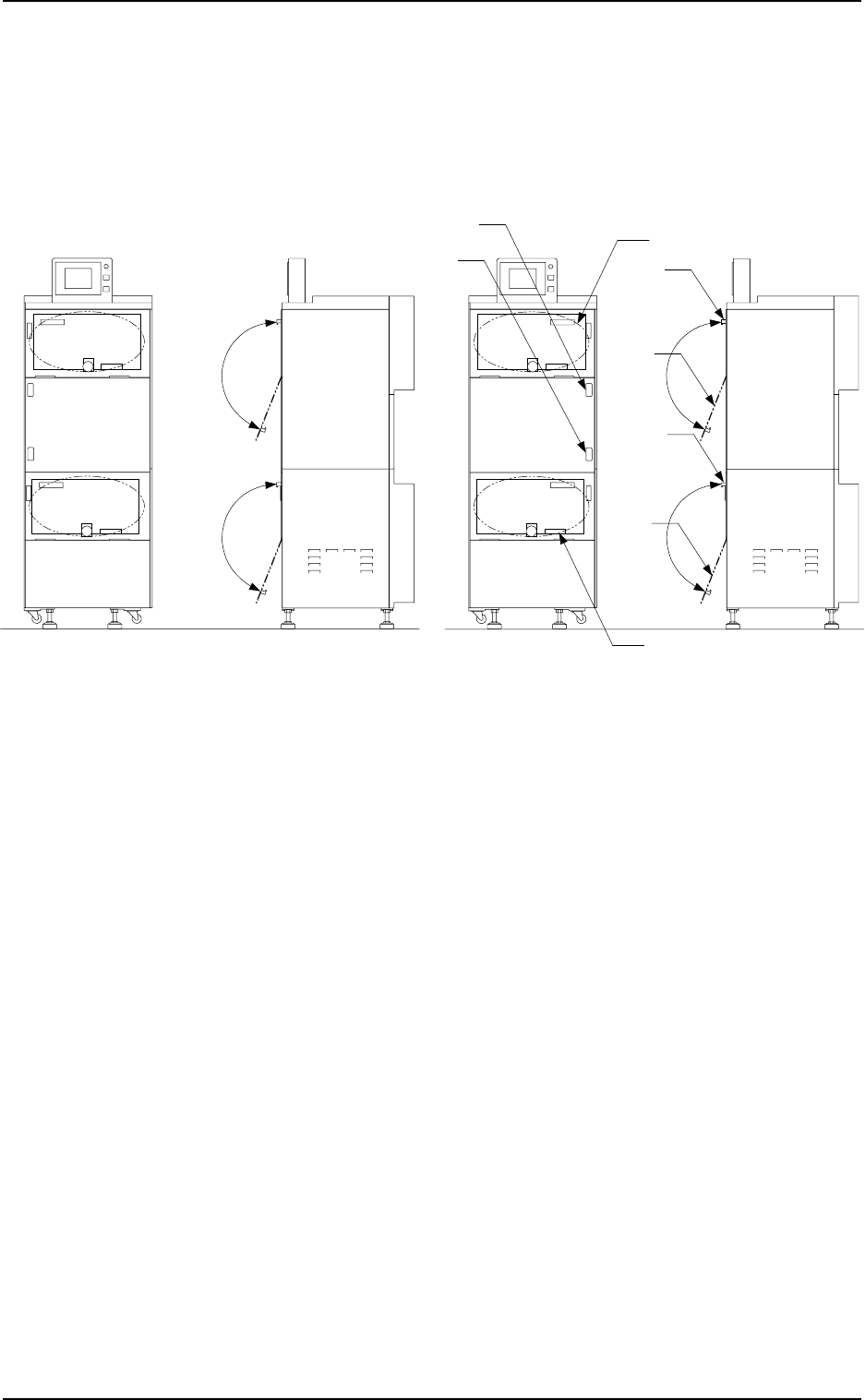

Fig. 1.28-1 Rough View (FP-5021L)

Fig. 1.28-2 Rough View (FP-5021R)

Magazine Base

Upper

Door

Lower

Door

Grip

[L READY] Button

[U READY] Button

Magazine Base

9911-001 Chapter 1 2-22
