7. Precautions in Affixing Positions for Warning Labels
Tg0252-PM-SO
7. Precautions in Affixing Positions for Warning Labels
7.1 Warning Labels
Warning labels have been affixed close to positions of concern.
When the machine is to be operated, read the instructions on the warning labels before the operation.
Precautions in Handling Warning Labels
• If a warning label becomes dirty, clean it with water or neutral detergent solution.
Do not use gasoline or organic solvent.
• If the dirt can not be removed, and the working label is damaged or peeled off, contact our Marketing Dept. or agency.
• When a warning label is to be replaced, check that the new warning label is the same as the old one.

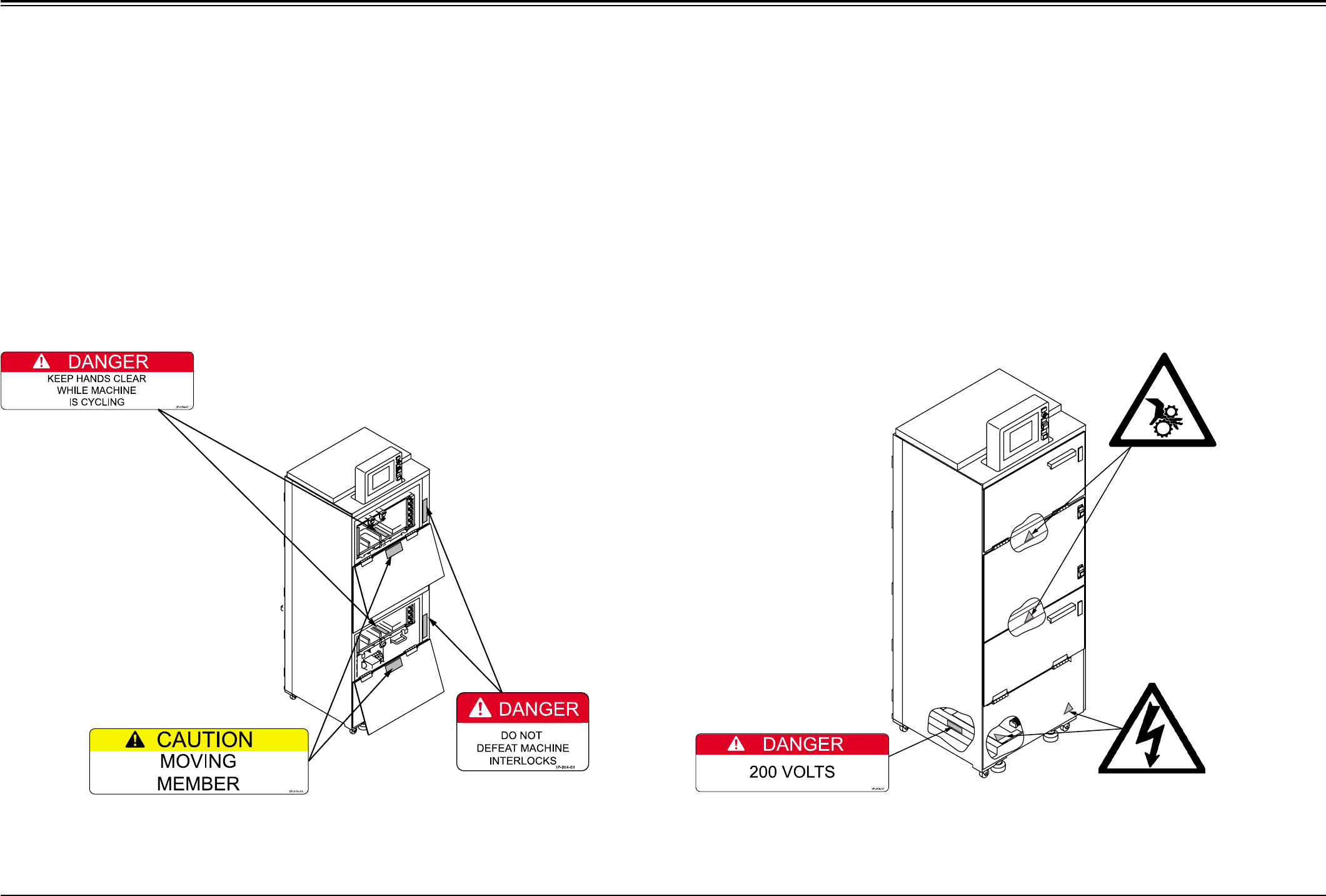

7.2 Affixing Positions for Warning Labels on the Multi-Layer Tray Feeder
The figure shows the FP-5021L model. In the case of FP-5021R model, the warning labels are affixed symmetrically with the FP-5021L model, just as in a reflected image.
01 12-001 57
Description: Do Not Defeat Machine Interlocks.
Results: Injury or Collision of Components
Prevention Measure: Do not modify the device.
Description: Moving Member
Results: Injury or Collision of Components
Prevention Measure: Keep your hand, and anything else,
away from the moving range of the
operating machine.
Description: Keep Hands Clear While Machine is Cycling
Results: Injury, or Component Collision
Preventive Measure: Keep your hand, and anything else,
away from the moving range of the operating machine.
Description: Do Not Touch Any Internal
Sections of the Machine.
Results: Electric Shock, Fire, Smoke
Prevention Measure: Turn off the power.
Description:
Keep Hands Clear While
Machine is Cycling
Results: Injury or Collision of
Components
Prevention Measure:
Keep your hand or thing away
from the moving range of the
operating machine.
Description: 200 VOLTS
Results: Electric Shock, Fire or Smoke
Prevention Measure: Turn off the power.

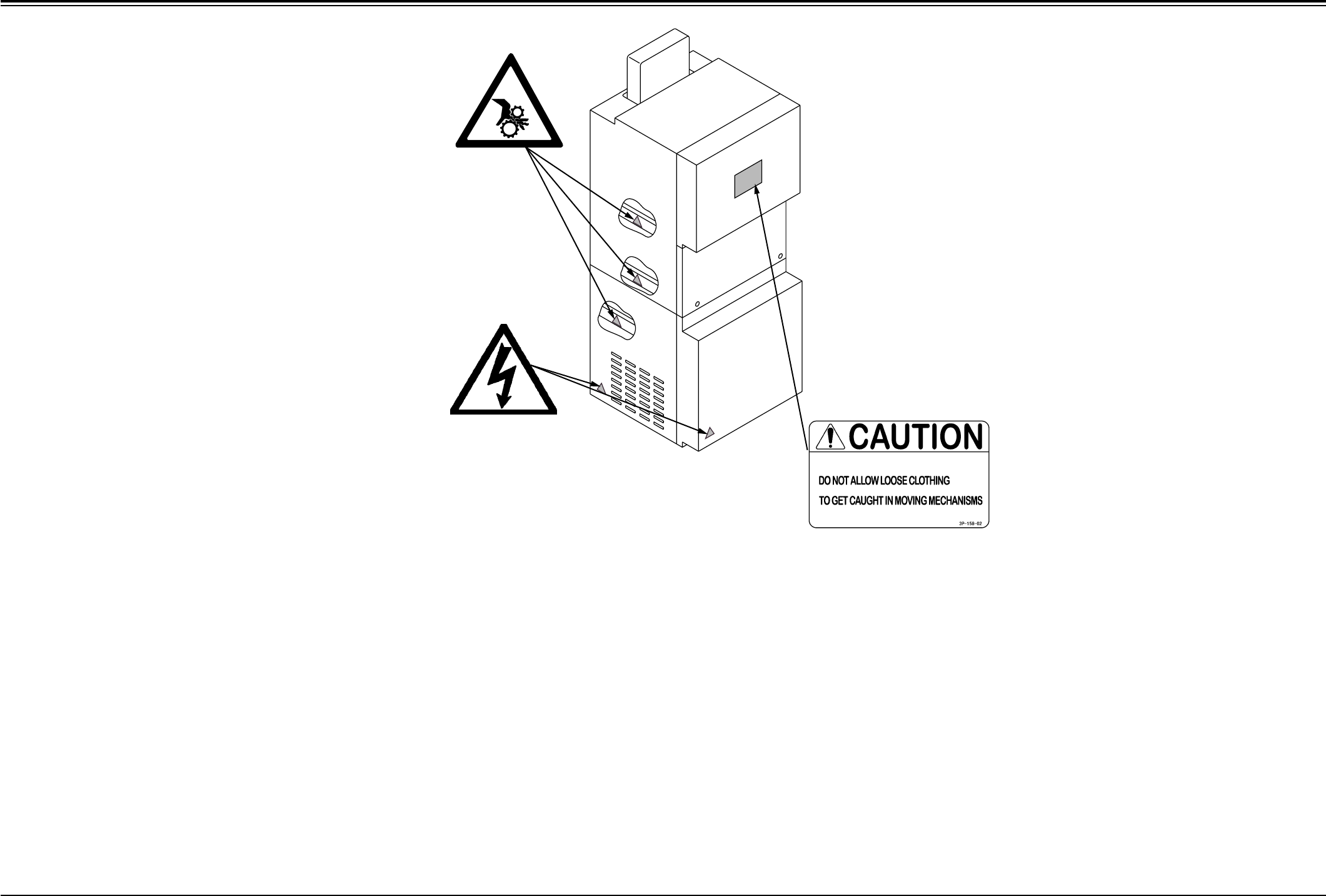

7. Precautions in Affixing Positions for Warning Labels
Tg0252-PM-SO5801 12-001
Description: Do Not Touch Any Internal Sections
of the Machine.
Results: Electric Shock, Fire, Smoke
Prevention Measure: Turn off the power.
Description: Do Not Wear Loose Clothing;
it may get Caught In Moving Mechanisms.
Results: Injury or Collision of Components
Prevention Measure: Keep your hands, and anything else,
away from the moving range of the
operating machine.
Description: Keep Hands Clear
While Machine is Cycling
Results: Injury or Collision of Components
Prevention Measure:
Keep your hands, and anything else,
away from the moving range of the
operating machine.
Tg0252-PM-SO
7. Precautions in Affixing Positions for Warning Labels

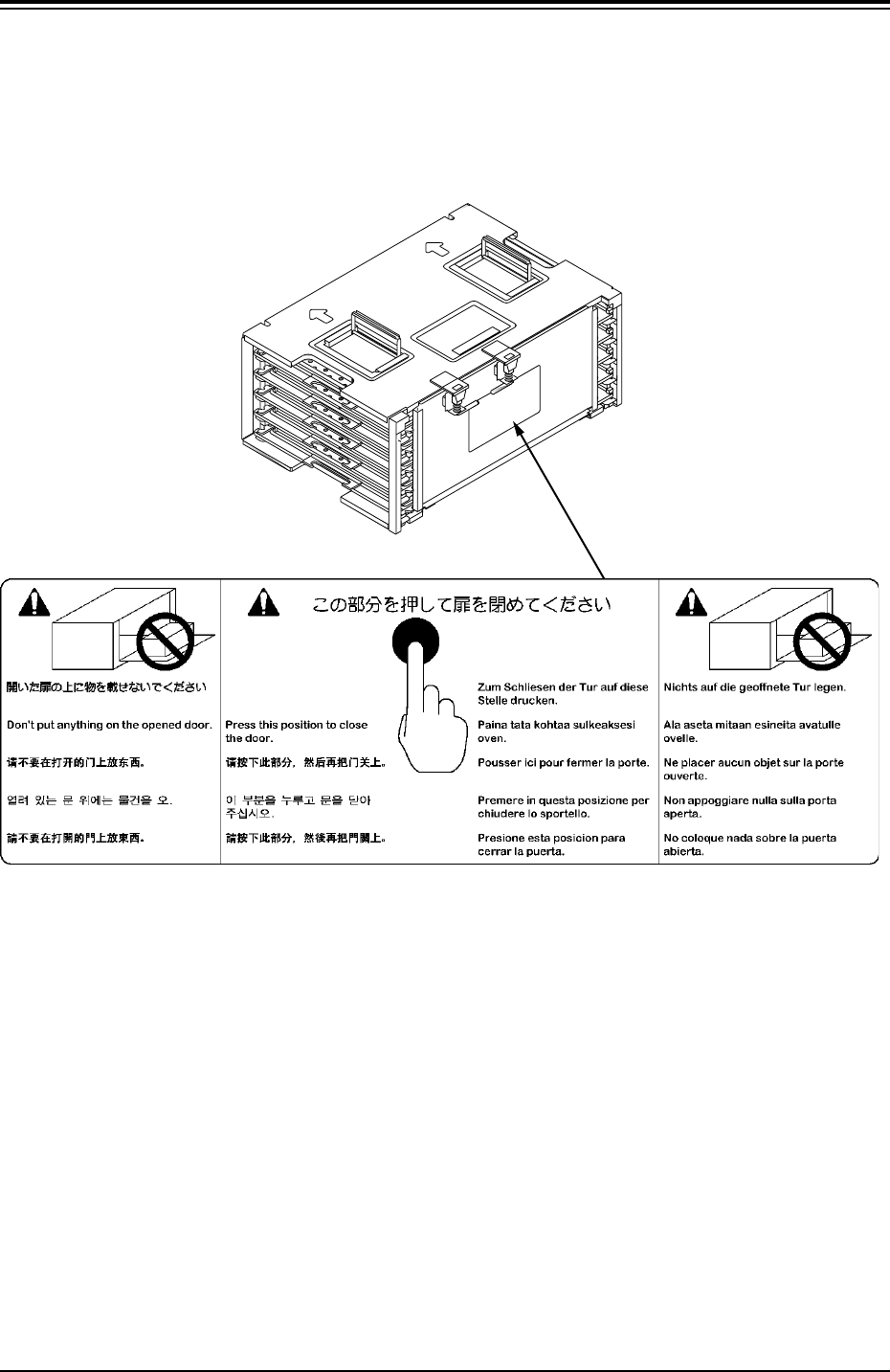

7.3 Affixing Positions for Warning Labels on Magazine
The figure shows Magazine L (MG-5050L).
Magazine R (MG-5050L) has the same structure.
0112-001 59
Description: Press the black circle to close the door.
Result: Distortion of Door
Prevention Measure: Do not press other than with the black circle.
