Procedure for Inversion (leftside right) of Tray Fixing Metal
Note: When the tray fixing metal is used after the parts of the lever section
are rearranged, it must be re-labeled to avoid any mistake in determin-
ing the direction (right or left).
(1) Remove the screw fastening the lever to the base with a Phillips-type
screwdriver.
(2) Remove the screw fastening the spring to the base with a Phillips-type
screwdriver.
(3) Rearrange the direction of the lever.
(4) Fasten the lever to the base with the screw.
• Fasten the lever to “A” in Fig. 1.53 for MG-5050L.
• Fasten the lever to “B” in Fig. 1.53 for MG-5050R.

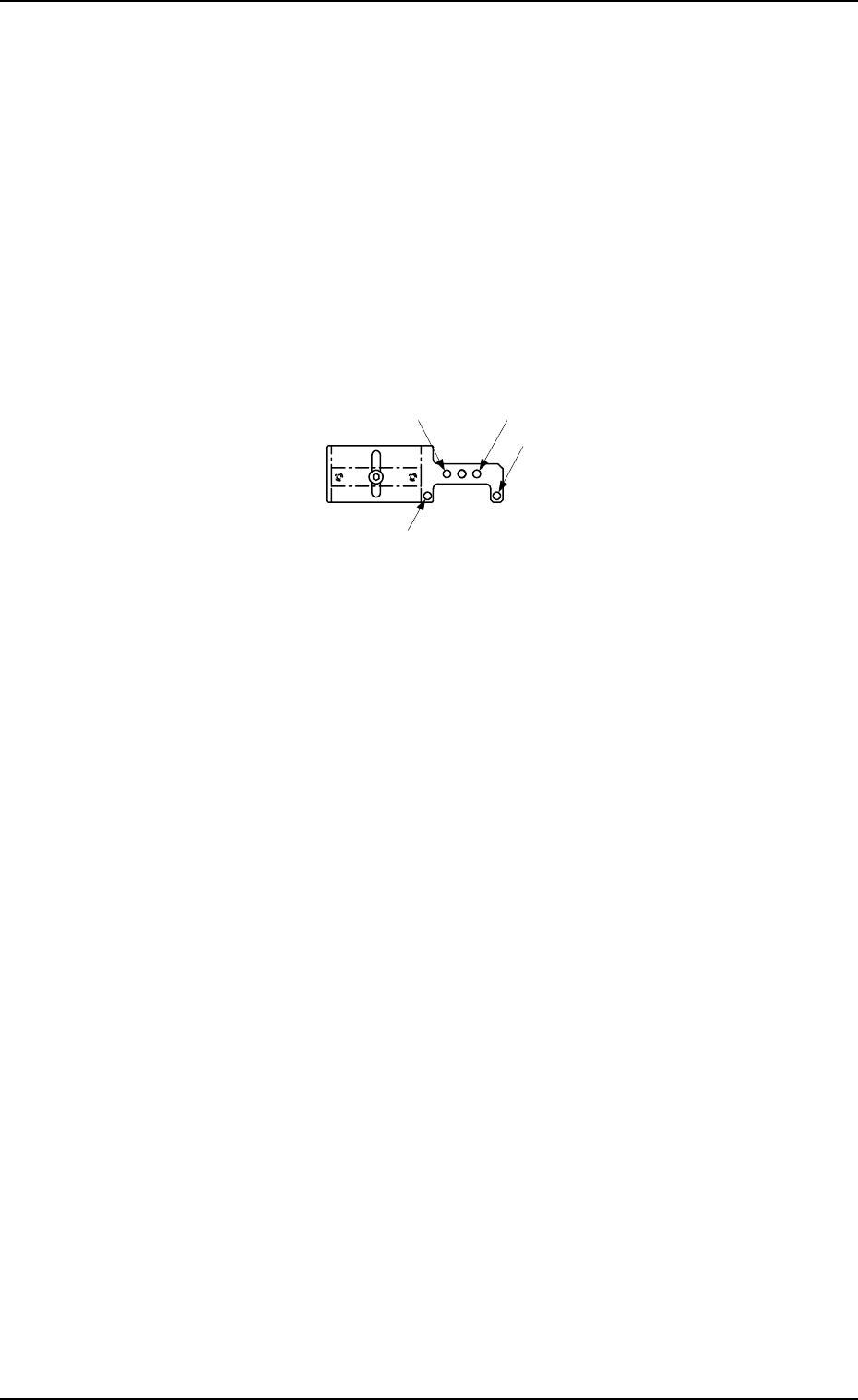

Fig. 1.53 Position where the lever and the spring should be fastened
(5) Fasten the spring to the base with the screw.
• Engage the spring with “C” in Fig. 1.53 for MG-5050L.
• Engage the spring with “D” in Fig. 1.53 for MG-5050R.
