Service Manual
Chapter 6
6
Conveyor unit and air supply unit adjustment
2.2 Pressure-drop detection level
If the air supply pressure drops below this level, the pressure-drop detec-
tion switch triggers emergency stop and prohibits the movement on all
axes. At the same time, the message below appears on the operation
monitor.
Pressure-drop detection
47606-C0-00
QUICK STOP ACTIVE: "NM09 AIR PRESSURE SW",
QUICK STOP FUNCTION for safety is now active.
To continue, please check the supplied air ...
E0806
1 Open the lower right panel on the front side of the
machine.
The pressure control valve knob and residual pressure bleed off knob are
located inside the panel.
2 Adjust the pressure-drop detection level (red needle
setting).
Use a small slotted screwdriver to turn the adjustment screw in the
pressure indicator on the front lower left of the machine so that the red
needle is set at 0.4MPa.

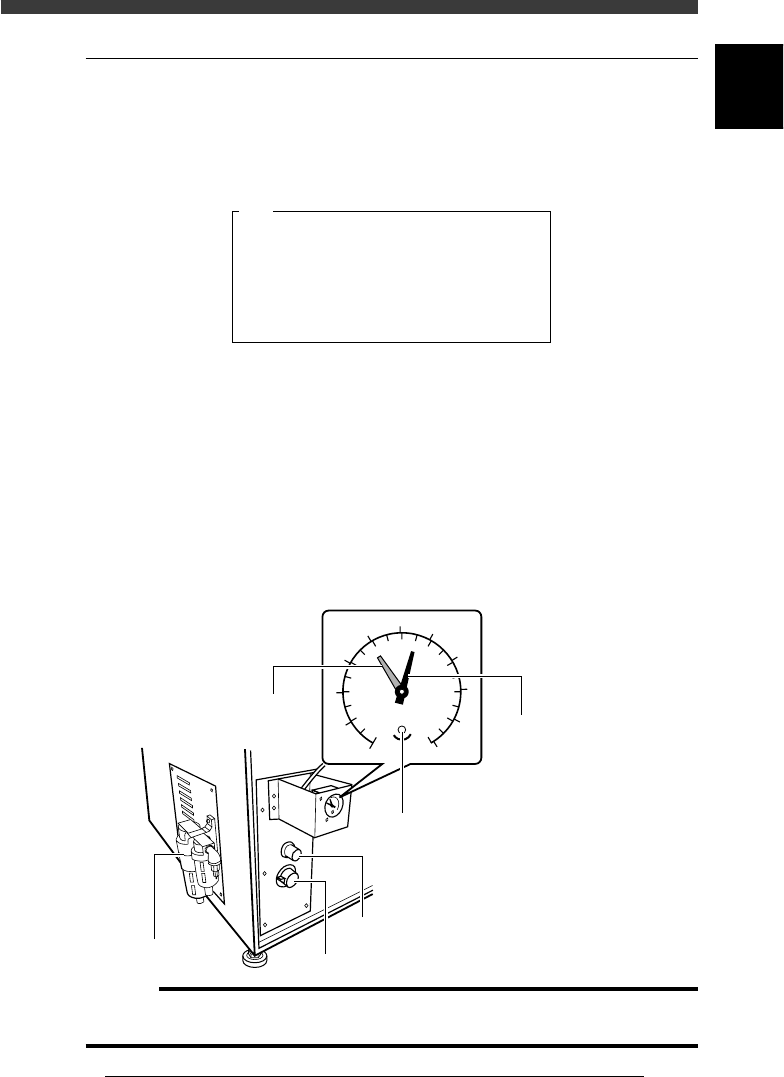

Air pressure-drop level setting
43607-C0-00
0
1
2
3
4
5
6
7
8
9
10
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
MPa
(kgf/cm )
2
Pressure indicator
Pressure bleed off knob
Adjustment screw
(for setting pressure drop detection level)
Pressure indicator needle (black
)
Pressure drop detection level (red)
Pressure control valve knob
Pressure regulator
c
Caution
If this setting is incorrect, the machine cannot detect abnormal pressure (pressure-drop)
in the air supply. Be sure to set this level at the specified value.
Chapter 7
Troubleshooting
1. Pickup errors 7-3
1.1 Chip components .......................................................................................7-3
1.2 QFP components .......................................................................................7-4
2. Mounting errors 7-5
2.1 Chip components .......................................................................................7-5
2.2 QFP components .......................................................................................7-6
3. Recognition errors 7-7
3.1 Chip components .......................................................................................7-7
3.2 QFP components .......................................................................................7-8
3.3 Mark ..........................................................................................................7-9
4. Conveyor 7-10
5. Feeder 7-11
6. FNC nozzles 7-12
7. Others 7-13
Chapter 7 describes possible causes and corrective action for typical
errors which may occur during daily operation.
7
-3
SED8013110
Service Manual
Chapter 7
7
Troubleshooting
1. Pickup errors
1.1 Chip components
45701-D8-00
Symptom
Pickup error
occurs in all
feeders.
Pickup error
occurs in a
specific head.
Pickup error
occurs for a
specific
component.
Possible cause
The nozzle does not
reach components, or
the pickup point is not
correct.
The head offset X, Y
or Z data is incorrect.
The feeder is not
properly installed, or
the tape feeder has a
problem.
The nozzle tip does
not reach the
components, or the
pickup positions are
incorrect.
The reference pickup
vacuum level is
incorrect.
Corrective action
If the nozzle does not reach the
component, then readjust the "Z" value
on the Feeder PlateOffset screen. When
the pickup position shifts, perform
teaching for the feeder plate.
Test-mount components and adjust the
"Head offset X, Y" values based on the
results obtained.
Detach the feeder from the feeder plate
and check for tape feed. If tape feed is
not smooth, replace the feeder. Also
check that no loose chip components
remain at the feeder set position.
If the nozzle does not reach the
component, increase the "Pick Height"
value of the PICK & MOUNT
parameters in the component i
nformation. When the pickup position
shifts, perform reteaching for the pickup
position in the component information.
Increase the reference pickup vacuum
level.
Refer to
4.1 in
Chapter 3
AMF
manual
Feeder
user's
manual
Mounter
operation
manual
2.1 in
Chapter 3
