4-3
4
Daily operation
4
Press the [Start] button to start warm-up.
The warm-up progress time and status appears ion the "Warm-up" screen.

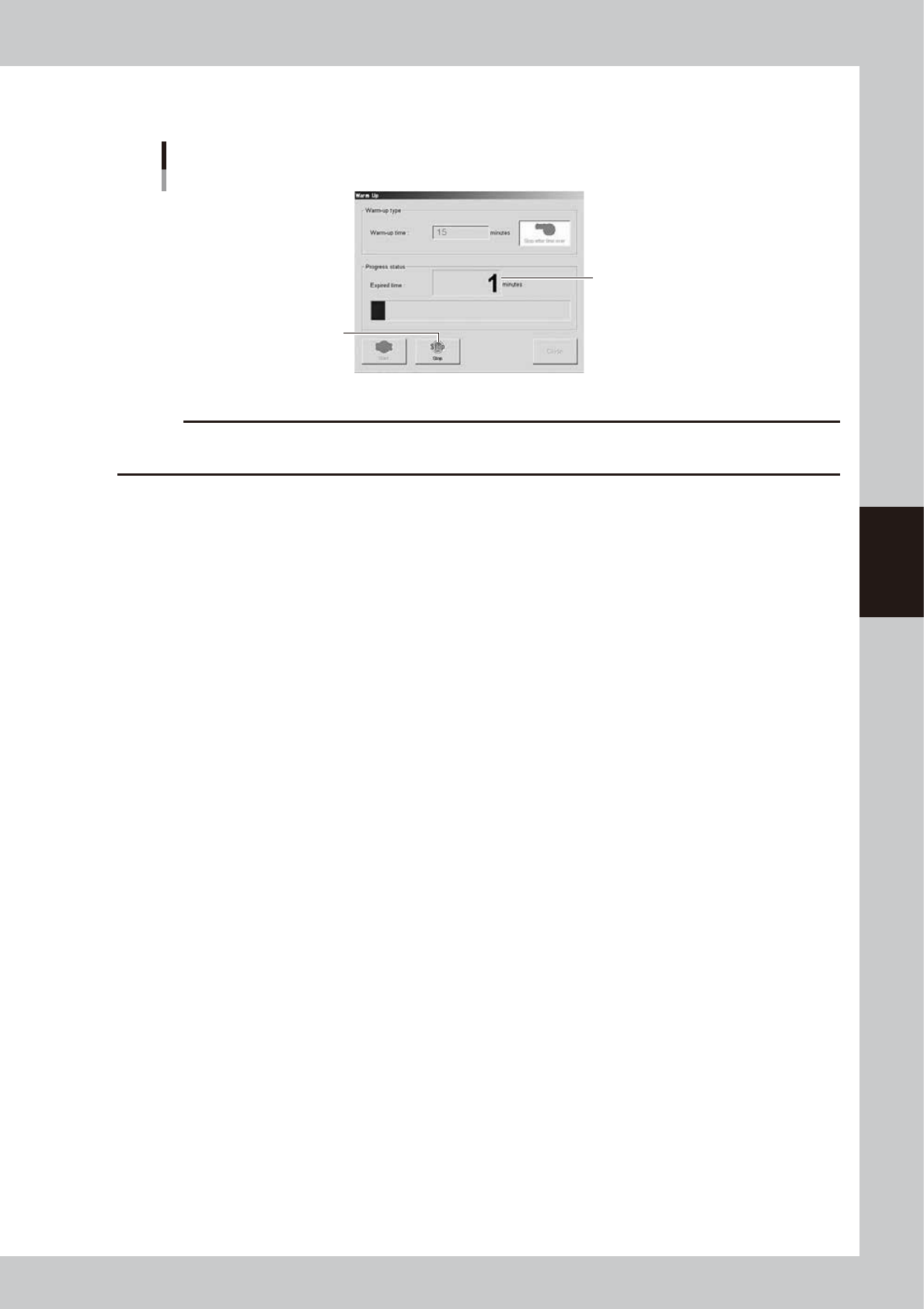

“Warm-up” screen
Warm-up elapsed time
Pressing this button will stop the
warm-up operation.
64403-N1-00
c
CAUTION
If problem occurs during warm-up, press the [Stop] button to stop operation immediately, check the cause of the
problem and eliminate it.
5
End the warm-up.
When the time reaches that set in Step 3, the machine automatically ends the operation.
(To end the warm-up operation halfway, press the [Stop] button.)
After the warm-up has been completed, press the [Close] button to return to the previous screen.
4-4
4
Daily operation

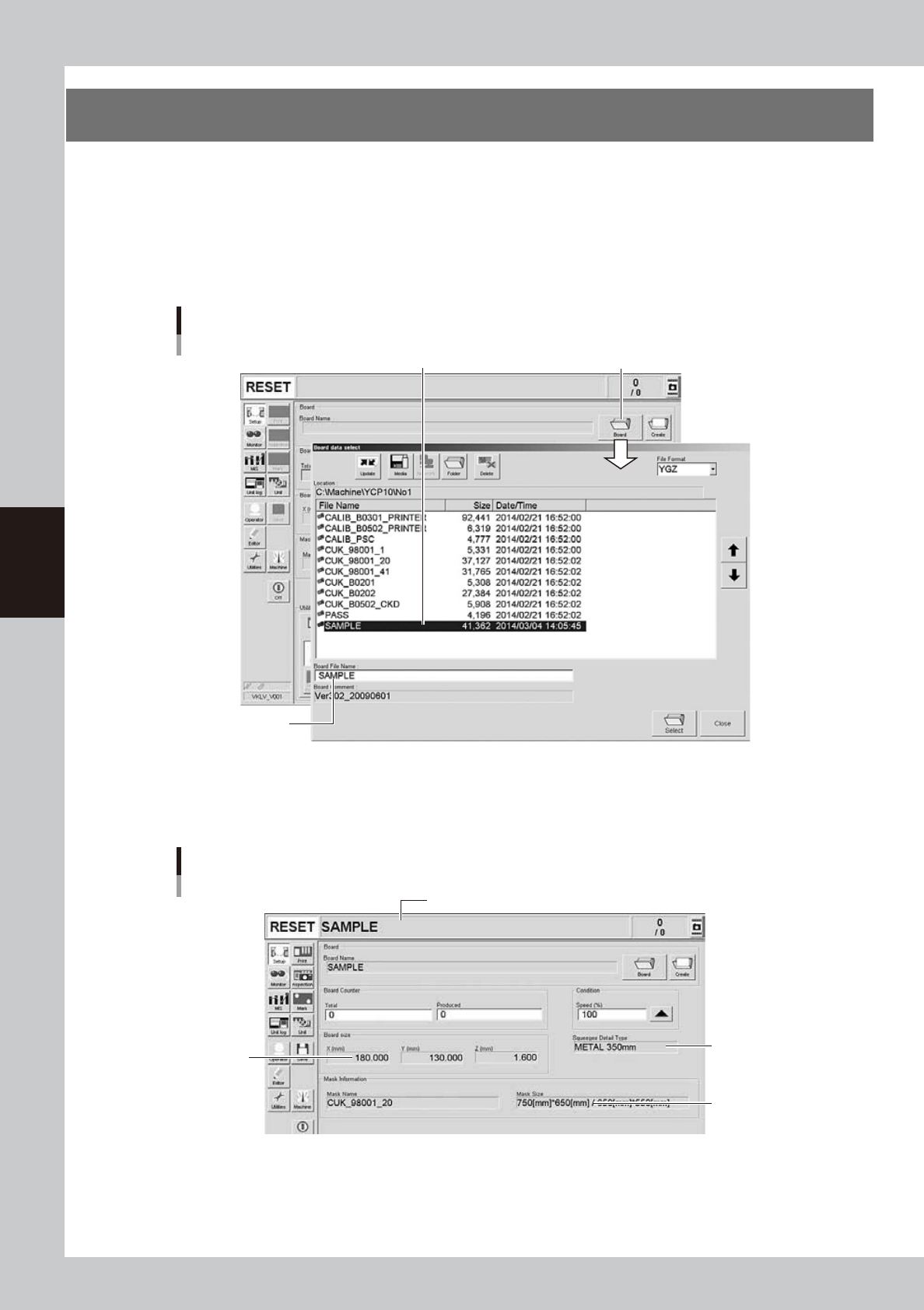

3. Selecting the board data
To start board production, first select the board data from the list of board data already created beforehand.
1
Select the board data.
1. When the board data is not yet selected, press the [Board] button on the Setup screen.
A list of board data appears.
2. Line up the cursor with the board data to be produced and press the [OK] button.
The machine loads the selected board data.
[Board] button
Selecting the board
Select board data from list.
Selected board data
name is displayed.
64404-N1-10
2
Check the board data.
Check that the selected board data name is shown in the status area. Also check that the displayed
board size, mask size and squeegee type are correct.
Setup screen after selecting board data
Selected board name
Board size
Mask size
Squeegee type
64405-N1-10
4-5
4
Daily operation
4. Changing the conveyor unit setup
When producing boards that are different from the previous production board, you need to change the
conveyor unit setup to match the selected board. (This procedure is not necessary when you are producing
the same board as last time.)
c
CAUTION
When producing board whose width is narrower than the previous production board, remove in advance the matrix
pins (or board support jigs) from the push-up plate.
1
Open the [Unit]-[Conveyor] tab.
The buttons on this screen are used in the following steps to change the conveyor unit setup.

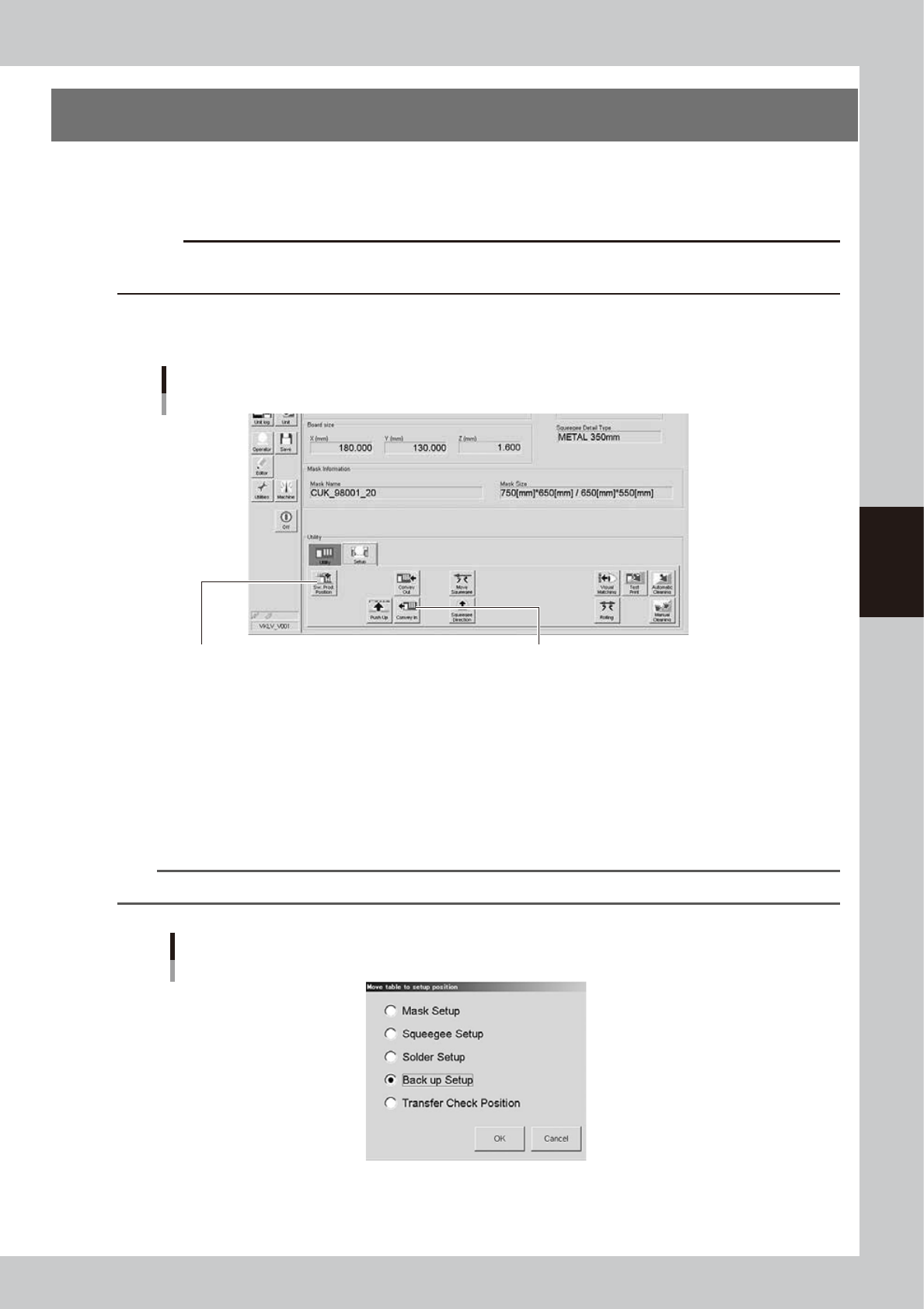

[Unit]-[Conveyor] tab
Step 2:
[SW. Prod. Position] button
Step 5:
[Convey In] button
64406-N1-10
2
Press the [SW. Prod. Position] button.
Select the setup item.
1. When rearranging the backup pins, select “Transfer Check Position”. The conveyor will move to the
setup position and the conveyor width will be automatically adjusted to match the board size.
2. When changing the whole matrix plate, select “Backup Setup”. The conveyor will move to the setup
position and the conveyor will be adjusted to the maximum width, allowing you to remove the matrix
plate.
n
NOTE
When removing the matrix plate, check for safety and then lift it straight up while holding firmly with both hands.
“Move table to setup position” screen
64407-N1-00
